Seoul National University Thermo Fisher Glacios TEM DVIA-MB1000 (MB1000_P218) Installation Report
DVIA-M Series
Installation Report
DVIA-MB1000
MB1000_P218
Seoul National University
Thermo Fisher
Glacios
TEM
Contents

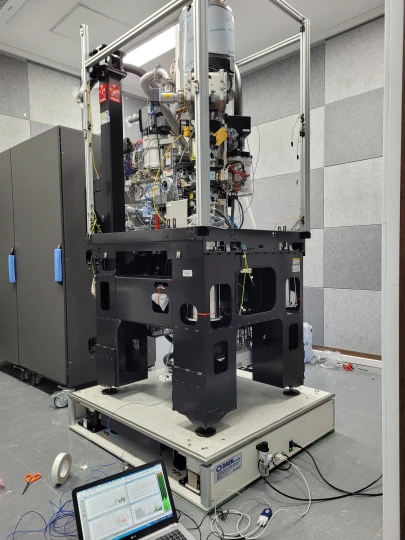

Installation site photo
Overview
| Target equipment | Thermo Fisher_BS Glacios (TEM) |
|---|---|
| Place of installation | 150동 1층 유전공학연구소 |
| Remark | Good Performance |
| END USER | 서울대학교 |
Operator: Choi, HyoungMun
Date of setup : 21.02.22
Date of reporting : 21.02.22
Date of business trip : 17.12.27~17.12.29
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date: 21.02.22 (MON)
Operator: Daeil System, Research engineer Choi, HyoungMun
Place of measurement : 150동 1층 유전공학연구소
Equipment Model: Thermo Fisher_BS Glacios (TEM)
Model: DVIA-MB1000
Serial Number: MB1000_P218
Measurement conditions and results
DAQ System : B&K PULSE 14 & LAN-XI Type 3056
Accelerometer : PCB PIEZOTRONICS 393B05
Frequency Range : 0.7 ~ 200Hz

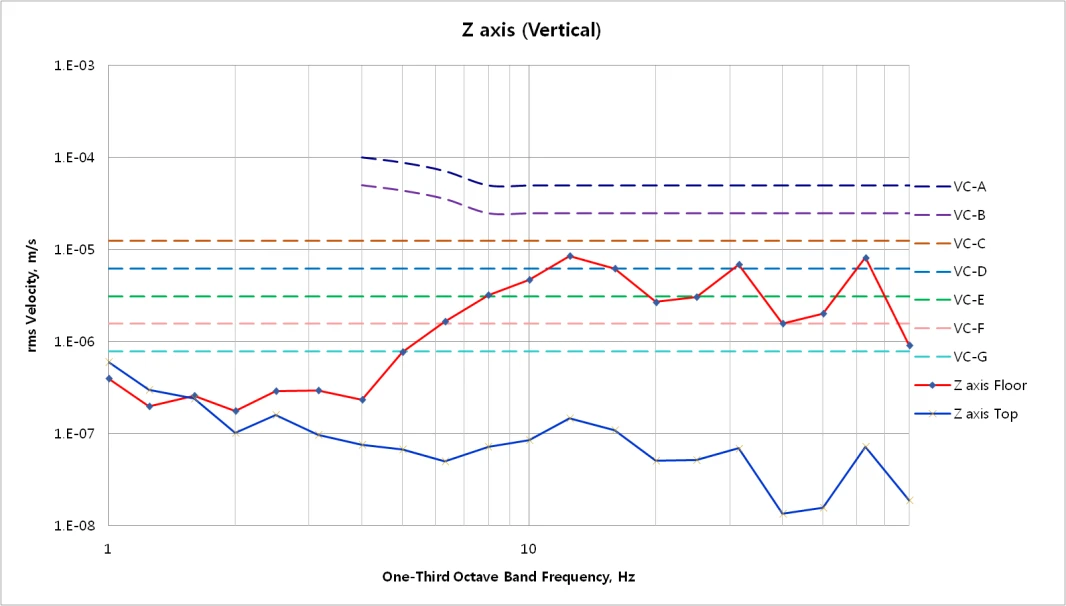

B&K measurement VC (Z axis)

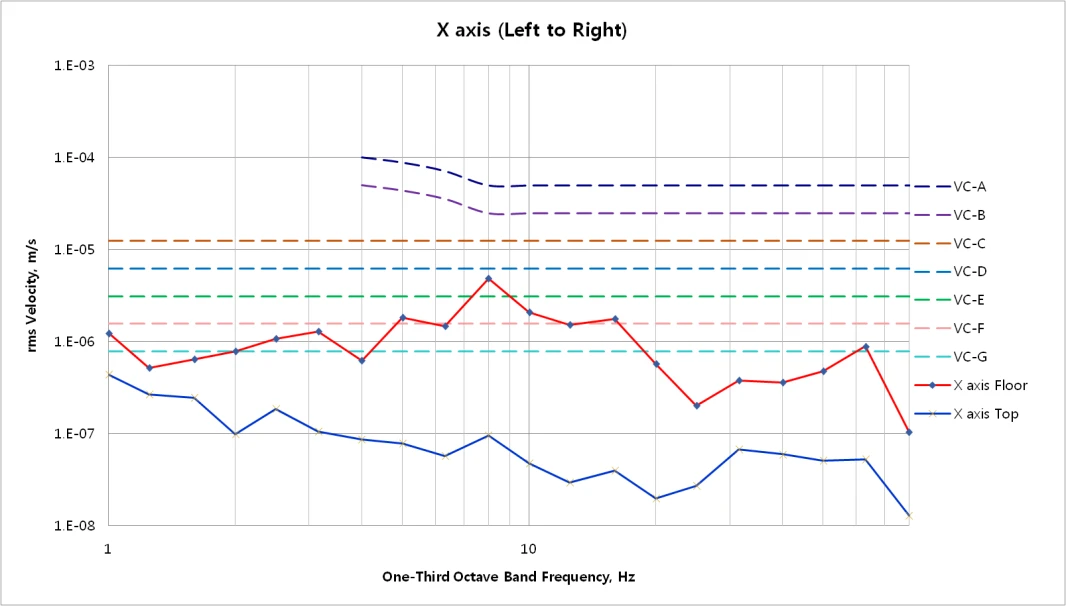

B&K measurement VC (X axis)

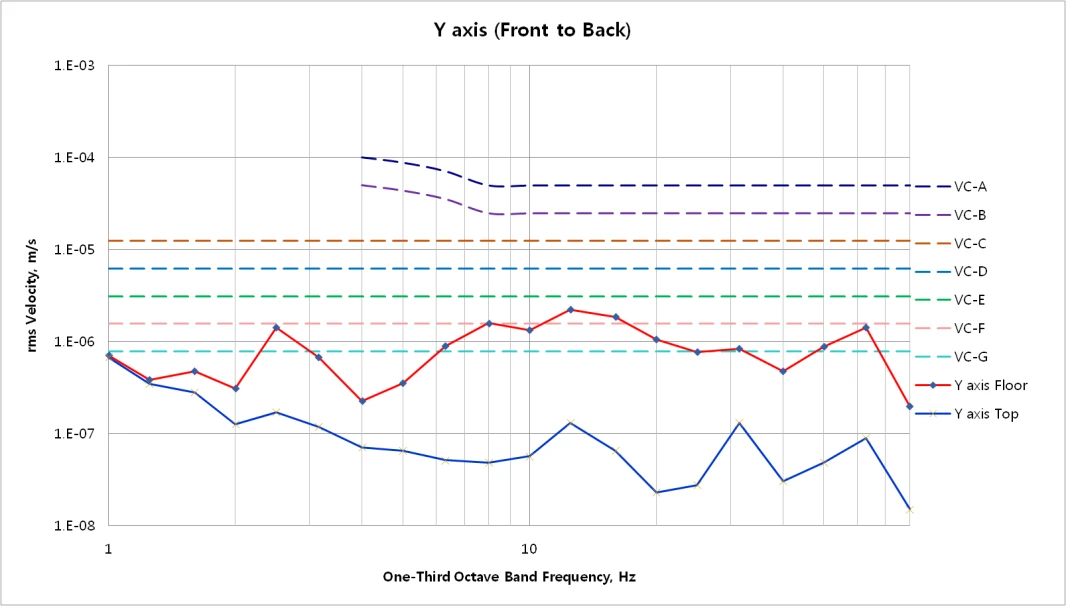

B&K measurement VC (Y axis)
Summary of measurement results
| Test Condition | Z | X | Y |
|---|---|---|---|
| Floor | C | D | E |
| Above Active | G | G | G |
Good omnidirectional performance.

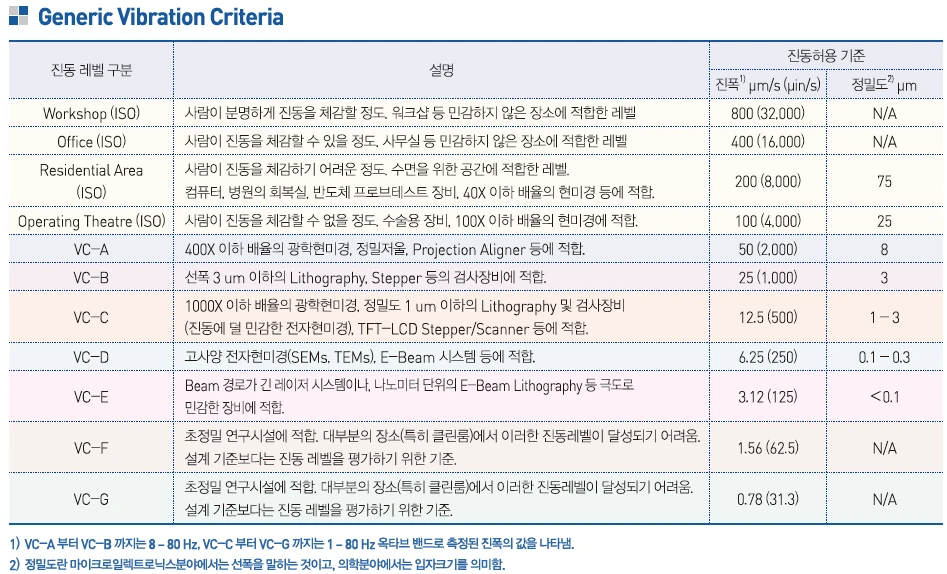

Measurement summary figure 1
Measurement summary figure 2
MB1000 internal program performance measurement result

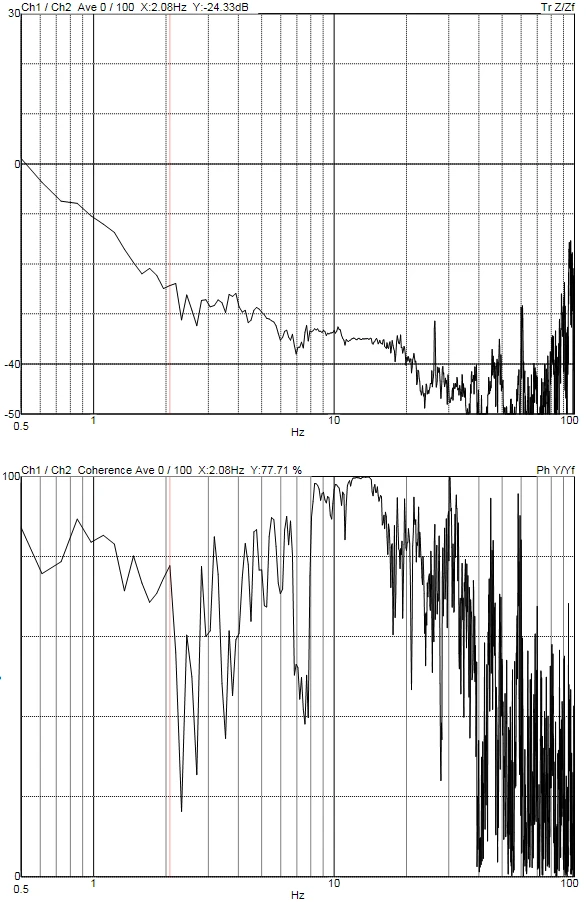

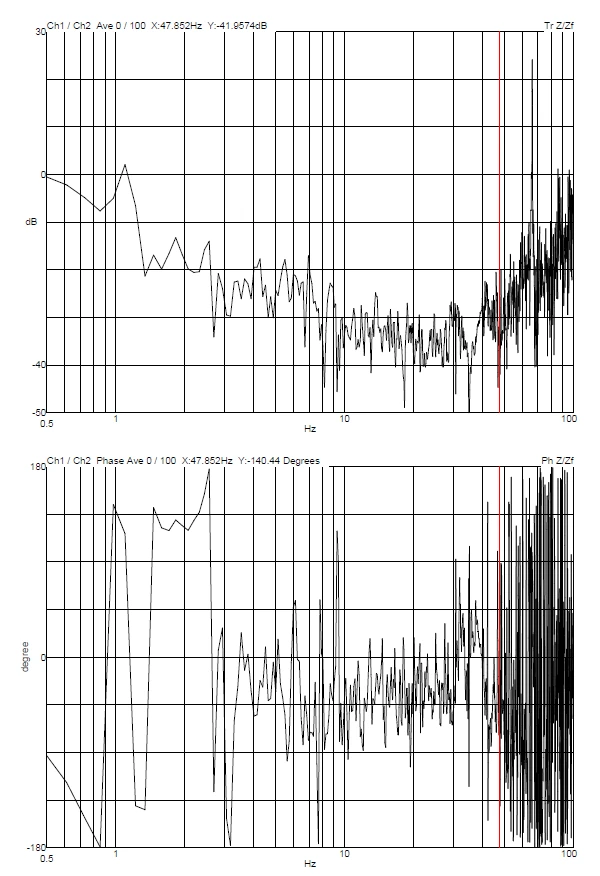

Internal program Z axis

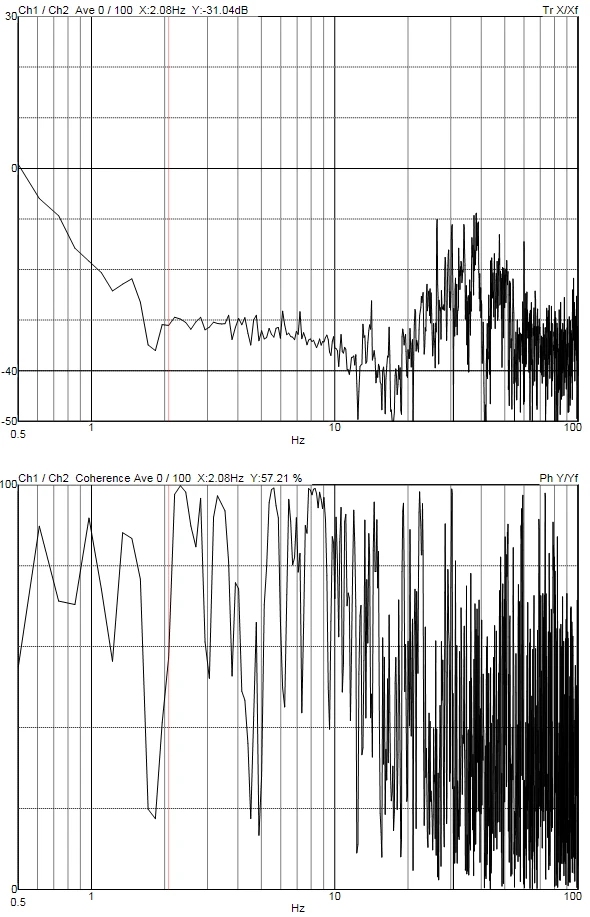

Internal program X axis

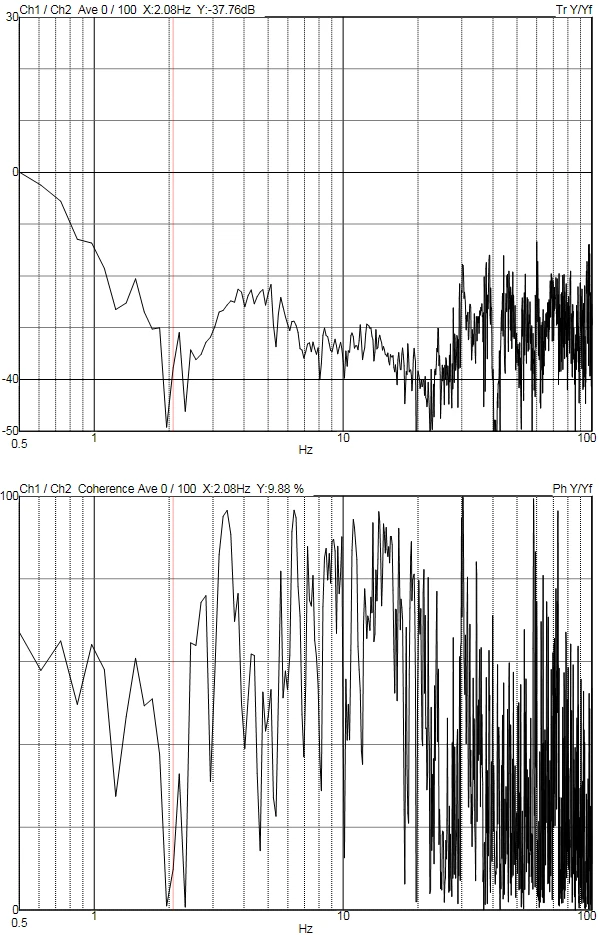

Internal program Y axis

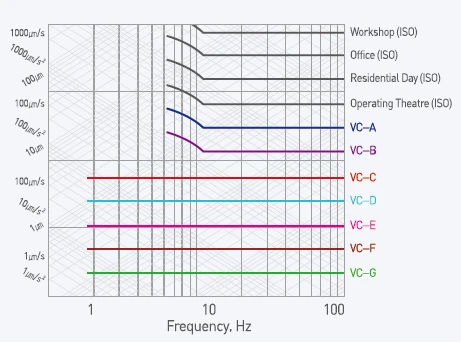

※ Vibration Criterion Curve
Criterion curve Z axis
Criterion curve X axis
Criterion curve Y axis
