Installation Report
DVIA-M Series
05-12-2021
YIMO ZEISS Gemini DVIA-MB1000 (201229R3) MB1000 Internal Program — 2021.05.12
DVIA-M Series
Installation Report
YIMO
ZEISS
Gemini
MB1000
DVIA-MB1000
201229R3
Contents
MB1000 P215 201229R3
| Target equipment | Zeiss-Gemini |
|---|---|
| Place of installation | N/A |
| Remark | Good Performance |
| END USER | N/A |
| Operator: Choi, HyoungMun | Date of business trip : 17.12.27~17.12.29 |
| Date of setup : 21.05.10 | |
| Date of reporting : 21.05.12 |
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date: 21.05.10 (MON)
Operator: Daeil System, Research engineer Choi, HyoungMun
Place of measurement : N/A
Equipment Model: Zeiss-Gemini
Measurement conditions and results
Summary of measurement results
| Test Condition | 2 Hz | 5 Hz | 10 Hz |
|---|---|---|---|
| Z | -22 dB | -30 dB | -35 dB |
| X | -40 dB | -37 dB | -35 dB |
| Y | -31 dB | -40 dB | -37 dB |
Good omnidirectional performance.
MB1000 internal program performance measurement result

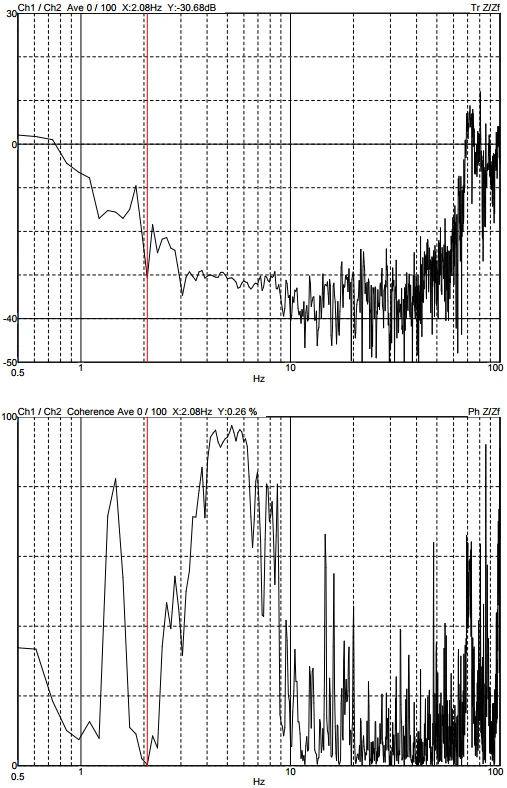

Z axis

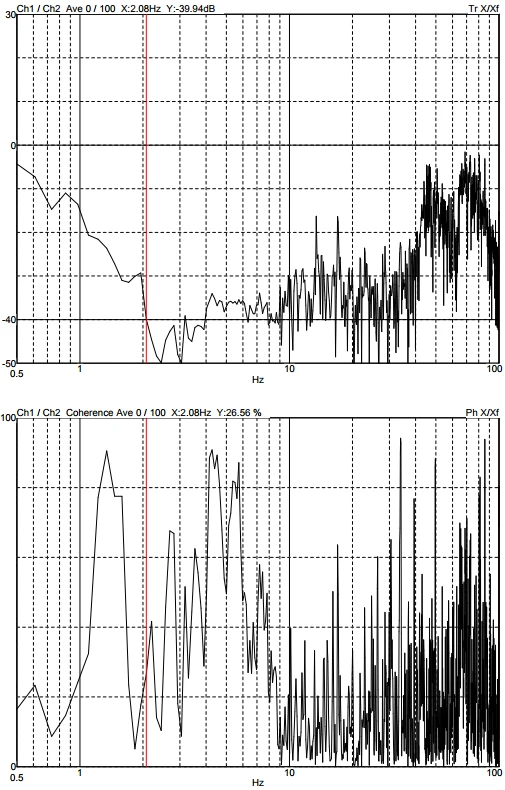

X axis

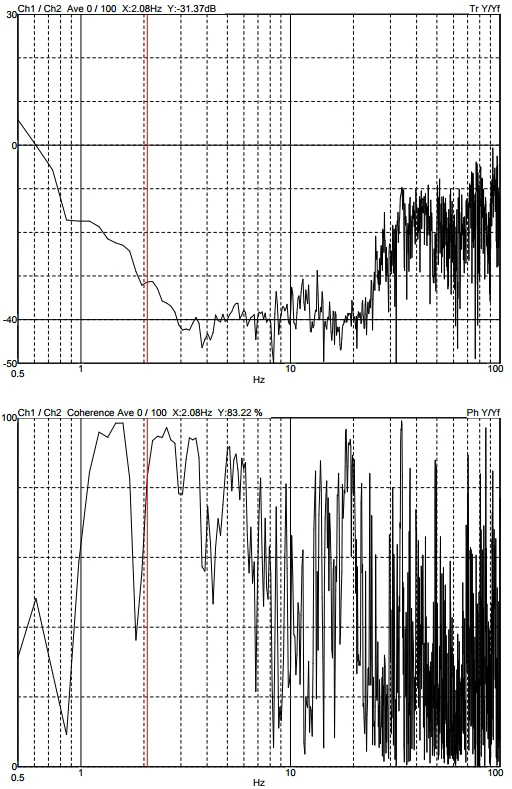

Y axis
