Installation Report
DVIA-M Series
12-08-2017
Geely Chunxiao Ningbo ZEISS Gemini DVIA-MB1000 (170713R5) China trip report — 2017.12.08
DVIA-M Series
Installation Report
DVIA-MB1000
170713R5
MB1000
Geely
Ningbo
ZEISS
Gemini
Contents
China business trip report (MB1000 Set up-170713R5)

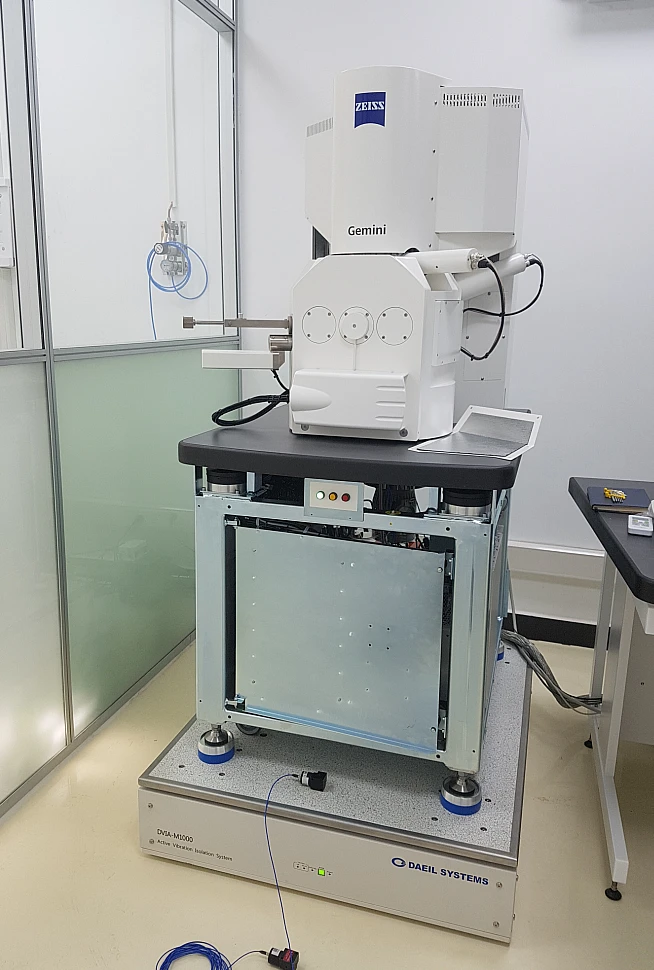

Installation site photograph
Target equipment
ZIESS Gemini
Installation site
중국 NINGBO
Remark
공장 연구동 1층에 설치.
END USER
Geely Chunxiao Manufacturing Plant
Date of business trip
출장일 : 17.12.06
Operator
출장자 : 임종욱
Report written date
작성일 : 17.12.08
Summary of installation results
| Test Direction | VC-Class Base | VC-Class Top |
|---|---|---|
| ACTIVE | Z | D |
| X | E | |
| Y | E |
전 방향 성능 양호.
이미지 확인 완료. 고객 만족.
MB1000 internal program performance measurement result

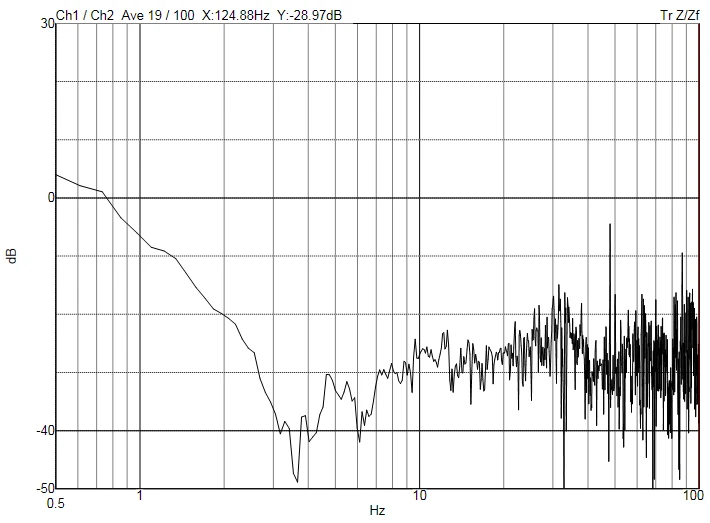

MB1000 internal program — Z axis

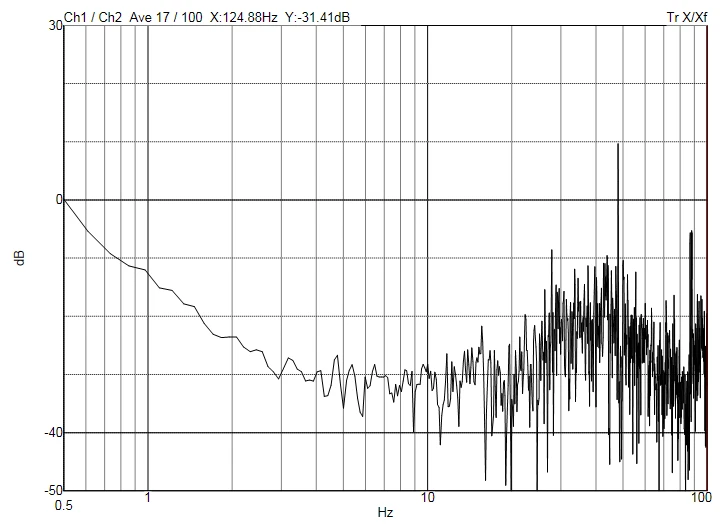

MB1000 internal program — X axis

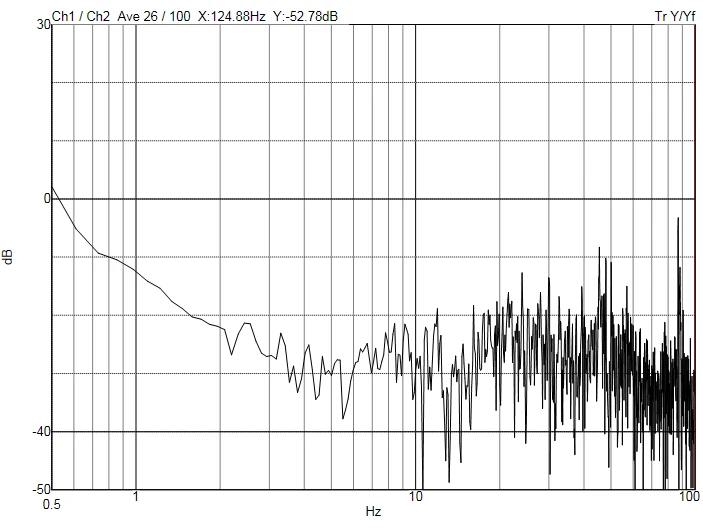

MB1000 internal program — Y axis
Vibration environment measurement results

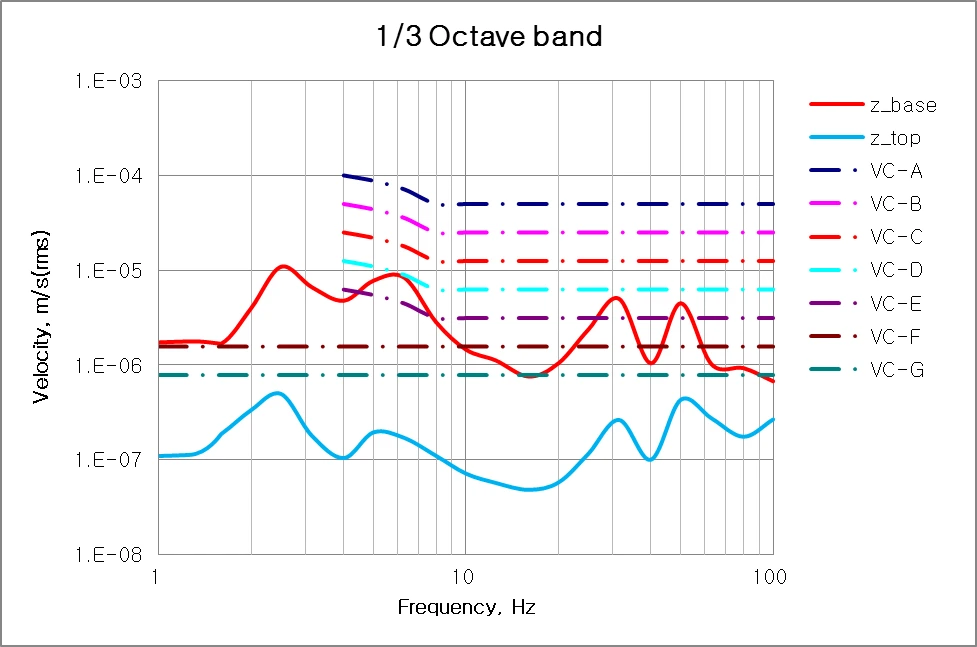

Vibration environment — Z axis

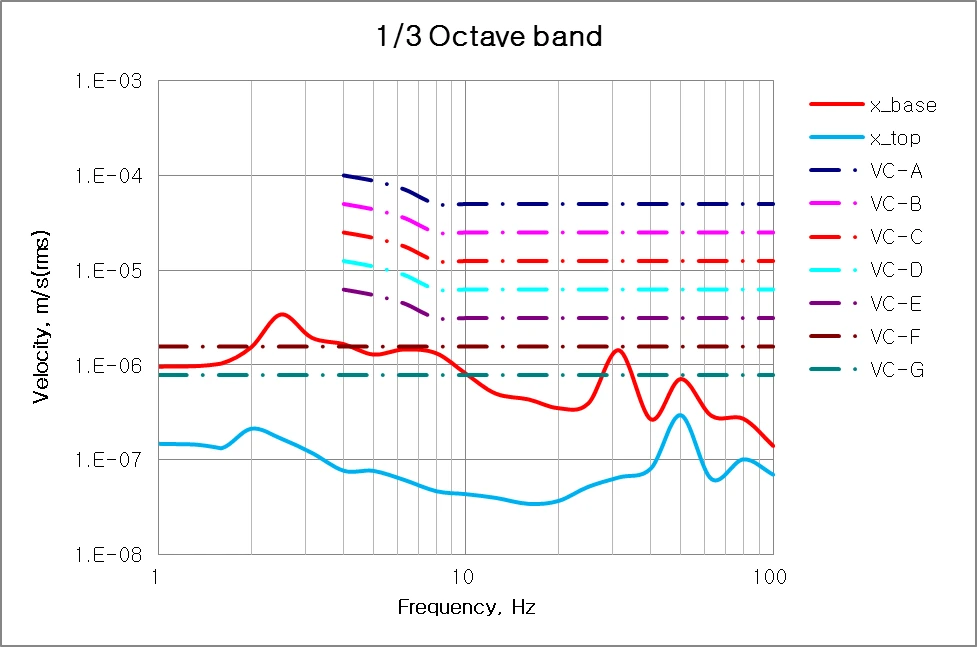

Vibration environment — X axis

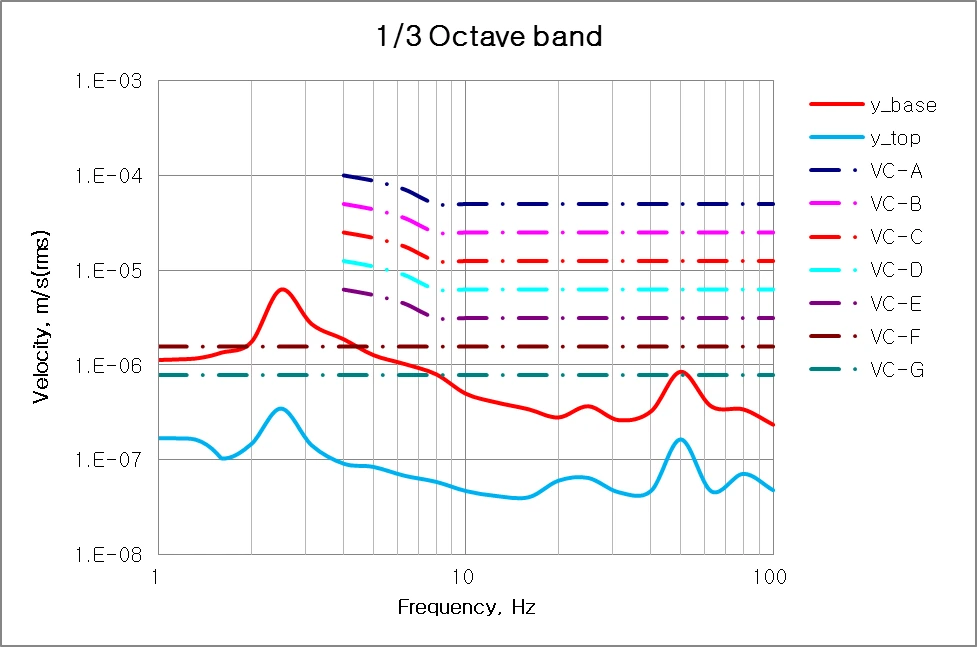

Vibration environment — Y axis
SEM images
SEM image — Floor
SEM image — Active
