Installation Report
DVIA-M Series
08-12-2020
Hitachi High-Tech Regulus 8230 DVIA-MB1000 (200701R2 · P180) Remote measurement — Internal program plots — 2020.08.12
DVIA-M Series
Installation Report
DVIA-MB1000
200701R2
Hitachi
Regulus
YIMO
Remote tuning
P180
Contents
(MB1000_P180 200701R2 Set up)
| Target equipment | HITACHI-REGULUS 8230 |
|---|---|
| Place of installation | N/A |
| Remark | Good Performance |
| END USER | N/A |
| Operator: NOH, MunHo | Date of business trip : 17.12.27~17.12.29 |
| Date of setup : 20.08.12 | Date of reporting : 20.08.12 |
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date: 20.08.12 (Wed),
Operator: Daeil System, Manager NOH, MunHo
Place of measurement : N/A
Equipment Model: HITACHI-REGULUS 8230
Measurement conditions and results
Summary of measurement results
| Test Condition | VC-Class |
|---|---|
| Z | |
| --- | |
| Floor | N/A |
| Above Active | N/A |
MB1000 internal program performance measurement result

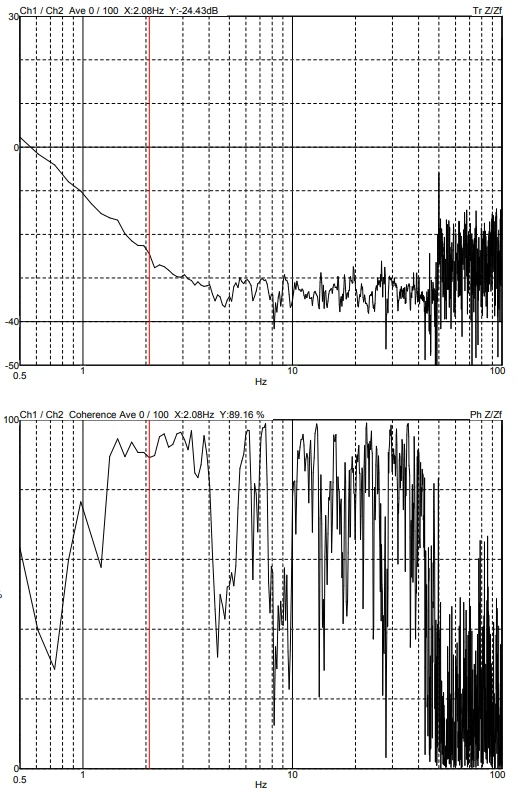

Z axis

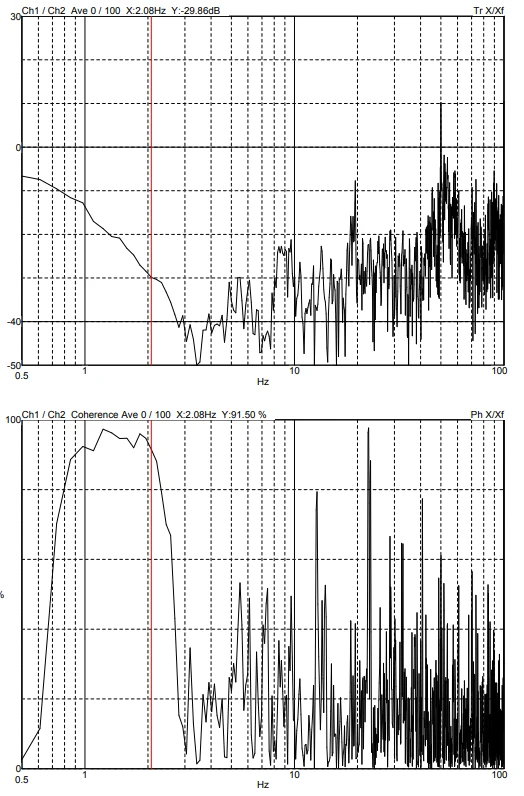

X axis

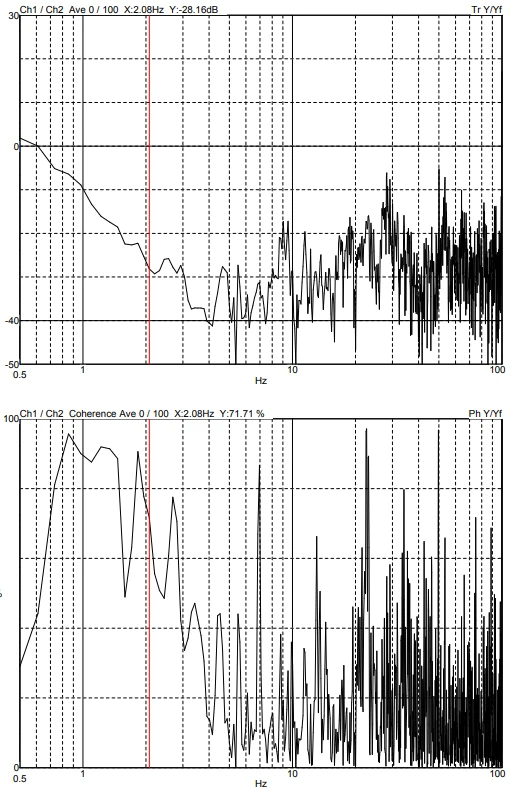

Y axis
