Installation Report
DVIA-M Series
09-11-2020
Baosteel Zhanjiang Zeiss Sigma 300 DVIA-MB1000 (200522R2-4 · P183) Internal program worksheet — 2020.09.11
DVIA-M Series
Installation Report
YIMO
DVIA-MB1000
200522R2-4
P183
Zeiss Sigma 300
Baosteel Zhanjiang
Zhanjiang
Contents
(MB1000_200522R2-4(P183) Set up)
Target equipment
Zeiss Sigma 300
Place of installation
zhanjiang
Remark
Good Performance
END USER
宝钢湛江
Operator
Munho Noh
Date of setup
Date of setup : 20.09.11
Date of reporting
Date of reporting : 20.09.11
Date of business trip
Date of business trip : 17.12.27~17.12.29
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date
Measurement date: 20.09.11 (FRI)
Operator: Daeil System, Research engineer Munho Noh
Place of measurement
Place of measurement : zhanjiang
Equipment Model
Equipment Model: Zeiss Sigma 300
Measurement conditions and results
Summary of measurement results
| Test Condition | 2 Hz | 5 Hz | 10 Hz |
|---|---|---|---|
| Z | -22.73 dB | -27.31 dB | -29.28 dB |
| X | -23.49 dB | -32.07 dB | -39.31 dB |
| Y | -22.31 dB | -33.42 dB | -31.91 dB |
Good omnidirectional performance.
MB1000 internal program performance measurement result

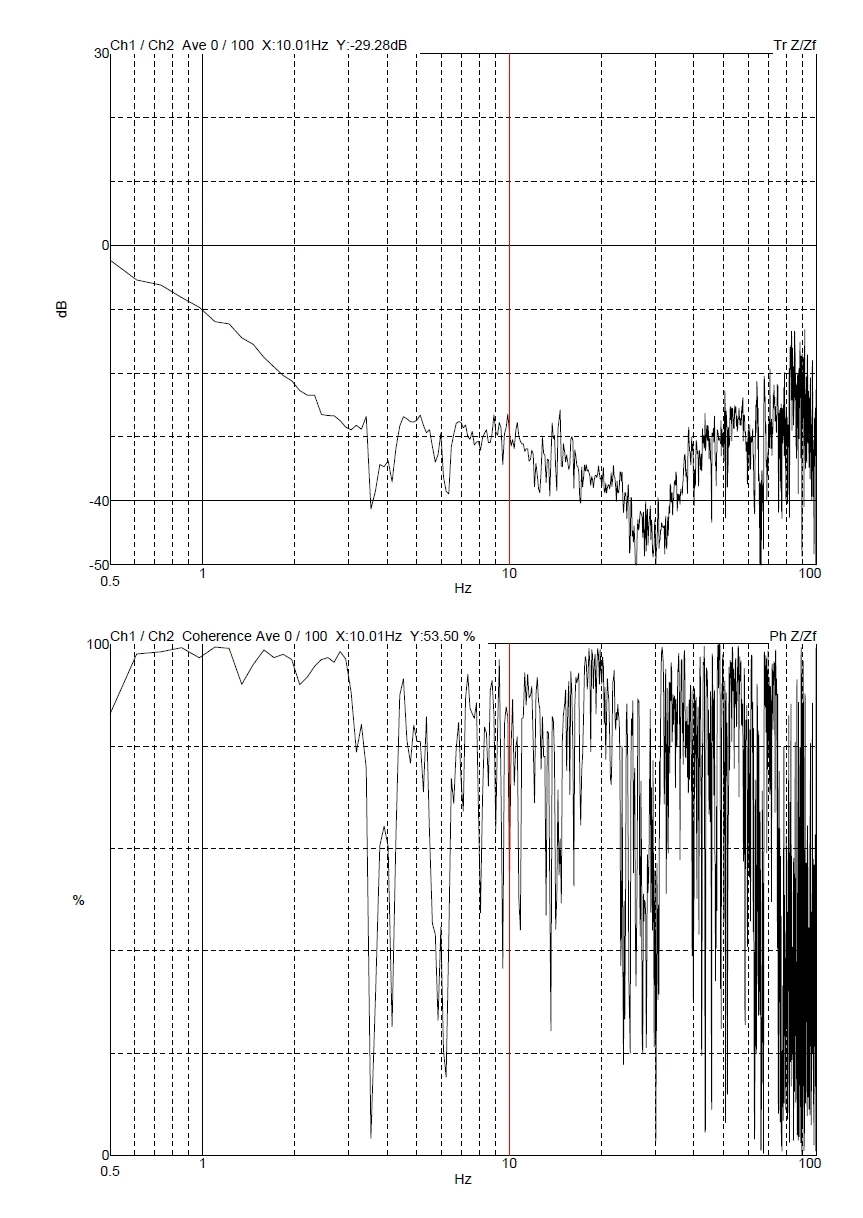

Z axis

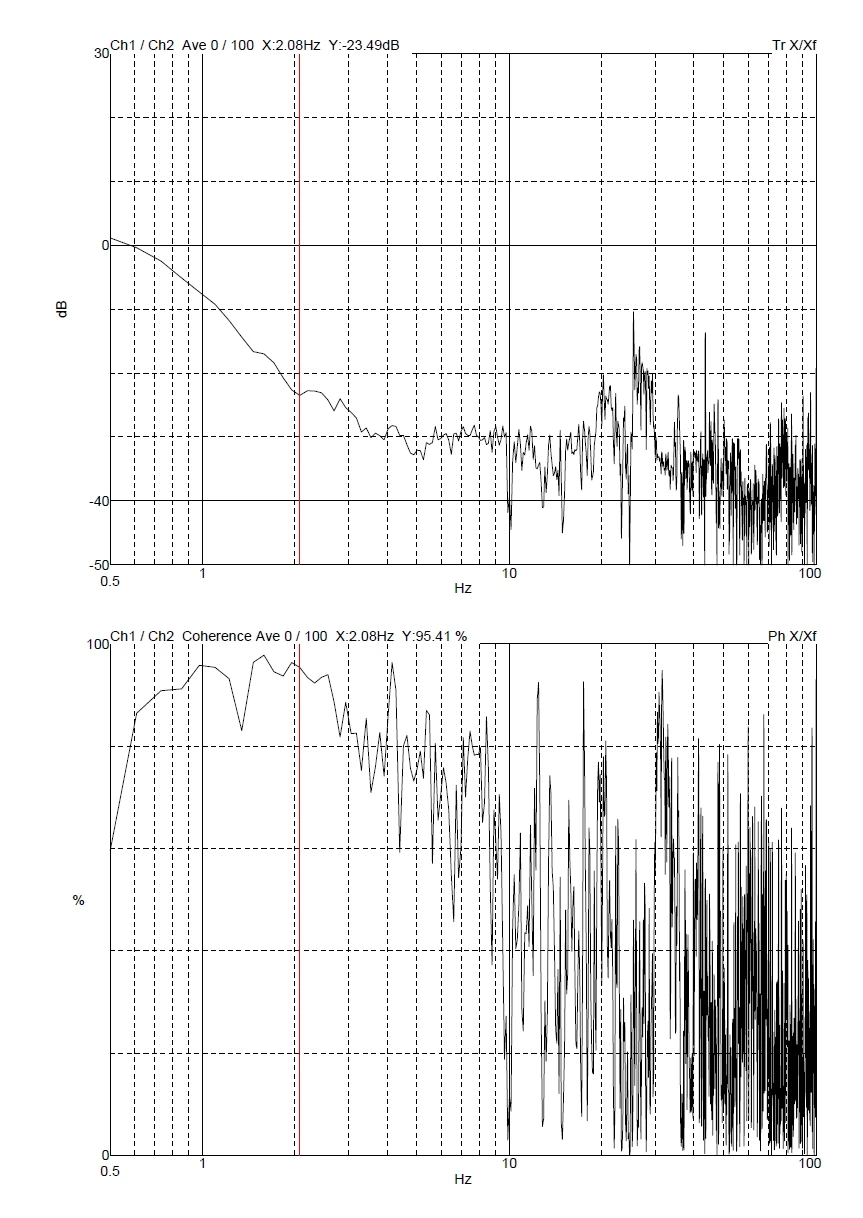

X axis

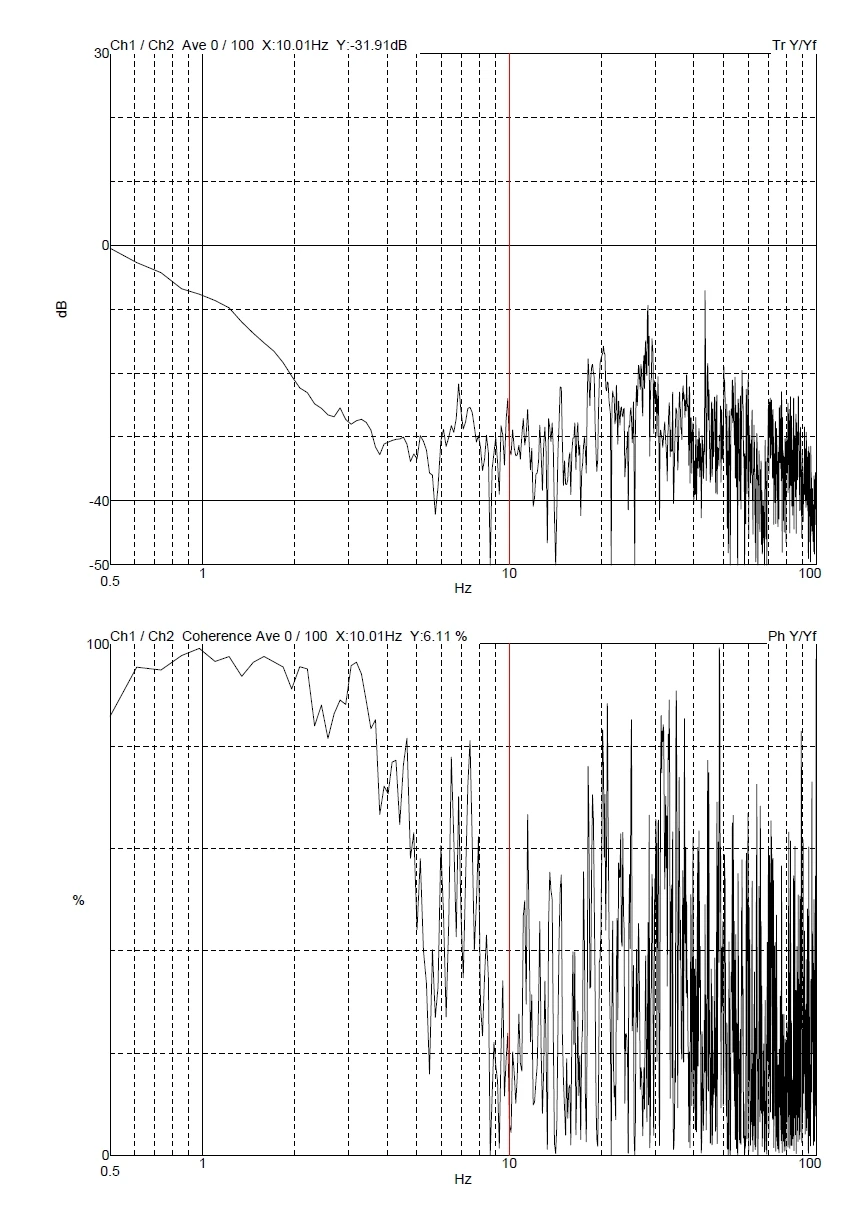

Y axis
Share this Case Study
Case Study Information
Category
Installation Report
SeriesDVIA-M Series
Date09-11-2020
Tags
DVIA-M Series
Installation Report
YIMO
DVIA-MB1000
200522R2-4
P183
Zeiss Sigma 300
Baosteel Zhanjiang
Zhanjiang
Related Case Studies
DVIA-M Series

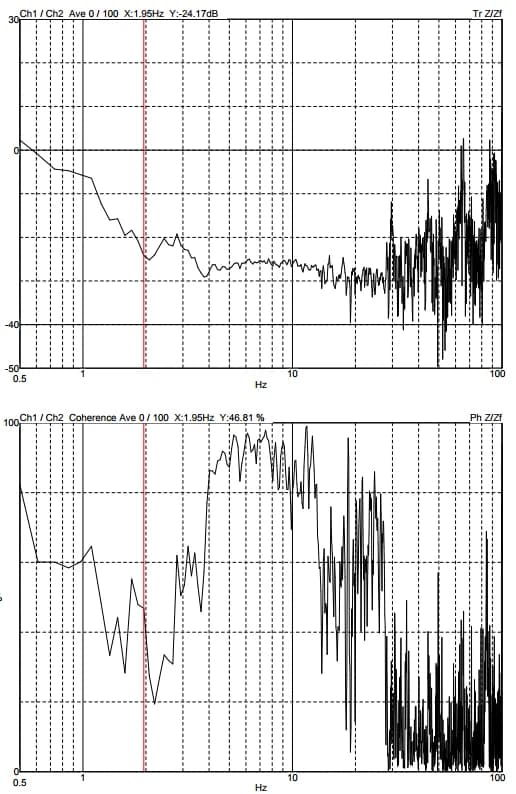

YIMO FEI Apreo C DVIA-MB1000 (P162 / 200414R1) Internal program performance — 2020.09.18
