Installation Report
DVIA-M Series
01-13-2021
YIMO Hitachi HT7800 DVIA-MB1000 (200429R5 / P190) Internal Program Performance — Hainan Medical College — 2021.01.13
DVIA-M Series
Installation Report
DVIA-MB1000
Hitachi HT7800
Hainan Medical College
YIMO
P190
200429R5
Contents
MB1000 P190(200429R5)
| Target equipment | HITACHI-HT7800 |
|---|---|
| Place of installation | N/A |
| Remark | Good Performance |
| END USER | Hainan Medical College |
| Operator: Choi, HyoungMun Date of setup : 21.01.13Date of reporting : 21.01.13 | Date of business trip : 17.12.27~17.12.29 |
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date: 21.01.13 (WED)
Operator: Daeil System, Research engineer Choi, HyoungMun
Place of measurement : N/A
Equipment Model: HITACHI-HT7800
Measurement conditions and results
Summary of measurement results
| Transmissibility | 2 Hz | 5 Hz | 10 Hz |
|---|---|---|---|
| Z | -25 dB | -28 dB | -34 dB |
| X | -30 dB | -34 dB | -38dB |
| Y | -30 dB | -34dB | -35dB |
Good omnidirectional performance.
MB1000 internal program performance measurement result

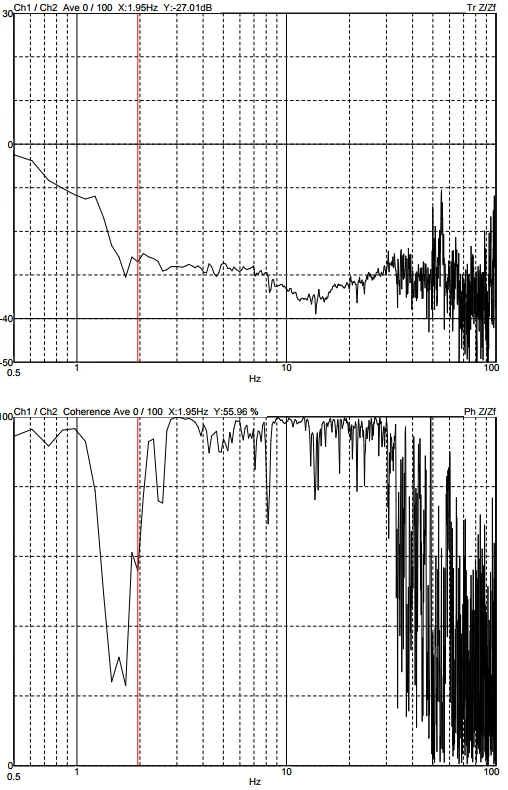

Z axis

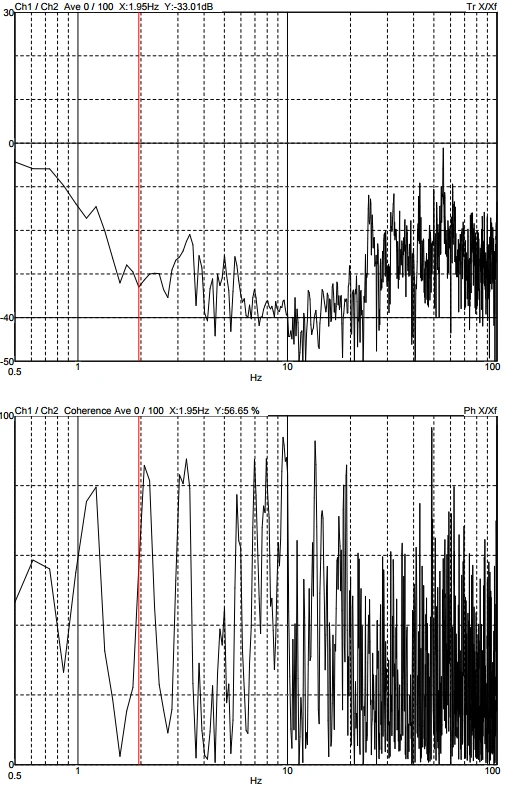

X axis

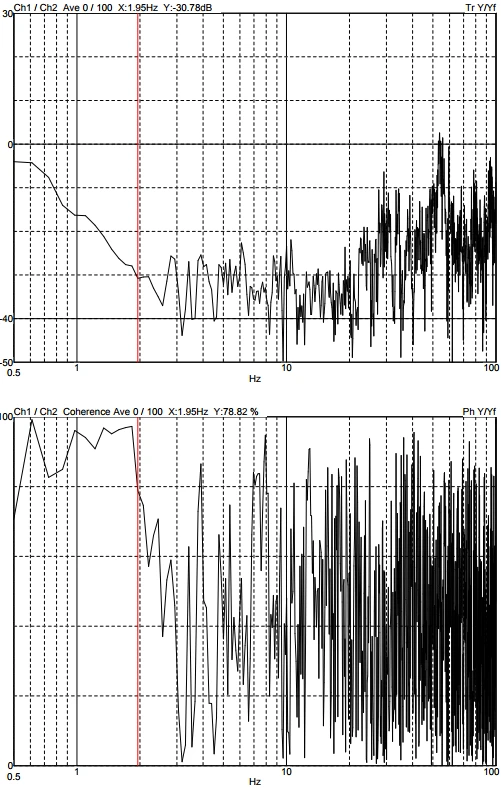

Y axis
