Installation Report
DVIA-T Series
07-15-2022
Universa DVIA-T56 (200428R5) Installation Report
DVIA-T Series
Installation Report
Universa
DVIA-T56
200428R5
Contents
Prepared for
Universa
Prepared by
Engineer: Seounghoon Cheon
Tuning date: 22.07.14
Report written date: 22.07.15
Date of business trip : 17.12.27~17.12.29
Overview
The DVIA-T56 active vibration isolation platform is appropriately installed and functioning as intended.
noise is generated when an impact is applied.
The function of the X2 VCM, the source of the noise, has been turned off at the request of the customer.
It is expected that the screw fastening of the X2 VCM will be unstable.
System Information
Model: DVIA-T56
Serial Number: 200428R5
Engineer
Seounghoon Cheon, Youngha Lee, Hosang Yu from DAEIL SYSTEMS
Tuning Date
July 14, 2022
Location
Requesting information from customer
Equipment
Requesting information from customer
Data and Image

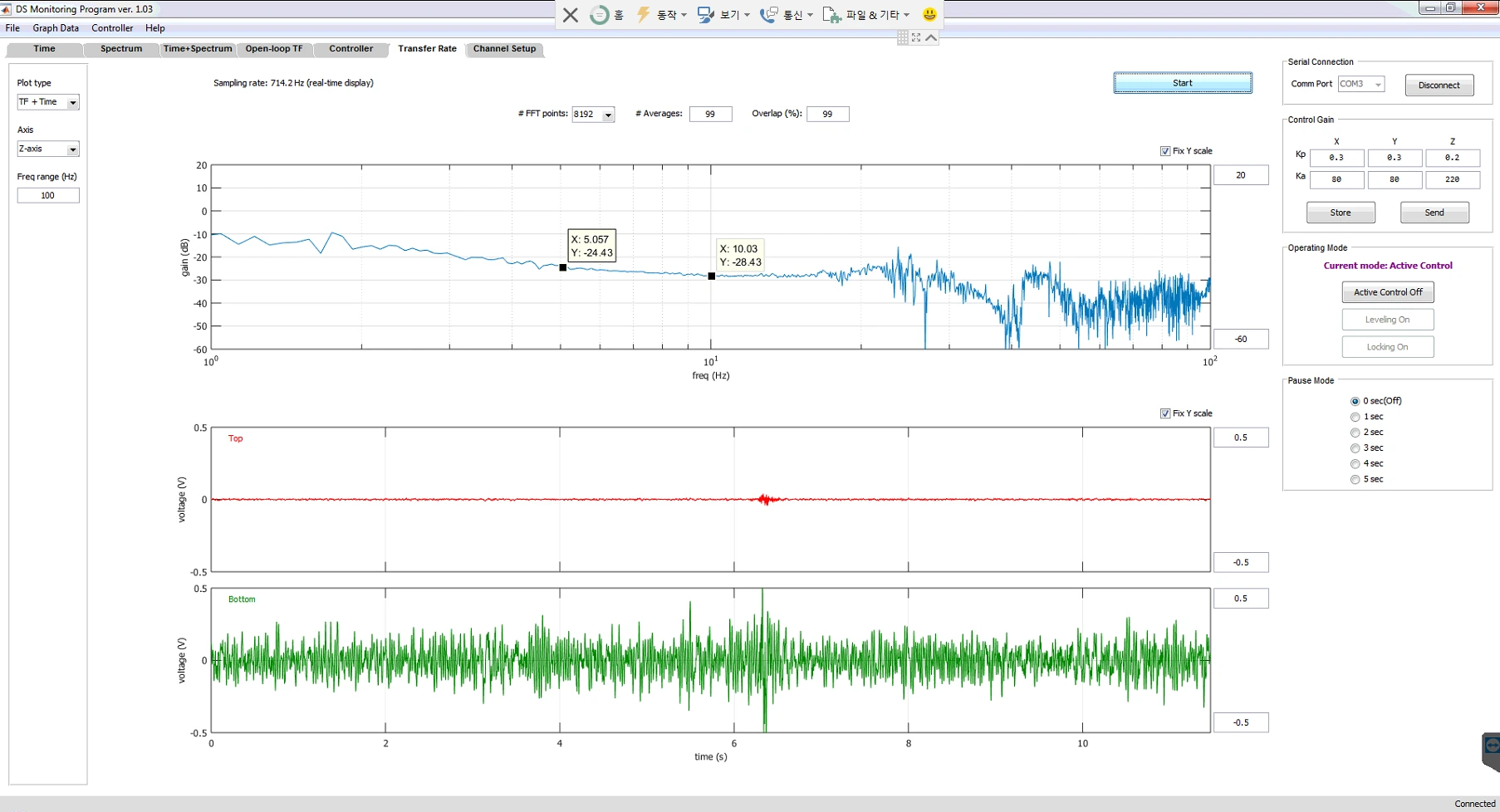

Z-axis (Vertical) Transmissibility
X-axis (Left to Right) Transmissibility

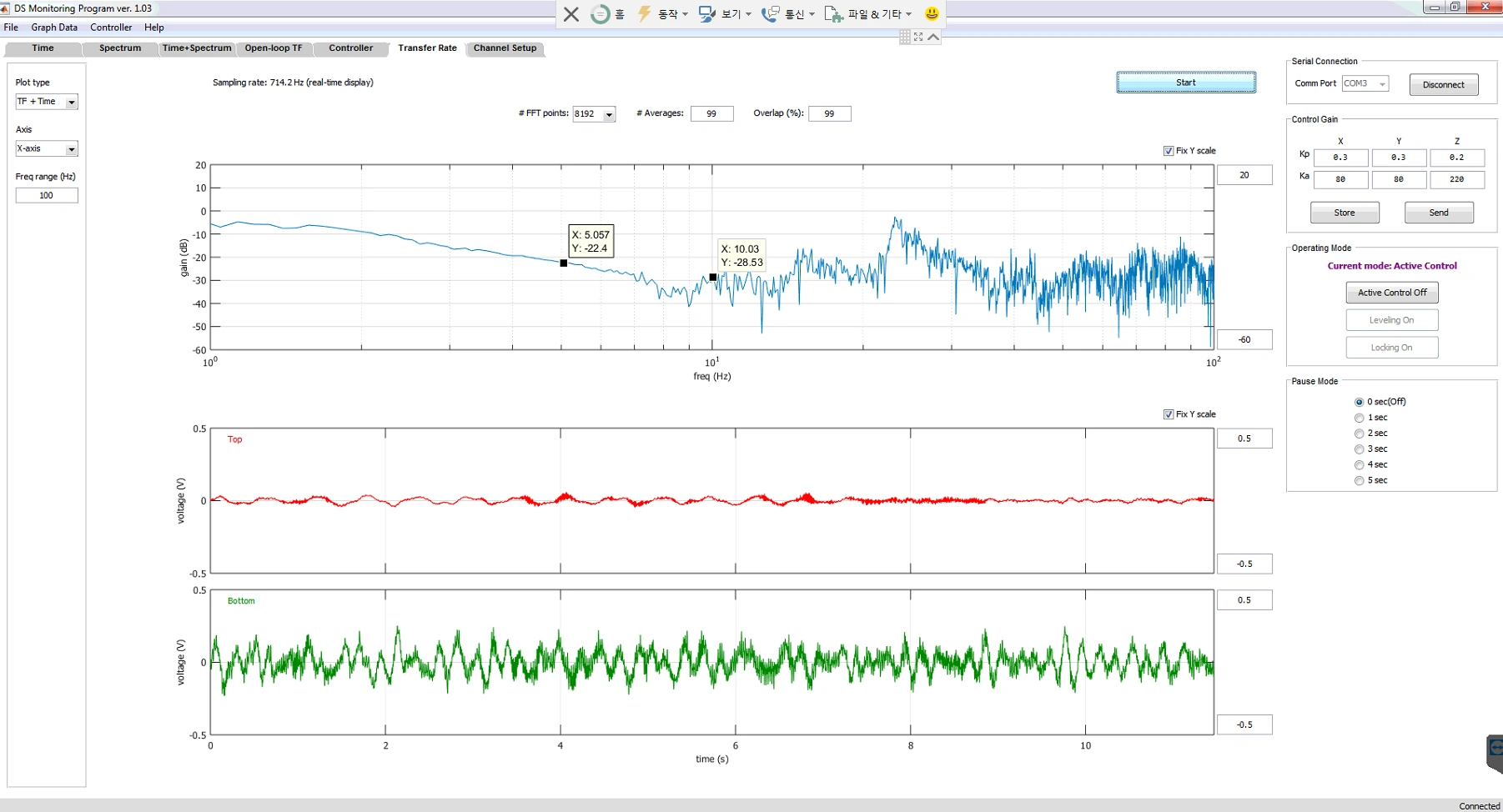

X2 VCM Turn Off

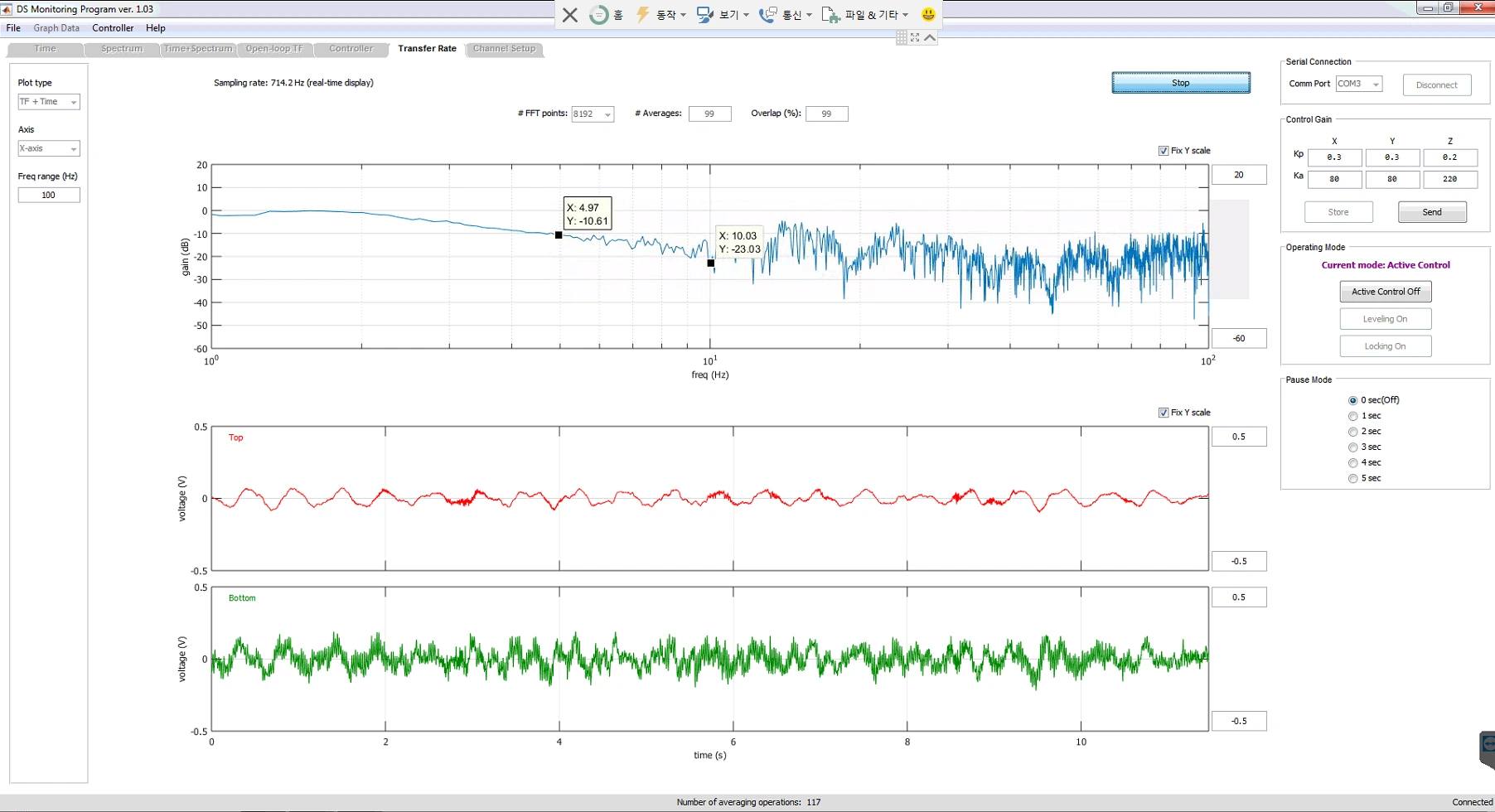

(2) X2 VCM Turn Off

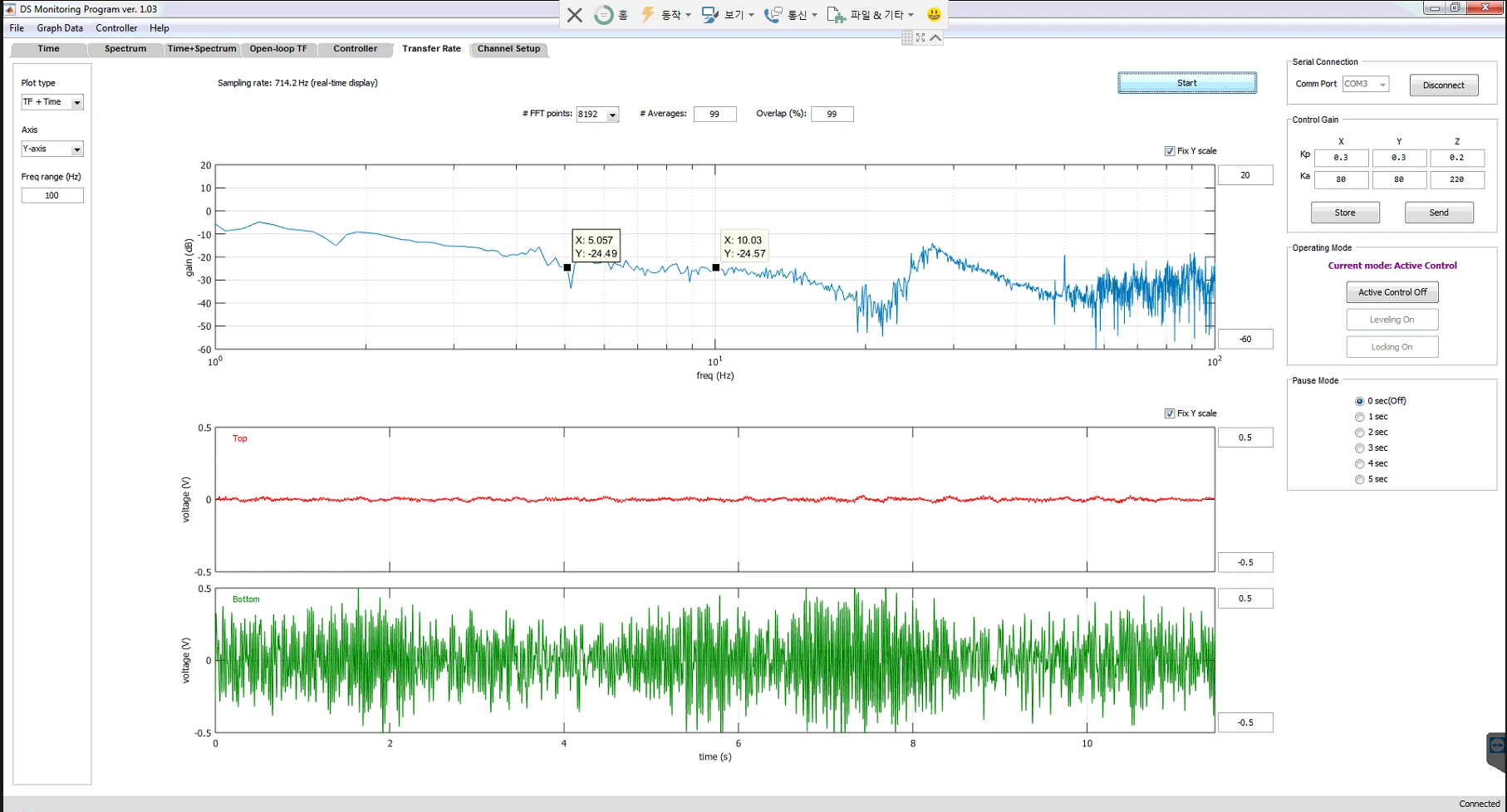

Y-axis (Front to Back) Transmissibility
