Installation Report
DVIA-M Series
07-20-2020
天工爱和特钢有限公司 ZEISS EVO MA25 DVIA-MB1000 (191211R2 · P158) Remote measurement — Internal program plots — 2020.07.20
DVIA-M Series
Installation Report
DVIA-MB1000
191211R2
P158
ZEISS
EVO MA25
YIMO
Contents
(MB1000_191211R2 Set up)
| Target equipment | ZEISS EVO MA25 |
|---|---|
| Place of installation | 天工爱和特钢有限公司 |
| Remark | Good Performance |
| END USER | 天工爱和特钢有限公司 |
| Operator: Kim, Doohyun Date of setup : 20.07.20Date of reporting : 20.07.20 | Date of business trip : 17.12.27~17.12.29 |
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date: 20.07.20 (MON),
Operator: Daeil System, Manager Doohyun, Kim
Place of measurement : 天工爱和特钢有限公司
Equipment Model: ZEISS EVO MA25
Measurement conditions and results
Summary of measurement results
Test Condition
VC-Class
| Z | X | Y | |
|---|---|---|---|
| Floor | |||
| Above Active |
Good omnidirectional performance.
MB1000 internal program performance measurement result

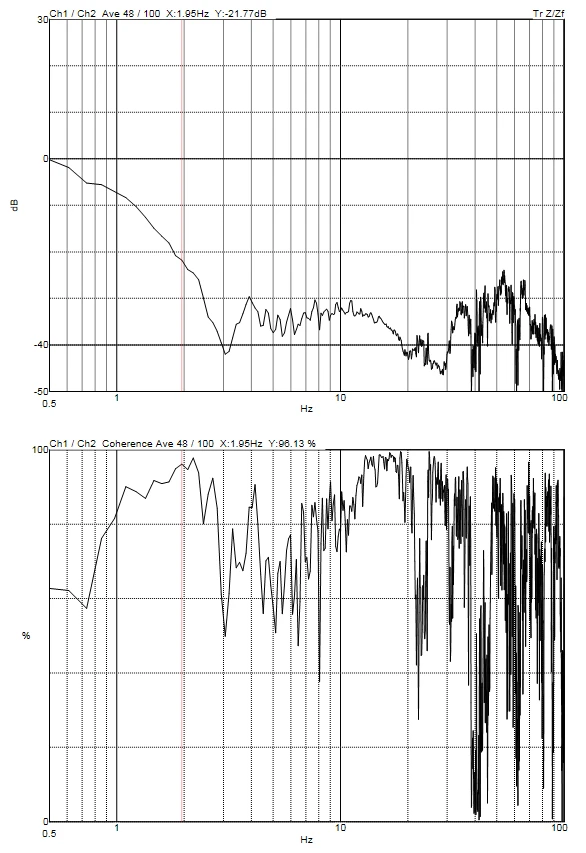

Z axis

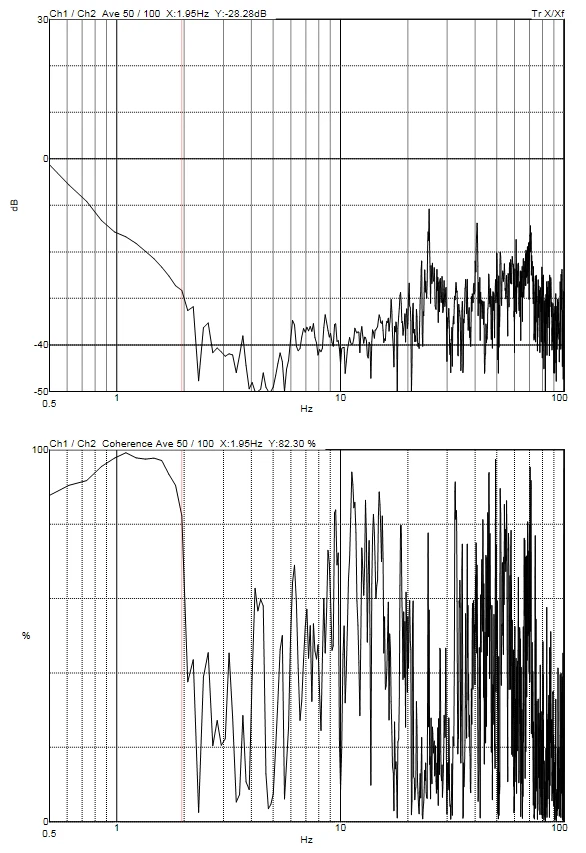

X axis

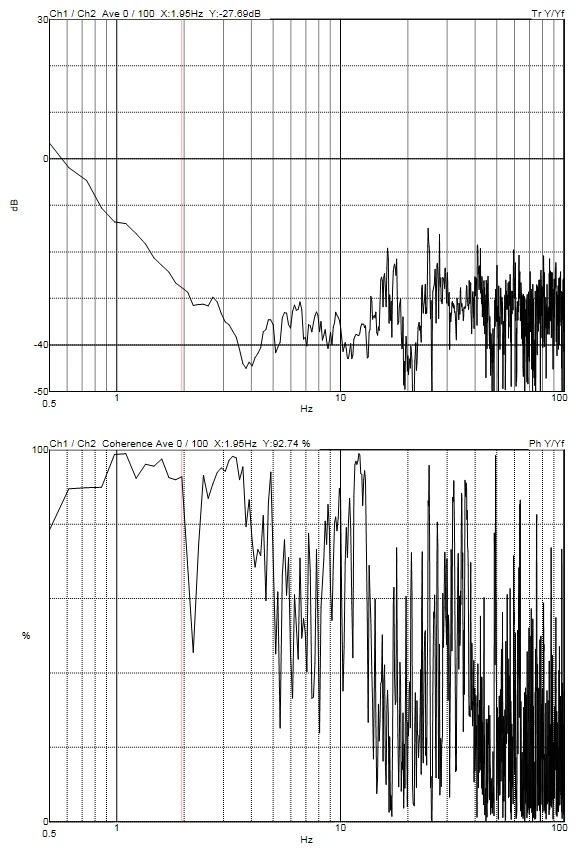

Y axis
