Installation Report
DVIA-M Series
09-10-2019
Wenzhou Hongfeng Electric Alloy Hitachi SU1510 MB1000 (P141) China trip installation report — 2019
DVIA-M Series
Installation Report
DVIA-MB1000
MB1000
P141
Hitachi
SEM
SU1510
Wenzhou
China
Contents
China business trip report (MB1000_P141 Set up)
Set-up photograph
Target equipment and site
| Target equipment | Hitachi SU1510 |
|---|---|
| Installation site | F3, Wenzhou Hongfeng electric alloy |
| Remarks | Good Performance |
| END USER | Wenzhou Hongfeng electric alloy |
Engineer and dates
출장자 : 최성원
출장일 : 19.09.05
작성일 : 19.09.10
Installation result summary
Vibration levels
| Test Direction | Axis | Base | Top |
|---|---|---|---|
| ACTIVE | Z | C | F |
| X | C | F | |
| Y | C | F |
Omnidirectional performance is satisfactory.
Performance of the vibration isolation platform is satisfactory, yet image resolution is not fully realized.
MB1000 internal program performance measurement results

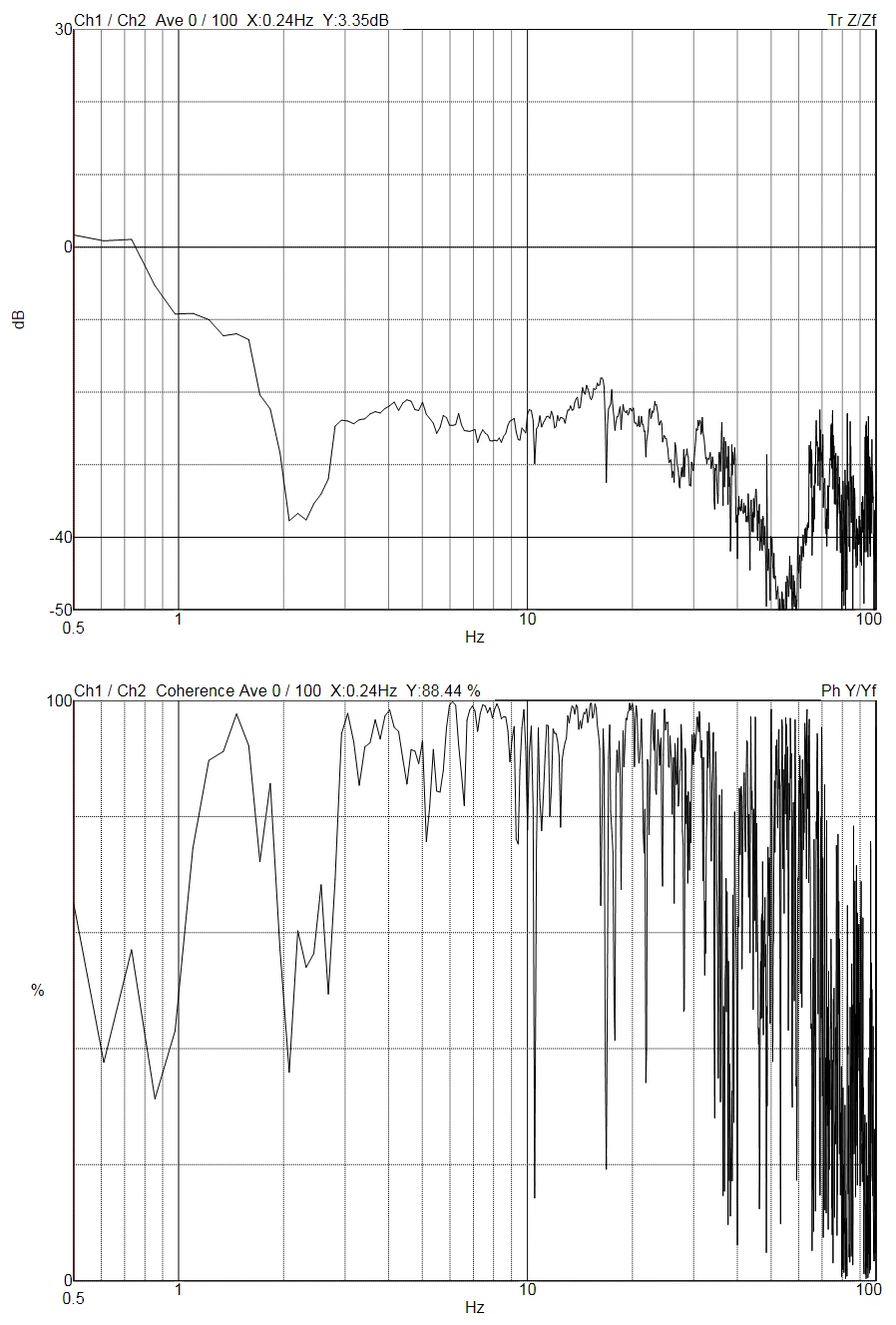

Z axis - MB1000 internal program

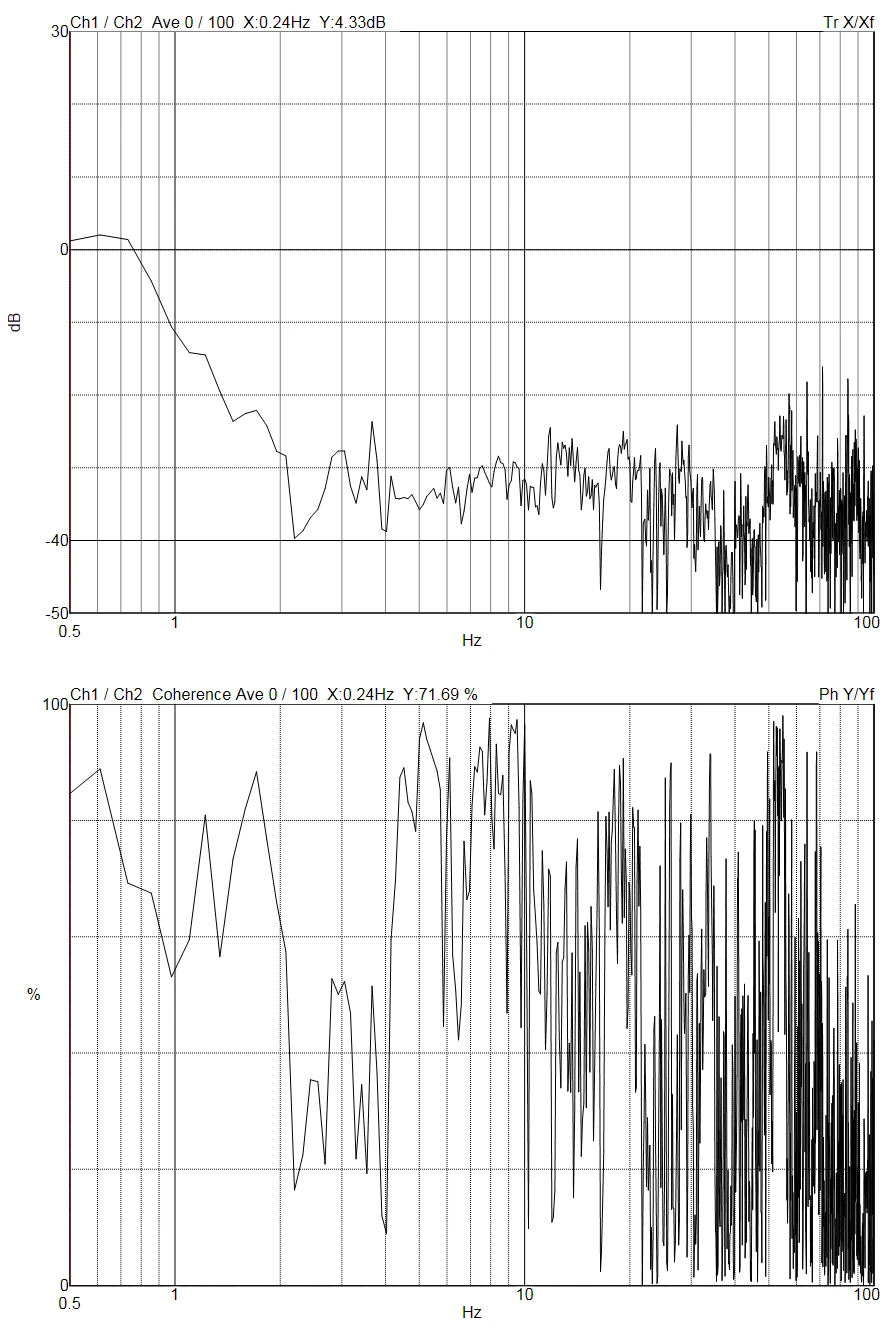

X axis - MB1000 internal program

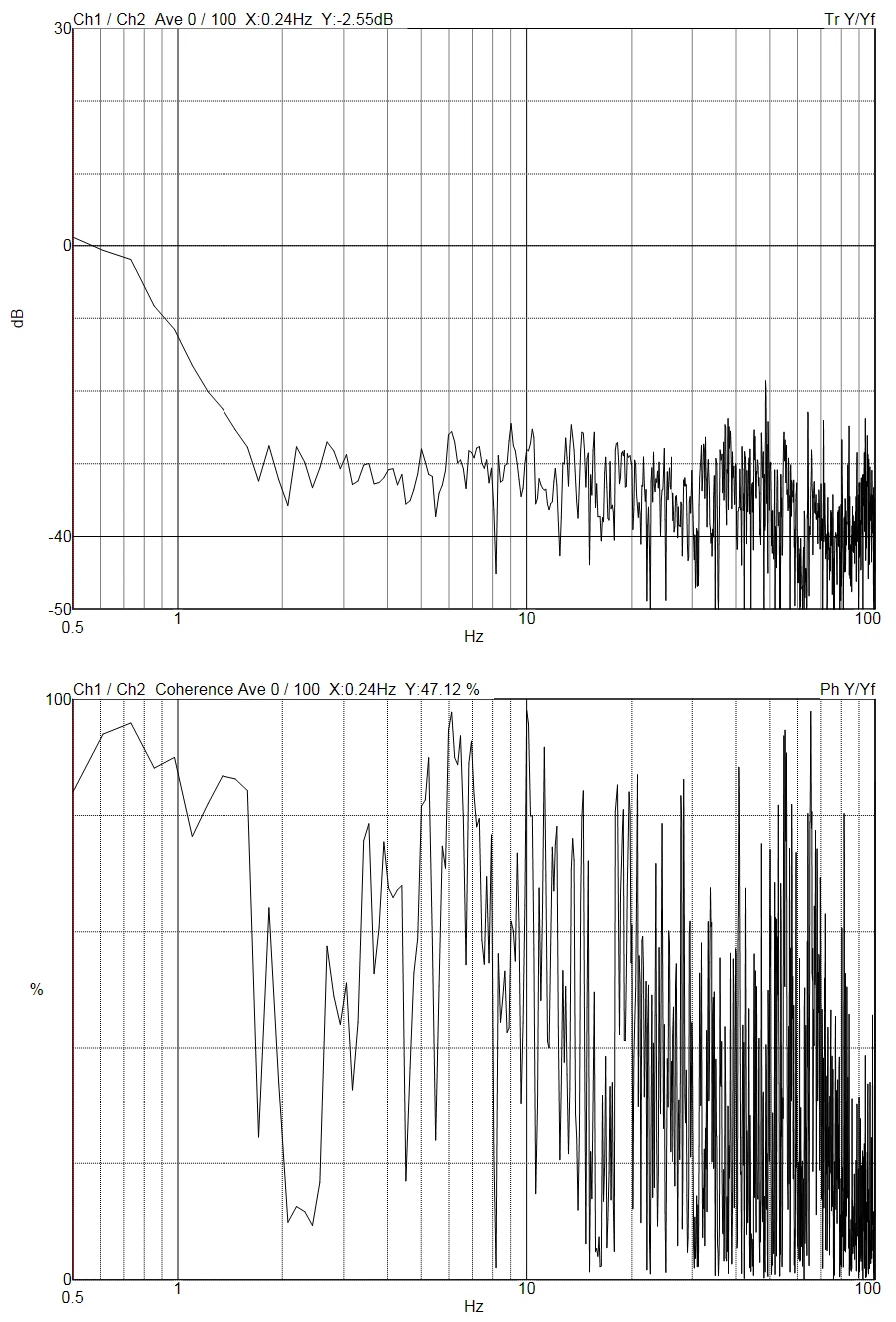

Y axis - MB1000 internal program
Vibration environment measurement results

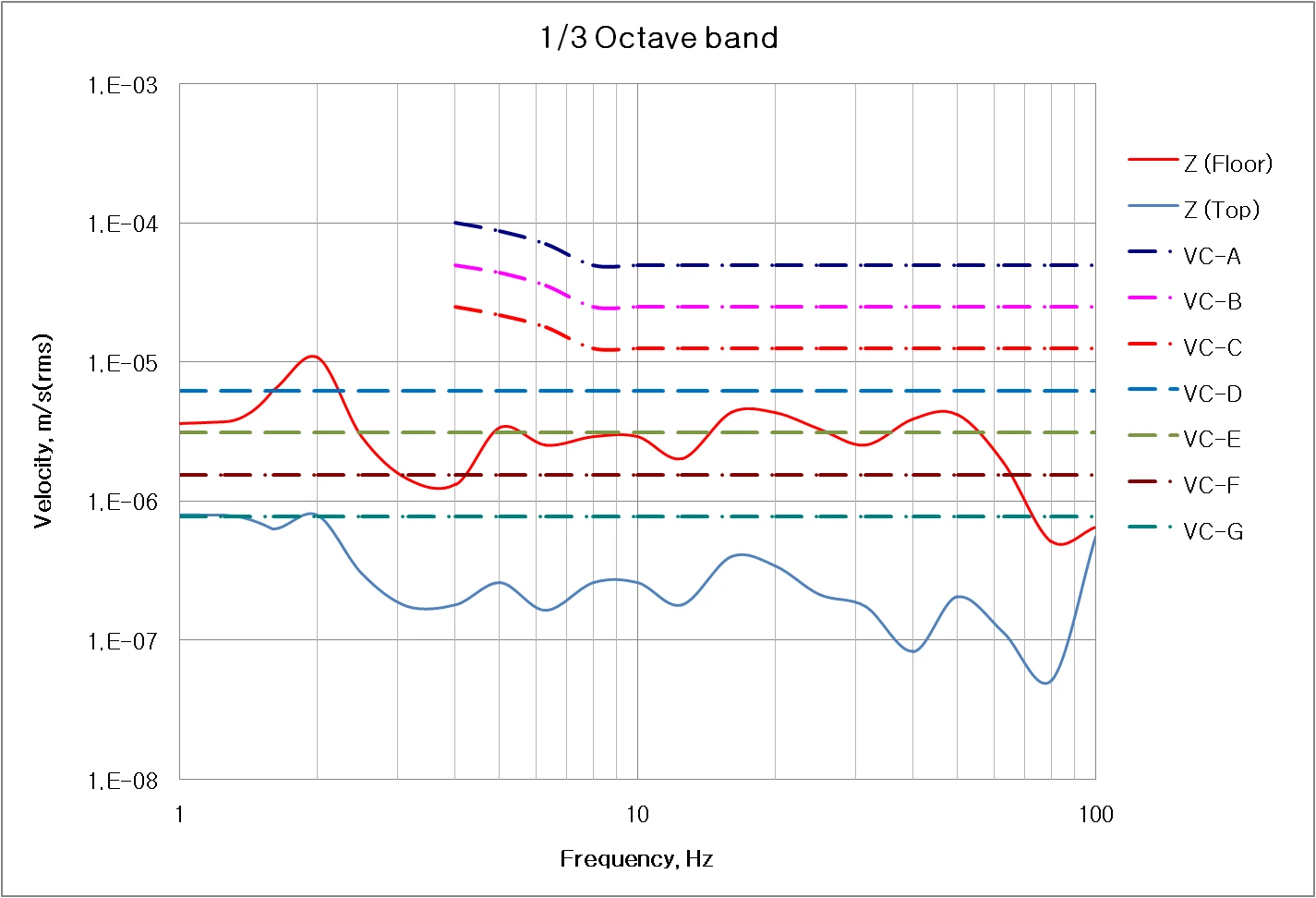

Z axis - vibration environment measurement

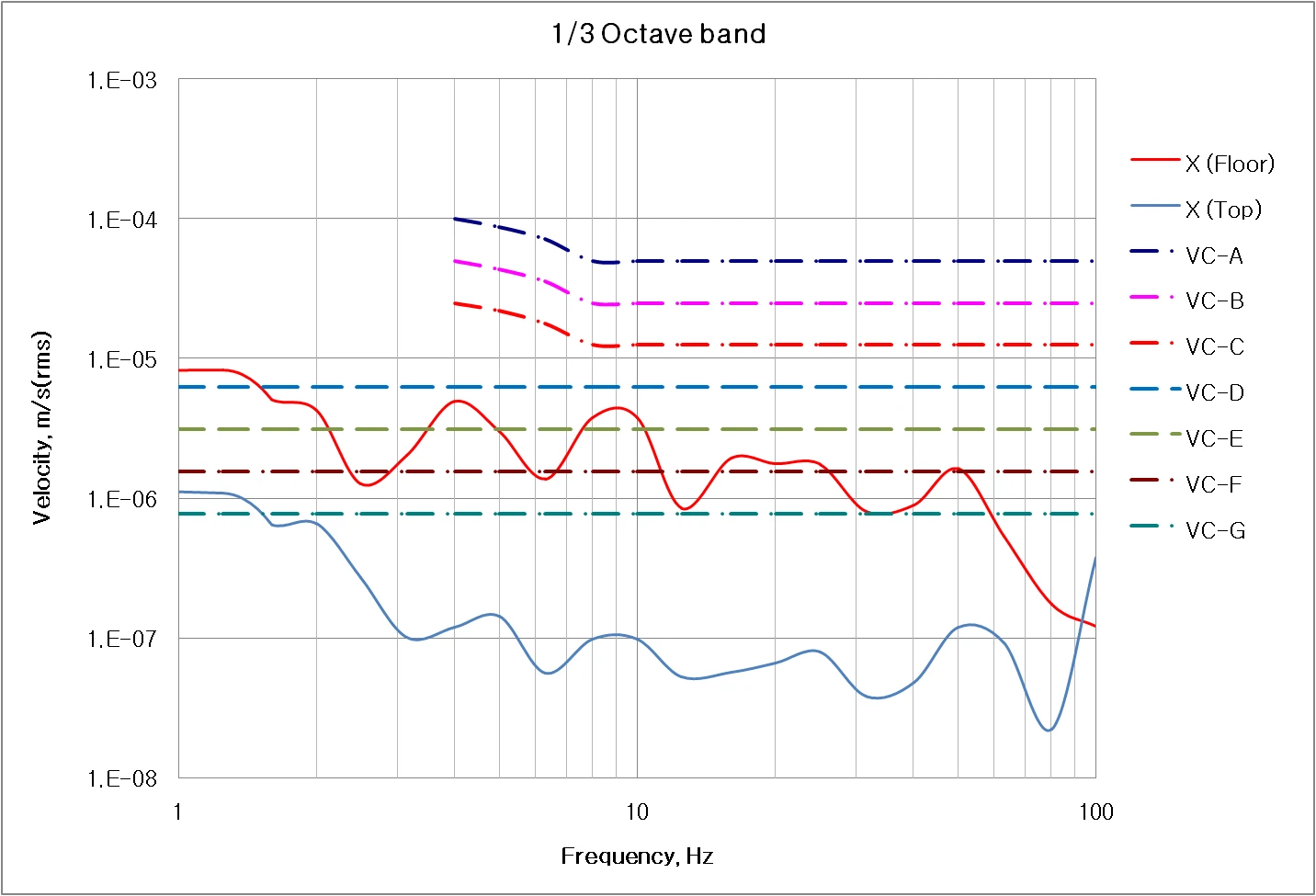

X axis - vibration environment measurement

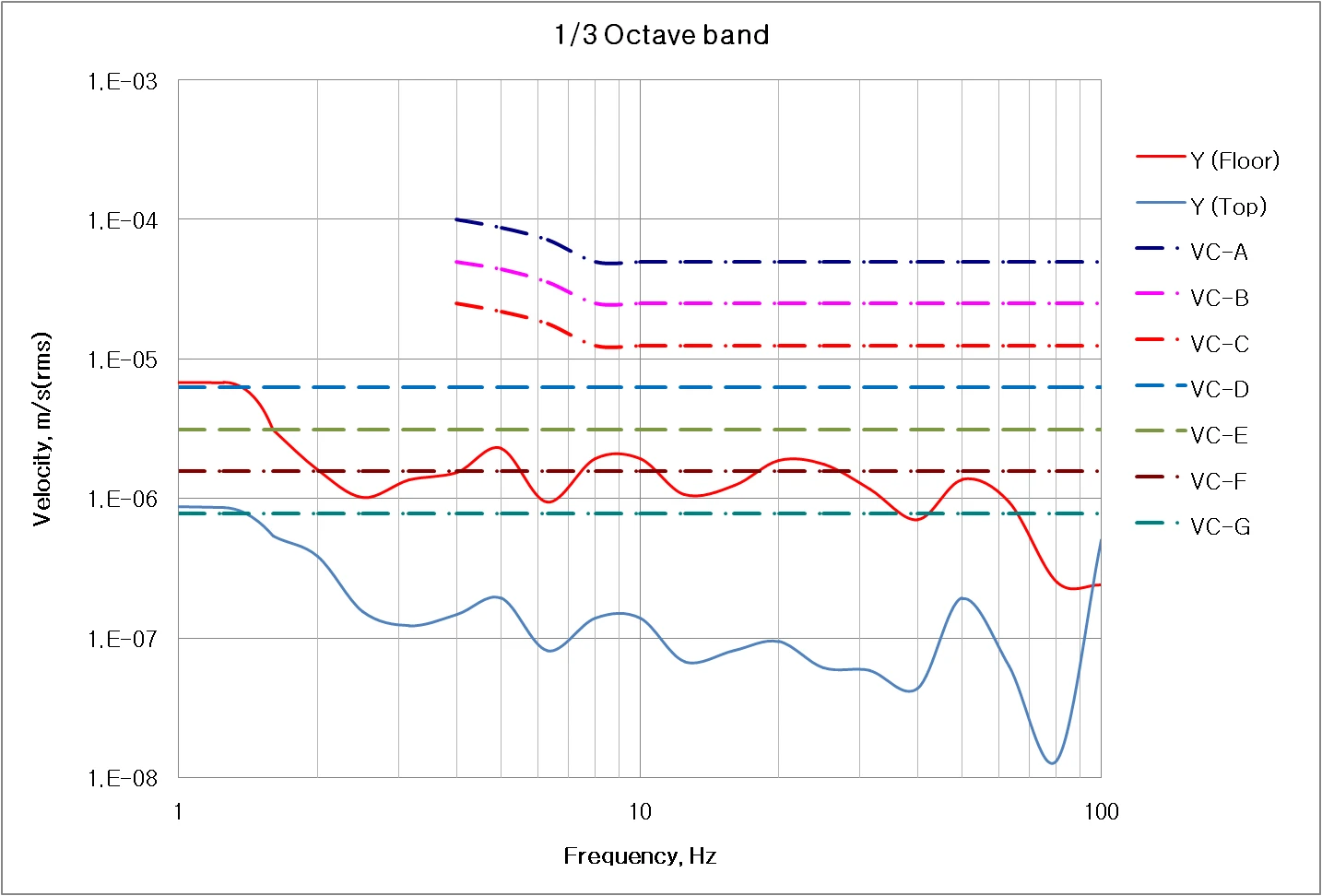

Y axis - vibration environment measurement
