Installation Report
DVIA-M Series
12-30-2019
SYE Hitachi SU3500 DVIA-MB1000 (MB1000_P135 / 190816R1) Installation Report
DVIA-M Series
Installation Report
SYE
Hitachi
SU3500
DVIA-MB1000
MB1000_P135
190816R1
Contents

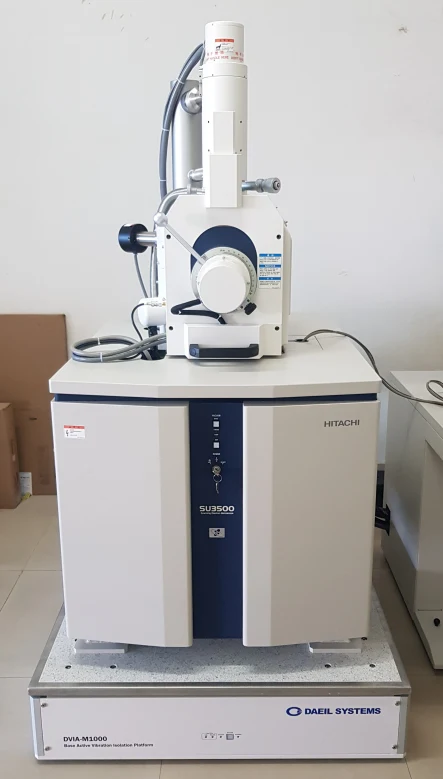

Installation site photo
Overview
| Target equipment | HITACHI-SU3500 |
|---|---|
| Place of installation | F1, SYE |
| Remark | Good Performance |
| END USER | SYE |
Operator: Choi, Hyoung Mun
Date of setup : 19.12.27
Date of reporting : 19.12.30
Date of business trip : 17.12.27~17.12.29
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date: 2019.12.27 (Fri),
Operator: Daeil System, Manager Choi, Hyoung Mun
Place of measurement : F1, SYE
Equipment Model: HITACHI-SU3500
Measurement conditions and results
Summary of measurement results
| Test Condition | Z | X | Y |
|---|---|---|---|
| Floor | N/A | N/A | N/A |
| Above Active | N/A | N/A | N/A |
Good omnidirectional performance.
MB1000 internal program performance measurement result

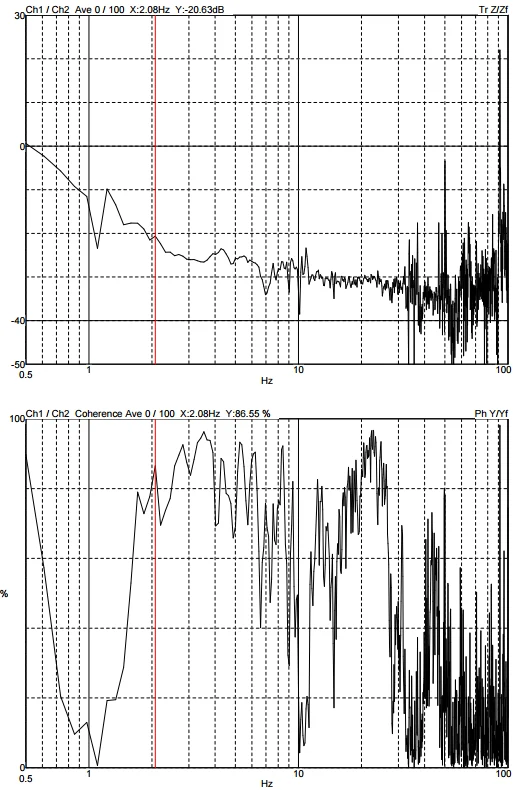

Internal program Z axis

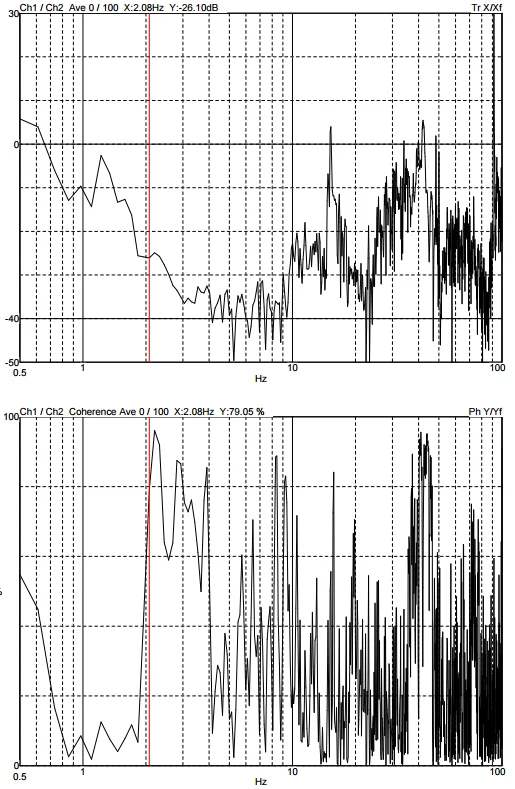

Internal program X axis

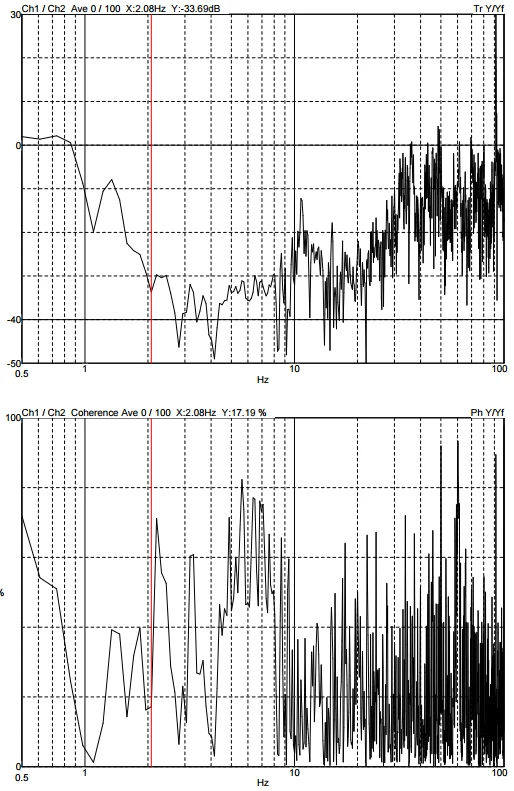

Internal program Y axis
Octave Band Result (BASE: Floor, TOP: Above Active)

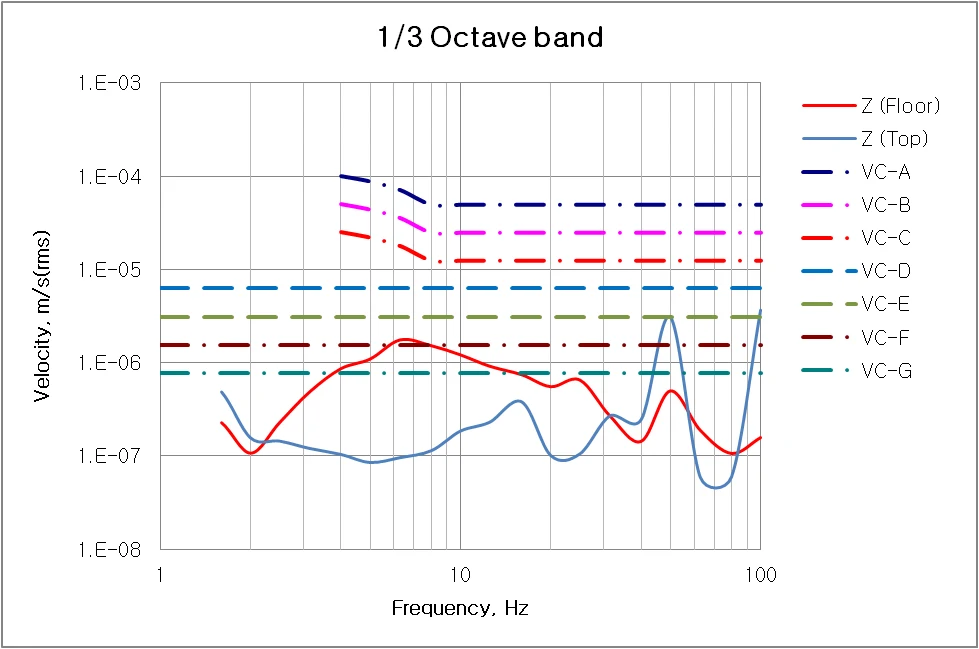

Octave band Z axis

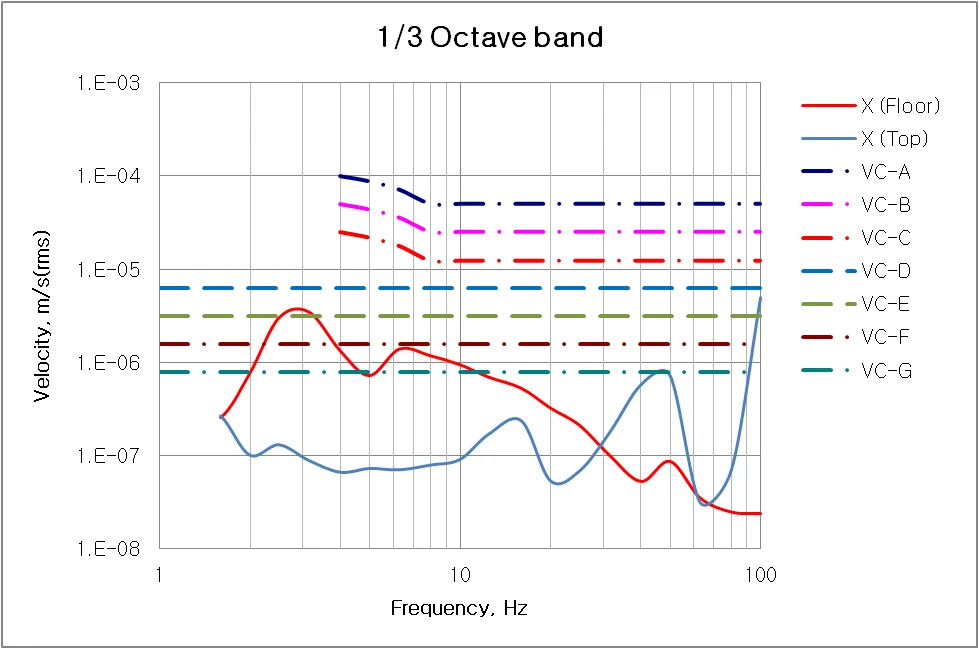

Octave band X axis

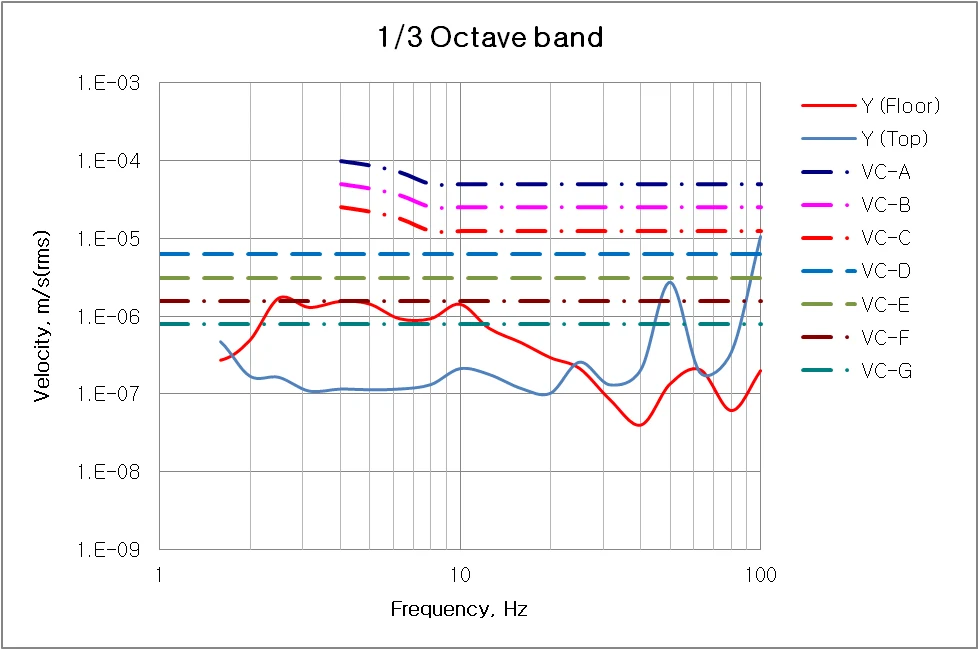

Octave band Y axis
