Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date: 20.09.23 (WED)
Operator: Daeil System, Research engineer Choim, HyoungMun
Place of measurement : zhanjiang
Equipment Model: ZEISS_GEMINISEM 500
Measurement conditions and results
Summary of measurement results
Test Condition
Transmissibility
| Direction | 2 Hz | 5 Hz | 10 Hz |
|---|---|---|---|
| Z | -20 dB | -27 dB | -26 dB |
| X | -27 dB | -35 dB | -35dB |
| Y | -27 dB | -32 dB | -32dB |
Good omnidirectional performance.
MB1000 internal program performance measurement result

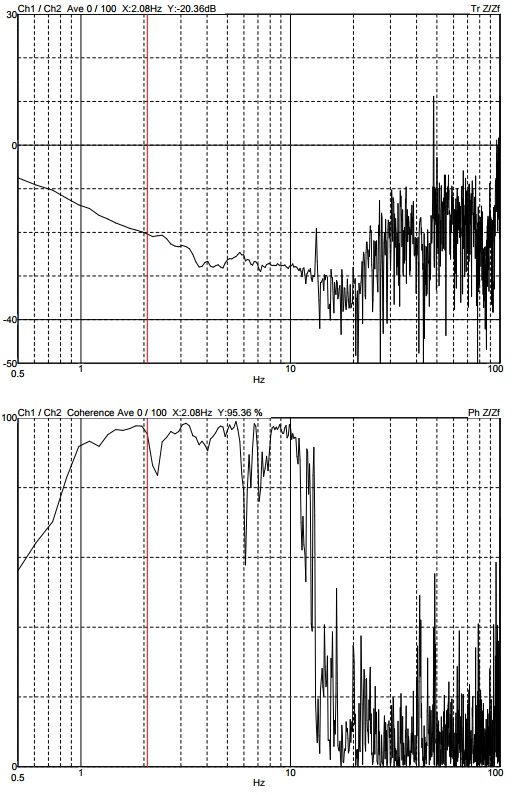

Z axis

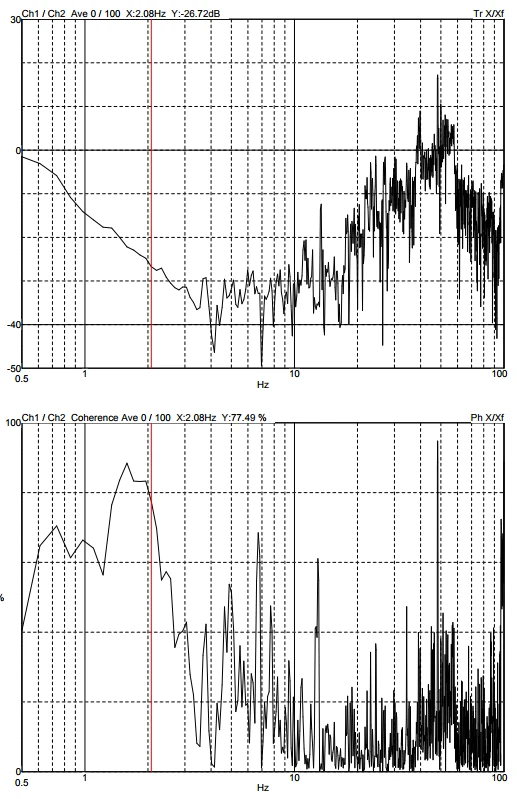

X axis

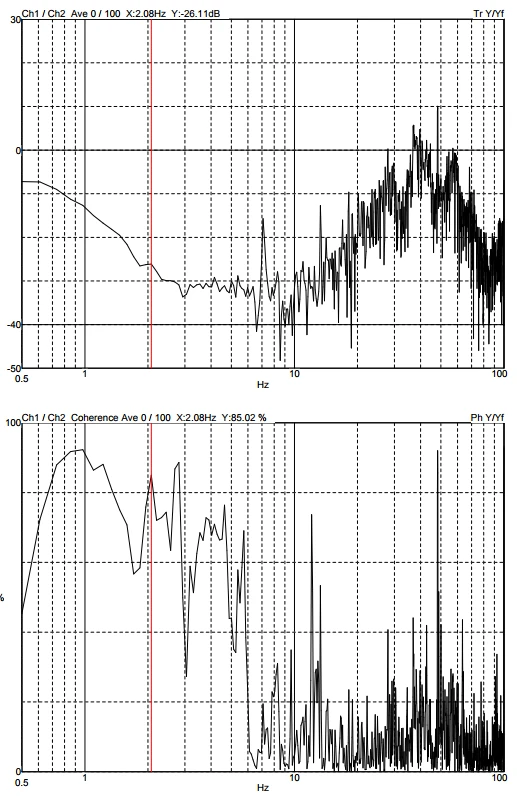

Y axis
