Installation Report
DVIA-M Series
05-24-2019
BOE ZEISS Gemini 2 Crossbeam 550 DVIA-MB1000 (MB1000 P112) Internal program worksheet — 2019.05.24
DVIA-M Series
Installation Report
BOE
ZEISS
Gemini 2
Crossbeam 550
DVIA-MB1000
MB1000 P112
Contents
BOE MB1000_P112 Set up
| Target equipment | ZEISS-Gemini2 Crossbeam550 |
|---|---|
| Place of installation | BOE, 3th FLOOR |
| Uniqueness | Good Performance |
| END USER | BOE |
| Business traveler: Choi, HyoungMun | Date of business trip : 19.05.22 |
| Date Created : 19.05.24 |
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date: 19.05.22 (WED),
Rater: Daeil System, Manager Choi , Hyoung Moon
Place of measurement : BOE, 3th FLOOR

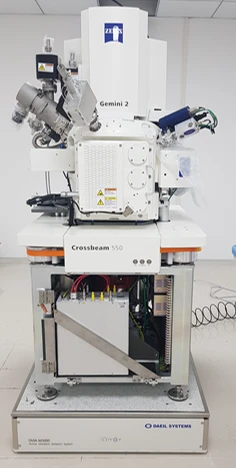

Equipment Model: ZEISS-Gemini2 Crossbeam550
Measurement conditions and results
Summary of measurement results
| Test Condition | VC-Class Z | VC-Class X | VC-Class Y |
|---|---|---|---|
| Floor | C | C | D |
| Above Active | G | G | G |
Good omnidirectional performance and attached VC-Class graph.
MB1000 internal program performance measurement result

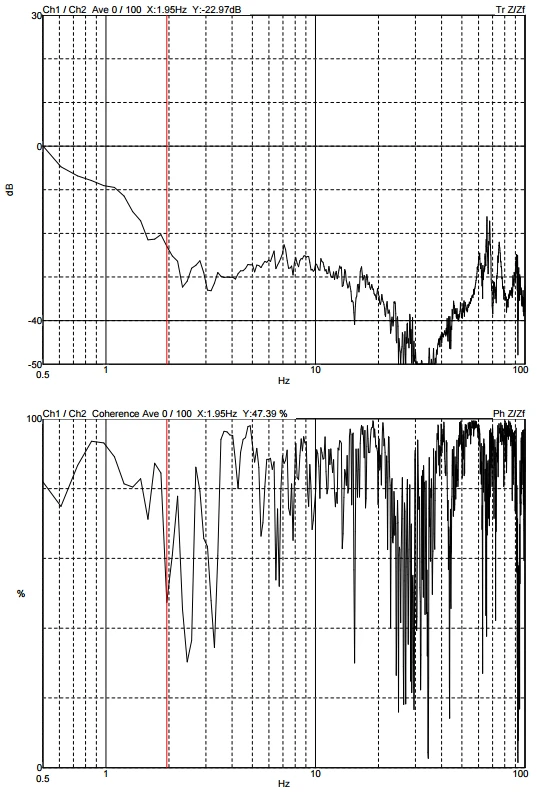

Z axis

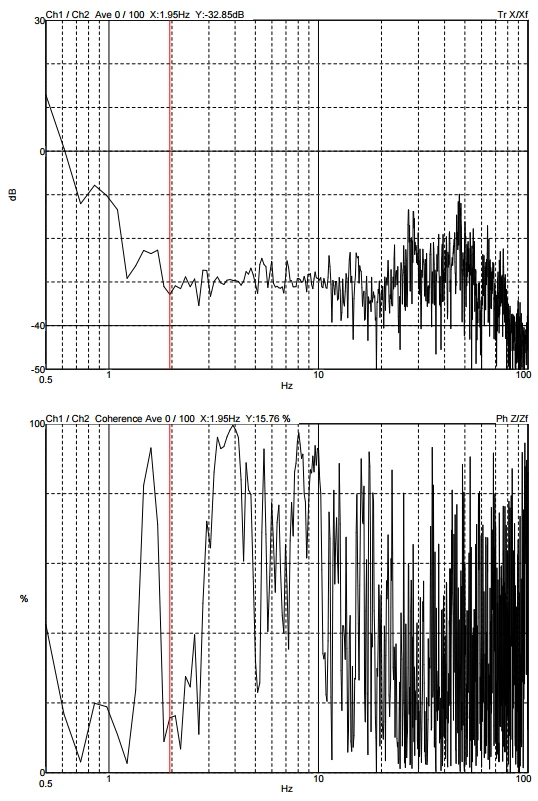

X axis

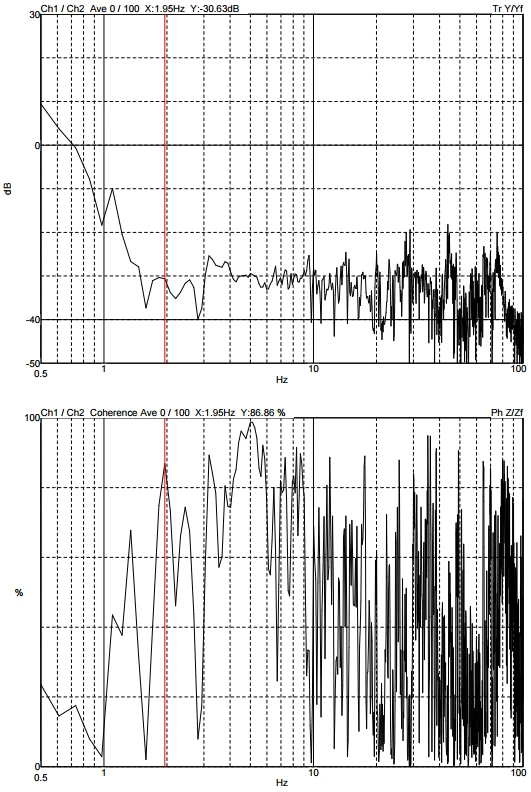

Y axis
Octave Band Result (BASE: Floor, TOP: Above Active)

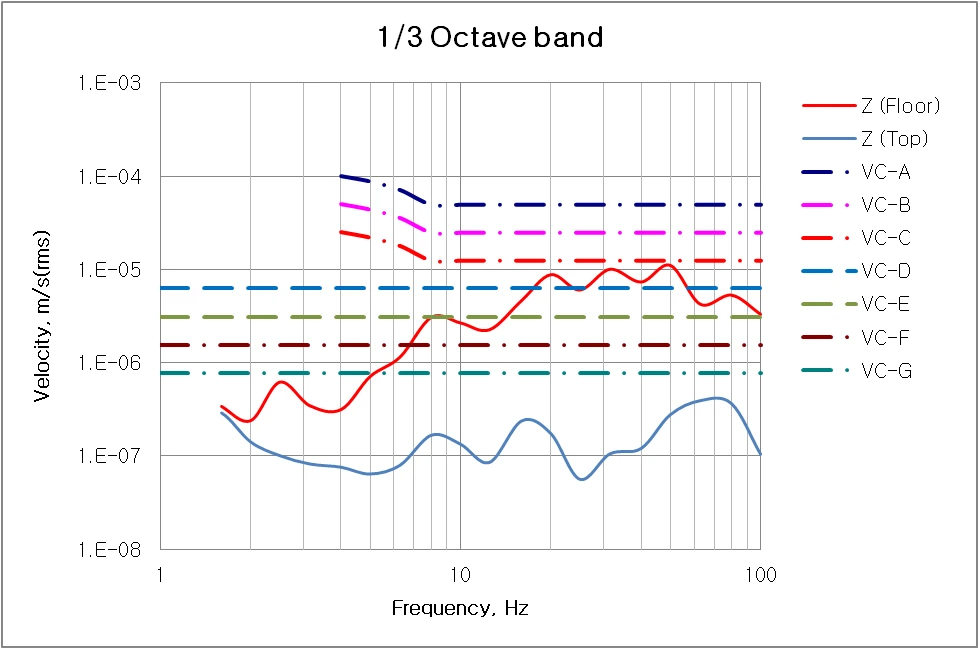

Octave Band Result — Z axis

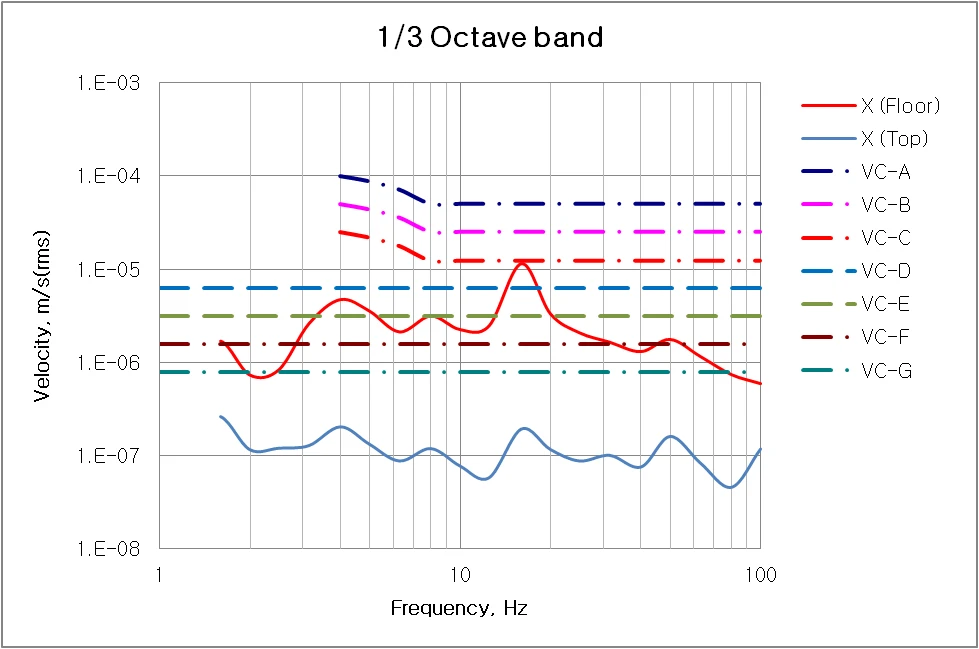

Octave Band Result — X axis

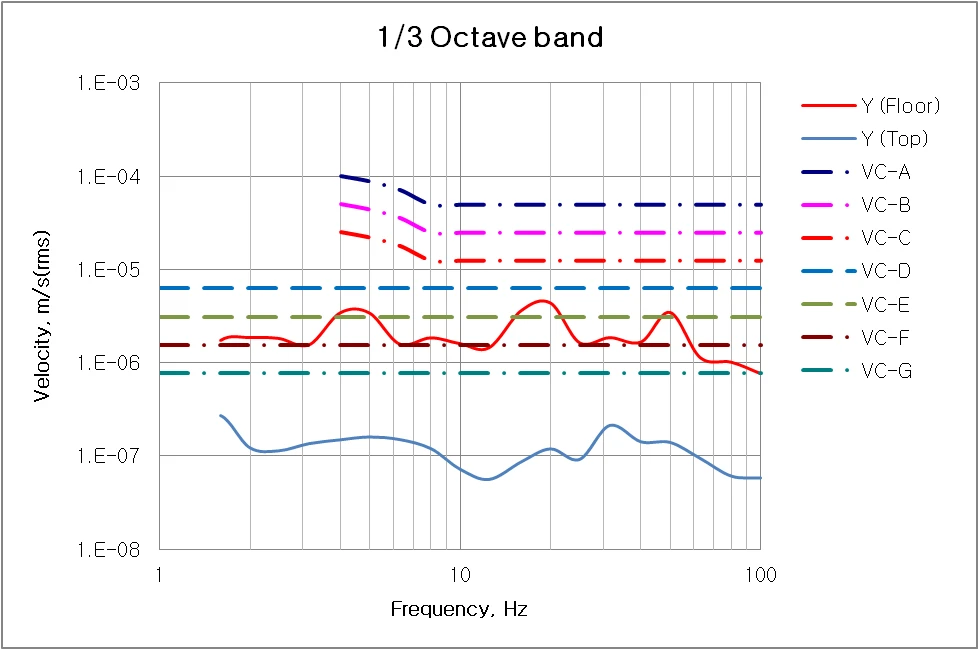

Octave Band Result — Y axis
