Installation Report

DVIA-T Series

07-04-2025

Seoul Asan Hospital Tomocube DVIA-T56 Fluorescence Holographic Tomography Microscope Installation Report

DVIA-T Series

Installation Report

Seoul Asan Hospital

Tomocube

HT-2H

DVIA-T56

190329R1-3

Vibration Isolation System Model

Model: DVIA-T56

Serial Number: 190329R1-3

Engineer

Chaewon Lee

Installation Date

2025.07.04

Installation Site

Seoul Asan Hospital 4th floor

End User

Seoul Asan Hospital

Equipment Status

Idle

Equipment Information

Manufacturer: Tomocube

Equipment: Fluorescence Holographic Tomography Microscope

Model: HT-2H

Vibration Measurement Device

10.1) PULSE 22

-Hardware: B&K Front End Type 3050-A-040

-Software: B&K Pulse Labshop 22 Version

10.2) Accelerometer

PCB Accelerometer

Model: 393B05

Measurement Setup

F Span: 200

Lines: 3200

Engineering Units: m/s

Window: Hanning

Averaging: FFT Spectrum Averaging

Average Mode: Exponential, 40

Conclusion

The DVIA-T56 reduced floor vibrations to VC-G in all axes.

Summary

Measurement site	State	Direction	Floor	DVIA-T56
Seoul Asan Hospital 4th floor 1.Floor 2.DVIA-T56	Turned On	Vertical	VC-B @ 63 Hz	VC-G @ 63 Hz
		Left to Right	VC-B @ 16 Hz	VC-G @ 16 Hz
		Front to Back	VC-B @ 16 Hz	VC-G @ 16 Hz

데이터&이미지

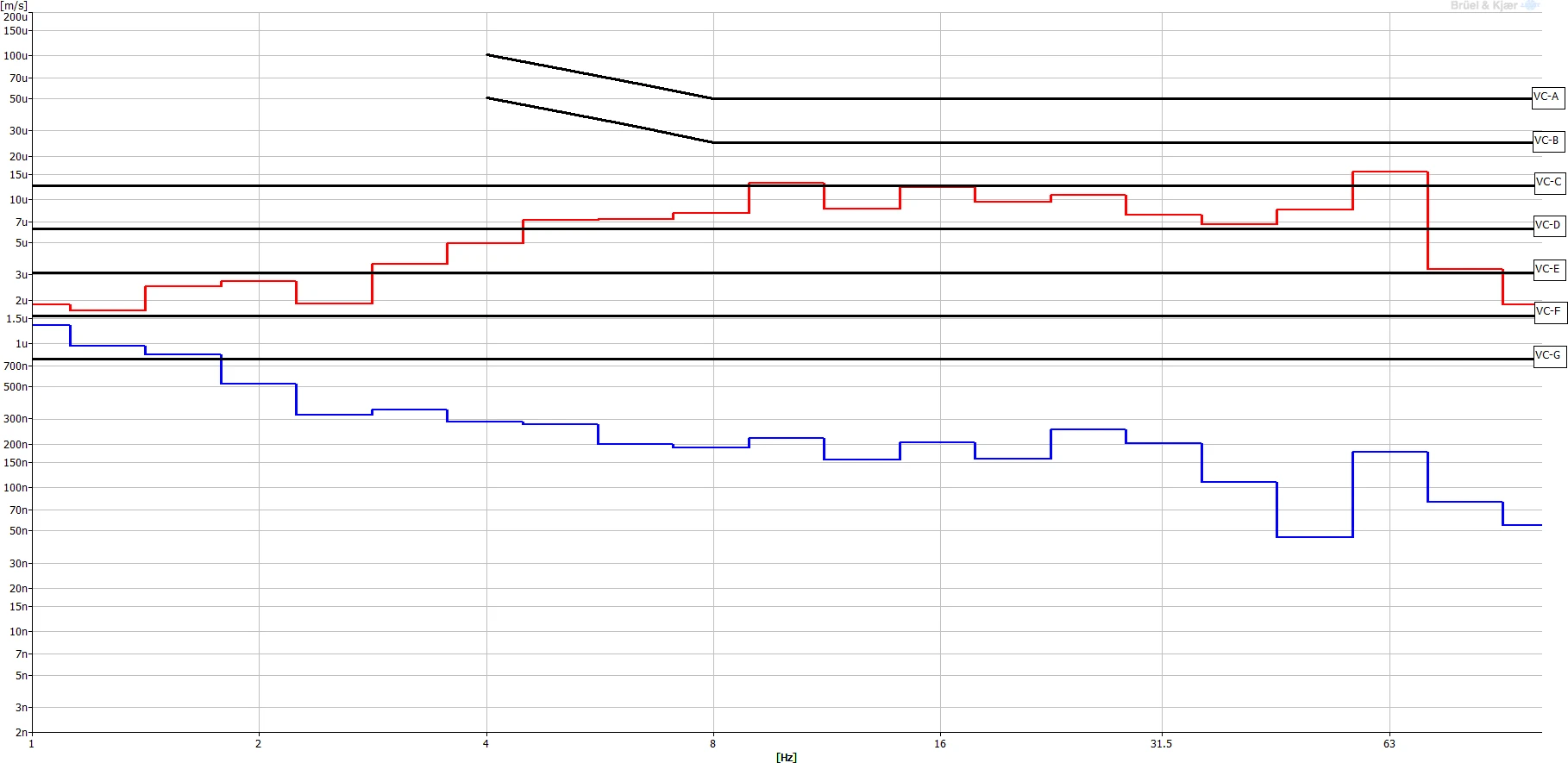

Vertical VC Curves

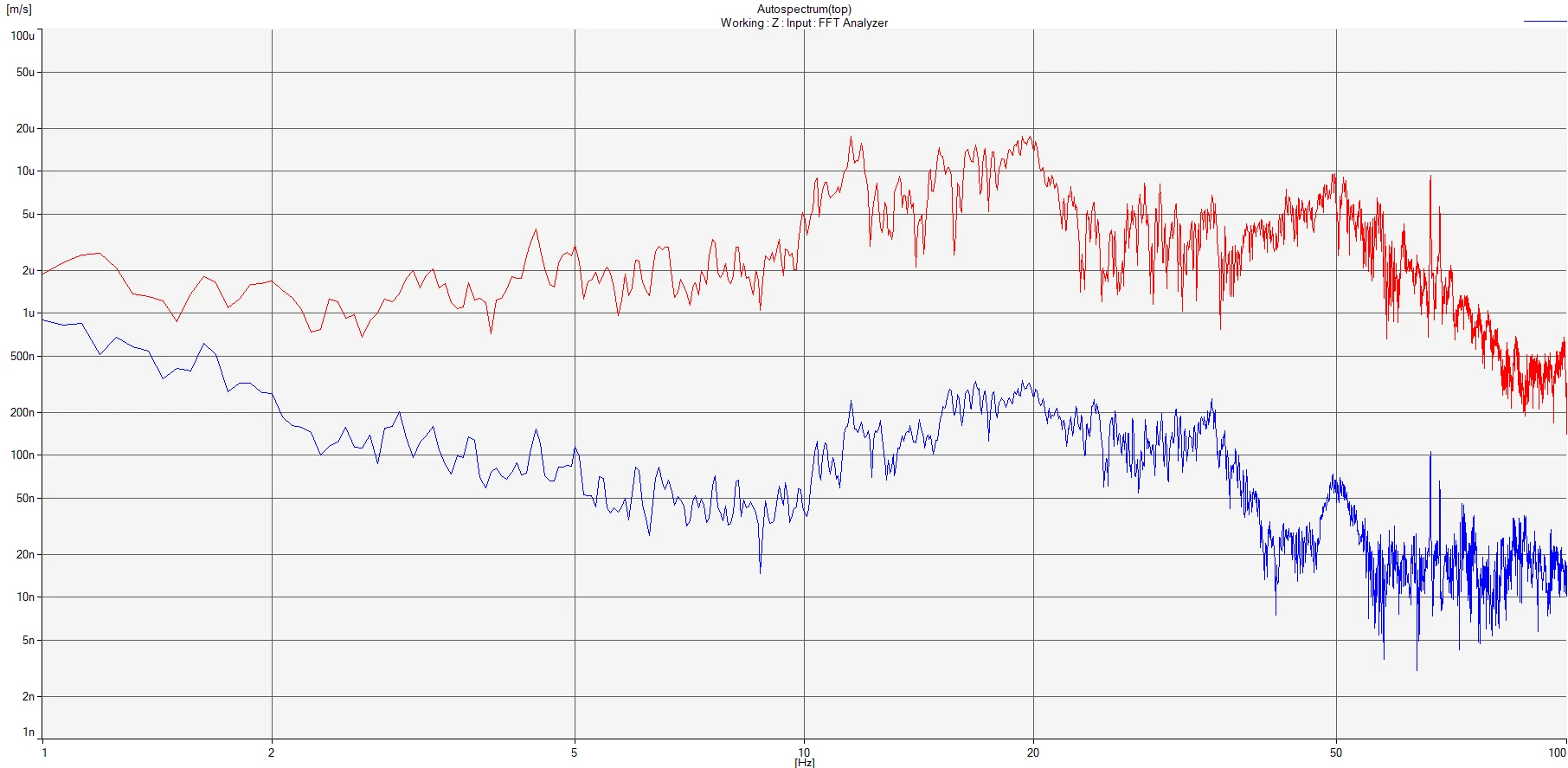

Vertical Autospectrum

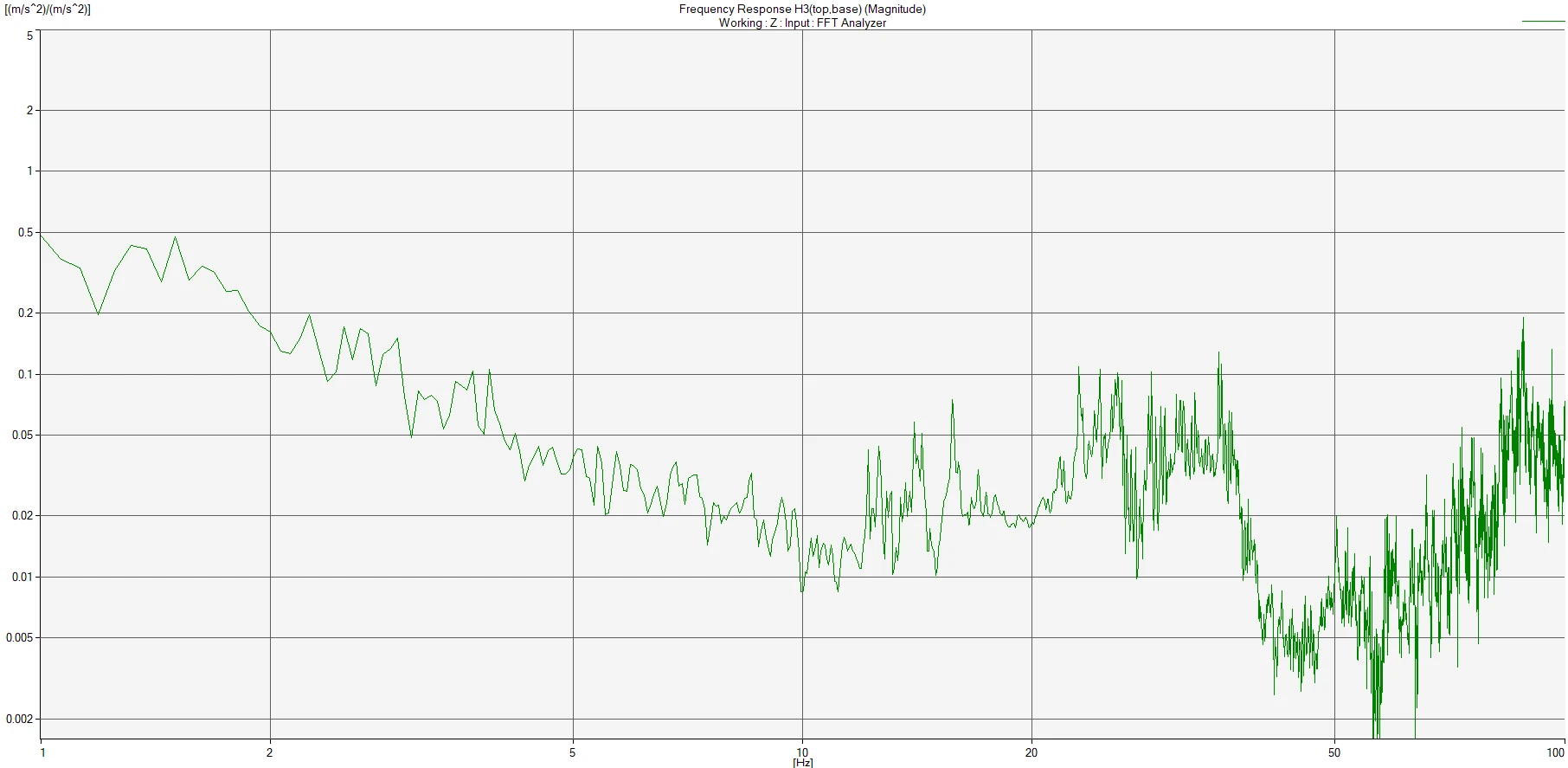

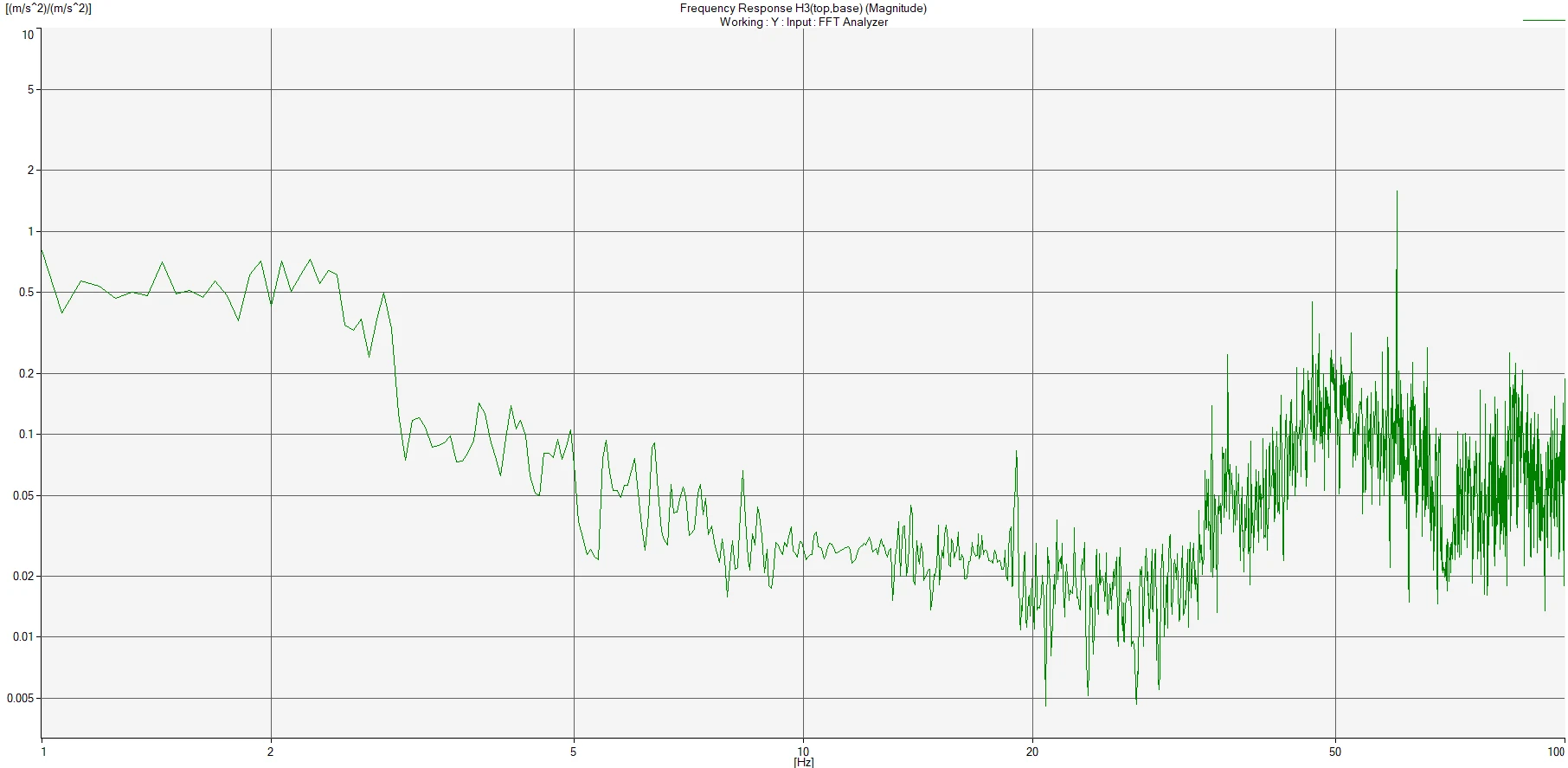

Vertical Transmissibility

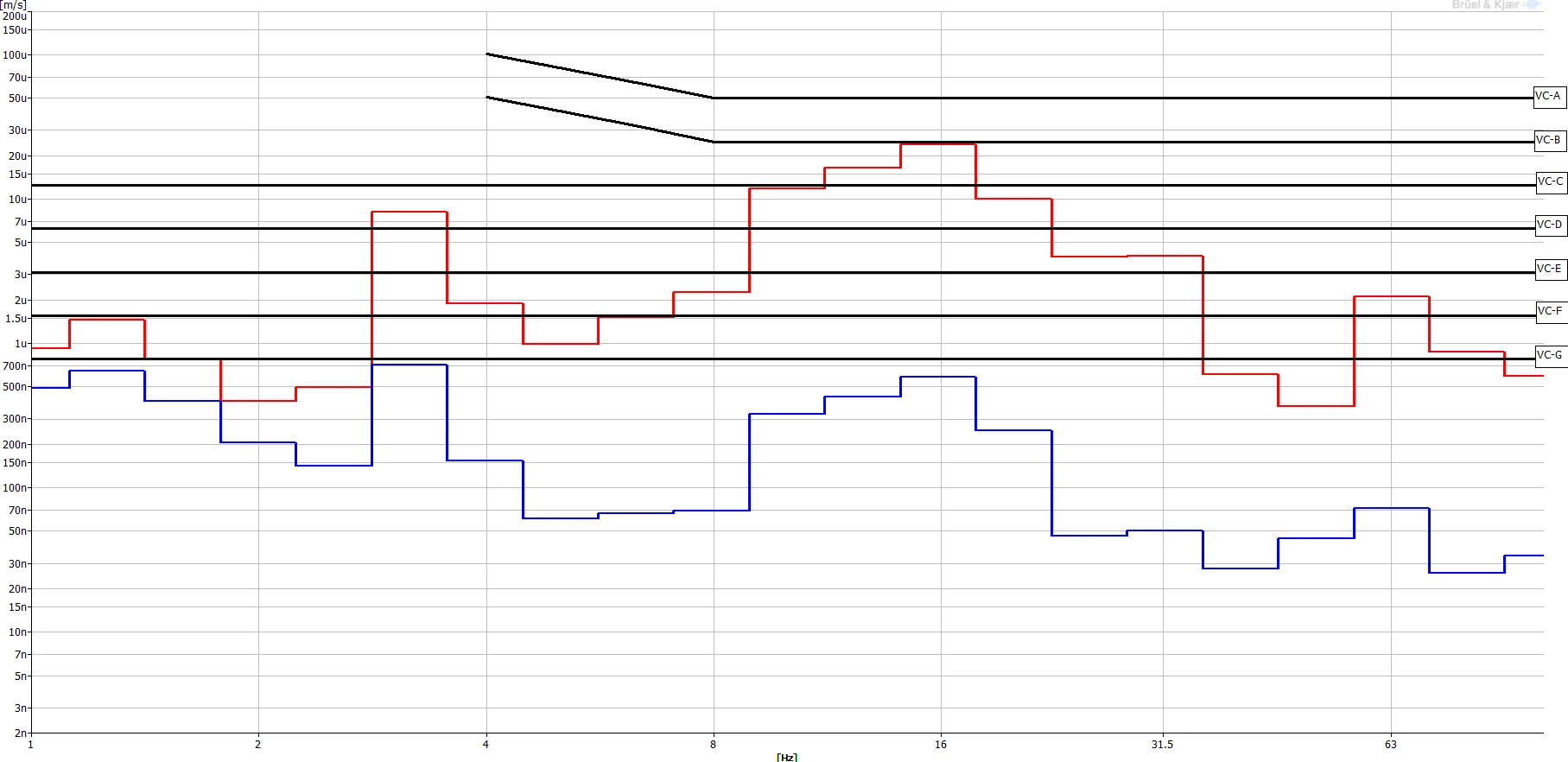

Left to Right VC Curves

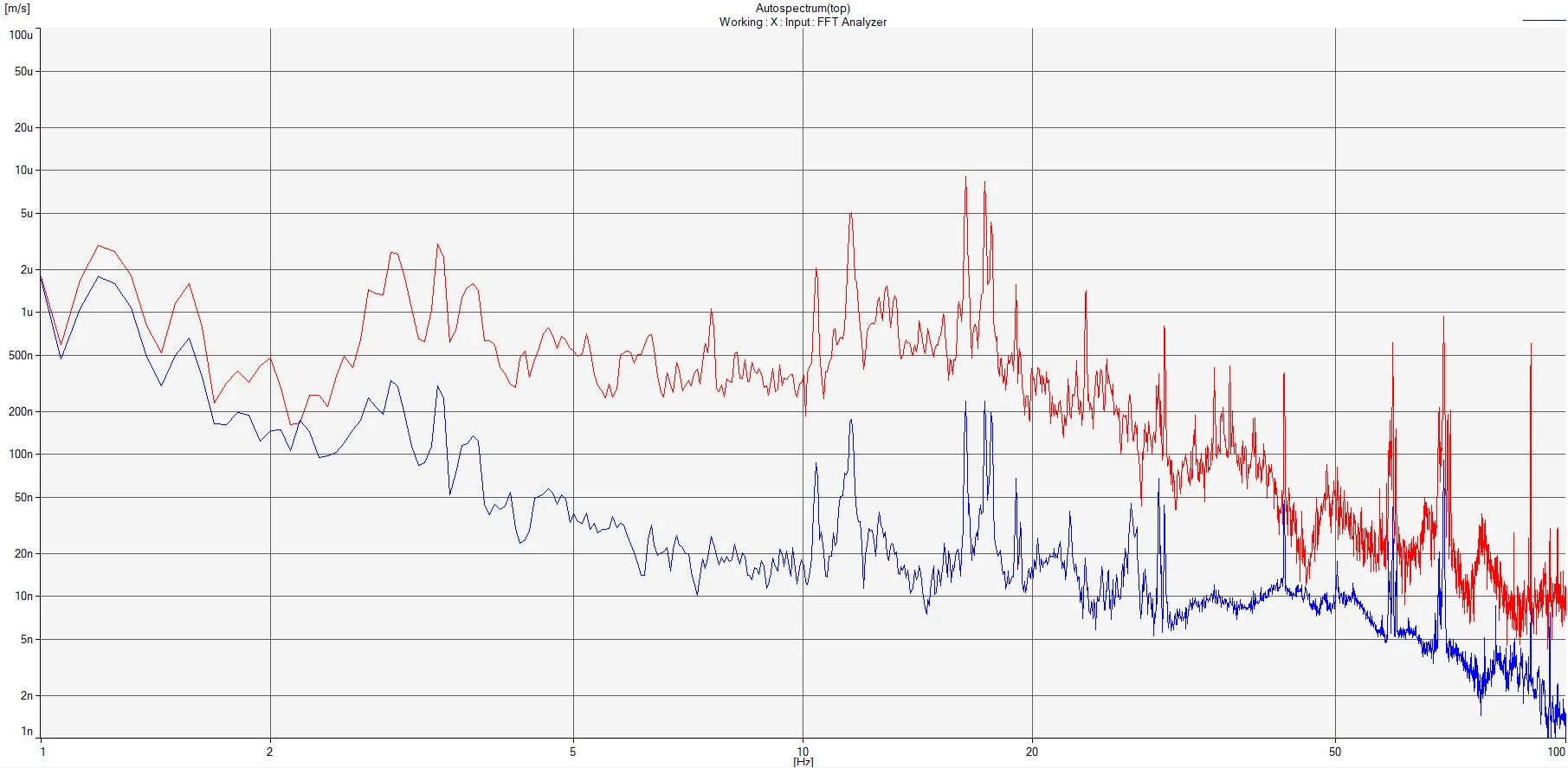

Left to Right Autospectrum

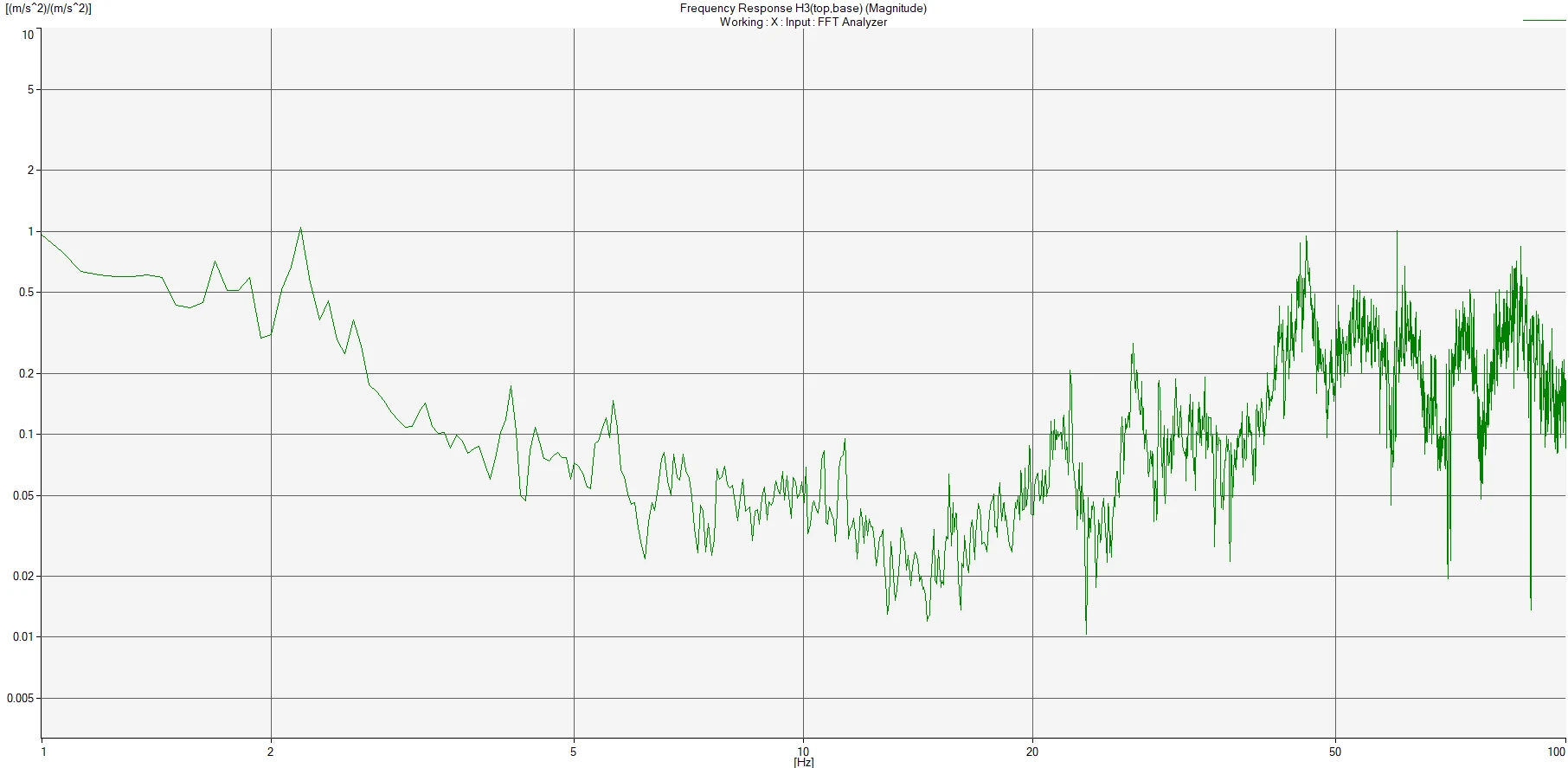

Left to Right Transmissibility

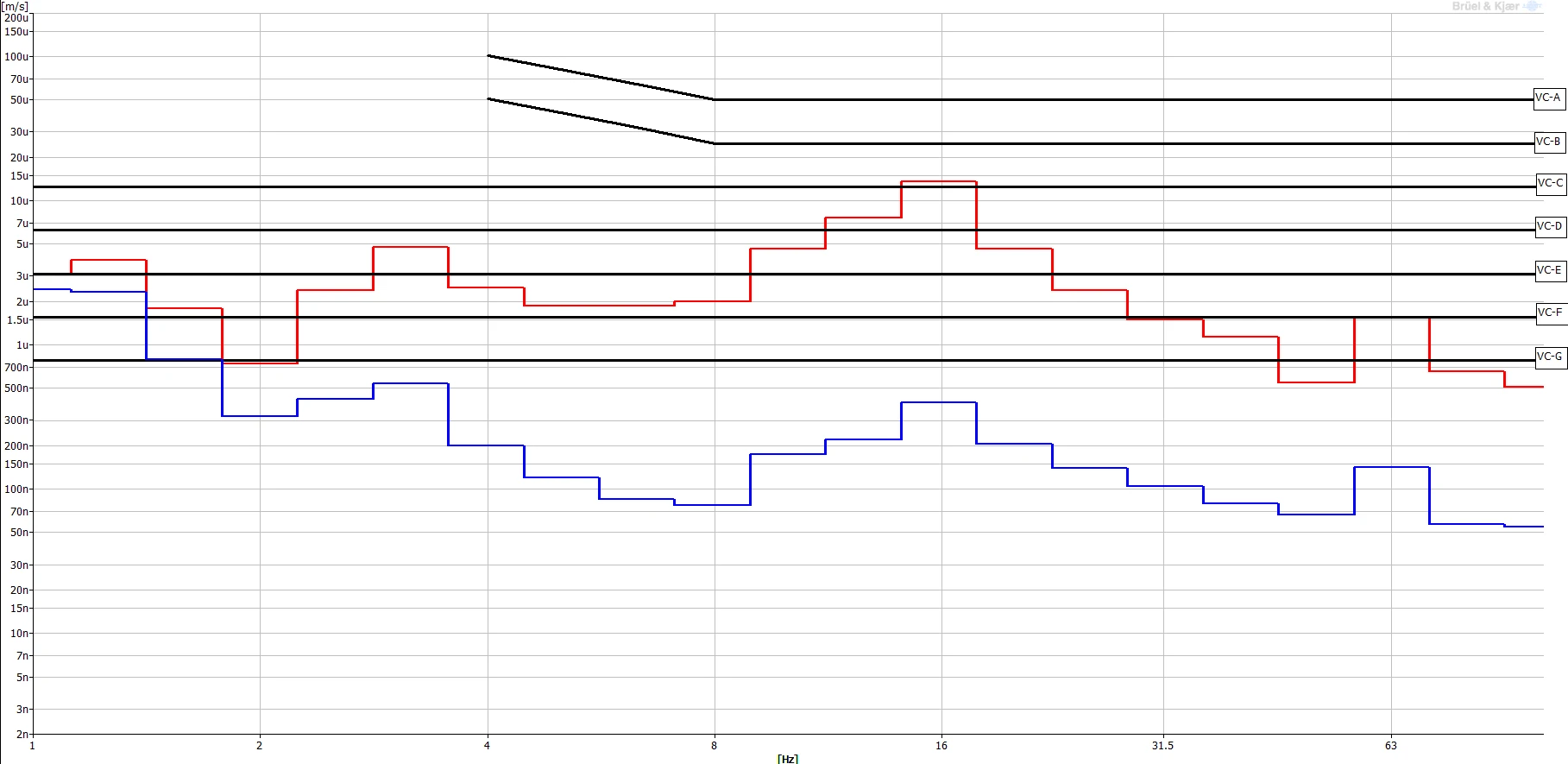

Front to Back VC Curves

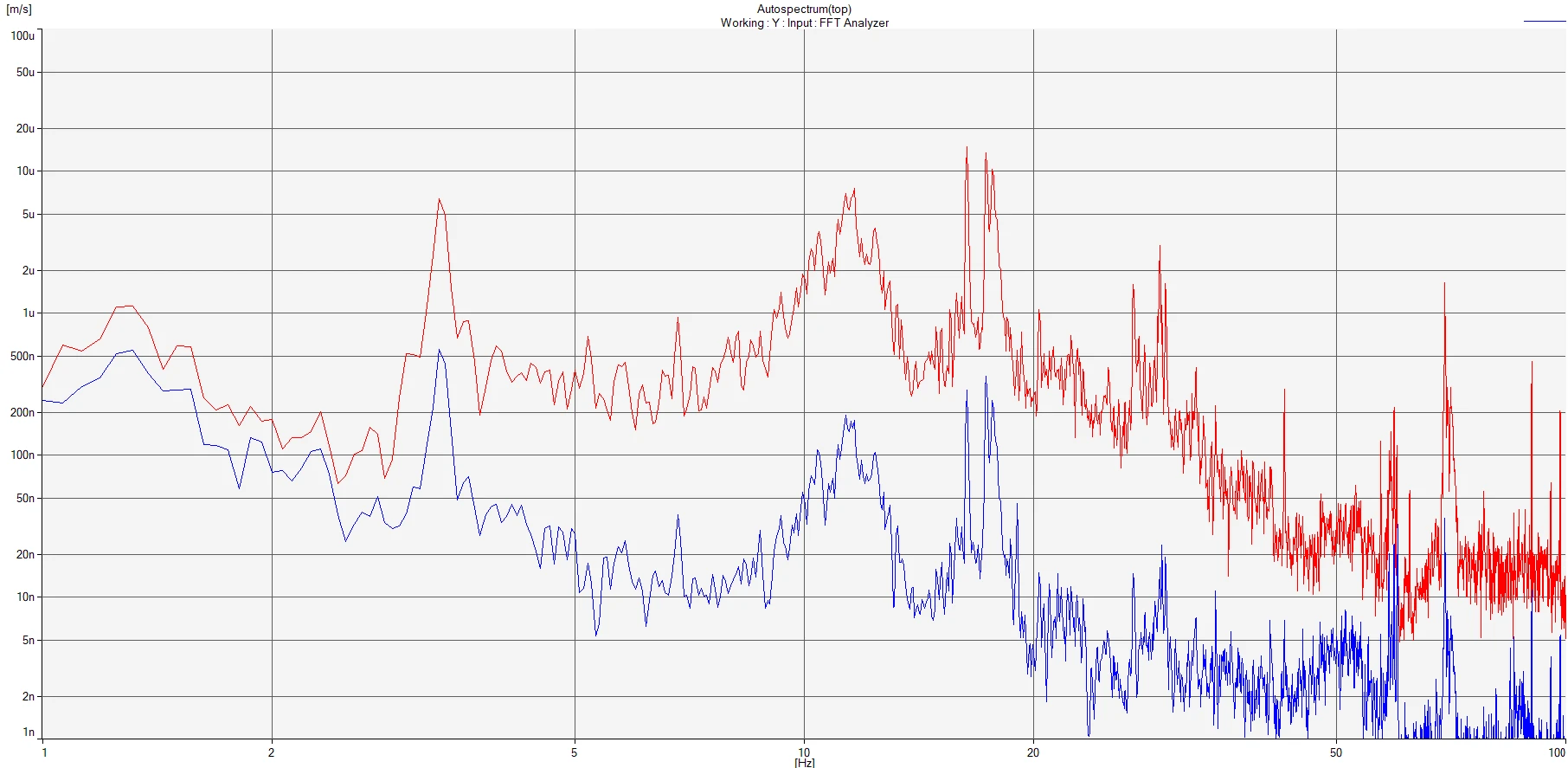

Front to Back Autospecturm

Front to Back Transmissibility

Reference

Generic Vibration Criteria

Criterion Curve	Description	Amplitude μm/s (µin/s)	Detail Size μm
Workshop (ISO)	Distinctly perceptible vibration. Appropriate to workshops and non-sensitive areas.	800 (32,000)	N/A
Office (ISO)	Perceptible vibration. Appropriate to offices and non-sensitive areas.	400 (16,000)	N/A
Residential Area (ISO)	Barely perceptible vibration. Appropriate to sleep areas in most instances.	200 (8,000)	75
Operating Theatre (ISO)	Vibration not perceptible. Suitable for surgical suites, microscopes to 100x.	100 (4,000)	25
VC-A	Adequate for optical microscopes to 400x, microbalances, optical balances.	50 (2,000)	8
VC-B	Appropriate for inspection and lithography equipment to 3μm line widths.	25 (1,000)	3
VC-C	Appropriate for optical microscopes to 1000x, lithography equipment to 1μm.	12.5 (500)	1 - 3
VC-D	Suitable for demanding equipment including electron microscopes (SEMs/TEMs).	6.25 (250)	0.1 - 0.3
VC-E	For the most demanding systems including E-Beam lithography at nanometer scales.	3.12 (125)	< 0.1
VC-F	For extremely quiet research spaces. Not recommended as design criterion.	1.56 (62.5)	N/A
VC-G	For extremely quiet research spaces. Not recommended as design criterion.	0.78 (31.25)	N/A

Notes:

- As measured in one-third octave bands over 8-80 Hz (VC-A/B) or 1-80 Hz (VC-C through VC-G).

- Detail size refers to width in microelectronics fabrication or particle size in medical research.
