Installation Report
DVIA-M Series
09-17-2018
Xiamen University FEI QUANTA FEG 650 DVIA-MB1000 (MB1000 P62) Internal program worksheet — 2018-09-17
DVIA-M Series
Installation Report
Xiamen University
DVIA-MB1000
MB1000
P62
FEI
QUANTA FEG 650
Contents
Xiamen University MB1000_P62 Set up
Target equipment
FEI-QUANTA FEG 650
Place of installation
Xiamen University, 1th FLOOR
Uniqueness
Good Performance
END USER
Xiamen University
Date of business trip
Date of business trip : 18.09.13
Business traveler
Business traveler: Choi, HyoungMun
Date Created
Date Created : 18.09.17
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date
Measurement date: 2018.09.13 (Thursday),
Rater
Rater: Daeil System, Manager Choi , Hyoung Moon
Place of measurement
Place of measurement : Xiamen University, 1th FLOOR
Equipment Model
Equipment Model: FEI-QUANTA FEG 650
Measurement conditions and results
Summary of measurement results
| Test Condition | VC-Class Z | VC-Class X | VC-Class Y |
|---|---|---|---|
| Floor | E | E | E |
| Above Active | F | G | G |
Good omnidirectional performance and attached VC-Class graph.
MB1000 internal program performance measurement result

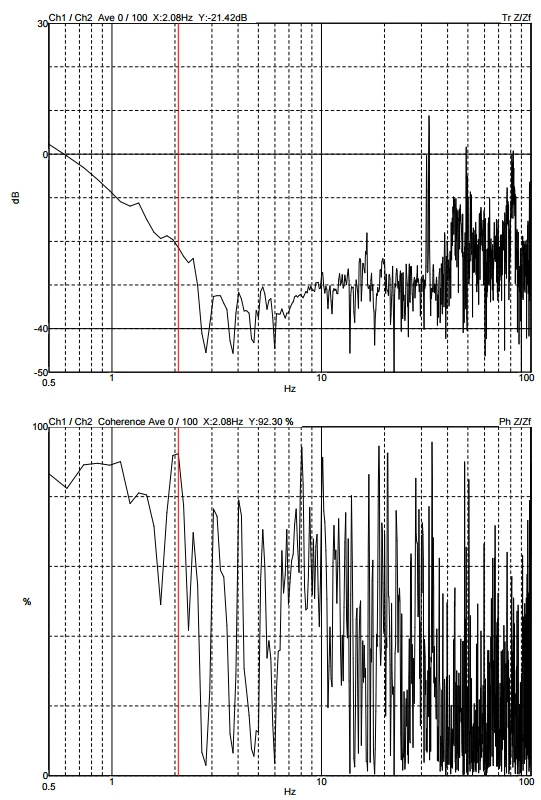

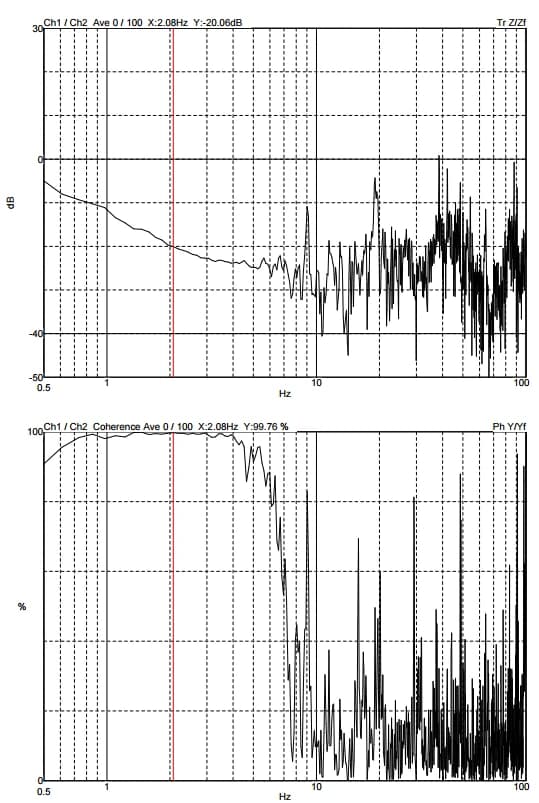

Z axis

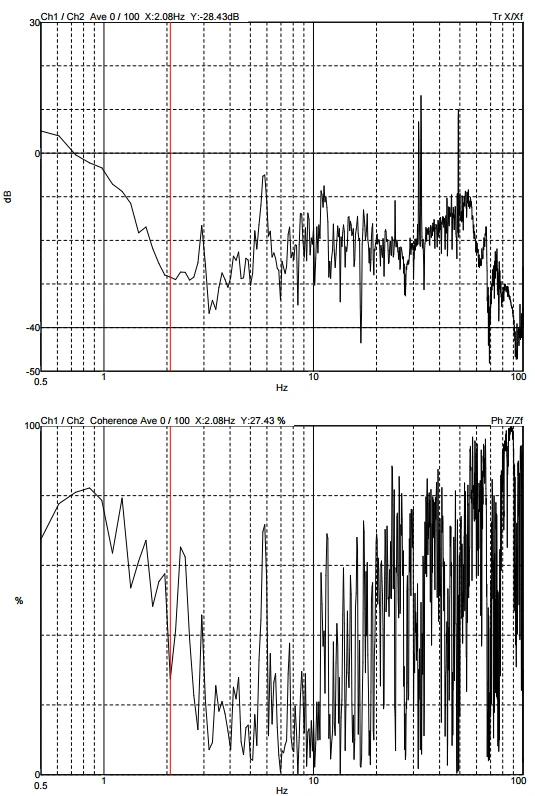

X axis

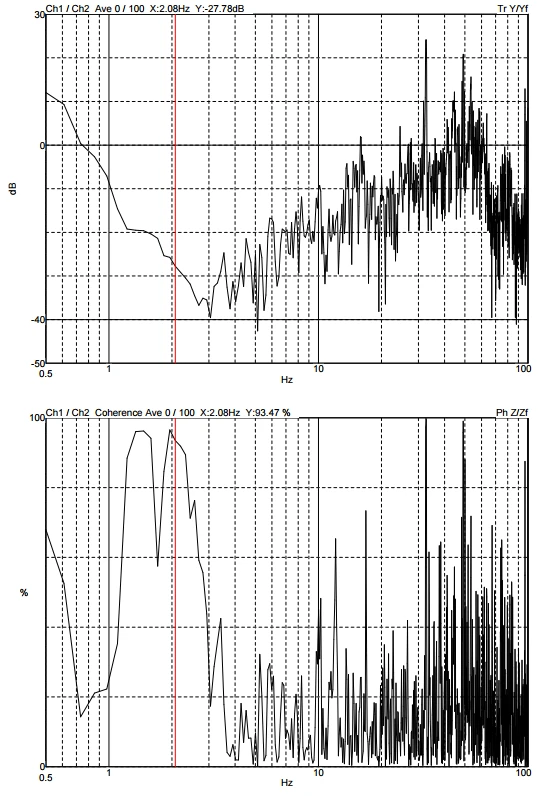

Y axis
Octave Band Result (BASE: Floor, TOP: Above Active)

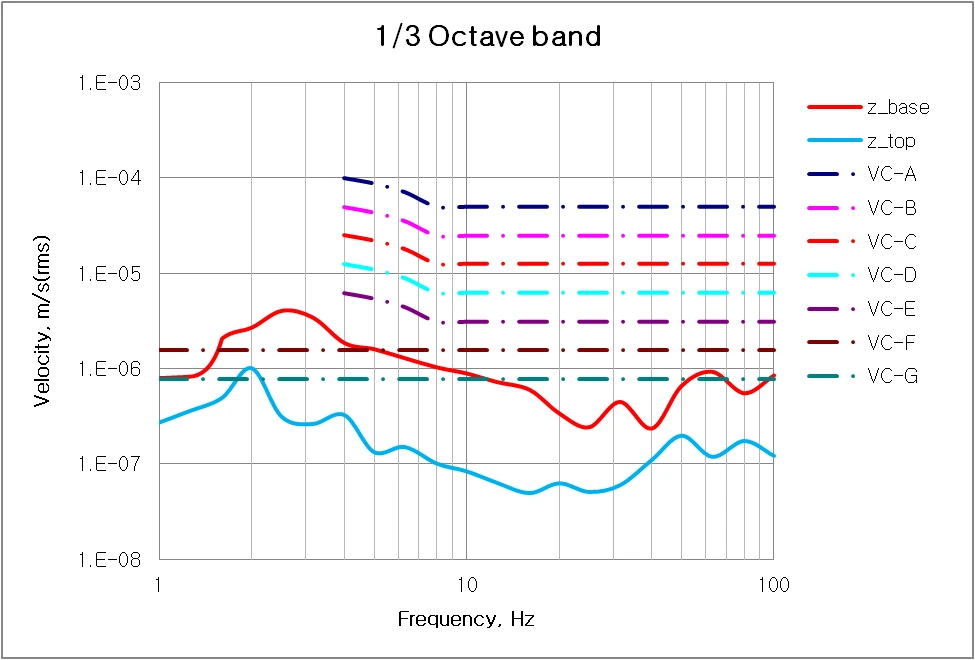

Octave Band Result — Z axis
Octave Band Result — X axis

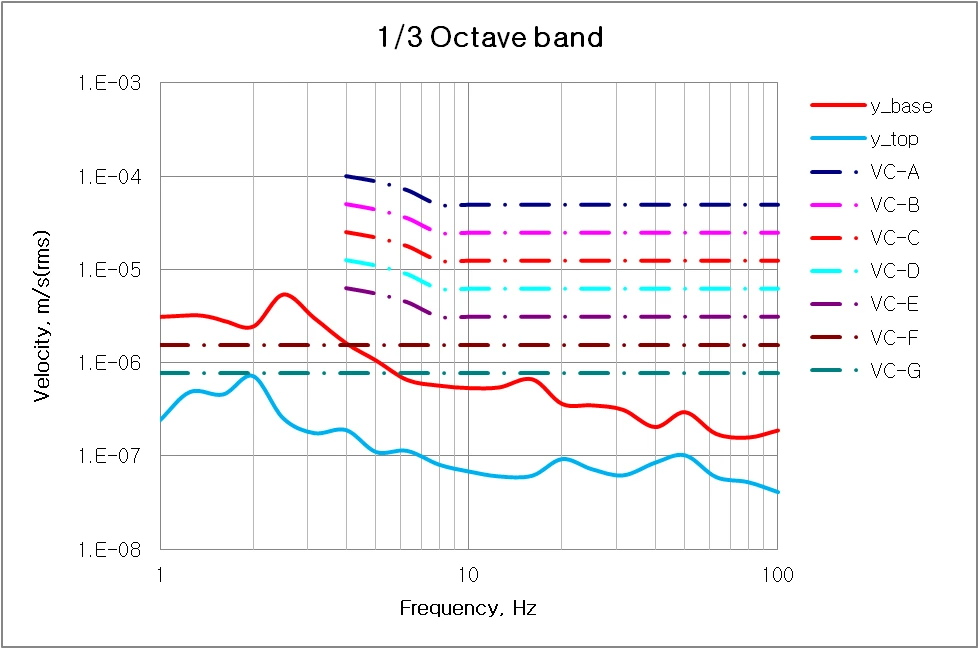

Octave Band Result — Y axis
