Installation Report
DVIA-M Series
12-27-2017
Kolbenschmidt Shanghai Piston ZEISS evo18 DVIA-MB1000 (P56) Internal program worksheet — 2017.12.27
DVIA-M Series
Installation Report
YIMO
DVIA-MB1000
P56
Zeiss
evo18
Kolbenschmidt
Shanghai
Contents
Kolbenschmidt Shanghai Piston
(MB1000_P56 Set up)
Target equipment
ZEISS-evo18
Place of installation
1th Floor, Kolbenschmidt Shanghai Piston
Uniqueness
Good performance
END USER
Kolbenschmidt Shanghai Piston
Date of business trip
Date of business trip : 17.12.27~17.12.29
Business traveler
Business traveler: Choi, SungWon
Date Created
Date Created : 18.01.02
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date
Measurement date: 2017.12.27 (Monday), Rater: Daeil System, Manager Sung Won Choi
Place of measurement
Place of measurement : 1th Floor, Kolbenschmidt shanghai piston
Equipment Model
Equipment Model: ZEISS-evo18
Measurement conditions and results
Summary of measurement results
| Test Condition | Z | X | Y |
|---|---|---|---|
| Floor | D | E | E |
| Above Active | E | F | E |
Good omnidirectional performance and attached VC-Class graph.
VC-class notation except for 70Hz noise
MB1000 internal program performance measurement result

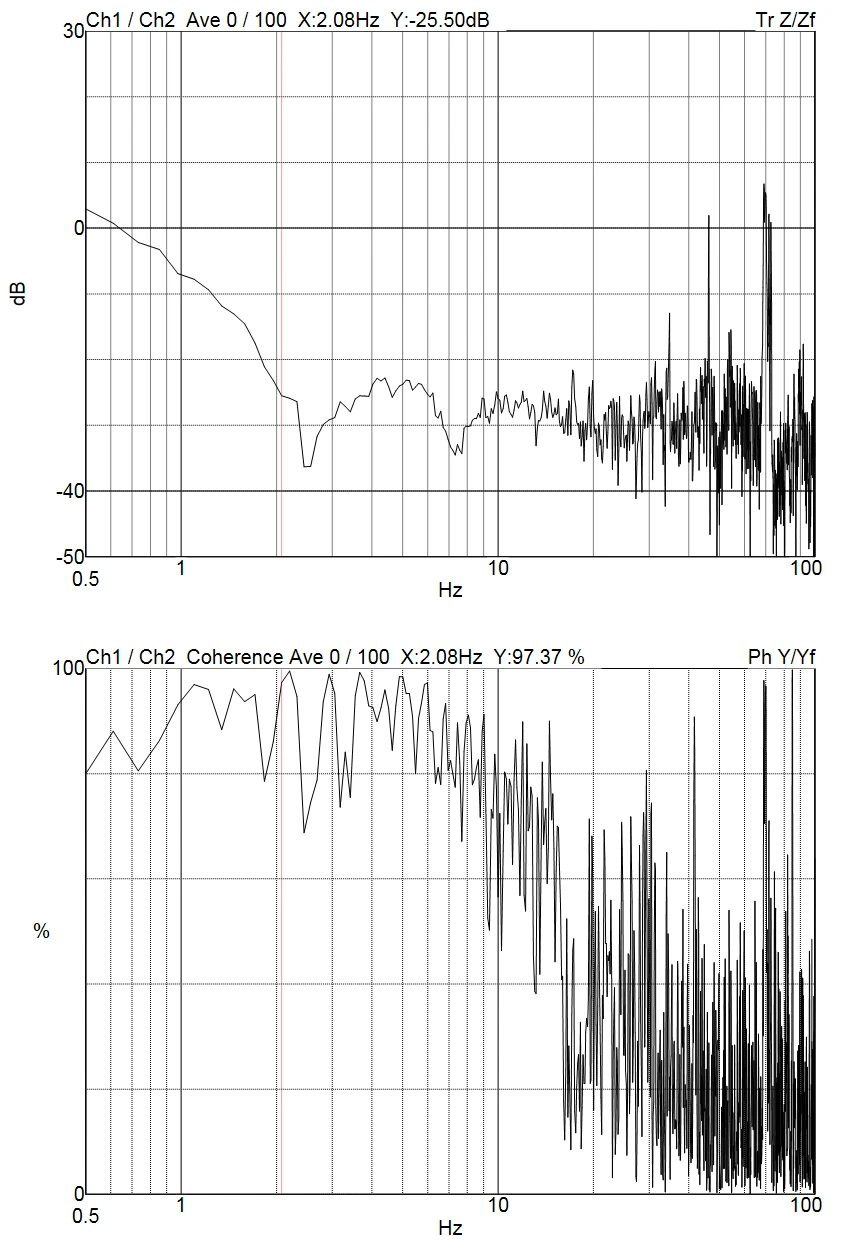

Z axis

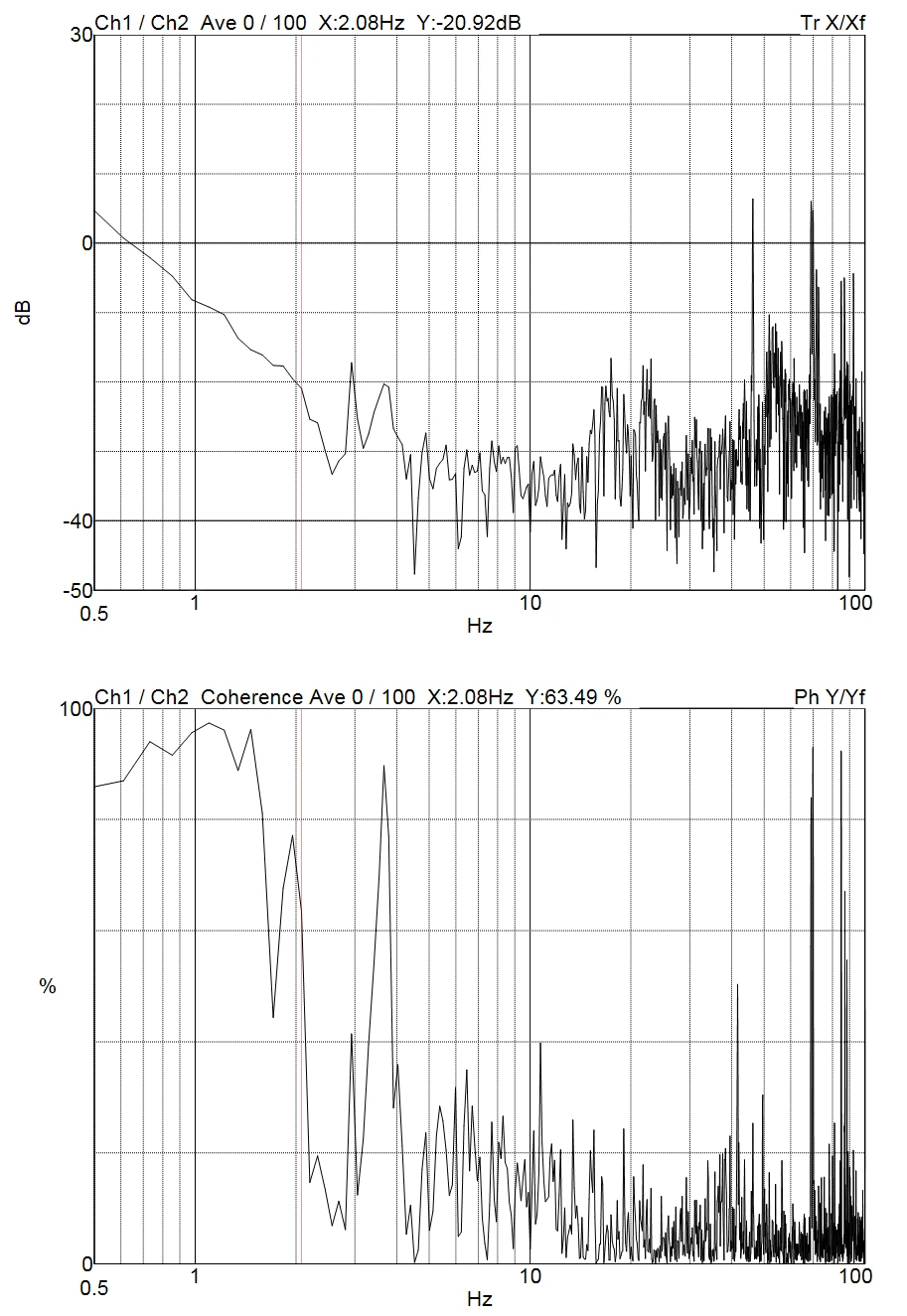

X axis

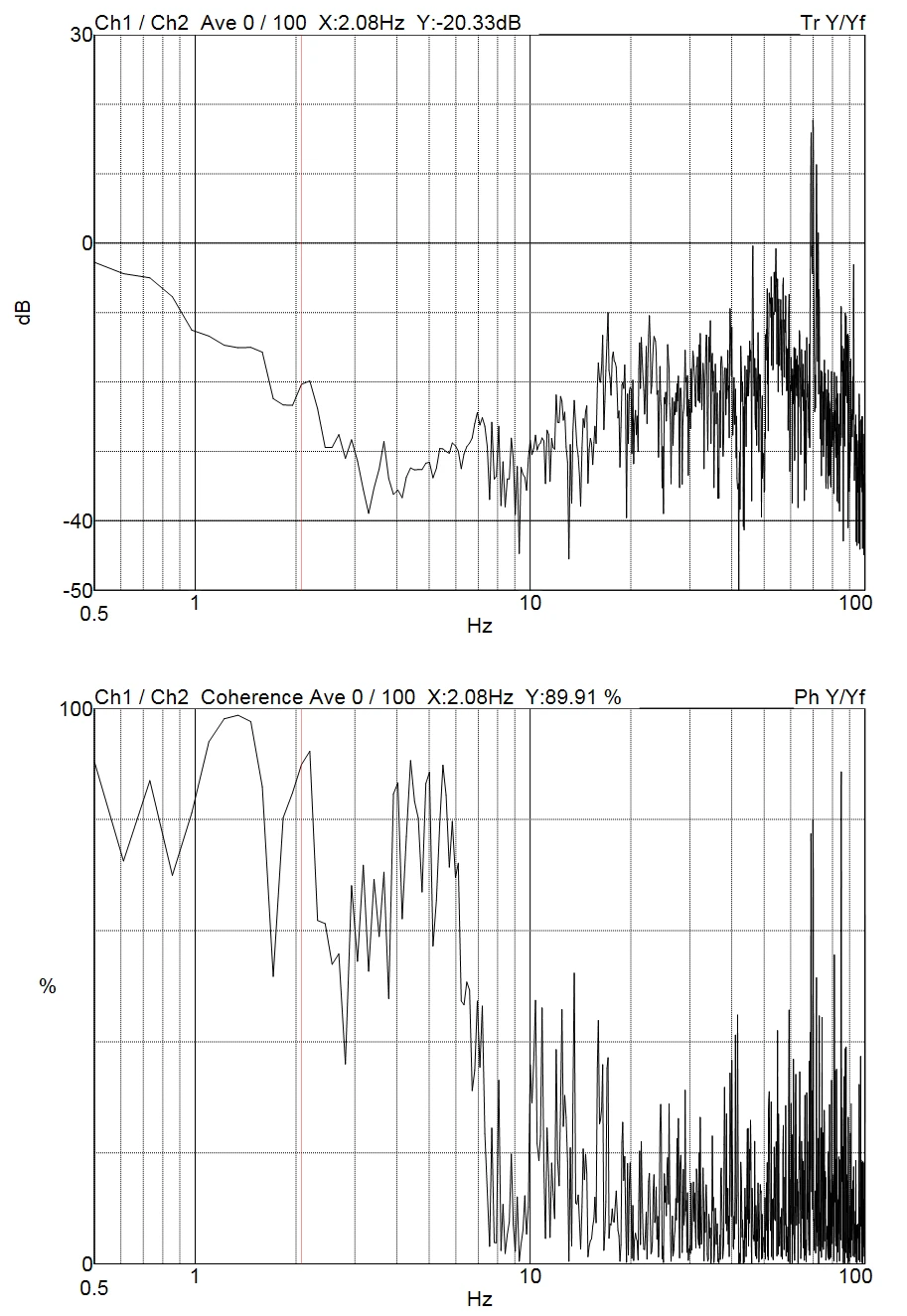

Y axis
Octave Band Result (BASE: Floor, TOP: Above Active)

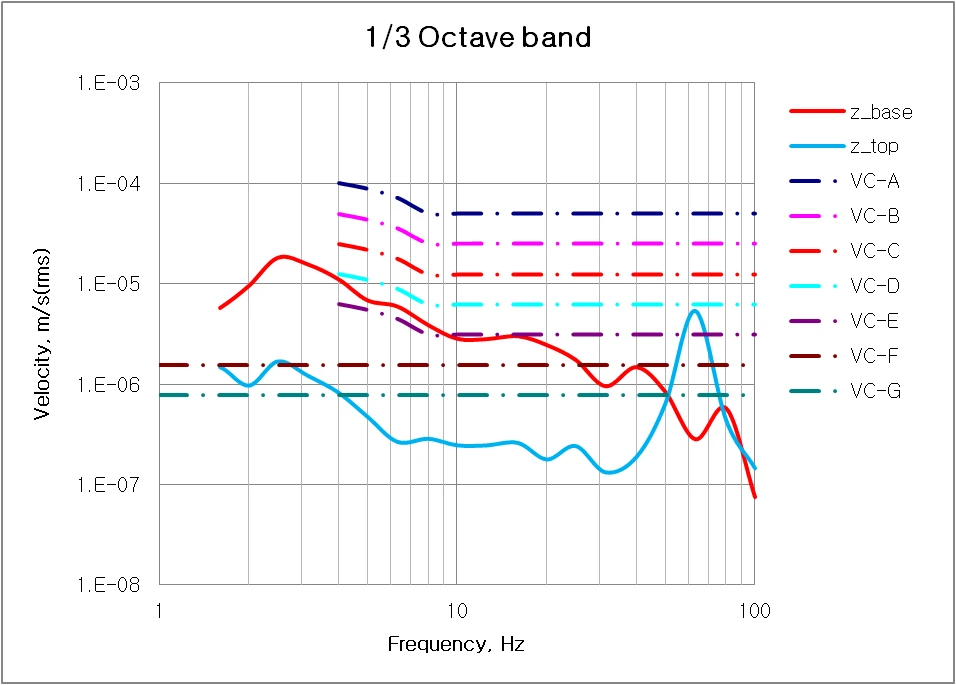

Octave band — Z axis

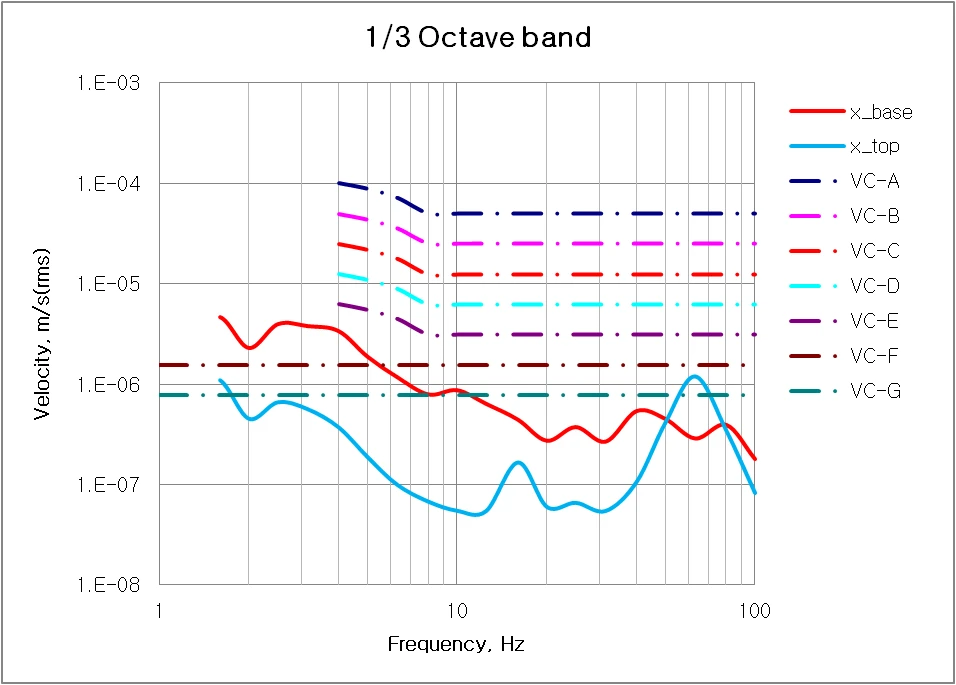

Octave band — X axis

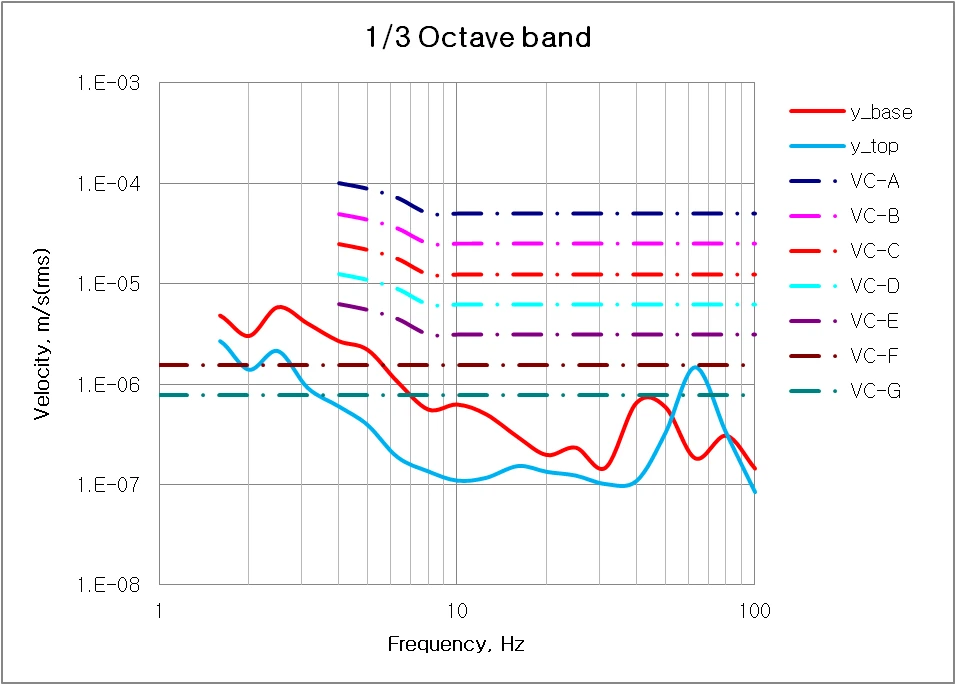

Octave band — Y axis
