Installation Report
DVIA-M Series
01-16-2017
China business trip report — MB1000 P32 setup for Helios NanoLab G3 UC (FEI), January 2017
DVIA-M Series
Installation Report
MB1000
FEI
Helios NanoLab
China
Zhejiang University
NEMO
2017
Contents
Report title and scope
China business trip report
(MB1000_P32 Set up)
Target equipment
Target equipment : Helios NanoLab G3 UC ( FEI )

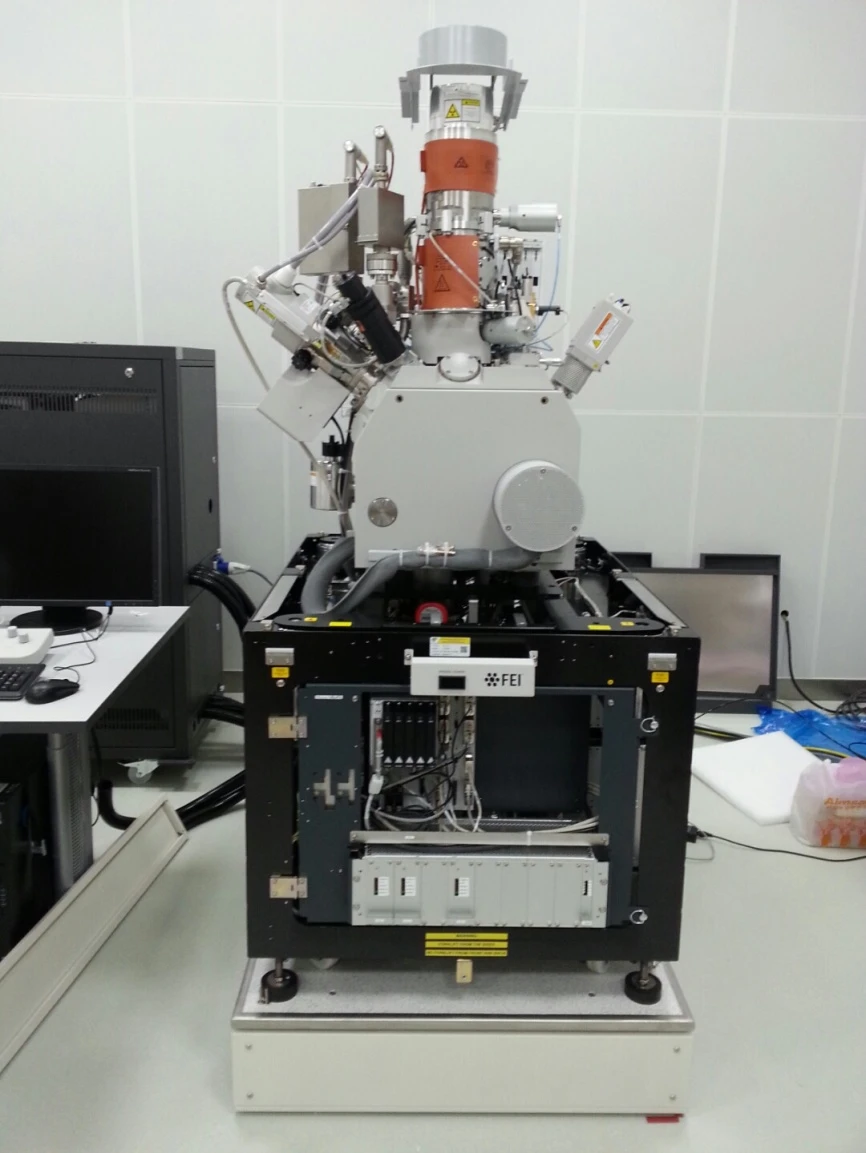

Site photograph
Trip dates, travelers, and report date
| Field | Value |
|---|---|
| Trip dates | 17.01.11 ~ 17.01.14 |
| Travelers | Deputy Choi Hyung-moon, Manager Lim Jong-wook |
| Report date | 2017.01.16 |
Installation summary
| Test Direction | VC-Class | Base | Top |
|---|---|---|---|
| ACTIVE | Z | E | G |
| X | E | F | |
| Y | E | G |
Satisfactory performance in all directions.
Setup was performed before SEM operation; images after SEM operation are to be fed back via NEMO.
MB1000 internal program performance results
2. MB1000_P31 - Helios NanoLab G3 UC ( FEI )

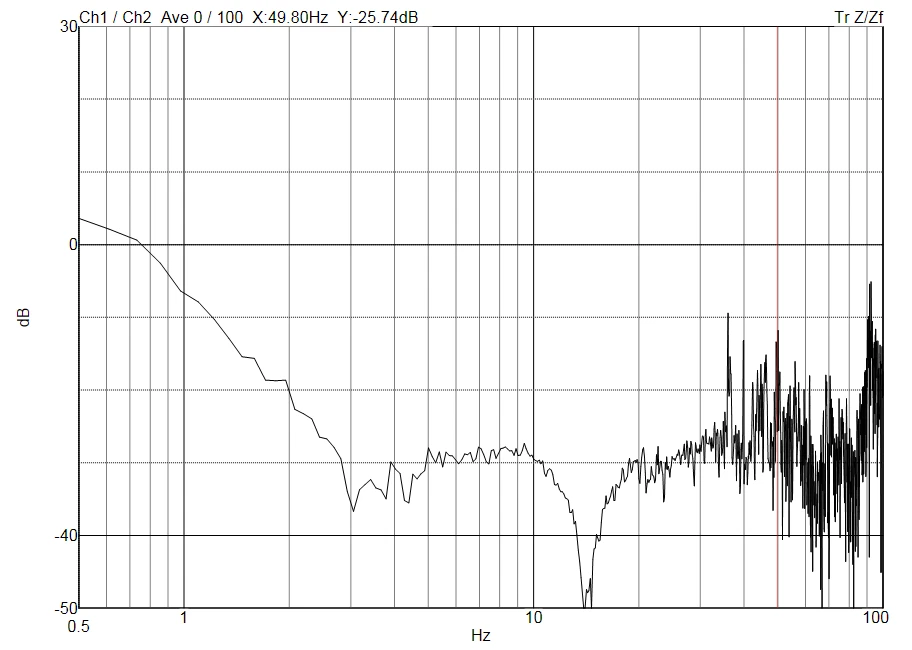

Z axis

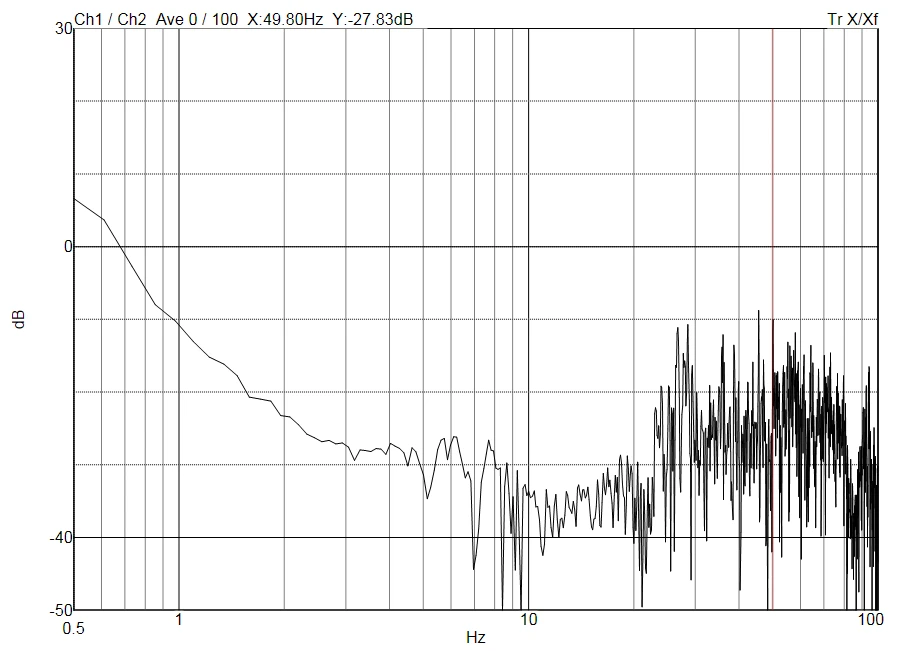

X axis

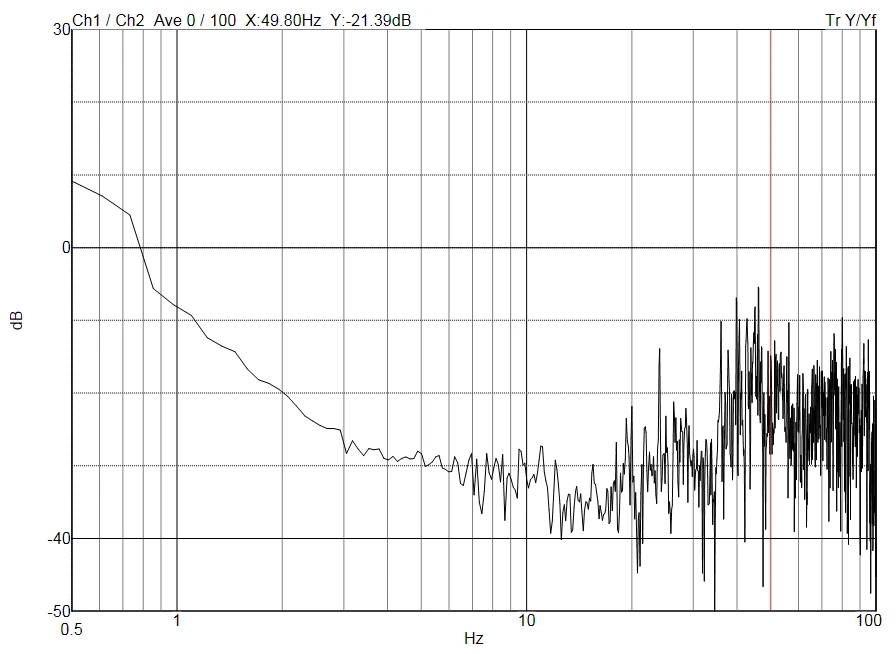

Y axis
Vibration environment measurement results

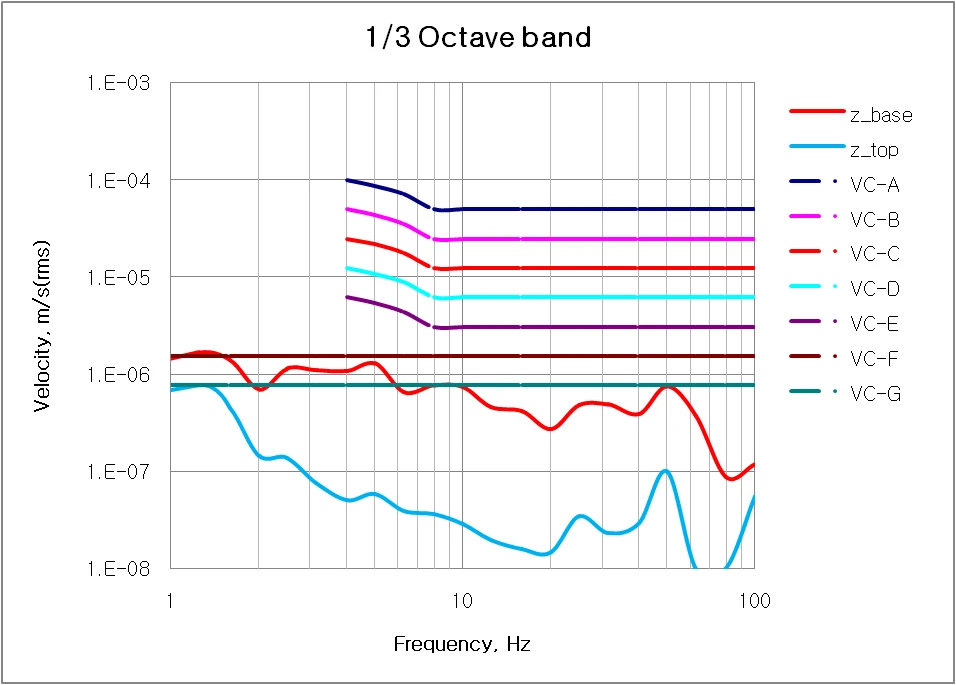

Z axis

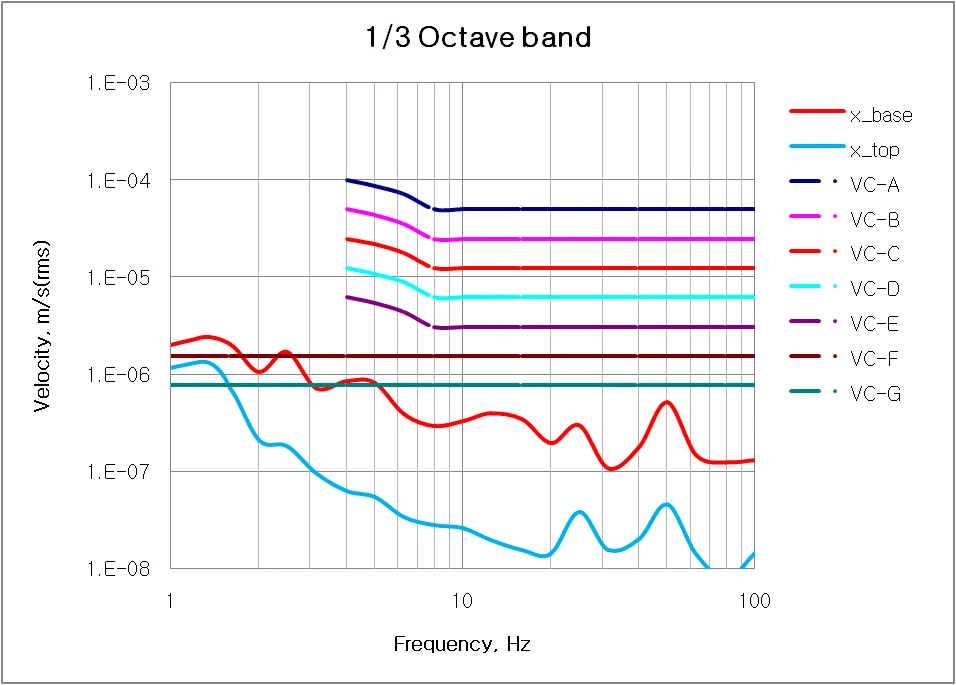

X axis

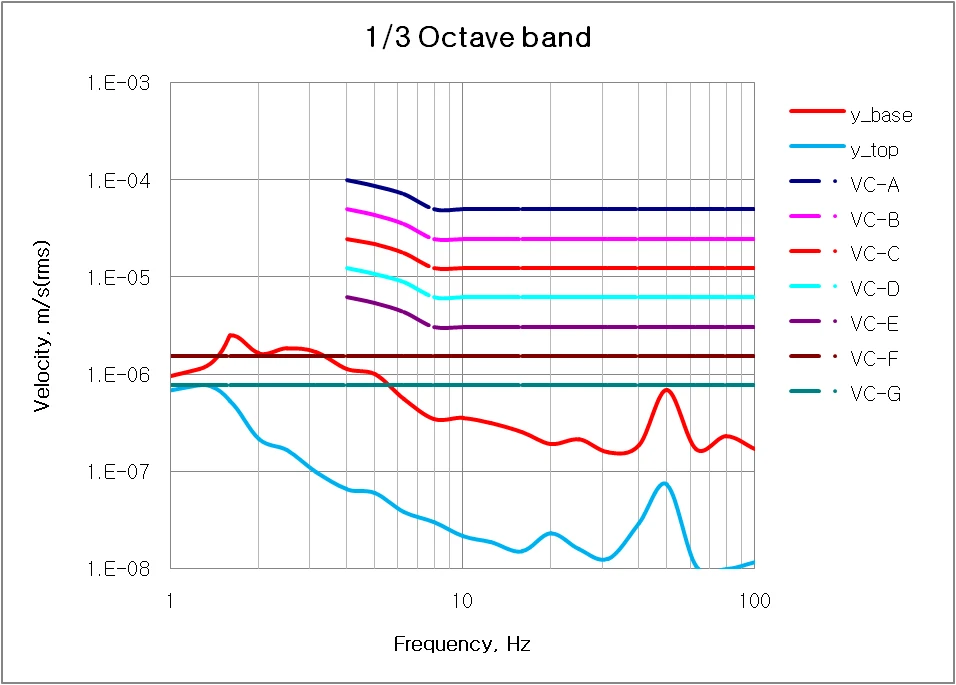

Y axis
