MB1000 P11 DVIA-MB1000 factory vibration environment survey — China pre-shipment (2015-07-28)

After installing the MB1000_P11 vibration isolation platform, the vibration environment and performance were verified.

Measurement date and time: 2015. 07. 28 (Tue) 15:30, Measured by: Lim Jong-wook

Measurement site: DAEIL SYSTEMS factory

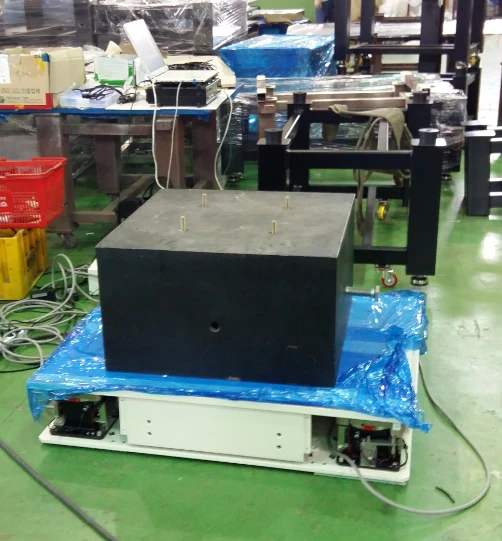

A 450 kg dummy load was used.

Measurement locations were the isolation platform top surface and the floor (base) behind the isolation platform.

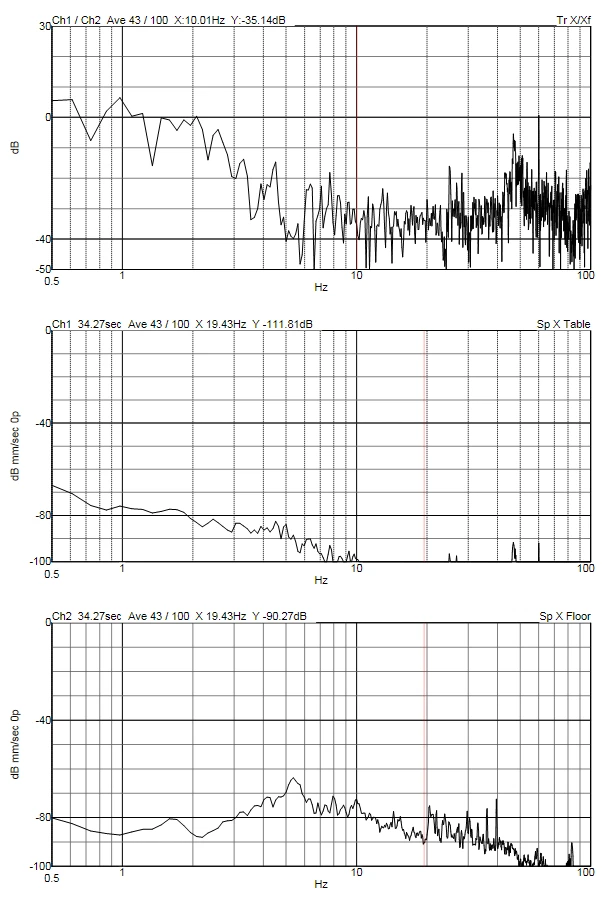

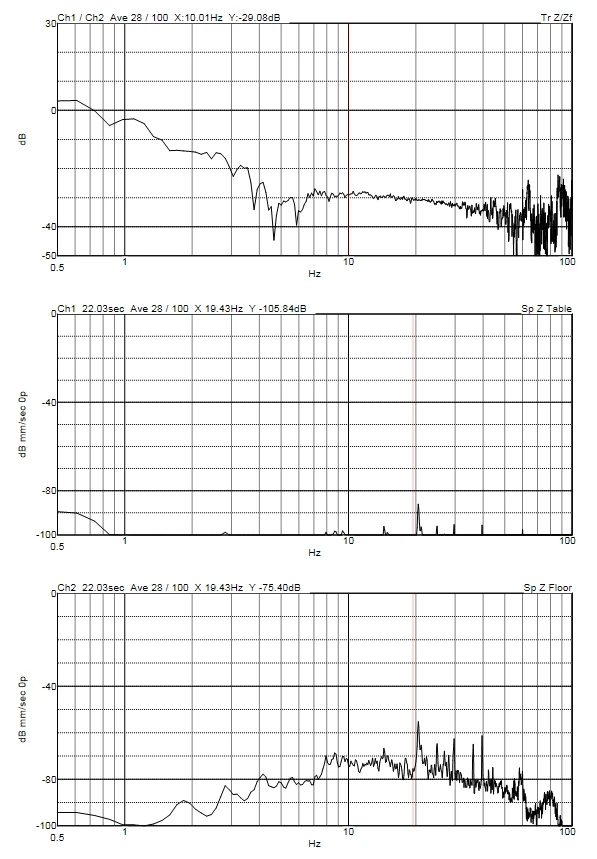

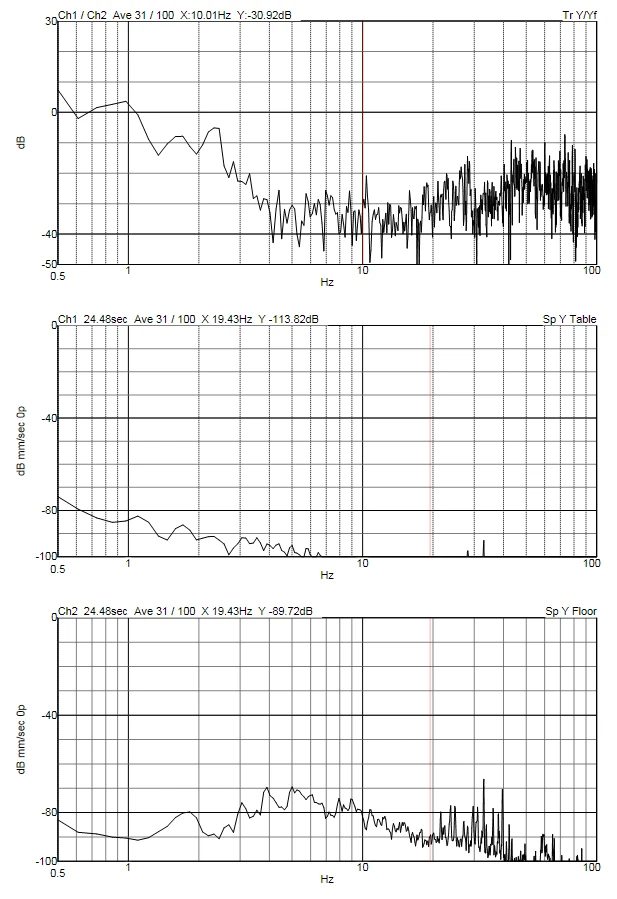

Isolation platform intrinsic performance is satisfactory.

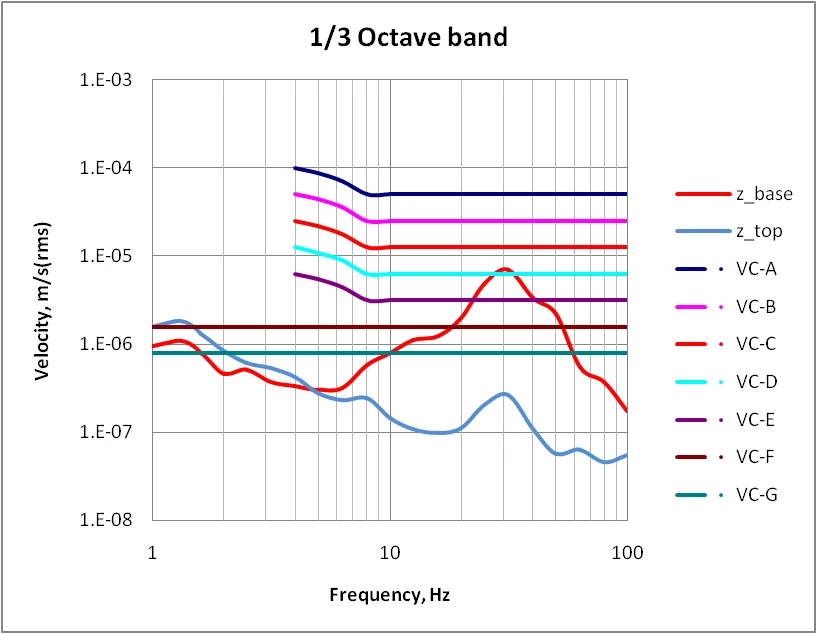

Floor vibration environment measured as VC-Class C on the vertical axis and VC-Class F on the horizontal axes.

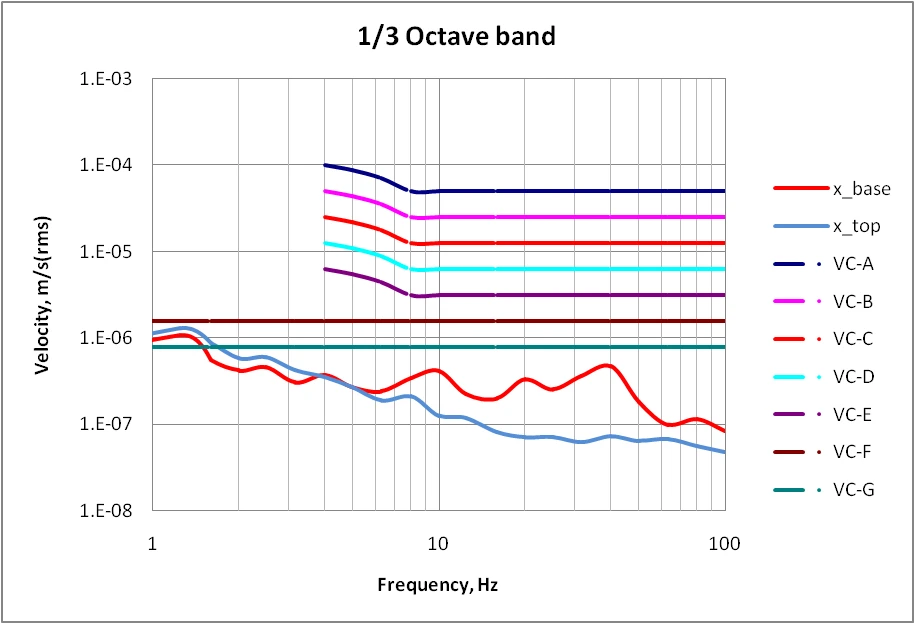

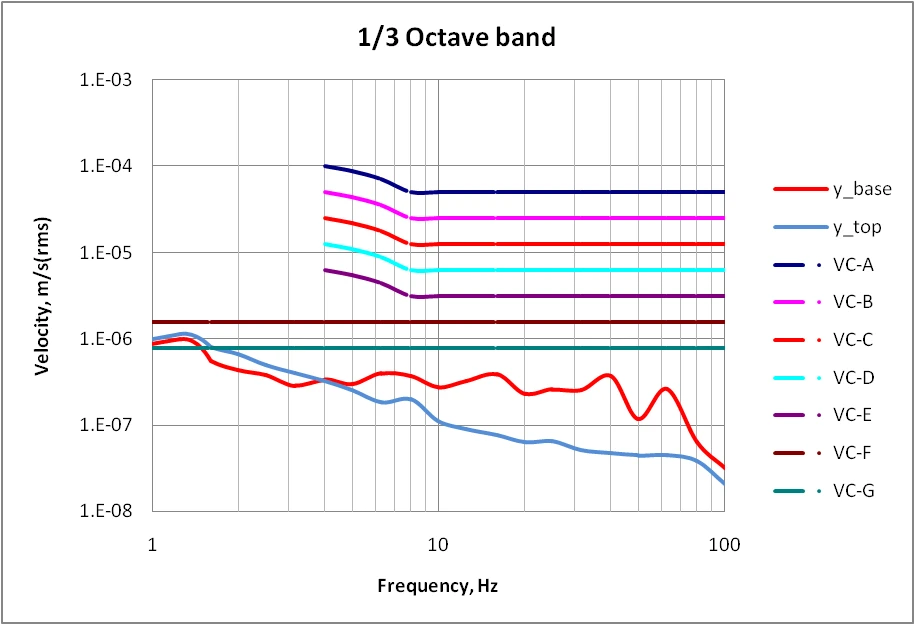

With active isolation on, the platform-top vibration environment measured as VC-Class E on the vertical axis and VC-Class F on the horizontal axes, which is satisfactory.
