Installation Report
DVIA-M Series
06-11-2024
Thermo Fisher Scientific Glacios 2 Cryo-TEM DVIA-MB3000 Installation Report
DVIA-M Series
Installation Report
Thermo Fisher Scientific
Contents
Executive Summary
Introduction
The purpose of this work is to install the Vibration Isolation MB 3000 system for the Thermo Fisher Scientific Glacios 2 at Pfizer. Thermo Fisher Scientific hired VEC to install the Daeil MB-3000 vibration isolation platform and provide a report of the completed work.
Summary Results
Below is a summary of the results:
MB3000 ON PASSED the Vibration specifications
Introduction
The purpose of this work is to install the Vibration Isolation MB 3000 system for the Thermo Fisher Scientific Glacios 2 at Pfizer. Thermo Fisher Scientific hired VEC to install the Daeil MB-3000 vibration isolation platform and provide a report of the completed work.
Product Details
| Part Delivered | Serial Number | Software |
|---|---|---|
| MB3000 | 230518R1 | Site-Specific Tune |

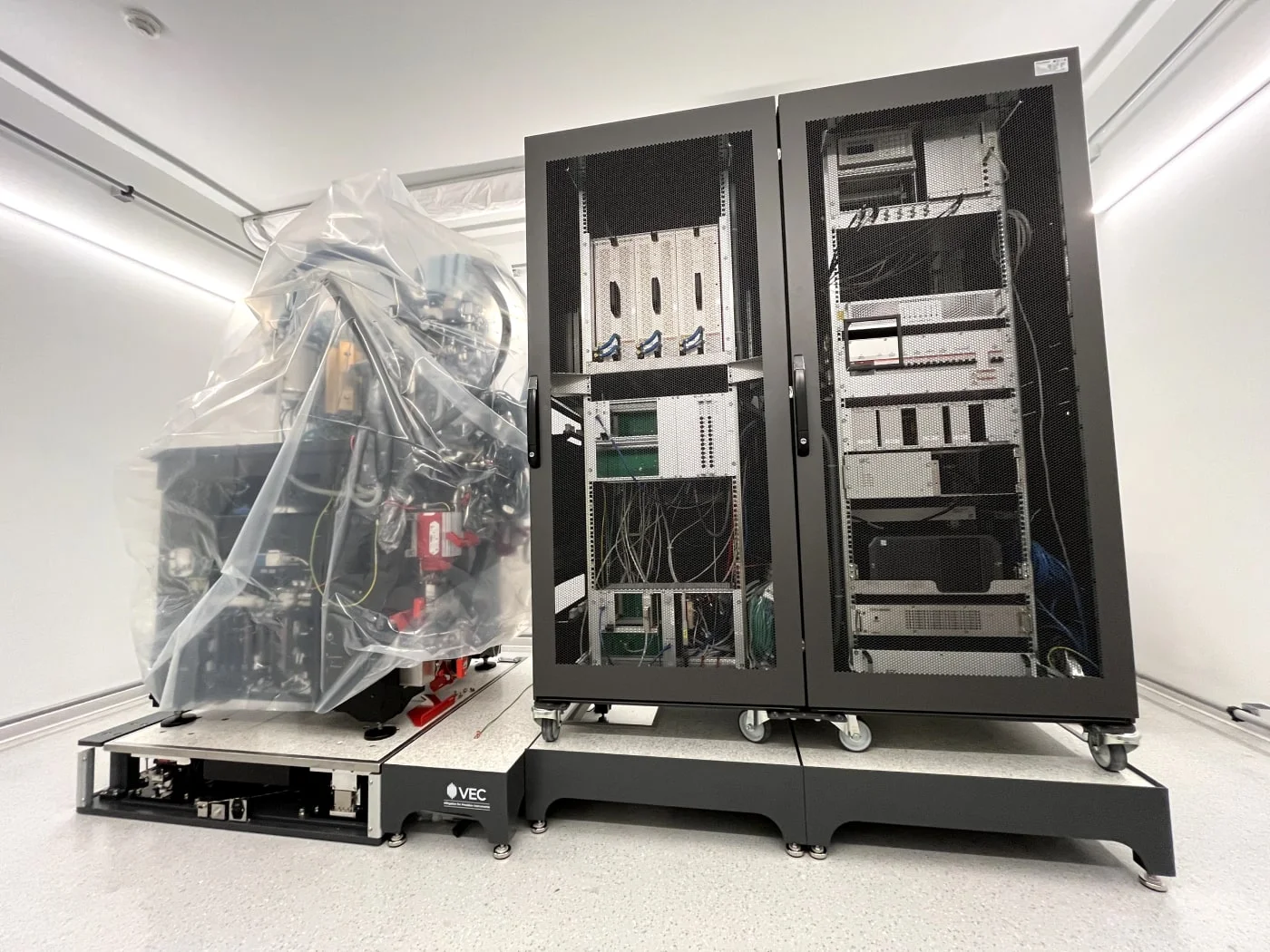

Summary of Work
We installed the system by
- Positioning the modular platform under the microscope
We tested the system by
- Creating and uploading a site-specific tune
- Collecting vibration data to verify the performance
We left the system
- In position and turned on
Procedures
Vibration
VEC conducted vibration measurements in six directions. Acceleration measurements were taken at a bandwidth of 200 with units of um/s (RMS). The acceleration spectra with 200 bandwidths were recorded.
Setup
| Vibration | |
|---|---|
| Bandwidth | 200 |
| Lines | 1600 |
| Window | Hanning |
| Coupling | ICP 2mA |
| Average Type | Stable |
| Duration | 60 |
| Engineering Units | um/s (RMS) |
Specifications
VEC used the following specifications for the project.
Specification Summary
| Tool | Specification |
|---|---|
| Thermo Fisher Scientific Glacios 2 | Vibration VC-F X & Y 1.56 um/s 1Hz - 100Hz VC-E Z 3.12 um/s 1Hz - 100Hz |
Detailed Specifications
Figure 1: Thermo Fisher Scientific Glacios 2 – 1 Vibration Specification
| System | Vertical | Left to right | Front to back |
|---|---|---|---|
| Glacios; TEM info Limit 0.23 nm | E | F | F |
| Glacios; STEM res. 0.23 nm | E | F | F |
Results
Summary Results
Below is a summary of the results:
MB3000 PASSED the Vibration specifications
Detailed Results
| Type | Position | Direction | Specification | Measurement | Result |
|---|---|---|---|---|---|
| Vibration | Floor | X-Axis | VC-F | VC-G | ✓ PASS |
| Y-Axis | VC-F | VC-G | ✓ PASS | ||
| Z-Axis | VC-E | VC-D | ✓ PASS | ||
| Isolators | X-Axis | VC-F | VC-G | ✓ PASS | |
| Y-Axis | VC-F | VC-G | ✓ PASS | ||
| Z-Axis | VC-E | VC-G | ✓ PASS |
Data
Thermo Fisher Scientific Glacios 2
Vibration

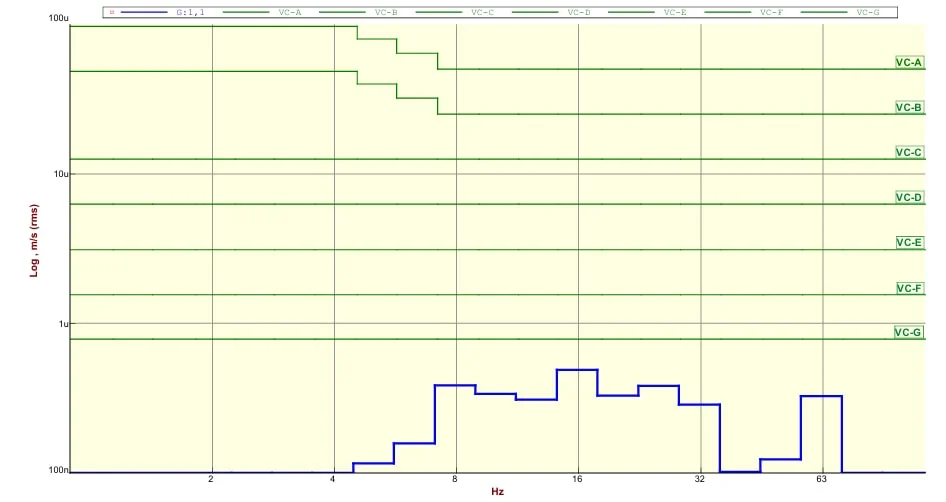

Figure 2: Ground X-Axis
Figure 3: Isolators X Axis

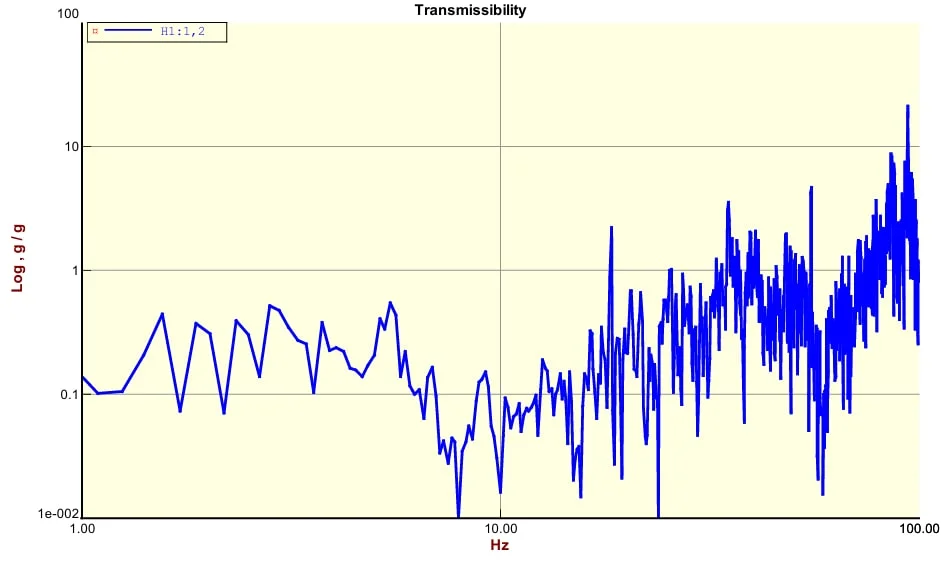

Figure 4: Transmissibility X Axis
Figure 5: Ground Y-Axis
Figure 6: Isolators Y Axis

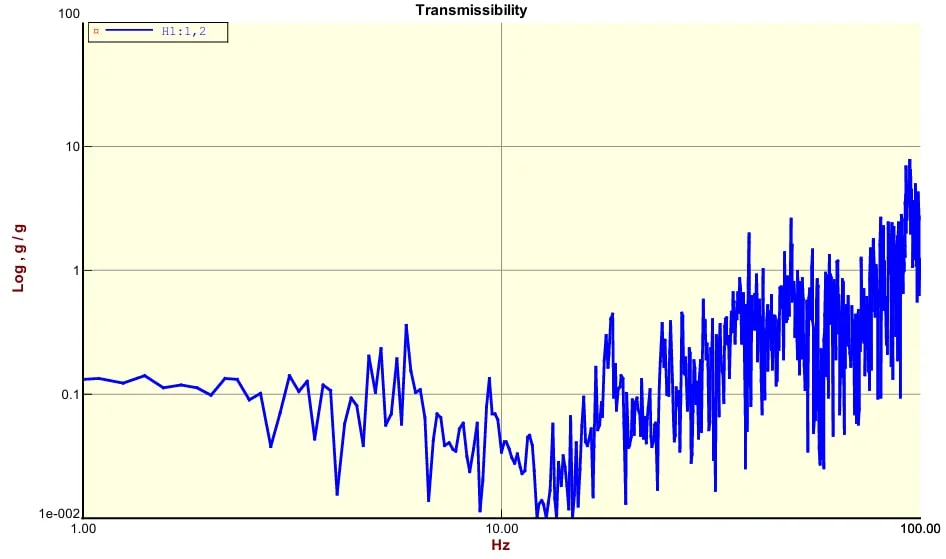

Figure 7: Transmissibility Y Axis

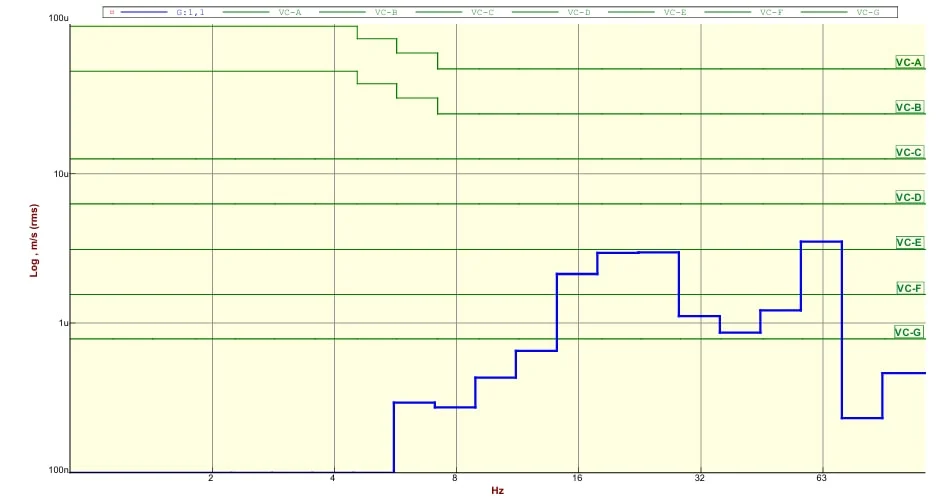

Figure 8: Ground Z-Axis
Figure 9: Isolators Z Axis

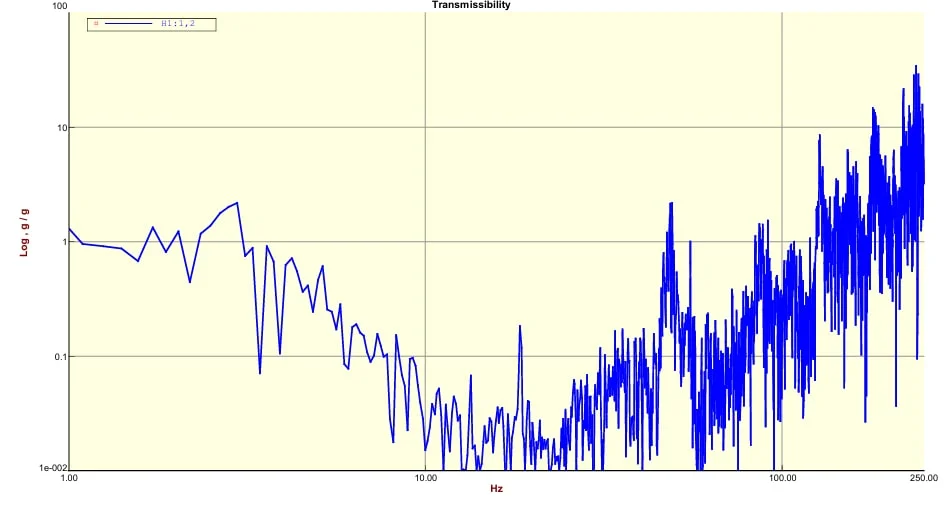

Figure 10: Transmissibility Z Axis

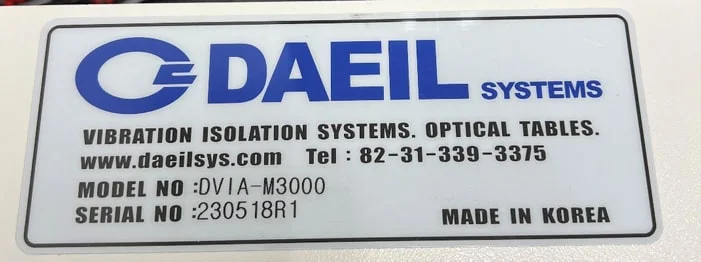

Figure 11: Final Results – SN
Reference
Generic Vibration Criteria
Notes:
1. VC-A/B is measured in 1/3 octave bands from 8-80 Hz, VC-C through VC-G from 1-80 Hz.
2. Detail size refers to line widths in microelectronics manufacturing or particle sizes in medical research.
