Thermo Fisher Scientific Helios 5 MLP 1000 Installation Report
1. Overview
MLP 1000 active vibration isolation platform was installed and tested for the Thermo Fisher Scientific Helios 5.
The installation PASSED the vibration specifications.
2. Vibration Isolation System Information
Model: MLP 1000
Serial Number: 241204R3_3
3. Engineer
Director of Installations
4. Tuning Date
April 09, 2025
5. Installation Site
639 North Pastoria Avenue Sunnyvale, CA 94085
SEM Room
6. Equipment
Manufacturer: Thermo Fisher Scientific
Equipment: Helios 5
7. Equipment Status
System in position and operational.
8. Measurement Setup
Bandwidth: 200
Lines: 3200
Window: Hanning
Coupling: ICP 2mA
Average Type: Stable
Duration: 60 seconds
Engineering Units: g (RMS)
9. Vibration Specifications
| Tool | Specification |
|---|---|
| Thermo Fisher Scientific Helios 5 | Vibration: All Directions → SE-tool™ Spec Line g |

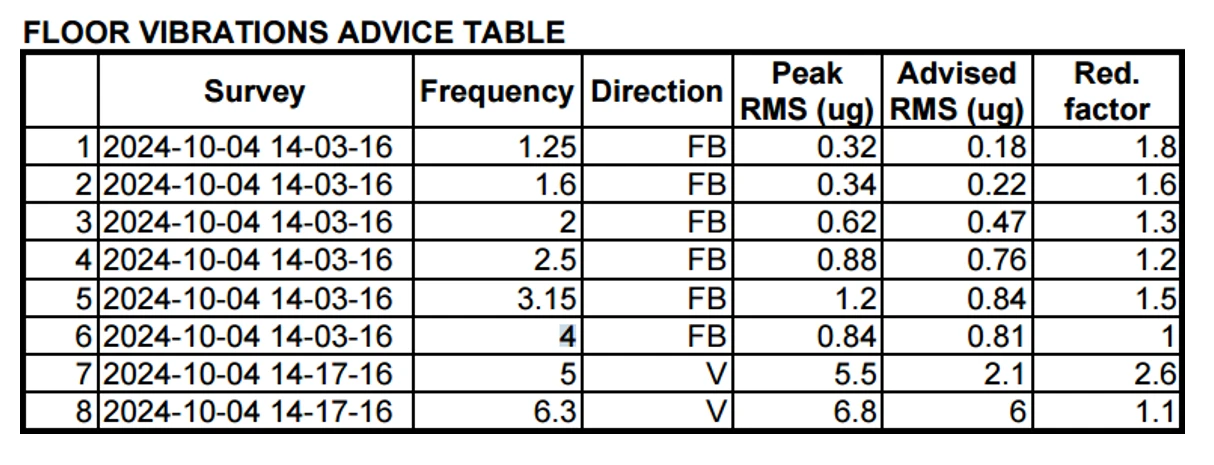

Figure 1: Detail Specification
10. Measurement Summary
| Type | Position | Direction | Specification | Result |
|---|---|---|---|---|
| Vibration | Floor | Vertical | SE-tool™ Spec Line | ✗ FAIL |
| Front-Back | SE-tool™ Spec Line | ✗ FAIL | ||
| Left-Right | SE-tool™ Spec Line | ✓ PASS | ||
| MLP | Vertical | SE-tool™ Spec Line | ✓ PASS | |
| Front-Back | SE-tool™ Spec Line | ✓ PASS | ||
| Left-Right | SE-tool™ Spec Line | ✓ PASS |
11. Data and Images

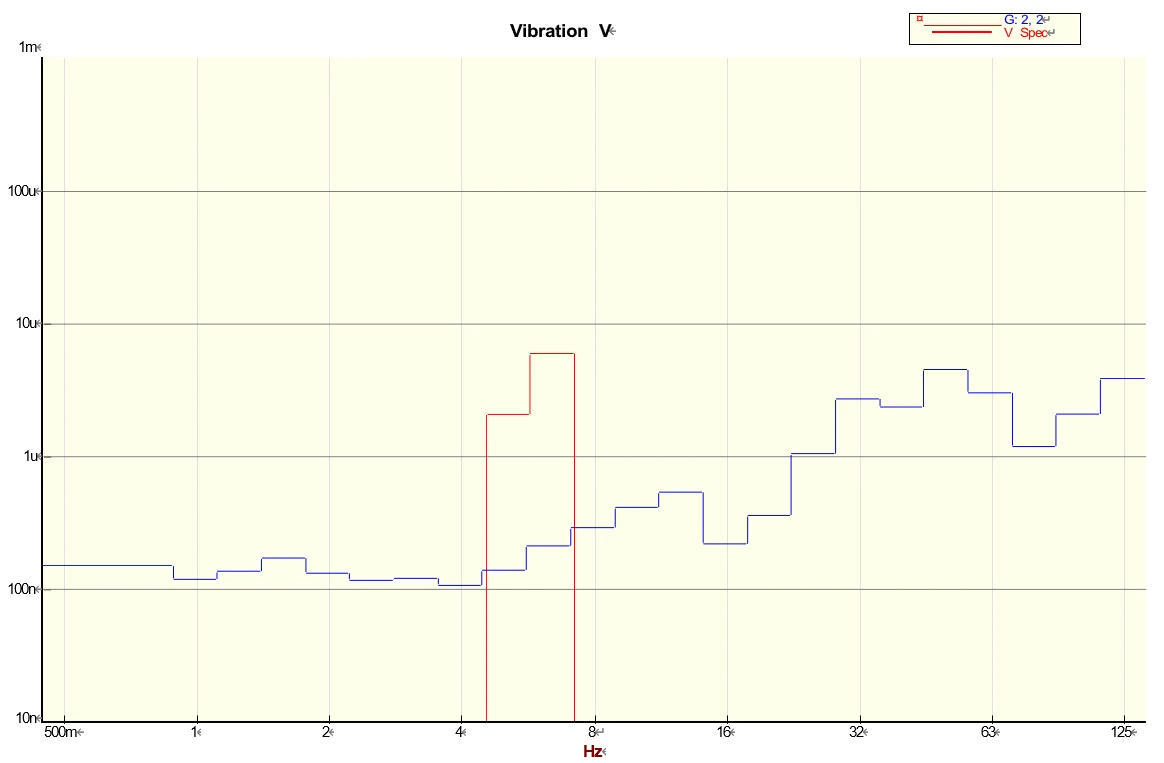

Figure 2: Vibration (Vertical - Floor)
Figure 3: Vibration (Vertical - MLP)

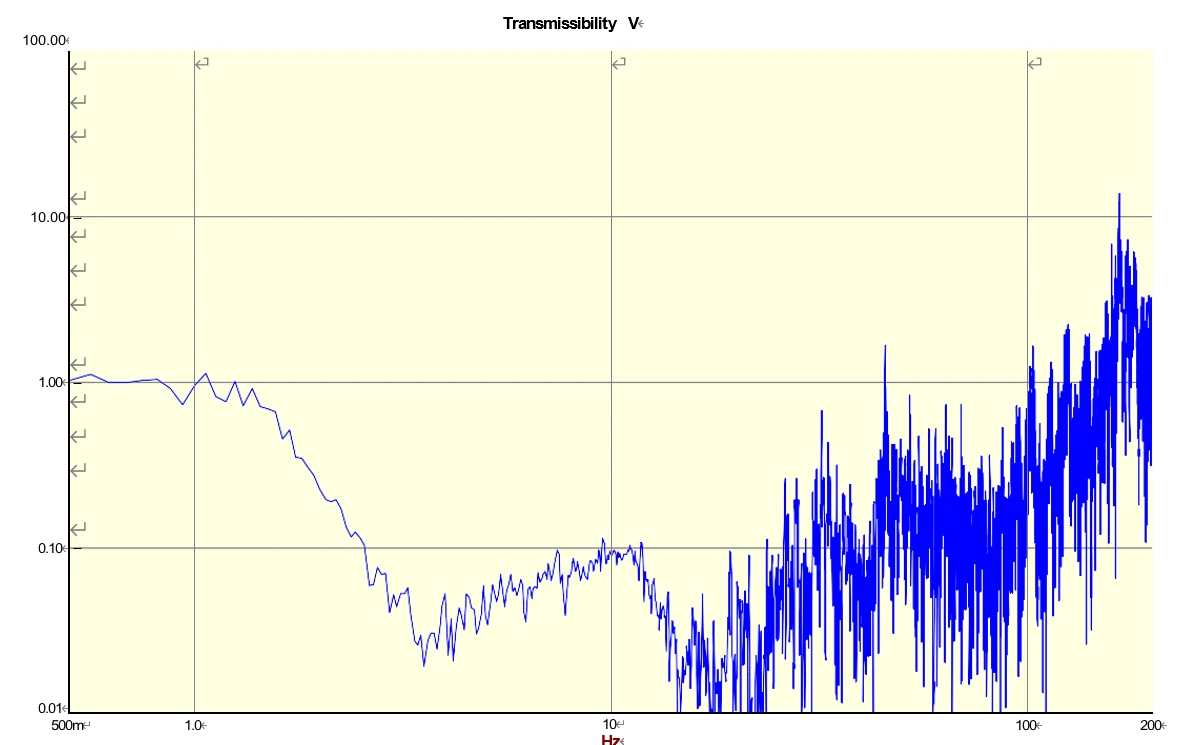

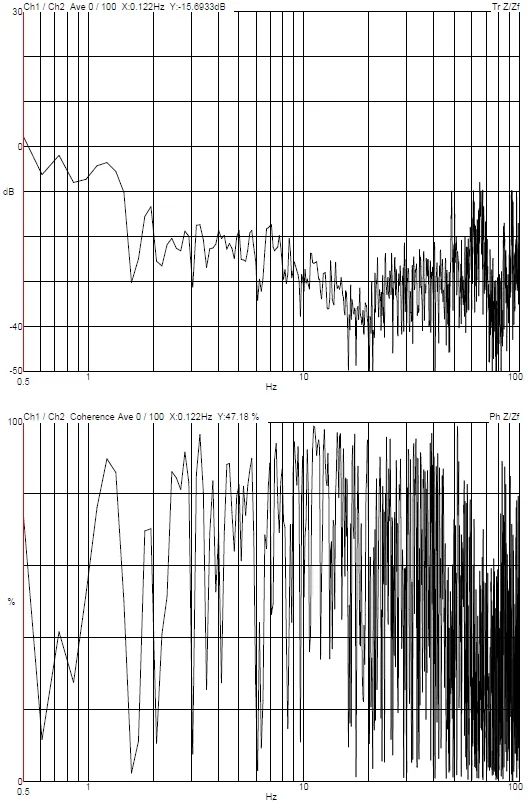

Figure 4: Vibration (Vertical - Transmissiblilty)

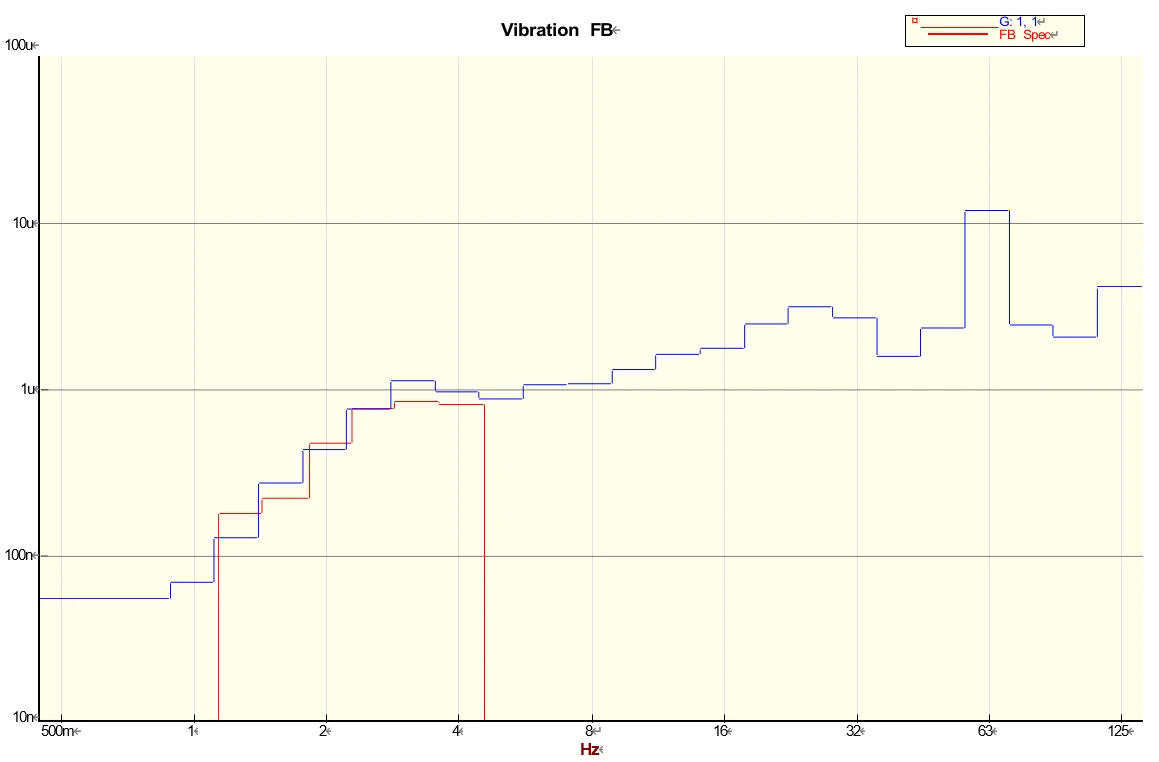

Figure 5: Vibration (Front-Back - Floor)

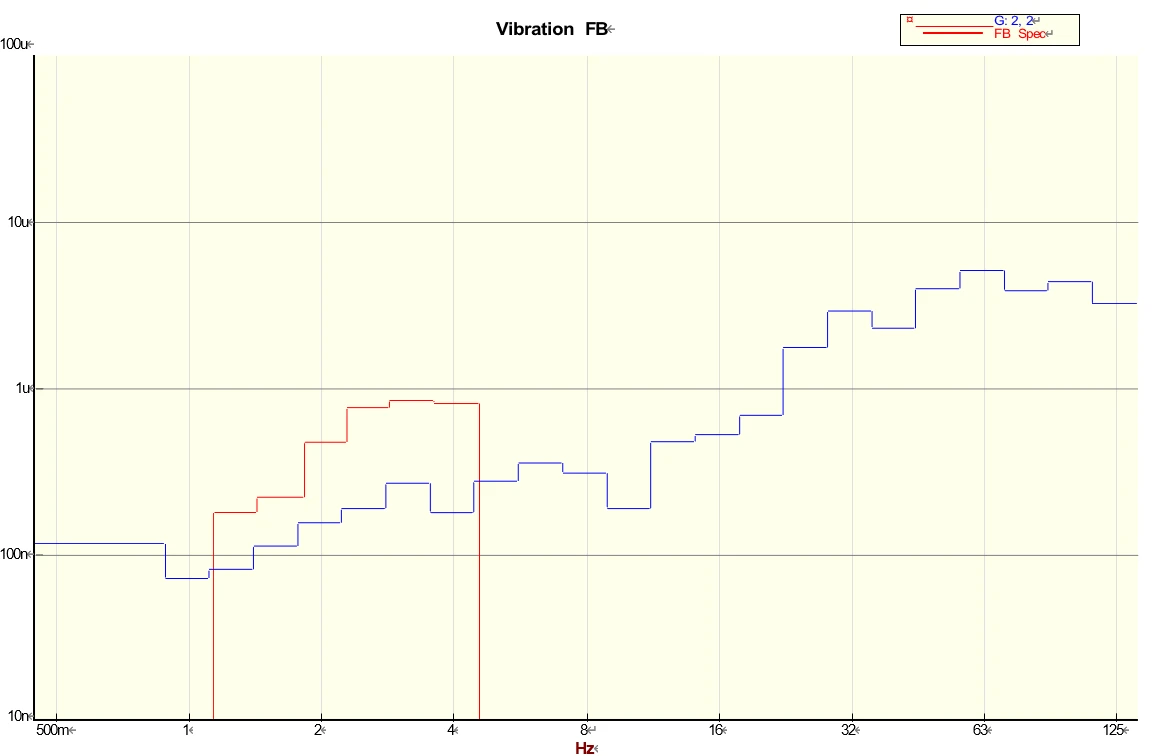

Figure 6: Vibration (Front-Back - MLP)

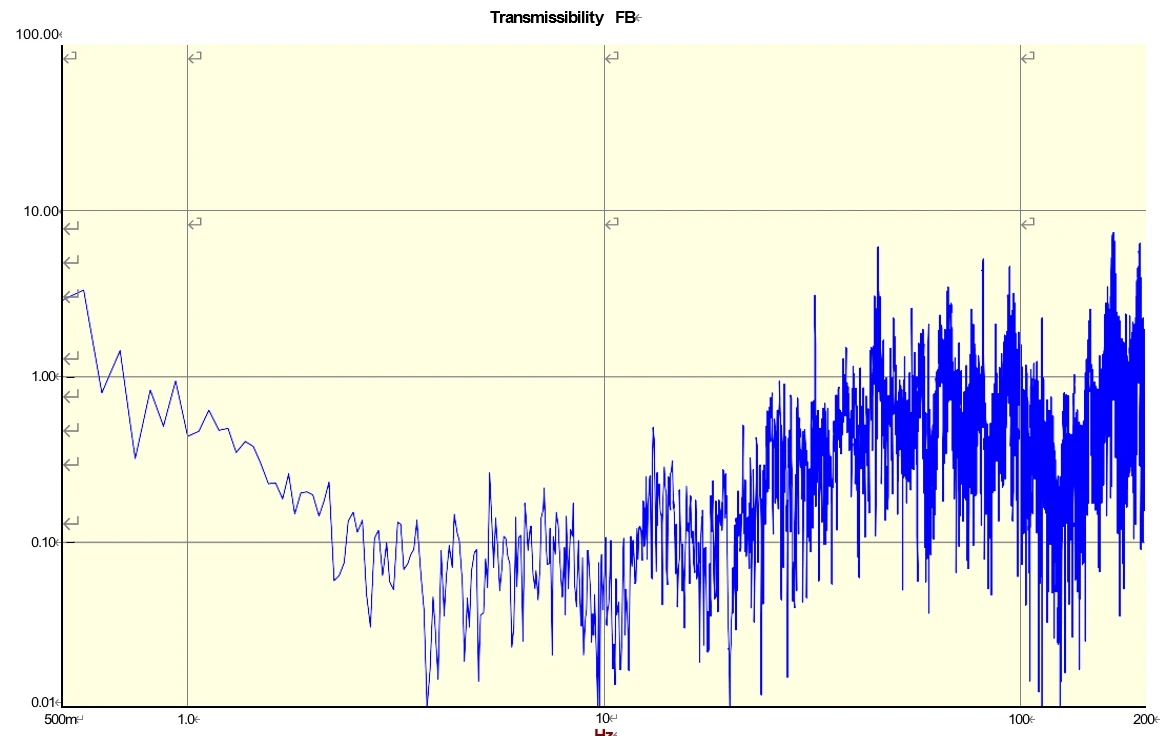

Figure 7: Vibration (Front-Back - Transmissiblilty)
Figure 8: Vibration (Left-Right - Floor)
Figure 9: Vibration (Left-Right - MLP)

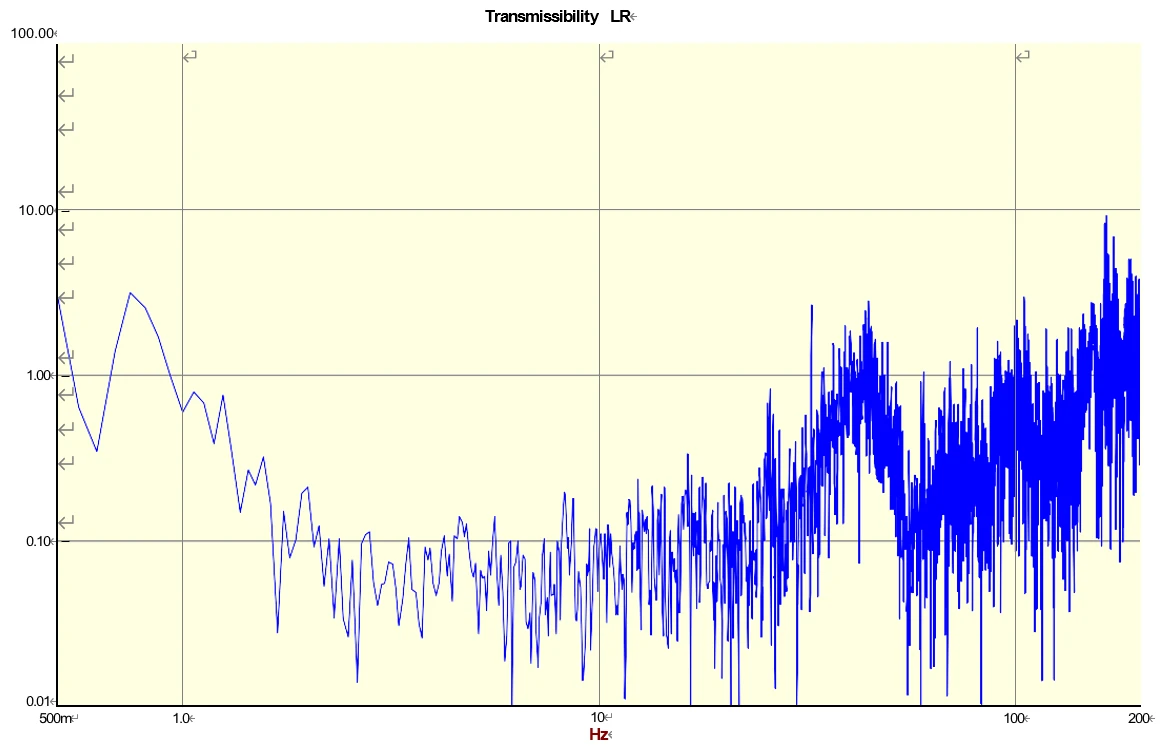

Figure 10: Vibration (Left-Right - Transmissiblilty)

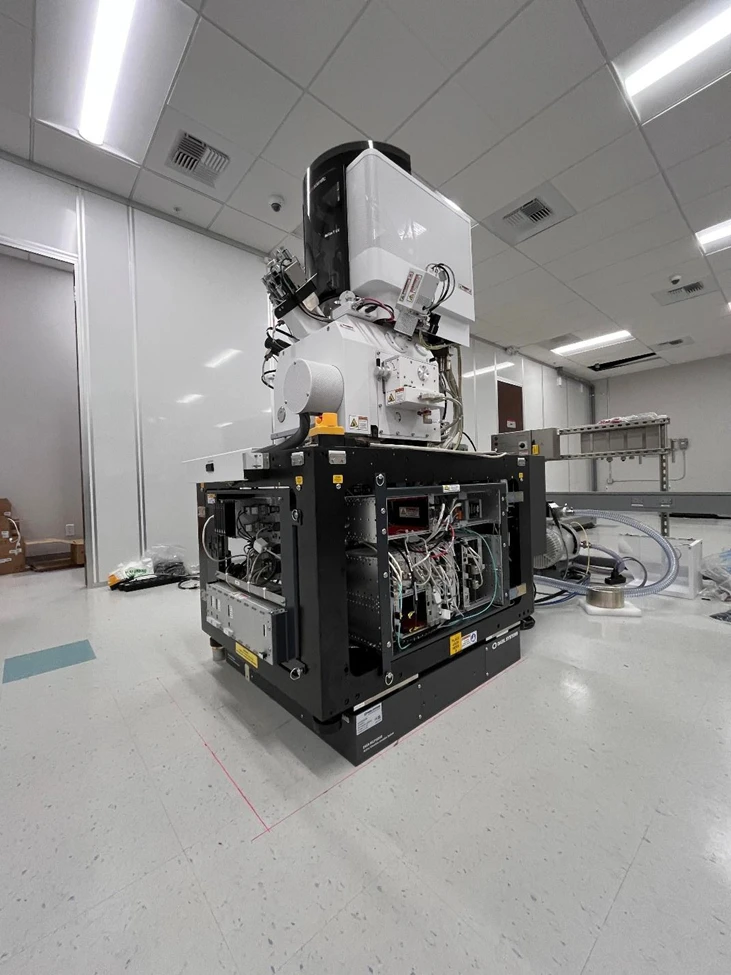

Figure 11: Installation Detail – End Result

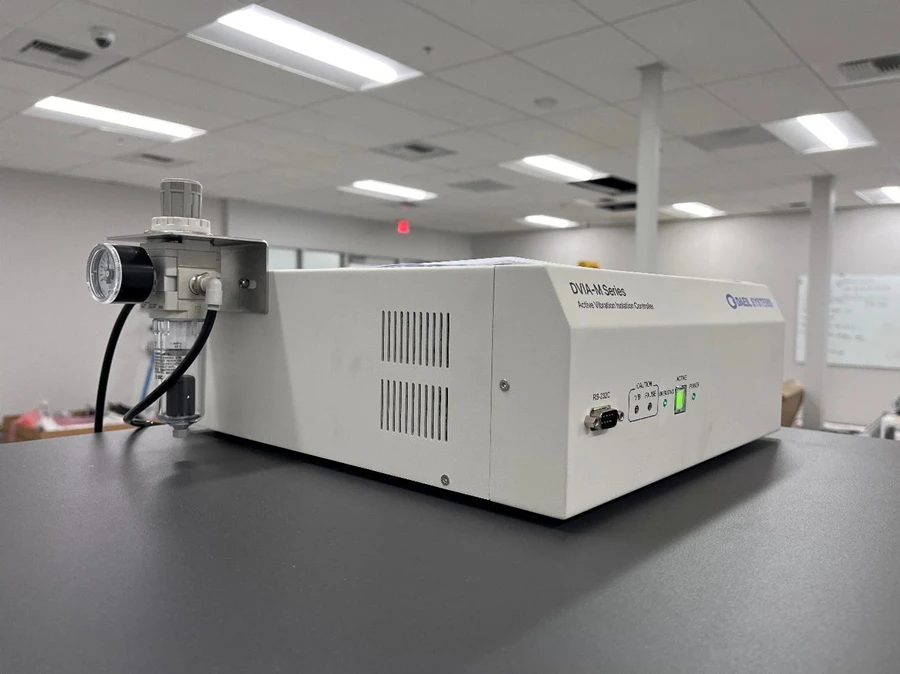

Figure 12: Installation Detail – Controller Location

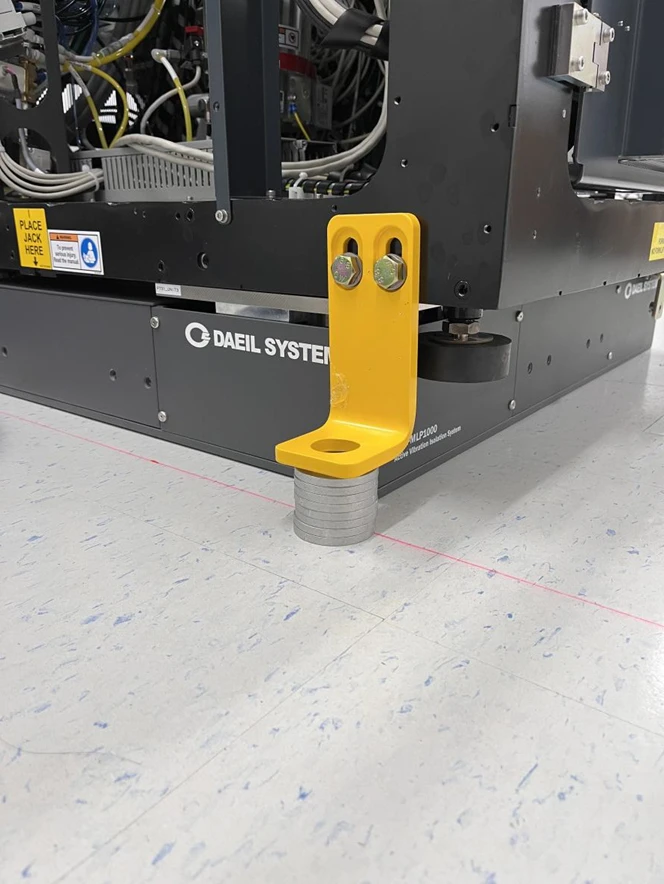

Figure 13: Installation Detail – Seismic Restraints
