Institute for Basic Science Main Building Ultrasonic Equipment DVIA-UD350 P28 Pulse Worksheet Installation Report

After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.

Measurement date: 21.05.03 (MON),

Operator: Daeil System, Manager Choi, Hyoung Mun

Place of measurement : 기초과학연구원 본관2층

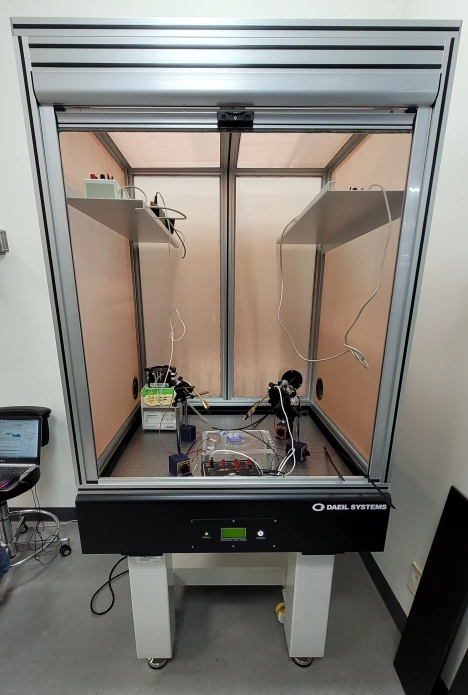

Equipment Model: 초음파장비

Measurement conditions and results

DAQ System : B&K PULSE 14 & LAN-XI Type 3056

Accelerometer : PCB PIEZOTRONICS 393B05

Frequency Range : 0.7 ~ 200Hz

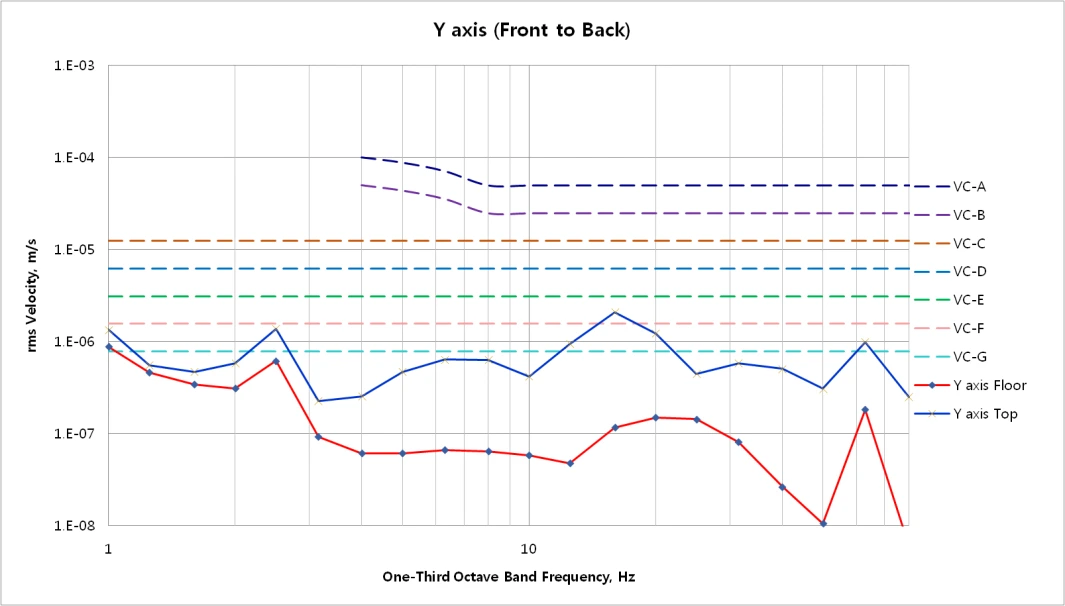

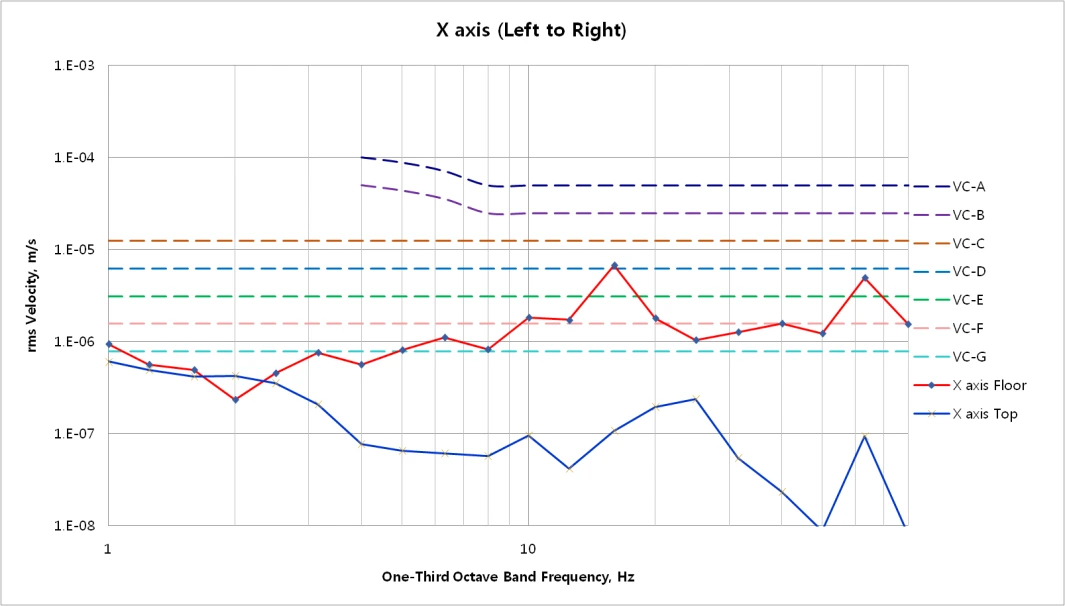

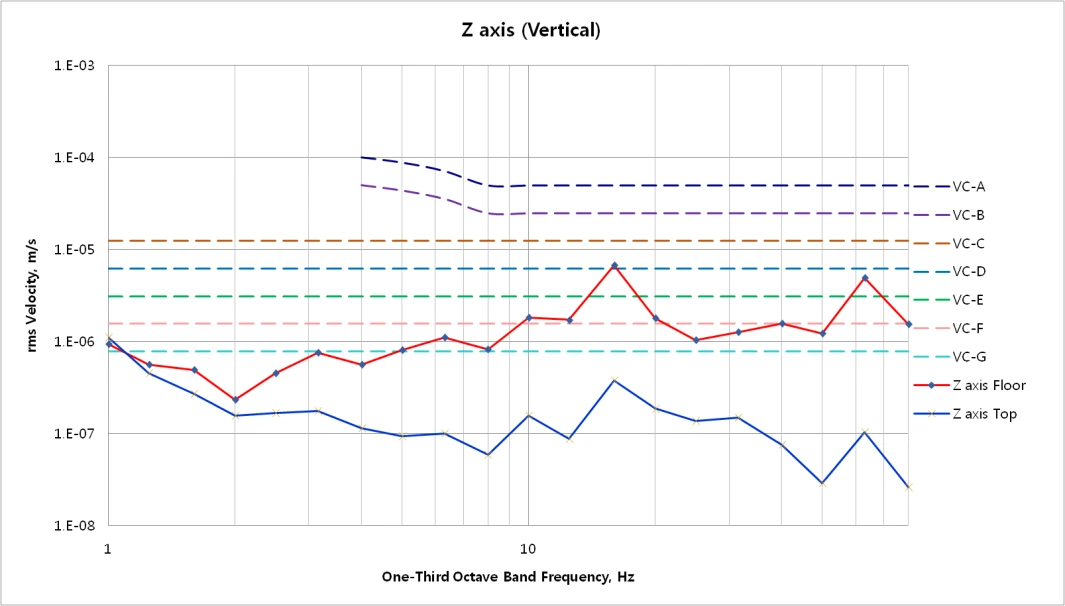

Summary of measurement results

Good omnidirectional performance.
