Thermo Fisher Scientific TFS Helios (Brigham Young University) DVIA-ML1000 (250708R4-3) Installation Report
Contents
Introduction
This report provides a record of the vibration isolation installation and vibration measurement for this site. Please use this report for future reference regarding installation specifics.
Summary Results
Below is a summary of the results:
ML 1000 ON PASSED the Vibration specifications
Product Details
| Part Delivered | Serial Number | Software |
|---|---|---|
| ML 1000 | 250708R4-3 | Site Specific Optimization |
Vibration Isolation System Info
Model: DVIA-ML1000
Serial Number: 250708R4-3
Engineer
Phillip Macdonald, Director of Installations
Work completed
September 11, 2025
Report date
September 10, 2025
End User
Felipe Rivera, A-153 ASB, Provo, UT 84602
Installation Site
Brigham Young University, Electron Microscopy Facility, A 116
Equipment
Manufacturer: Thermo Fisher Scientific
Equipment: TFS Helios
Electron Microscopy Facility designation: A 116
Equipment Status
System in position and operational.
Summary of Work
We installed the system by
Providing lifting services
Positioning the daeil under the microscope
Leveling the daeil to within .5mm
Connecting the compressed air line to the air supply line for the tool
We tested the system by
Creating and uploading a site specific tune
Collecting vibration data to verify the performance
We left the system
System in position and operational
Installer's Notes
We used BYU's Microscope lift to install the Helios 1 onto the DVIA ML1000. The data shows that there was onboard vibration from the Helios at the time of data collection. The peaks are most notable at 32 and 50 Hz in the vertical direction and 25Hz in the horizontal direction. These vibrations don't exceed the specification and should not affect tool performance.
Procedures
Vibration measurements were conducted in three directions using calibrated seismic accelerometers at a bandwidth of 200 with units of m/s (RMS).
Measurement setup
Bandwidth: 200
Lines: 3200
Window: Hanning
Coupling: ICP 2mA
Average Type: Stable
Duration: 60 seconds
Engineering Units: m/s (RMS)
X Axis Scaling: 1/3 Octave
Specifications
The following specifications apply to this project.
Specification summary
Tool: TFS Helios
Vibration
Vertical-Axis — VC-F
Left-Right, Front-Back-Axis — VC-G

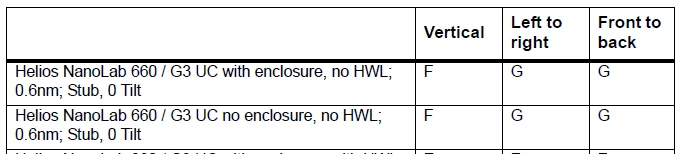

Detailed specifications
Results
Summary Results
Below is a summary of the results:
ML 1000 ON PASSED the Vibration specifications
Detailed Results
Detailed Results — TFS Helios
| Type | Position | Direction | Specification | Measurement | Result |
|---|---|---|---|---|---|
| Vibration | Floor | Vertical | VC-F | VC-E | ✗ FAIL |
| VC-E | ✗ FAIL | ||||
| Left-Right | VC-G | VC-F | ✗ FAIL | ||
| Front-Back | VC-F | ✗ FAIL | |||
| DVIA ML | Vertical | VC-F | VC-G | ✓ PASS | |
| VC-F | ✓ PASS | ||||
| Left-Right | VC-G | VC-G | ✓ PASS | ||
| Front-Back | VC-G | ✓ PASS |
Data and Image

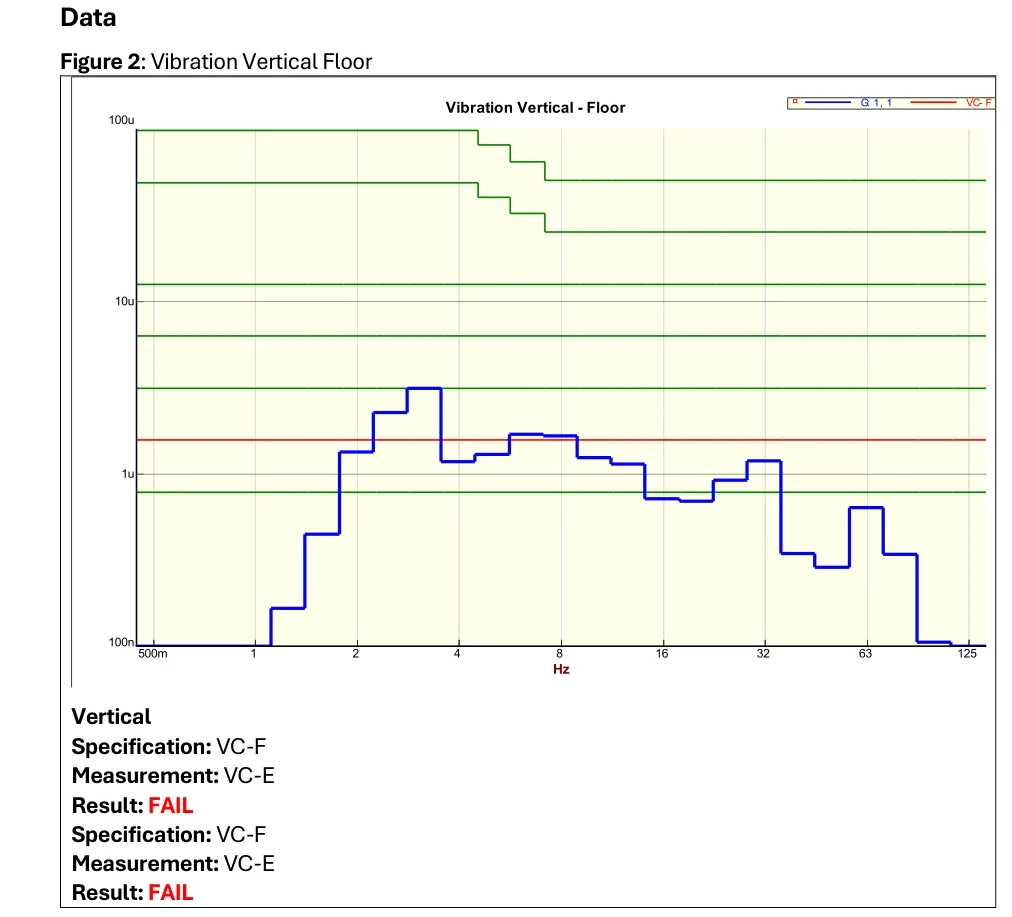

Figure 2: Vibration vertical floor

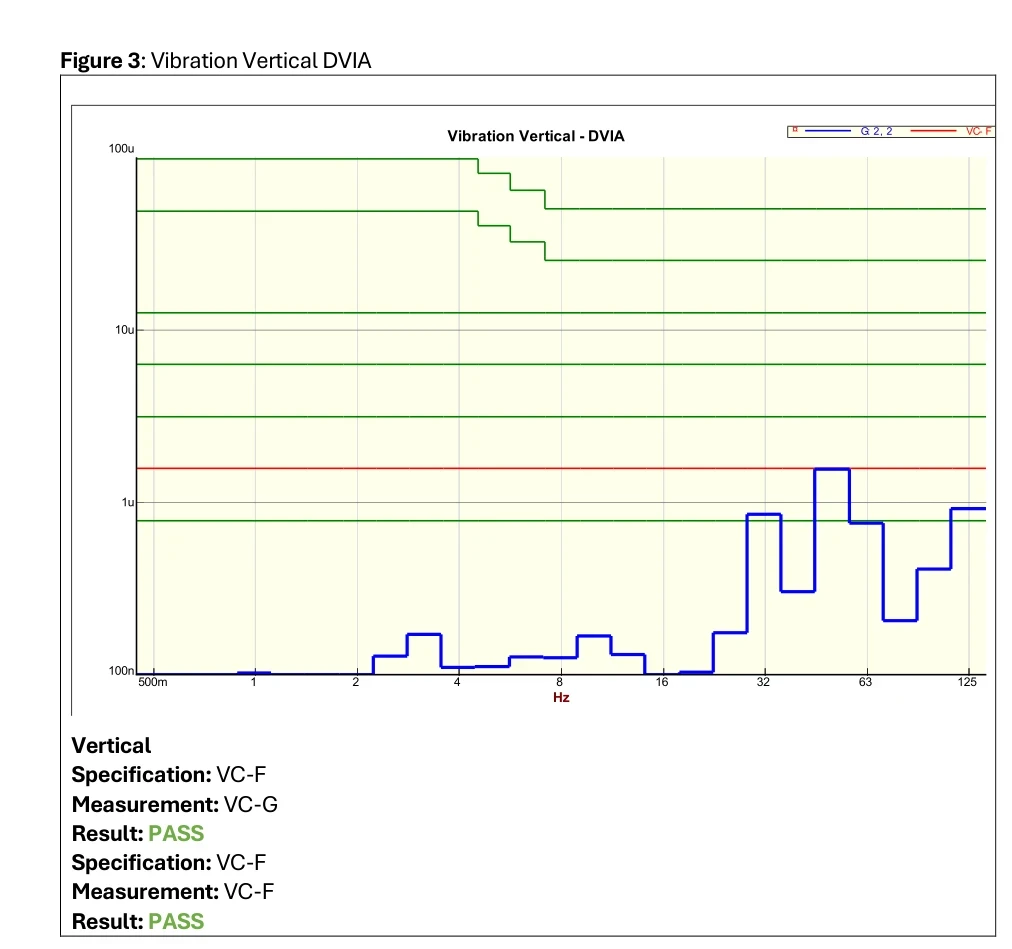

Figure 3: Vibration vertical DVIA

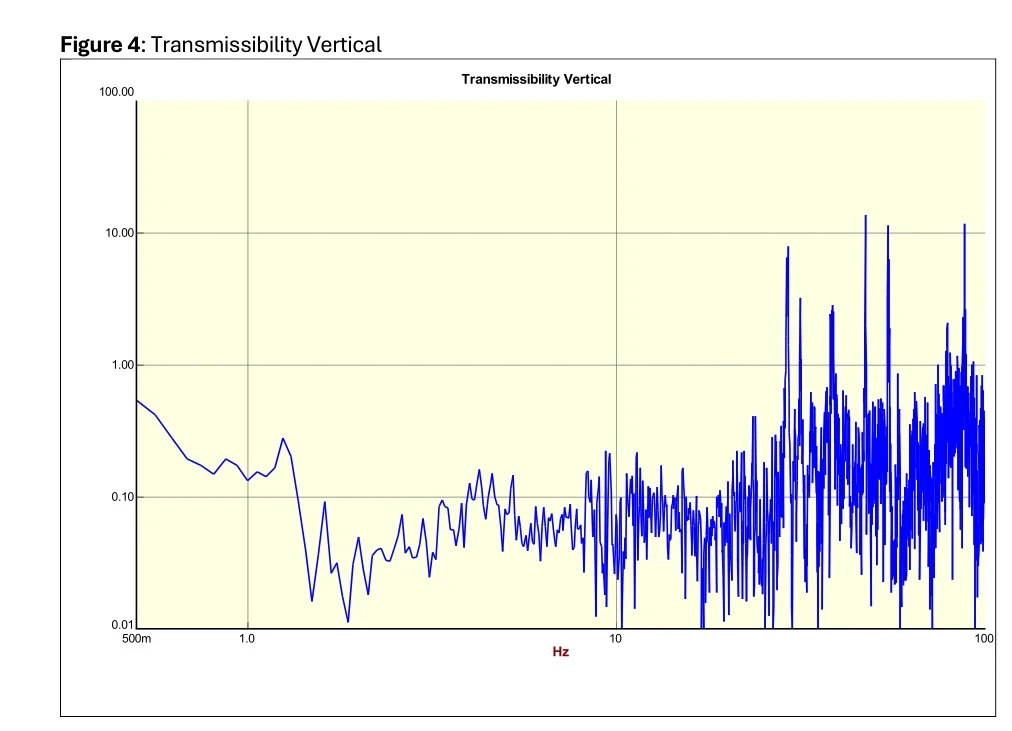

Figure 4: Transmissibility vertical

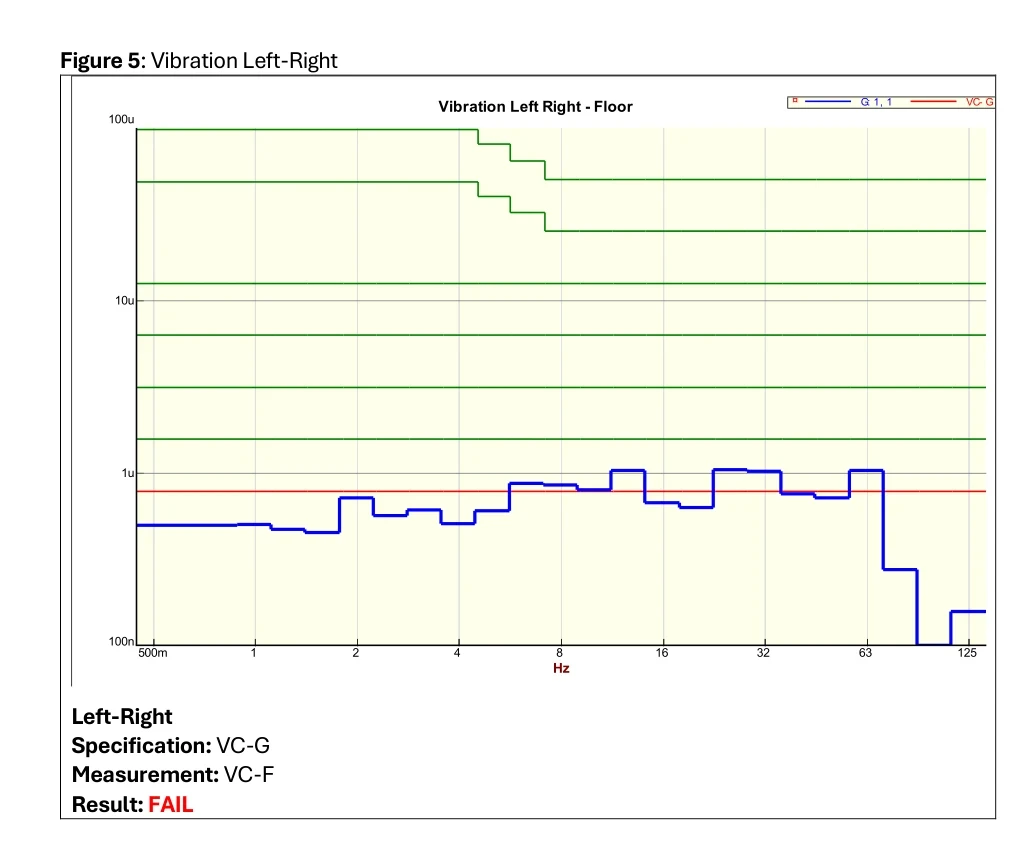

Figure 5: Vibration left-right floor

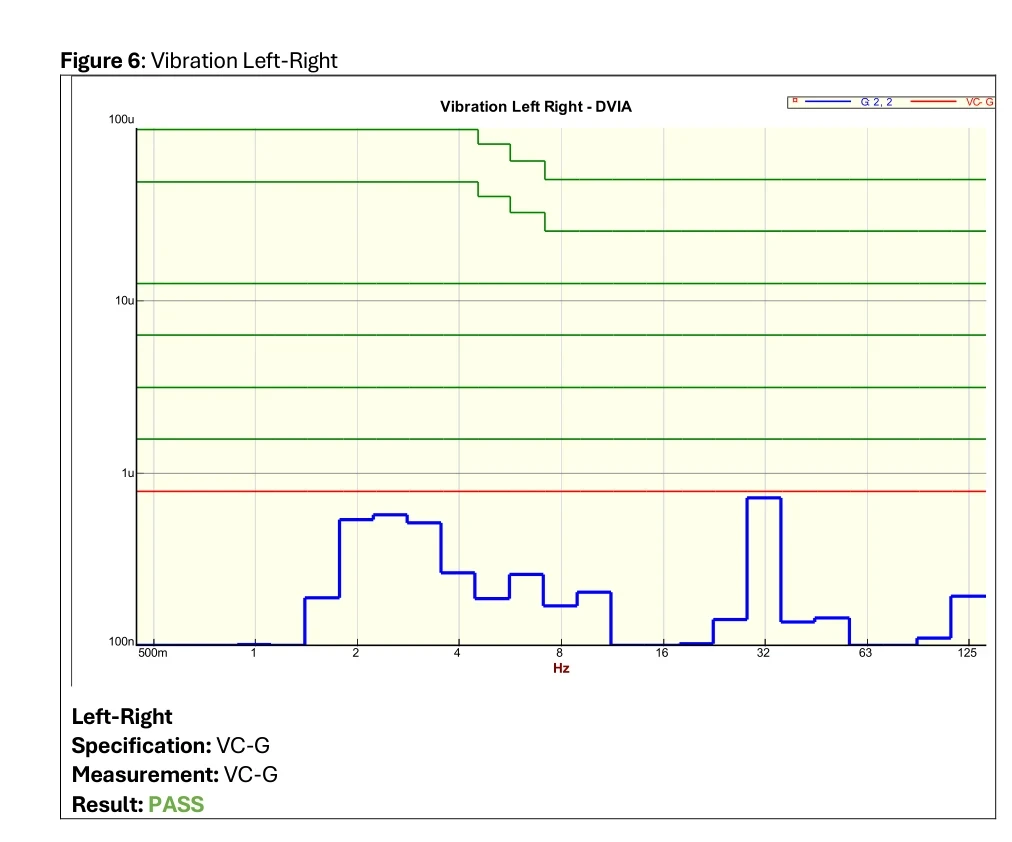

Figure 6: Vibration left-right DVIA

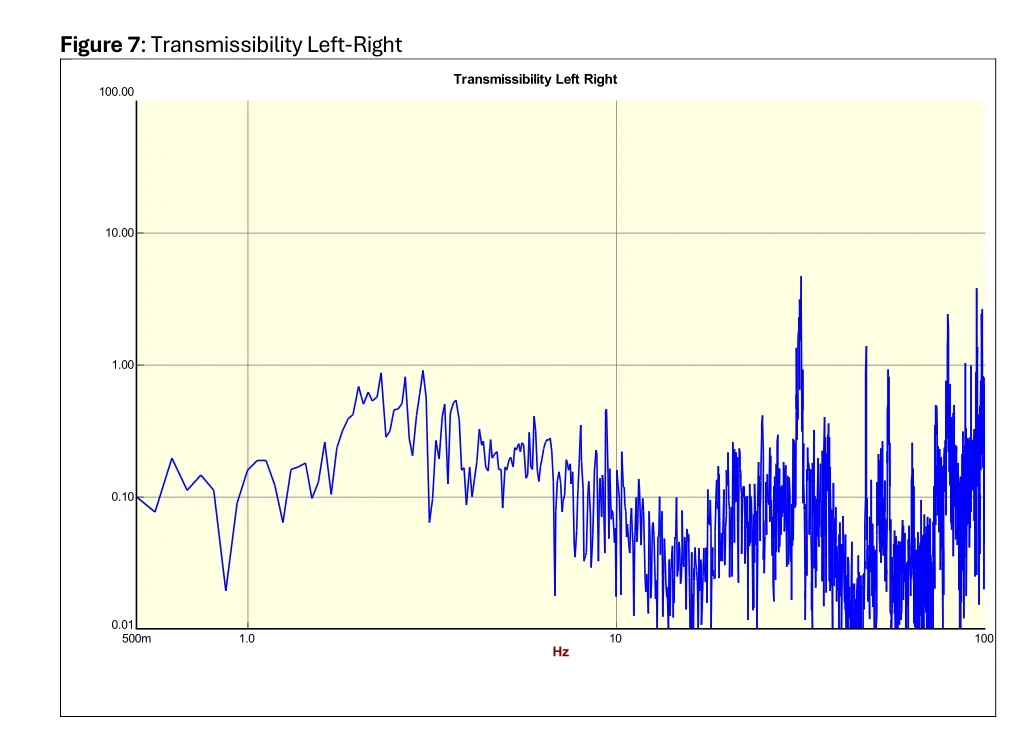

Figure 7: Transmissibility left-right

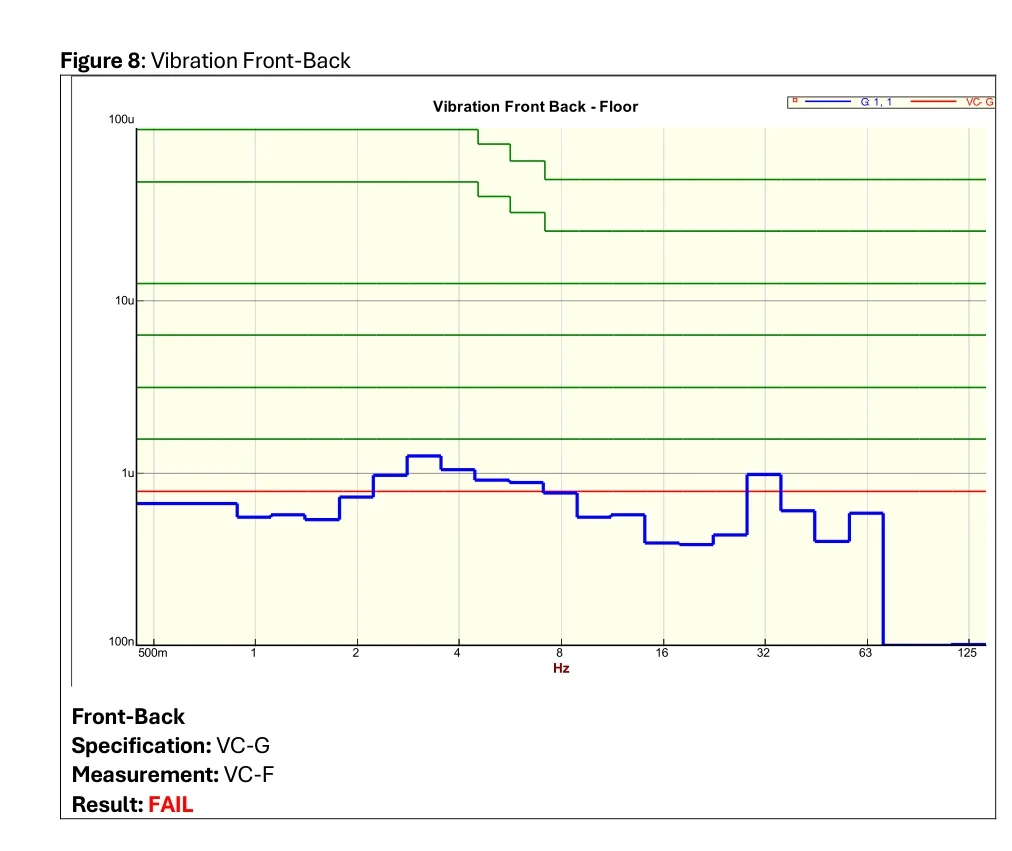

Figure 8: Vibration front-back floor

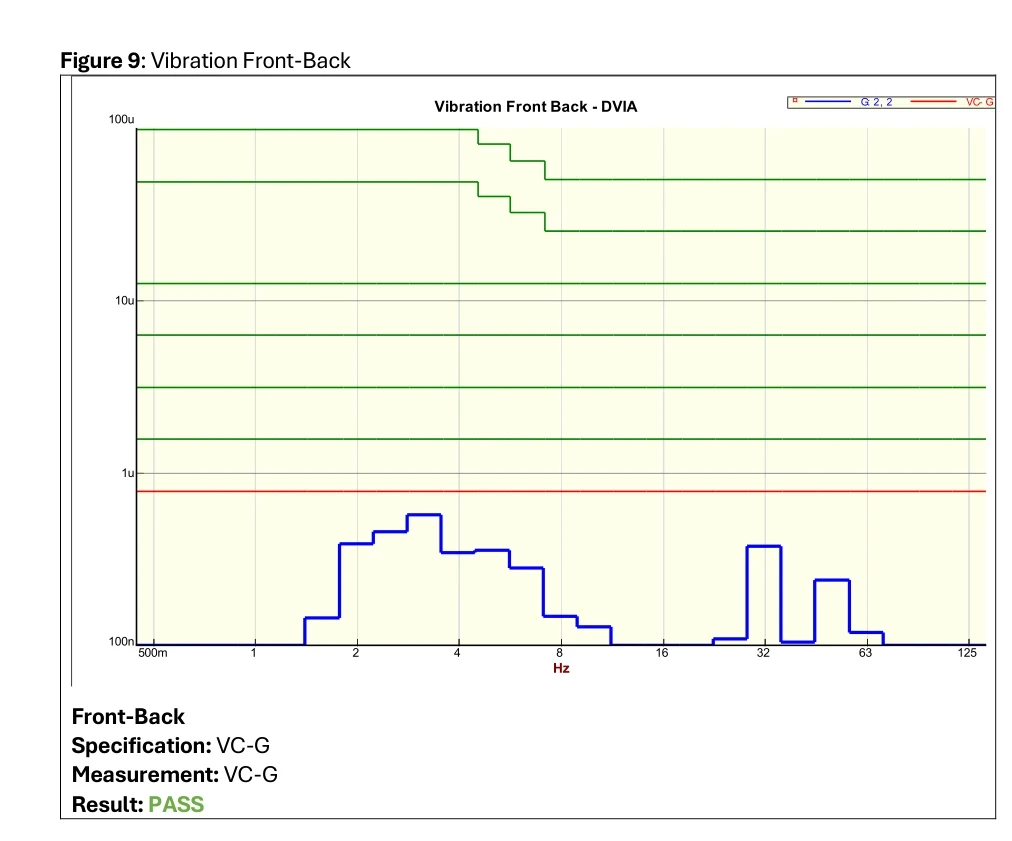

Figure 9: Vibration front-back DVIA

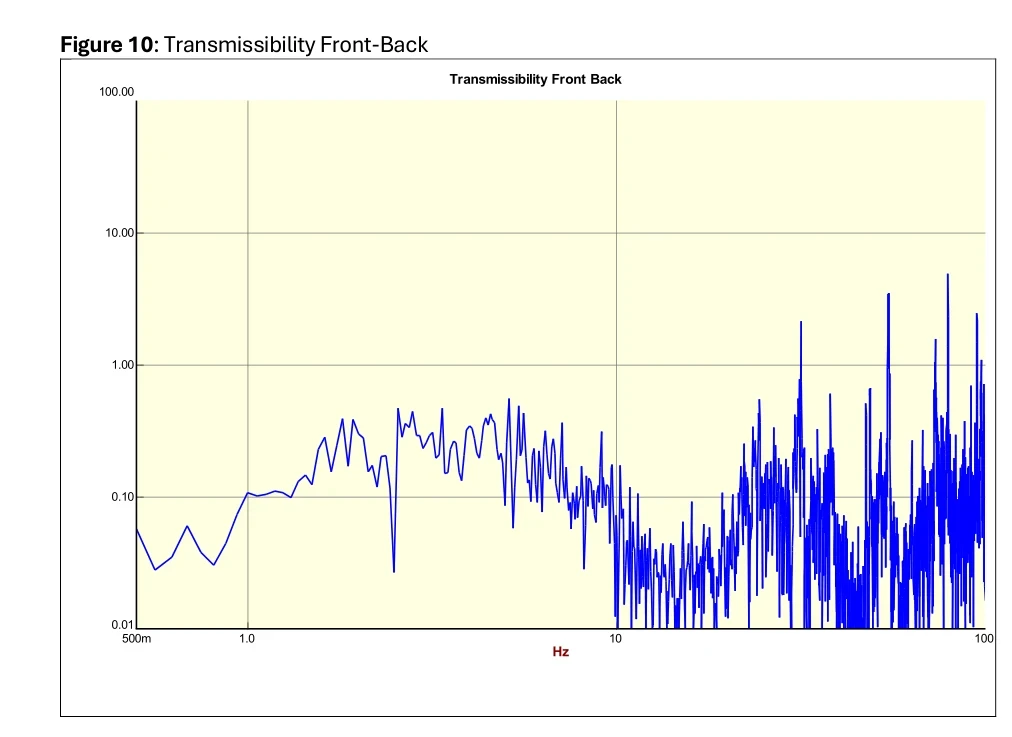

Figure 10: Transmissibility front-back

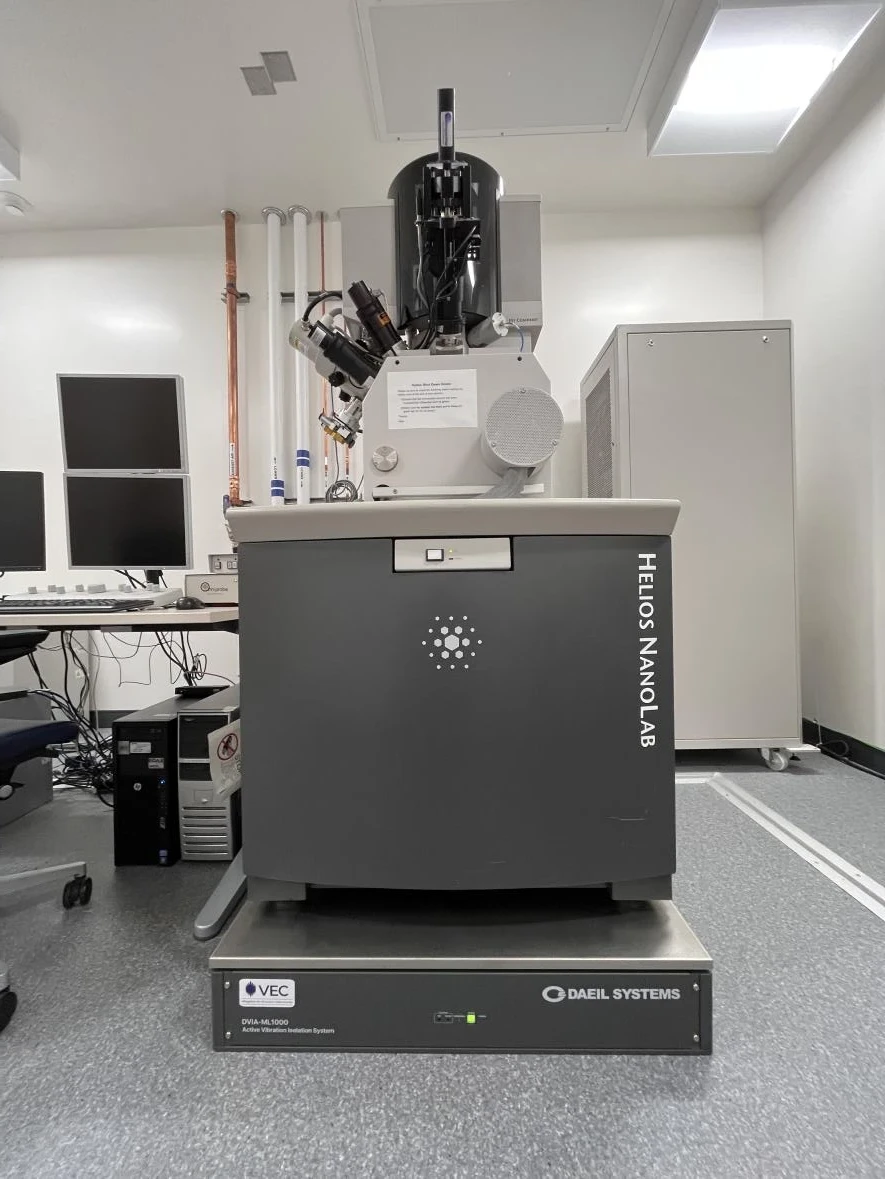

Figure 11: Installation detail

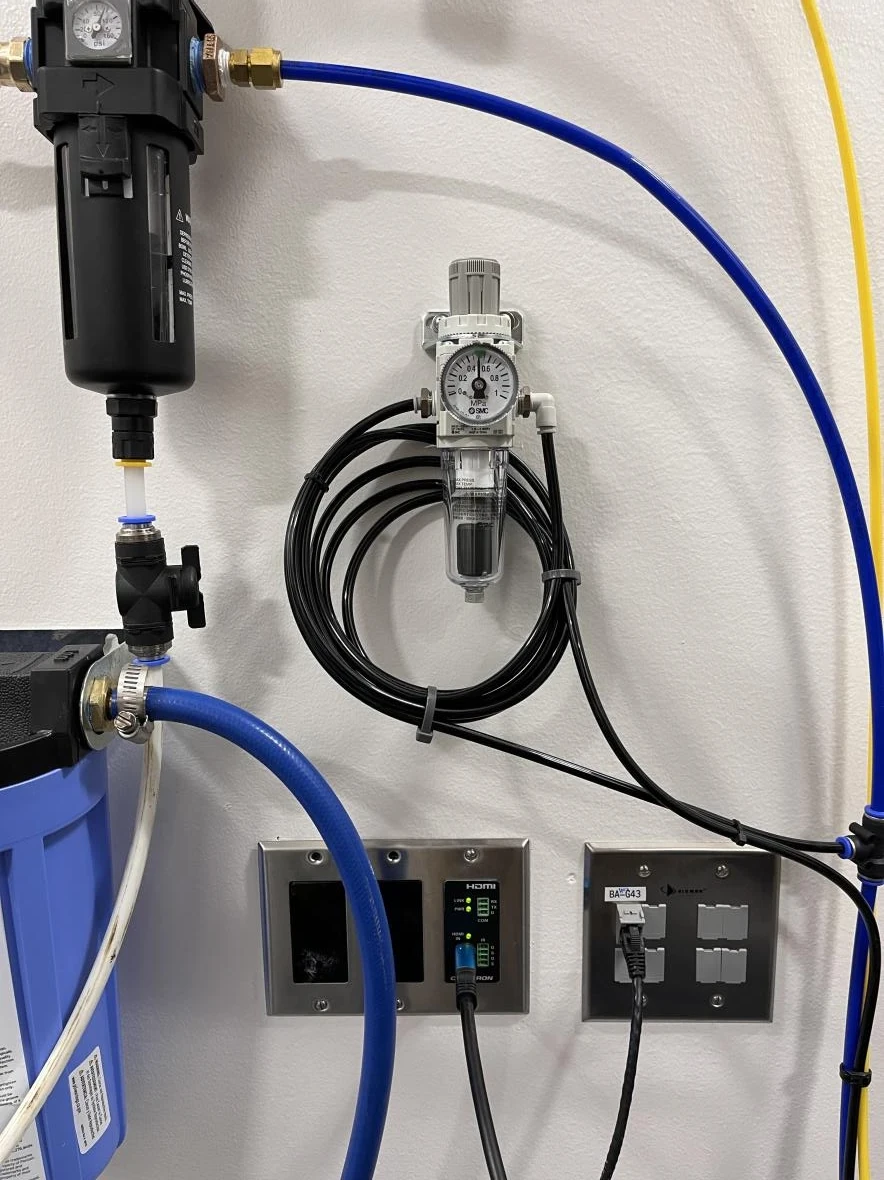

Figure 12: Compressed air

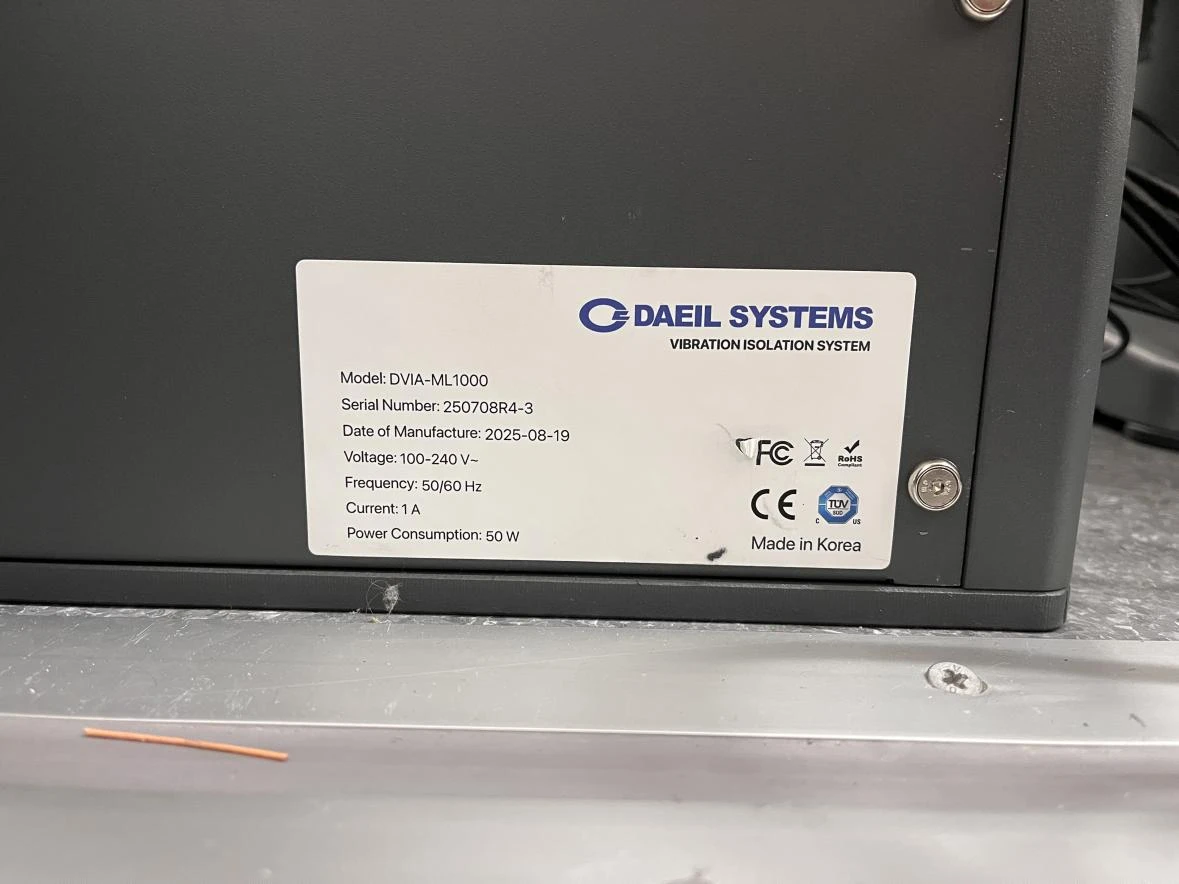

Figure 13: Serial number

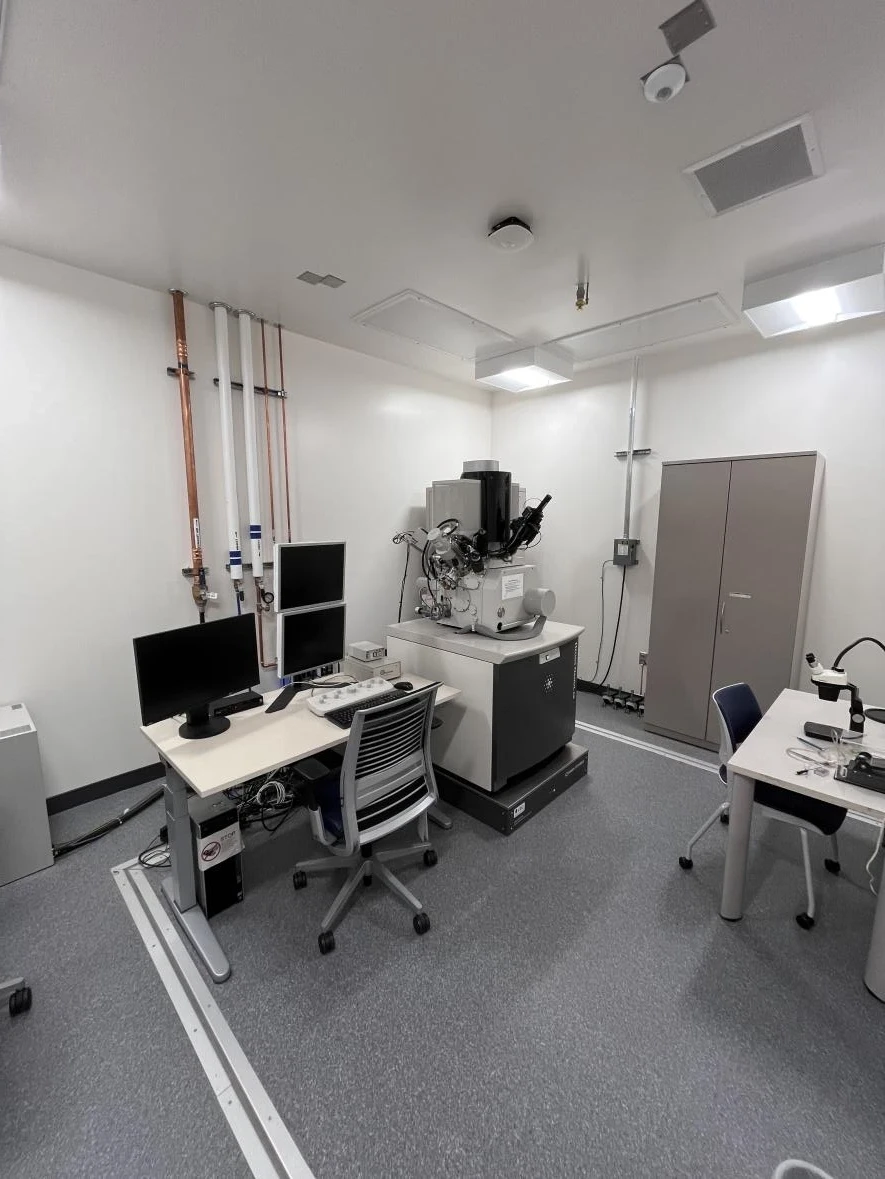

Figure 14: Room overview
Reference
Notes:
- As measured in one-third octave bands over 8-80 Hz (VC-A/B) or 1-80 Hz (VC-C through VC-G).
- Detail size refers to width in microelectronics fabrication or particle size in medical research.
