Tier-1 Semiconductor DVIA-P2200(250115R1-2) Installation Report
Contents
Overview
Tuning and vibration measurement were performed on the DVIA-P2200 installed at the Tier-1 Semiconductor Suwon site.
Vibration measurement and tuning were conducted with the equipment in the Turned on/IDLE state.
Data are presented as VC curves, and reference information on vibration levels is provided.
Vibration Isolation System Information
Model: DVIA-P2200
Serial Number: 250115R1-2
Engineer
Chaewon Lee from DAEIL SYSTEMS
Measurement Date
July 9, 2025
Installation Site
Tier-1 Semiconductor Suwon site, B5 1F constant temperature and humidity room
End User
Tier-1 Semiconductor
Equipment Status
Equipment installed / IDLE
Equipment Information
Manufacturer: Tier-1 Semiconductor
Equipment: Plating thickness gauge
Model: FCB PSP
Vibration Specifications
VC-B
Measuring Equipment
10.1) Data Physics DAQ
- Hardware: QUATTRO, Serial Number: 22436
- Software: SignalCalc ACE
10.2) Accelerometer
- PCB Accelerometer
- Model: 393B05
Measuring Set-up
F Span: 200
Lines: 3200
Engineering Units: m/s
Window: Hanning
Averaging: FFT Spectrum Averaging
Average Mode: Exponential, 40
Conclusion
The vibration specification is satisfied in all directions.
Measurement Data
| Measuring Point | Status | Direction | Spec | Measurement Data | Result | ||
|---|---|---|---|---|---|---|---|
| Floor | DVIA-P2200 | Floor | DVIA-P2200 | ||||
| Tier-1 Semiconductor Suwon site, B5 1F constant temperature and humidity room 1. Floor Vibration 2. DVIA-P2200 | Equipment installed / IDLE | Vertical | VC-B | VC-C @ 50 Hz | VC-G @ 50 Hz | ✓ PASS | ✓ PASS |
| Left to Right | VC-B | VC-B @ 50 Hz | VC-G @ 50 Hz | ✓ PASS | ✓ PASS | ||
| Front to Back | VC-B | VC-B @ 50 Hz | VC-G @ 50 Hz | ✓ PASS | ✓ PASS | ||
Data and Image

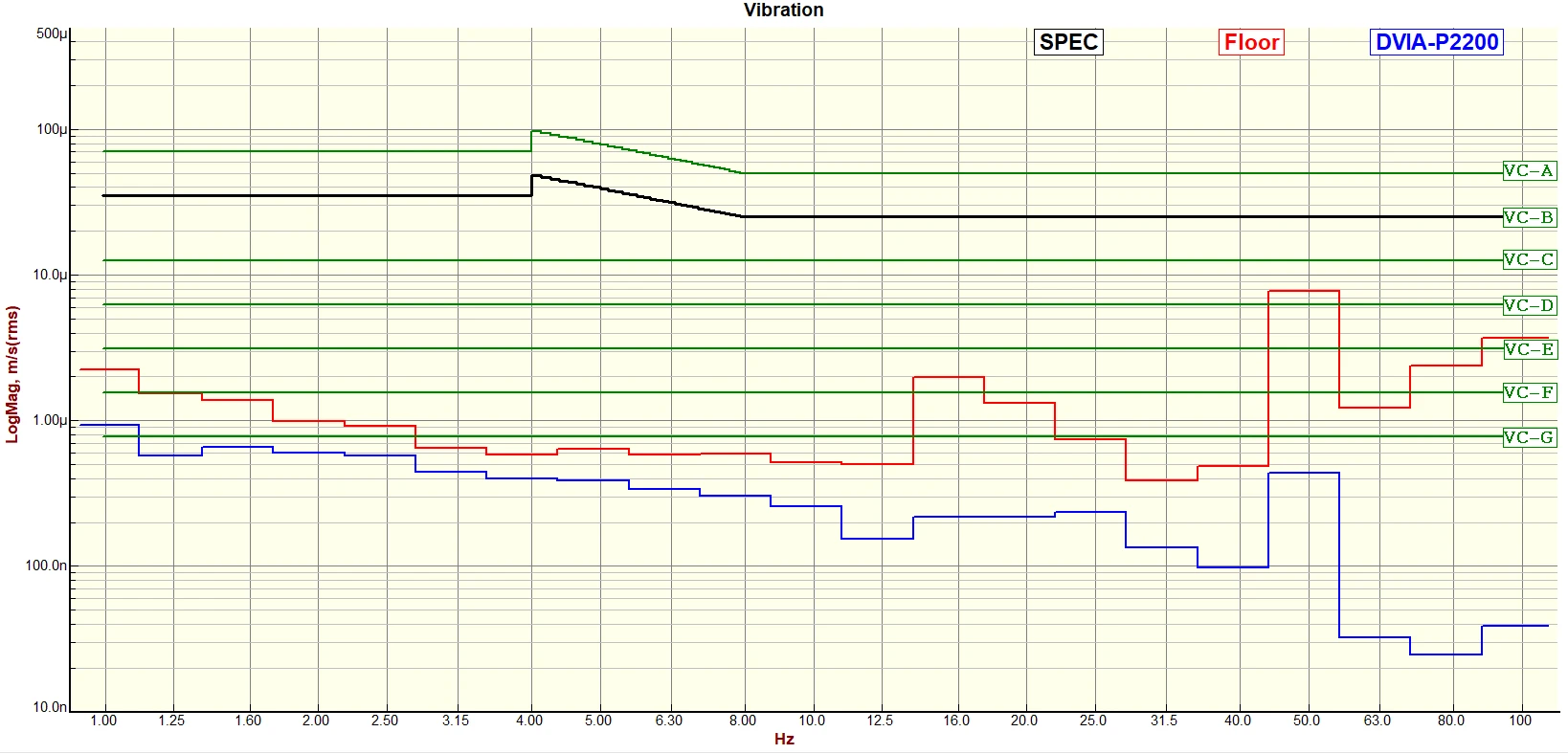

Vertical VC Curves

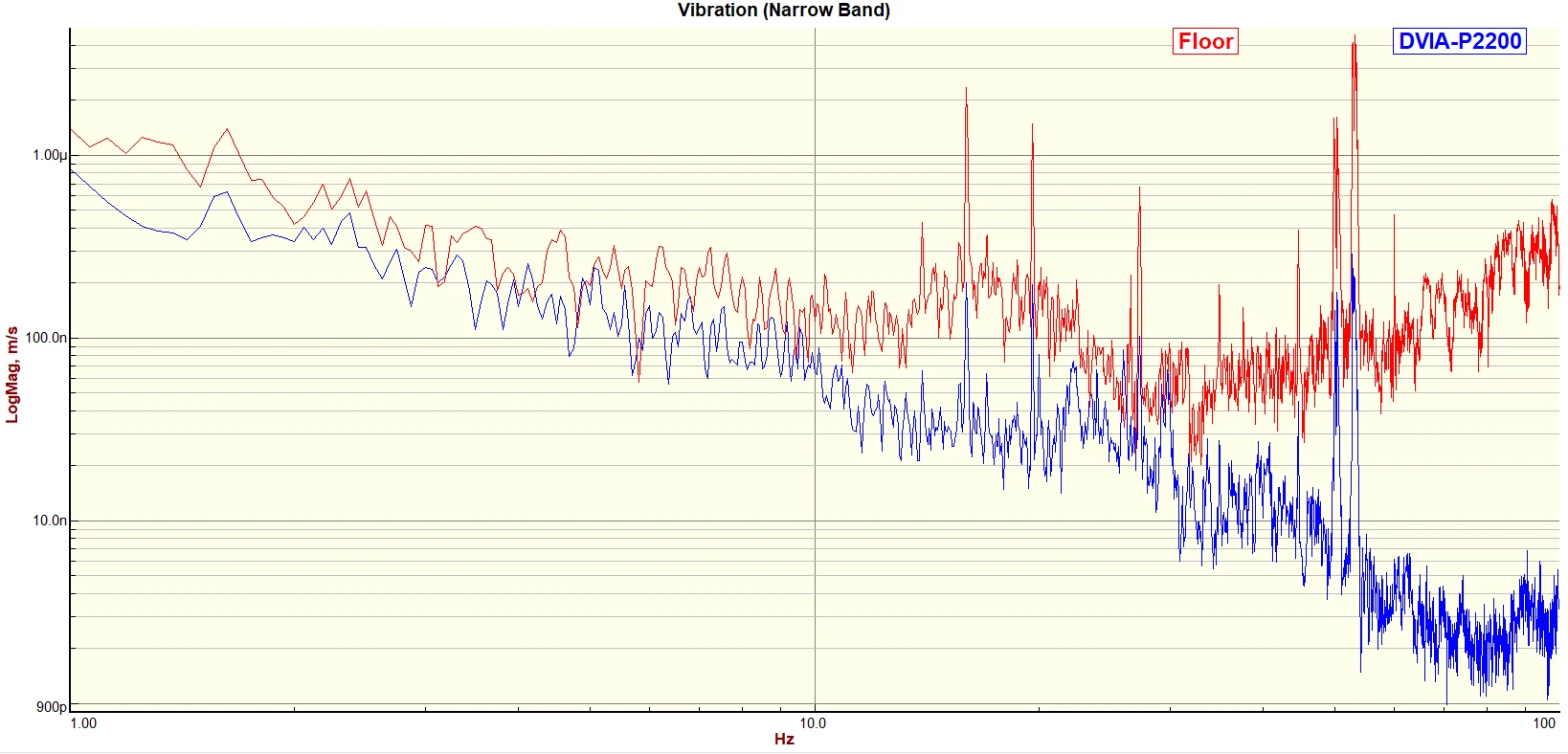

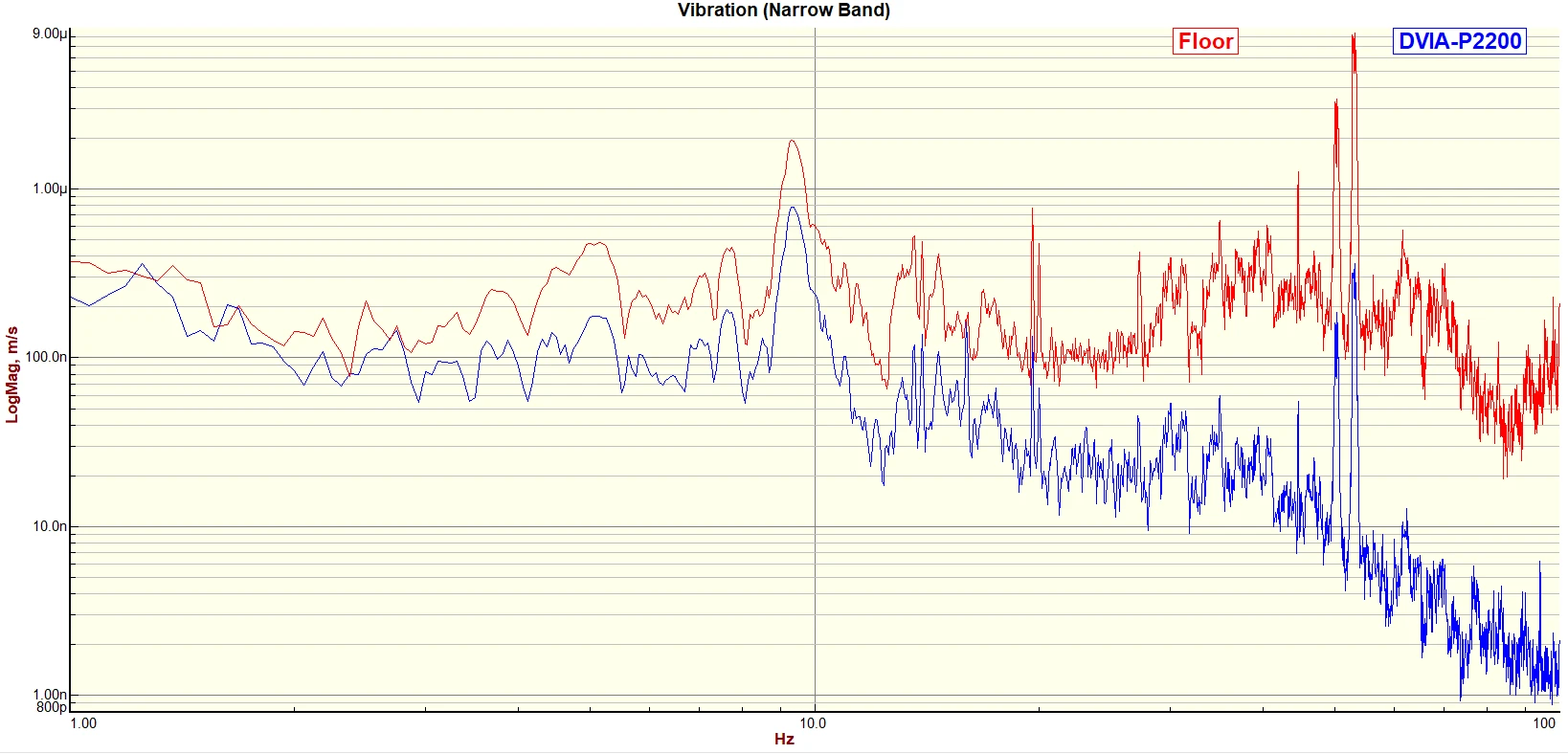

Vertical Autospectrum

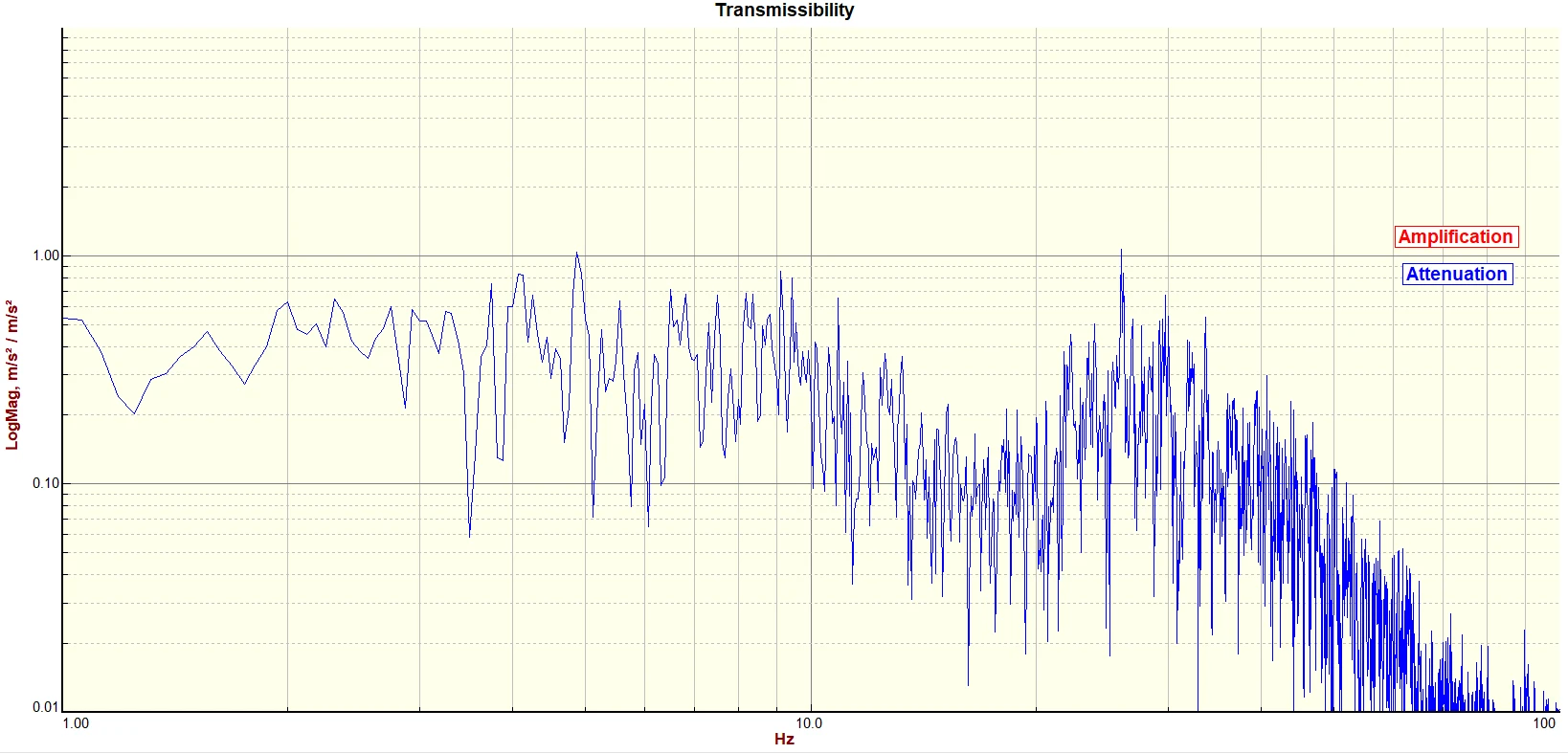

Vertical Transmissibility

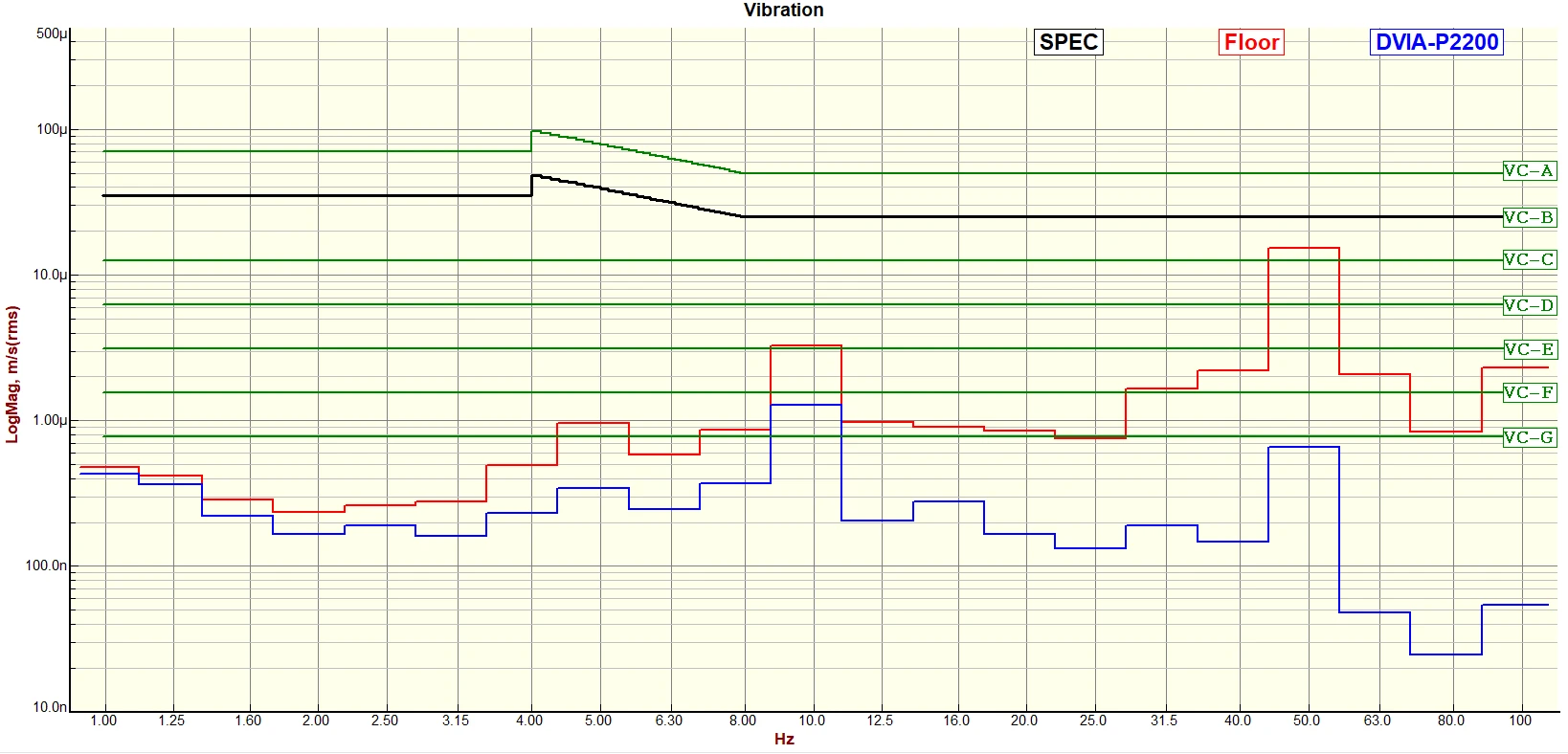

Left to Right VC Curves
Left to Right Autospectrum

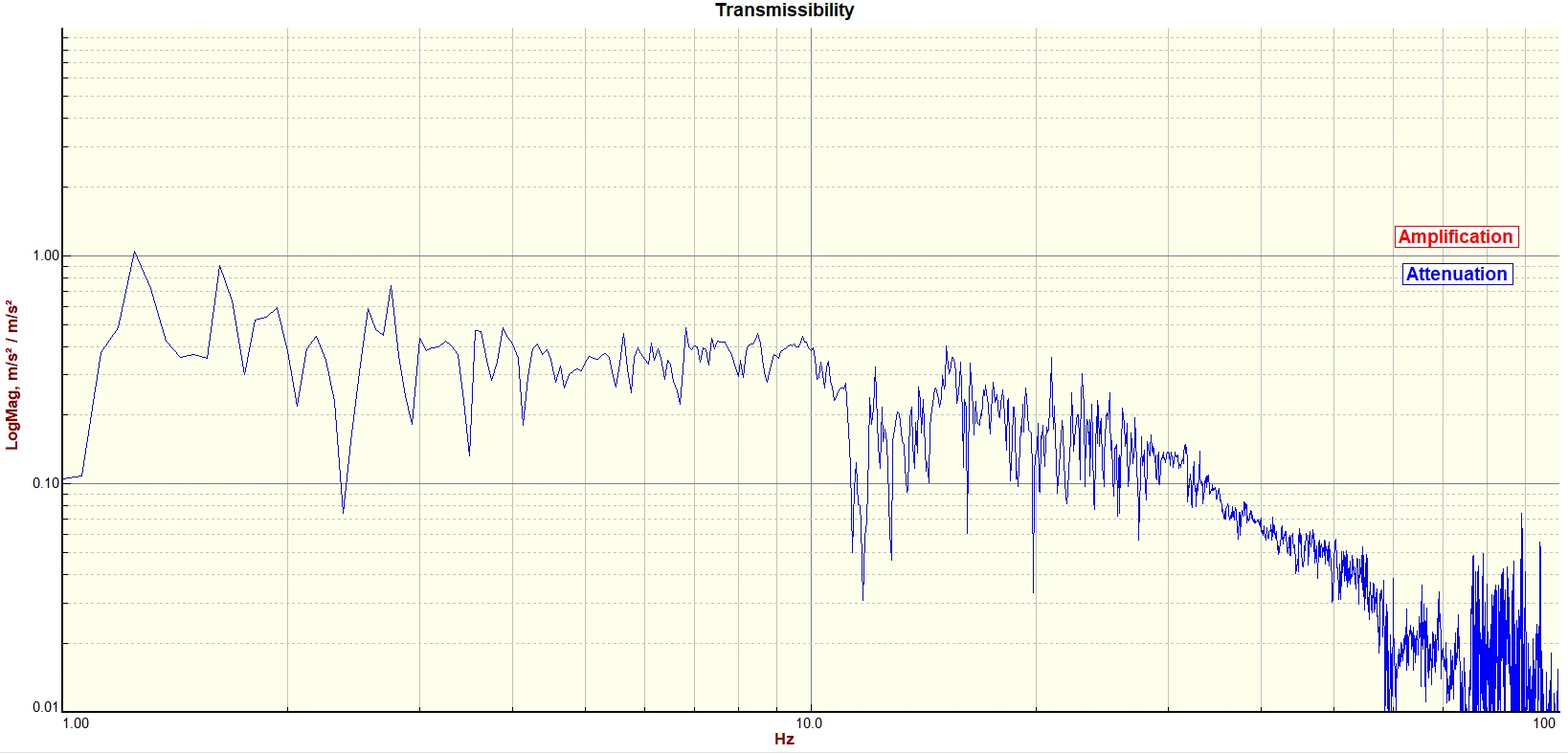

Left to Right Transmissibility

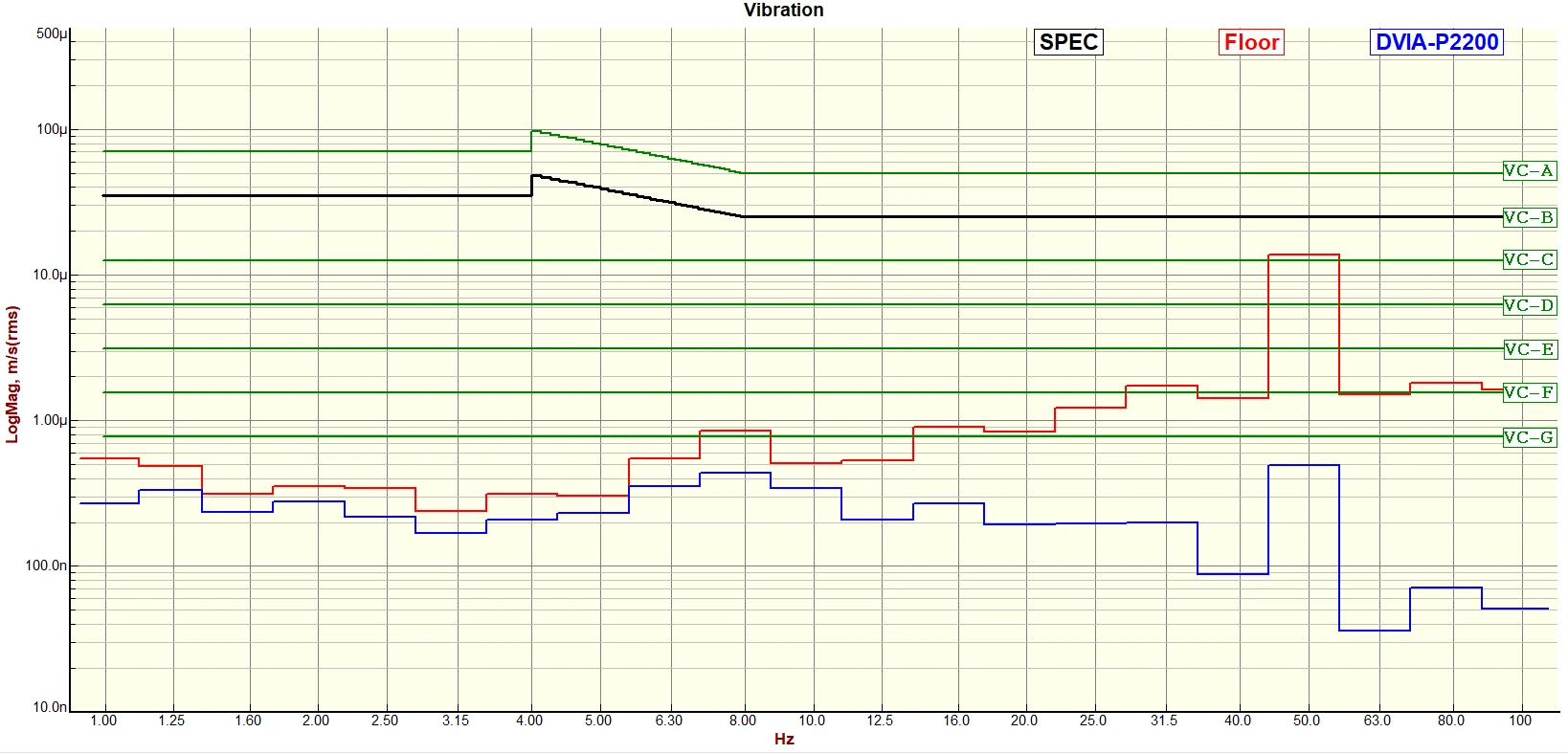

Front to Back VC Curves

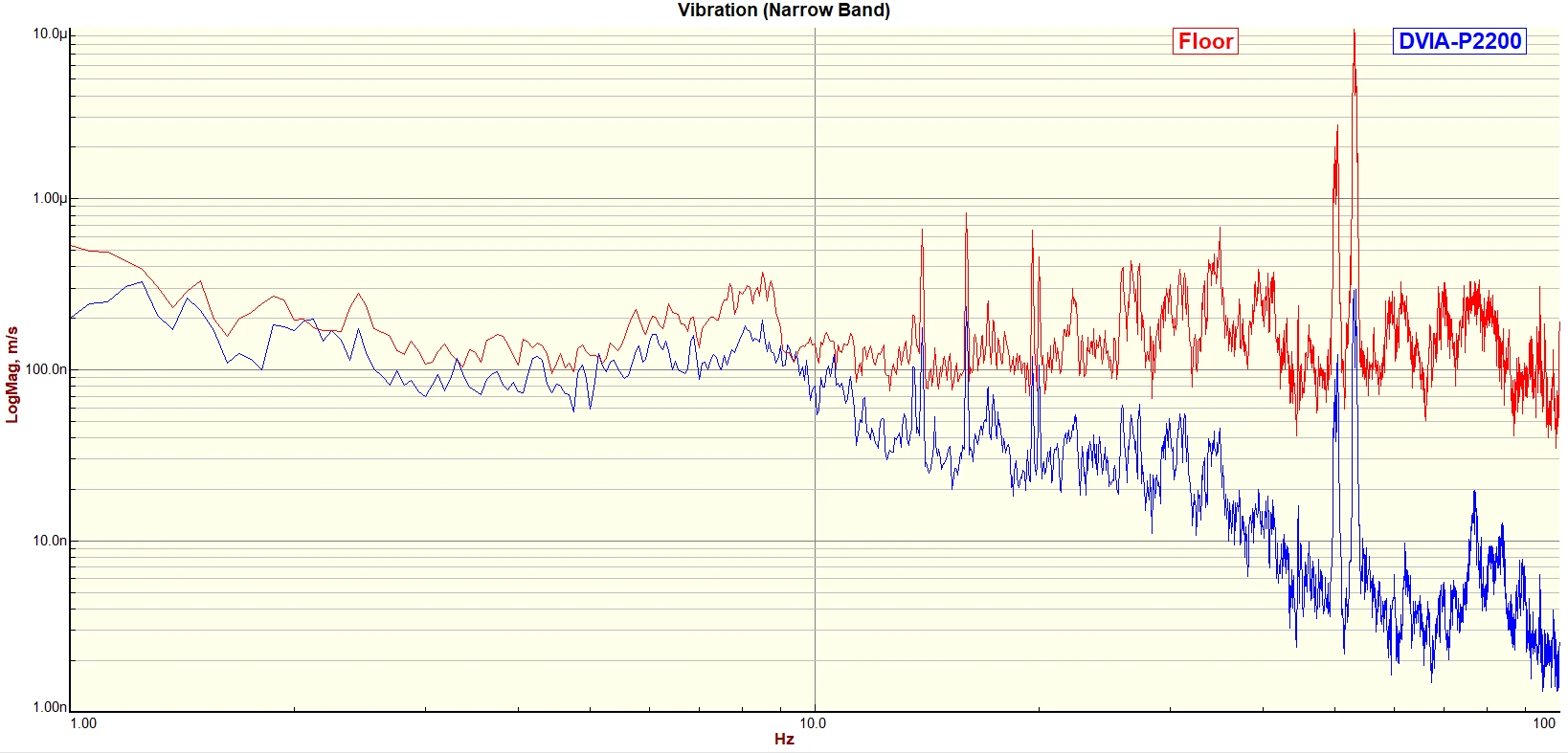

Front to Back Autospectrum

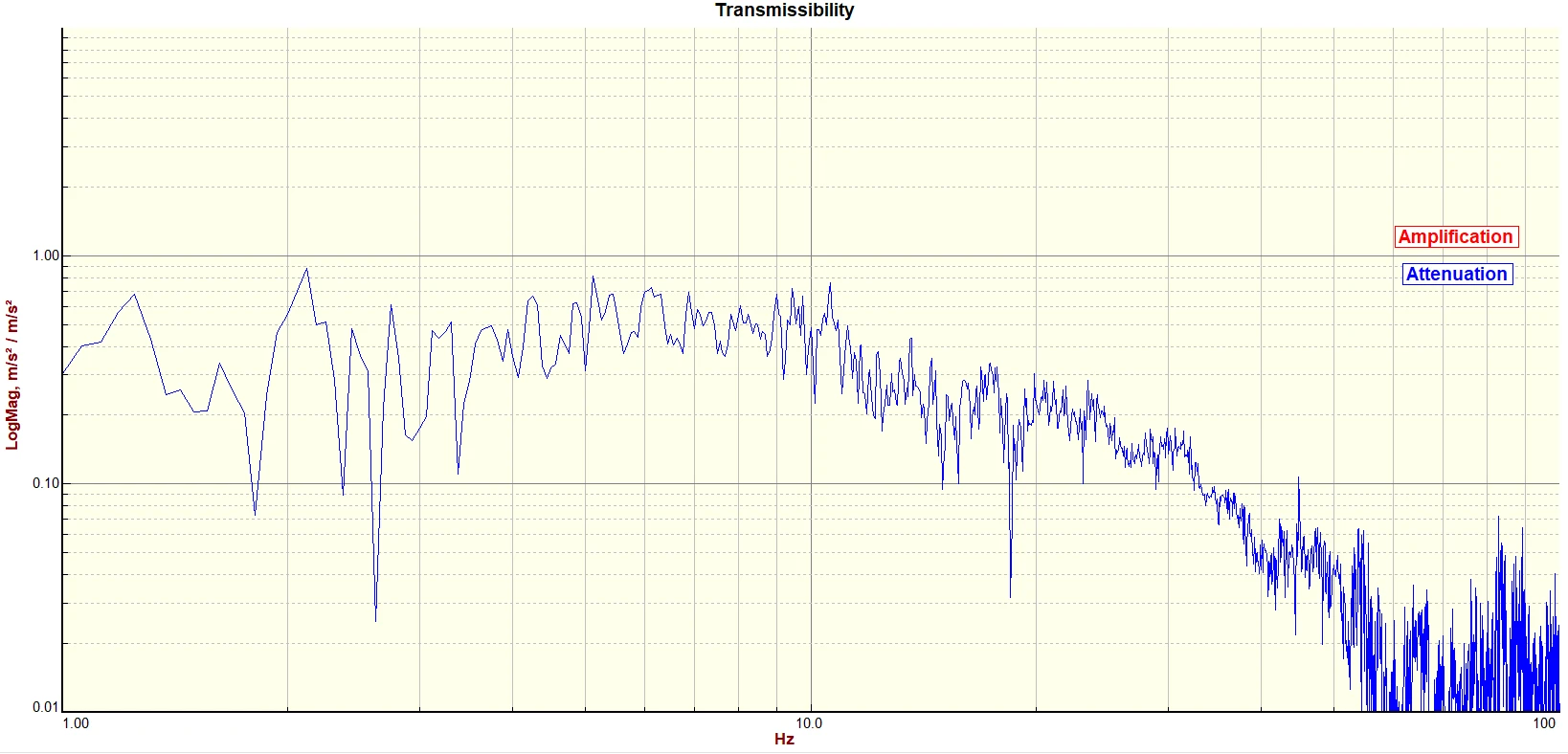

Front to Back Transmissibility
Reference
Generic Vibration Criteria
Notes:
1. VC-A/B is measured in 1/3 octave bands from 8-80 Hz, VC-C through VC-G from 1-80 Hz.
2. Detail size refers to line widths in microelectronics manufacturing or particle sizes in medical research.
