Jiangsu Youzhong Microna Nantong ZEISS Sigma360 FE-SEM DVIA-M1000 (240207R5) Installation Report

DVIA-M Series

Installation Report

Jiangsu Youzhong Microna

Nantong

ZEISS

Sigma360

FE-SEM

DVIA-M1000

Overview

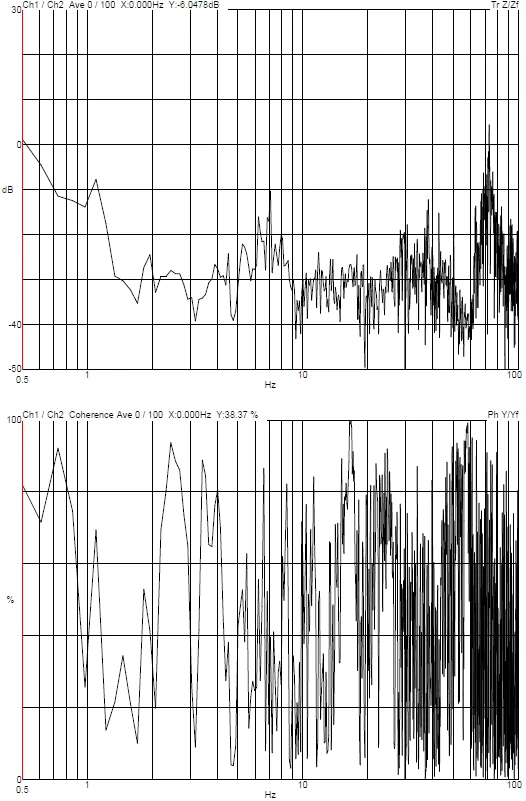

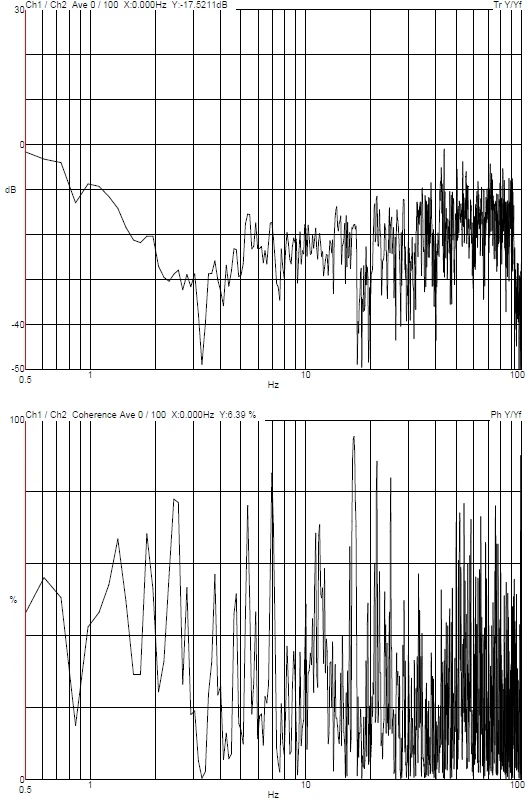

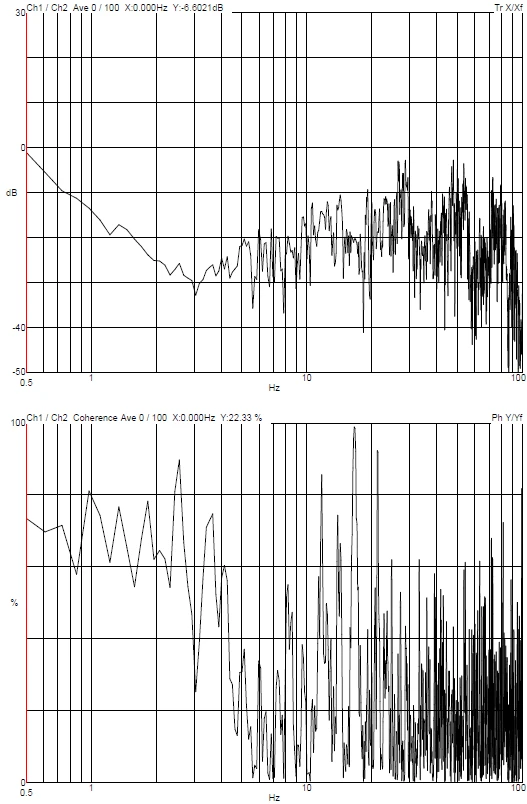

The DVIA-M1000 active vibration isolation platform is appropriately installed and functioning as intended.

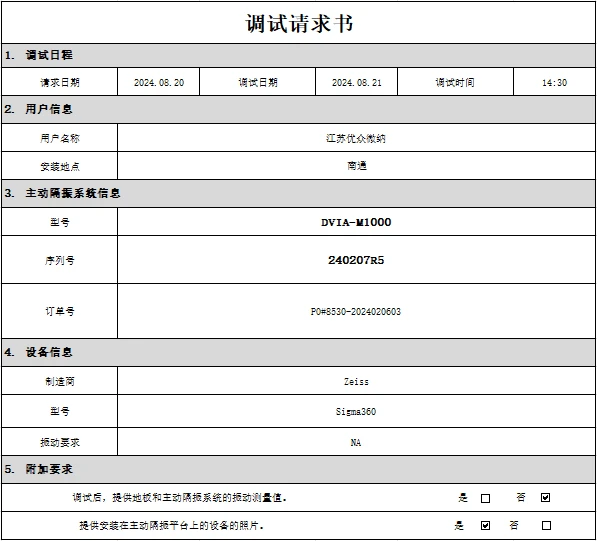

Model: DVIA-M1000

Serial Number: 240207R5

Chaewon Lee from DAEIL SYSTEMS

October 31, 2024

November 06, 2024

1st

Nantong, China

N/A

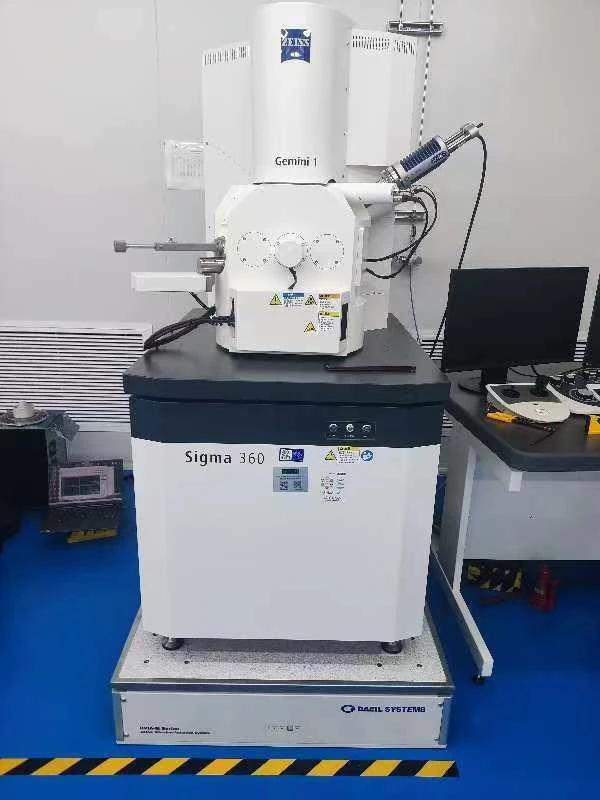

Manufacturer: ZEISS

Equipment: FE-SEM

Model: Sigma360

The equipment is installed/Turned off

Criterion Curve	Description	Amplitude μm/s (µin/s)	Detail Size μm
Workshop (ISO)	Distinctly perceptible vibration. Appropriate to workshops and non-sensitive areas.	800 (32,000)	N/A
Office (ISO)	Perceptible vibration. Appropriate to offices and non-sensitive areas.	400 (16,000)	N/A
Residential Area (ISO)	Barely perceptible vibration. Appropriate to sleep areas in most instances.	200 (8,000)	75
Operating Theatre (ISO)	Vibration not perceptible. Suitable for surgical suites, microscopes to 100x.	100 (4,000)	25
VC-A	Adequate for optical microscopes to 400x, microbalances, optical balances.	50 (2,000)	8
VC-B	Appropriate for inspection and lithography equipment to 3μm line widths.	25 (1,000)	3
VC-C	Appropriate for optical microscopes to 1000x, lithography equipment to 1μm.	12.5 (500)	1 - 3
VC-D	Suitable for demanding equipment including electron microscopes (SEMs/TEMs).	6.25 (250)	0.1 - 0.3
VC-E	For the most demanding systems including E-Beam lithography at nanometer scales.	3.12 (125)	< 0.1
VC-F	For extremely quiet research spaces. Not recommended as design criterion.	1.56 (62.5)	N/A
VC-G	For extremely quiet research spaces. Not recommended as design criterion.	0.78 (31.25)	N/A
