Installation Report
DVIA-M Series
03-21-2024
Thermo Fisher Scientific Helios G5 DVIA-M1000 (230821R3-2) Installation Report
DVIA-M Series
Installation Report
Thermo Fisher Scientific
Helios G5
DVIA-M1000
230821R3-2
Contents
Reporting organization
广电计量

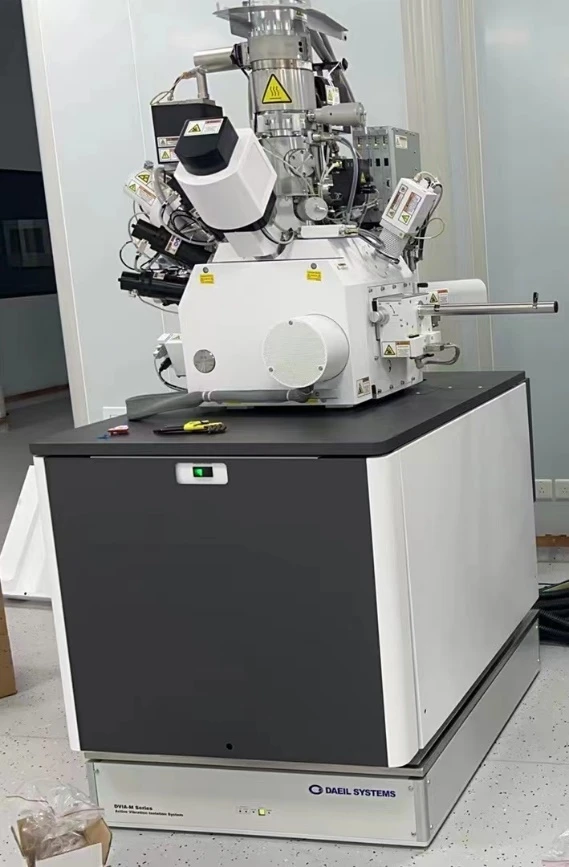

M1000_ 230821R3-2 Set up
Report summary
| Target equipment | Thermo Fisher Helios G5 |
|---|---|
| Place of installation | Wuxi |
| Remark | Good Performance |
| END USER | 广电计量 |
| Operator: Lee, Chaewon Date of setup: 24.03.20 Date of reporting: 24.03.21 | Date of business trip : 17.12.27~17.12.29 |
Overview
The DVIA-M1000 active vibration isolation platform is appropriately installed and functioning as intended. The center of gravity of the equipment above the product is not aligned, so a resonance peak occurs around 34Hz. Measurement date: 2024.03.20 (Wednesday) Operator: DAEIL SYSTEMS Chaewon Lee Place of measurement: 无锡 Equipment Model: Thermo Fisher Helios G5
M1000 internal program performance measurement result

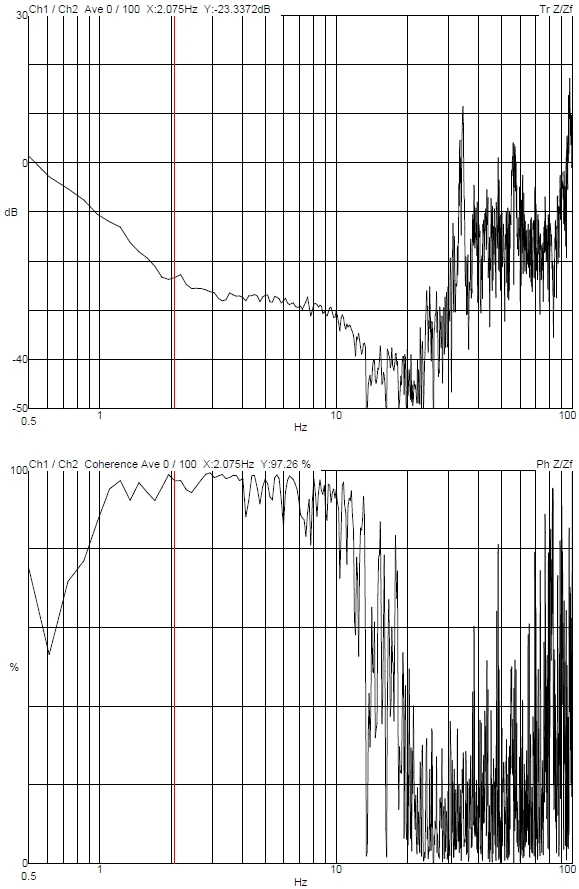

Vertical

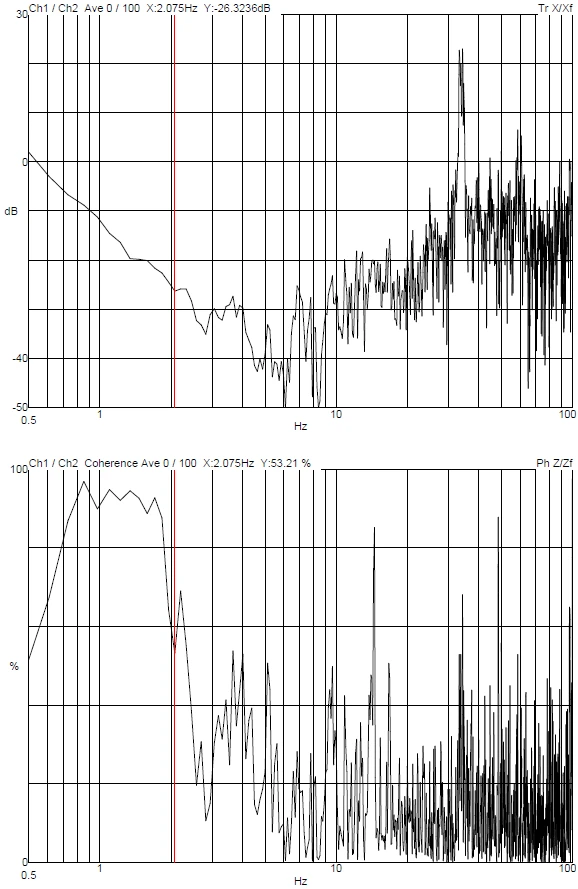

Left to Right

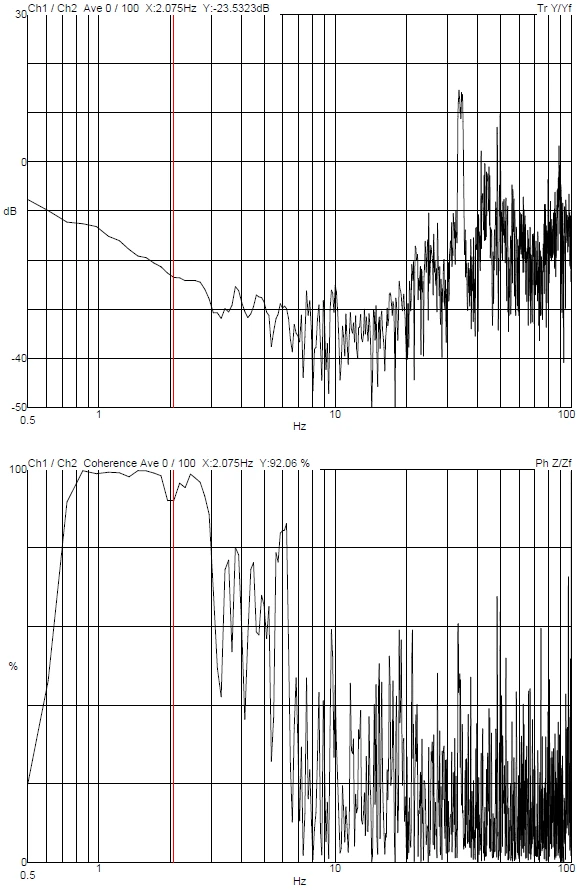

Front to Back
