Schrodinger Thermo Fisher Scientific Glacios 2 with Selectris DVIA-MB3000 (230418R3) Installation Report — 2023.09.26
Contents
Overview
The DVIA-MB3000 active vibration isolation platform has been installed appropriately and meets the vibration specifications.
Vibration Isolation System Information
Model: DVIA-MB3000
Serial Number: 230418R3
Engineer
Jongwon Park from DAEIL SYSTEMS
Tuning Date
September 26, 2023
Report written date
2023.10.25
Date of business trip
Date of business trip : 17.12.27~17.12.29
Location
200 Staples Dr. Unit 210 Framingham, MA 01702 USA
Equipment
Thermo Fisher Scientific Glacios 2 with Selectris
Summary of Vibration Results
Measurement Point
VC curves
Z-axis (Vertical)
1-10 Hz
Z-axis (Vertical)
10-80 Hz
X-axis
(Left to Right)
1-10 Hz
X-axis
(Left to Right)
10-80 Hz
Y-axis (Front to Back)
1-10 Hz
Y-axis (Front to Back)
10-80 Hz
Floor
C
A
D
C
D
C
DVIA-MB3000
G
D
F
F
G
G
Data and Image

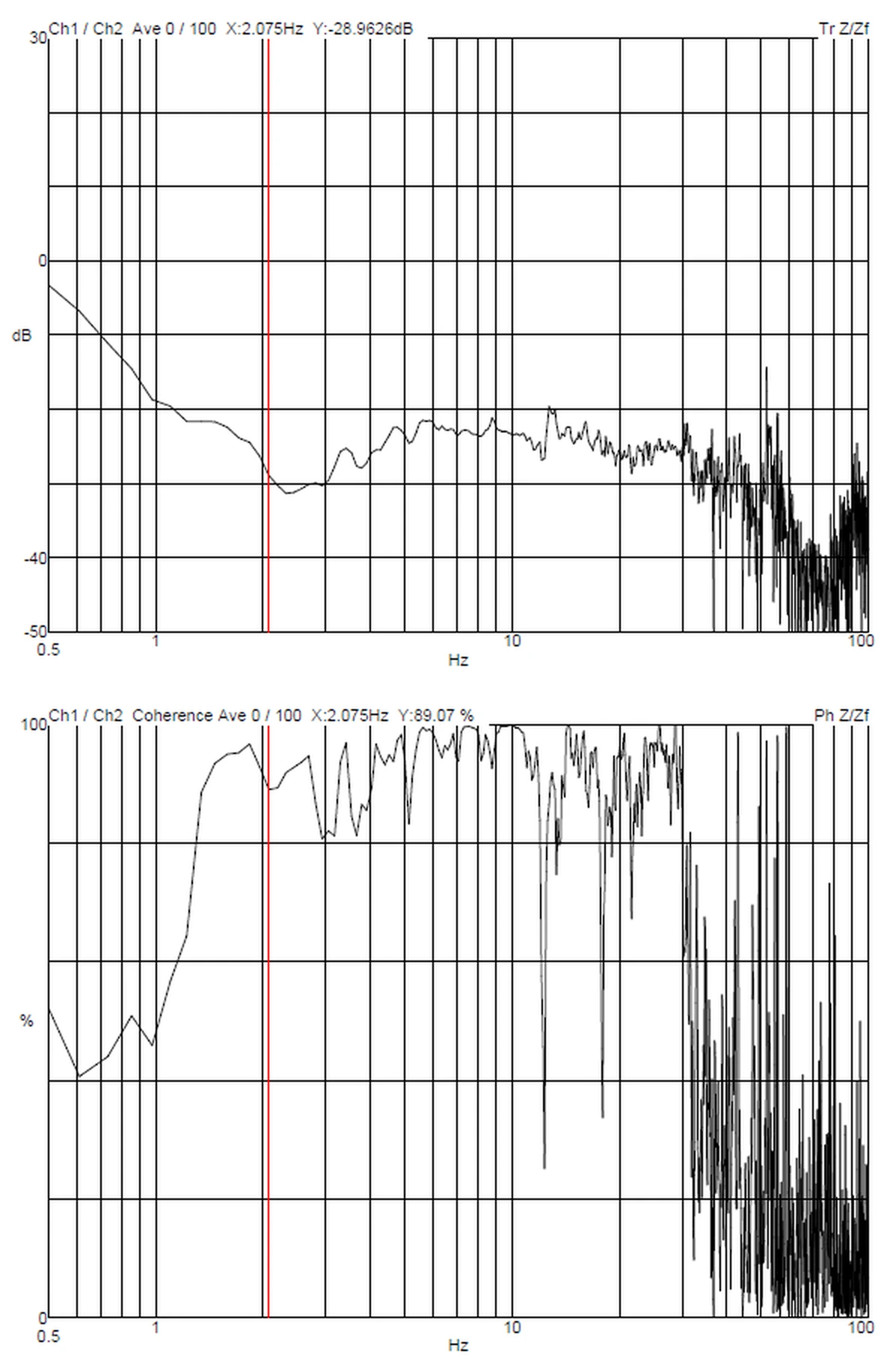

8.1 UI Program Transmissibility — Z-axis (Vertical)

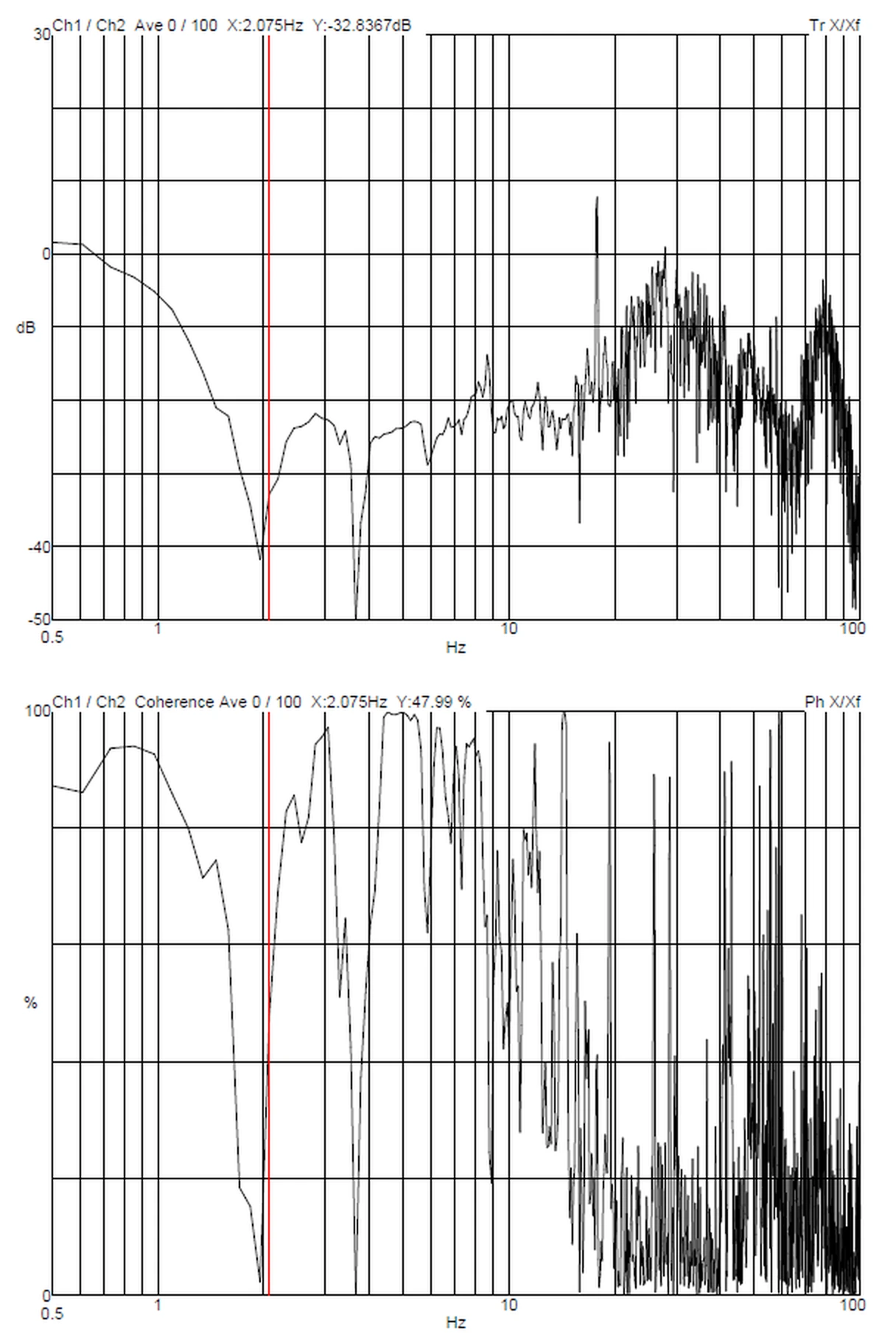

8.1 UI Program Transmissibility — X-axis (Left to Right)
8.1 UI Program Transmissibility — Y-axis (Front to Back)
VEC Measurement

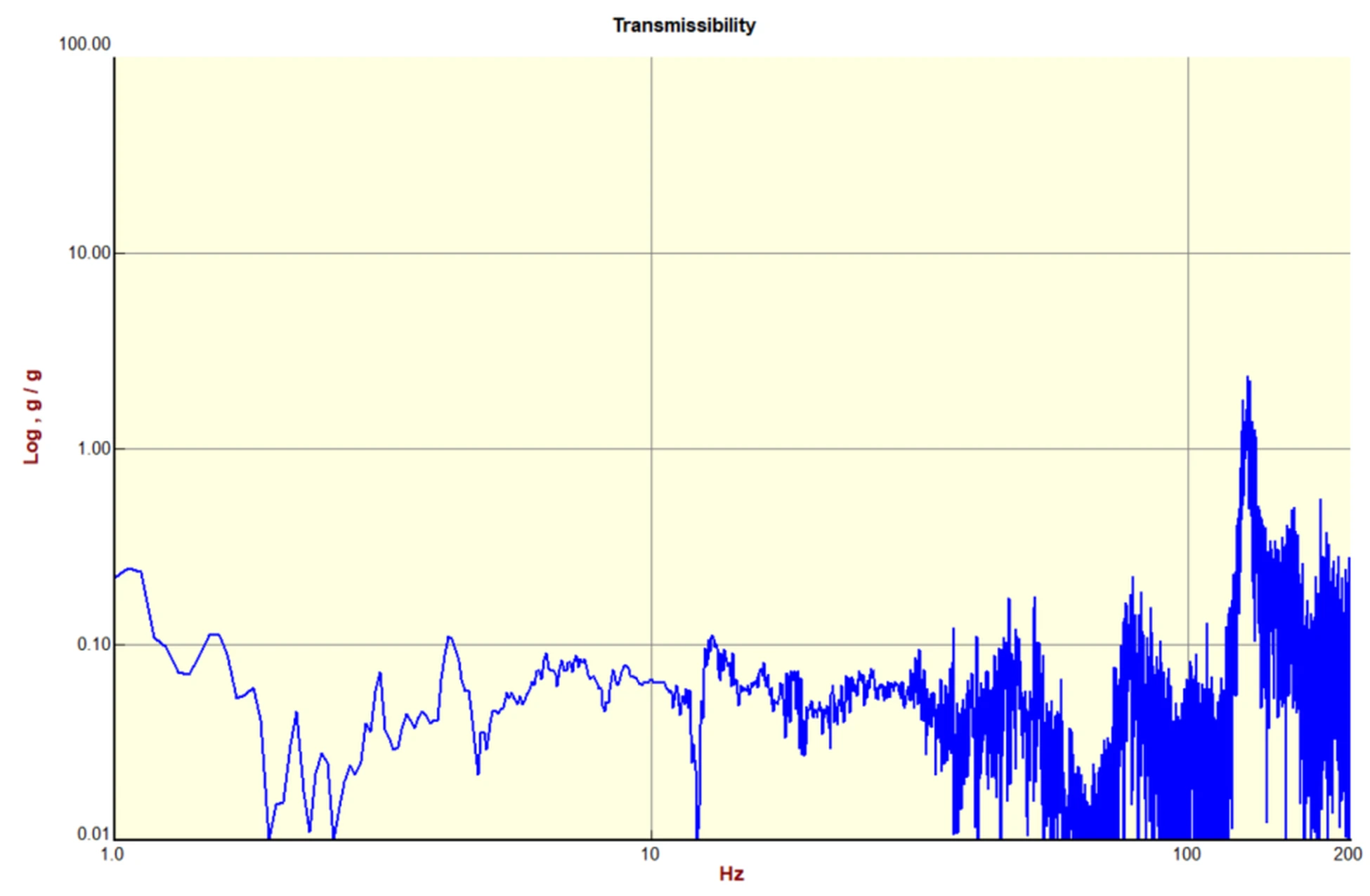

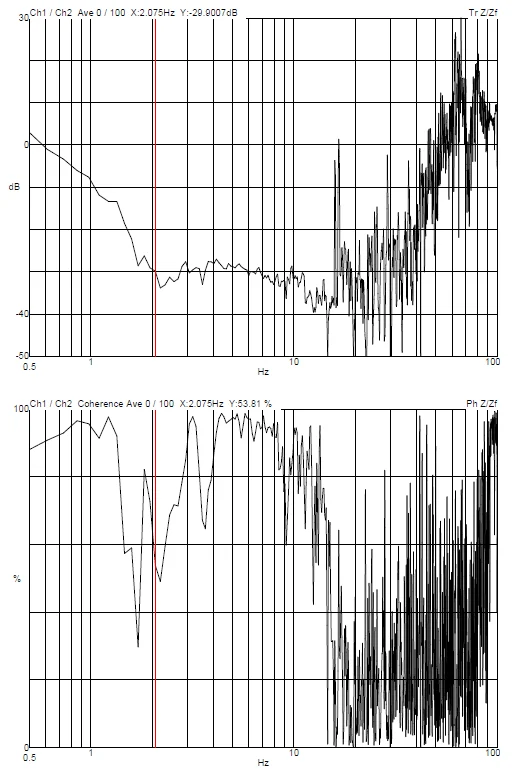

Z-axis (Vertical) Transmissibility

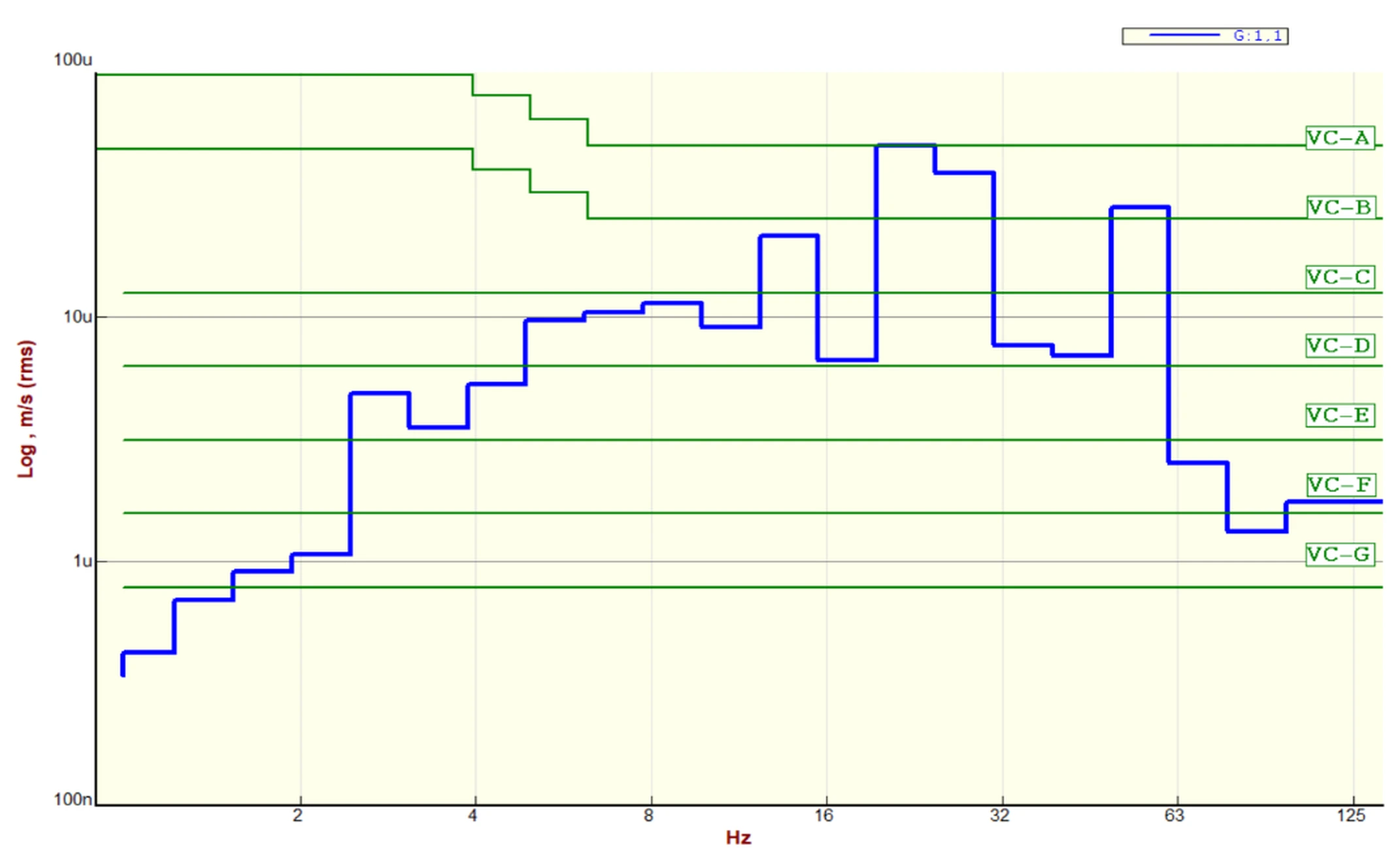

Z-axis (Vertical) Floor VC Curve

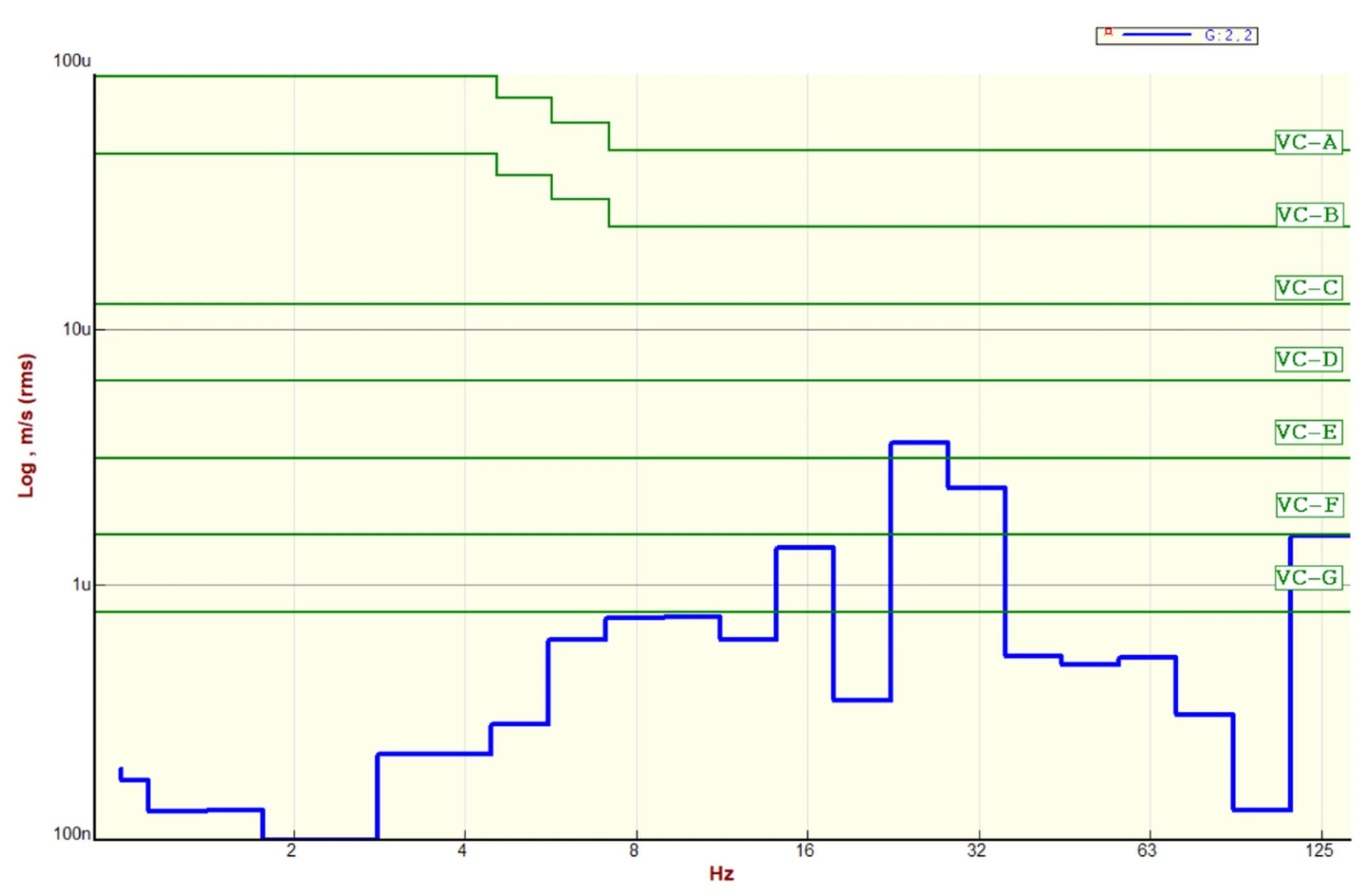

Z-axis (Vertical) Active VC Curve

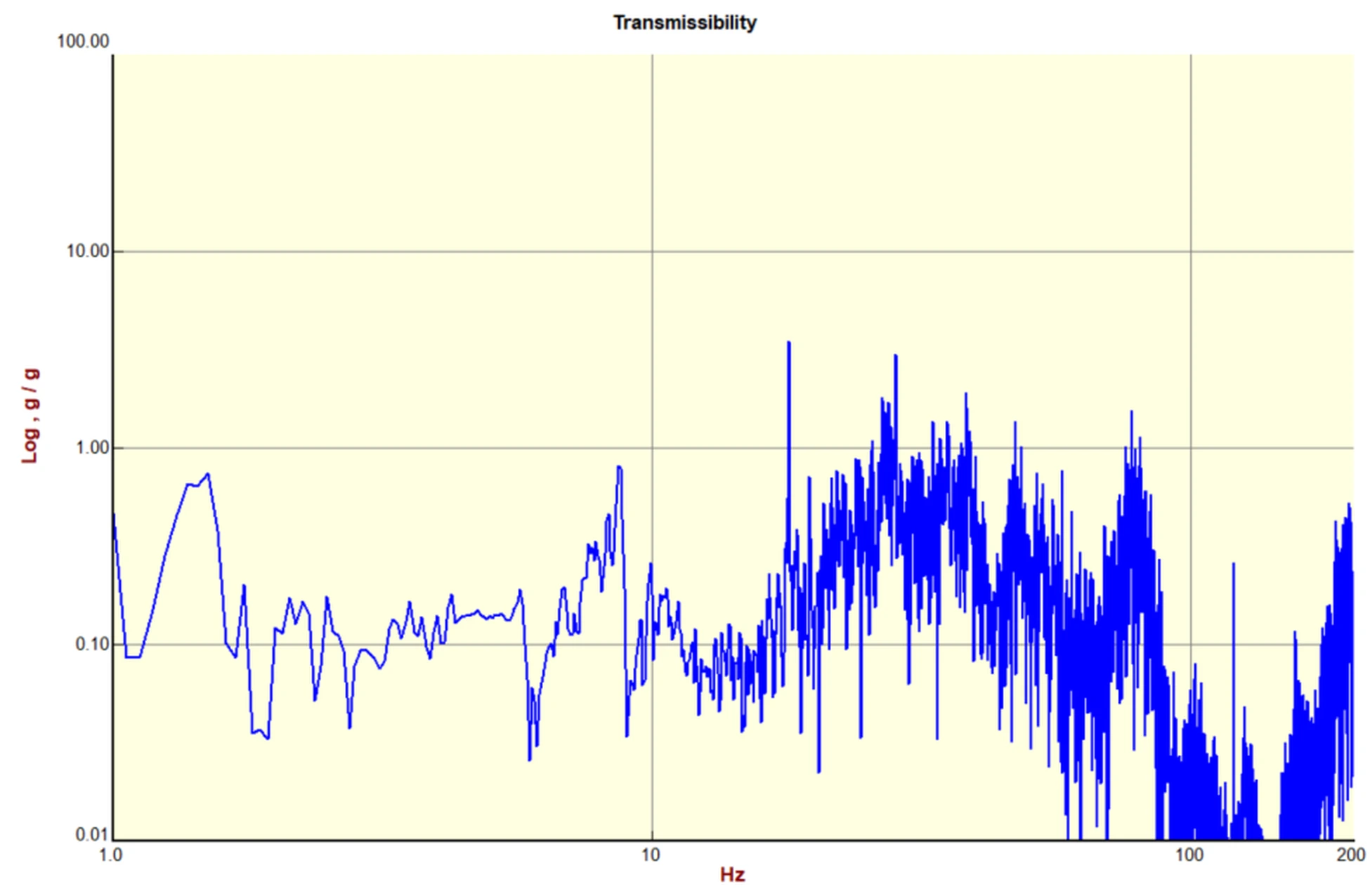

X-axis (Left to Right) Transmissibility

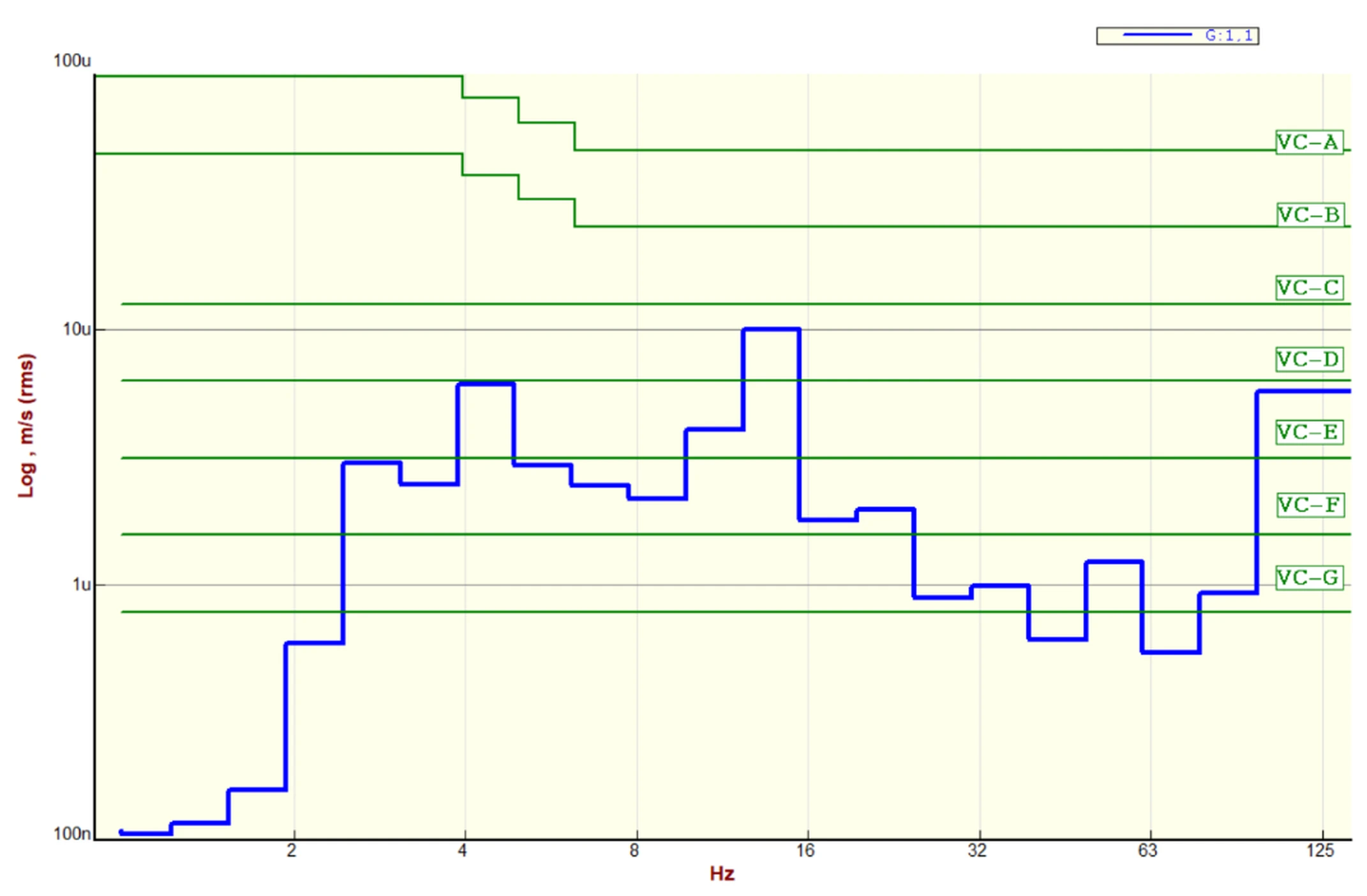

X-axis (Left to Right) Floor VC Curve

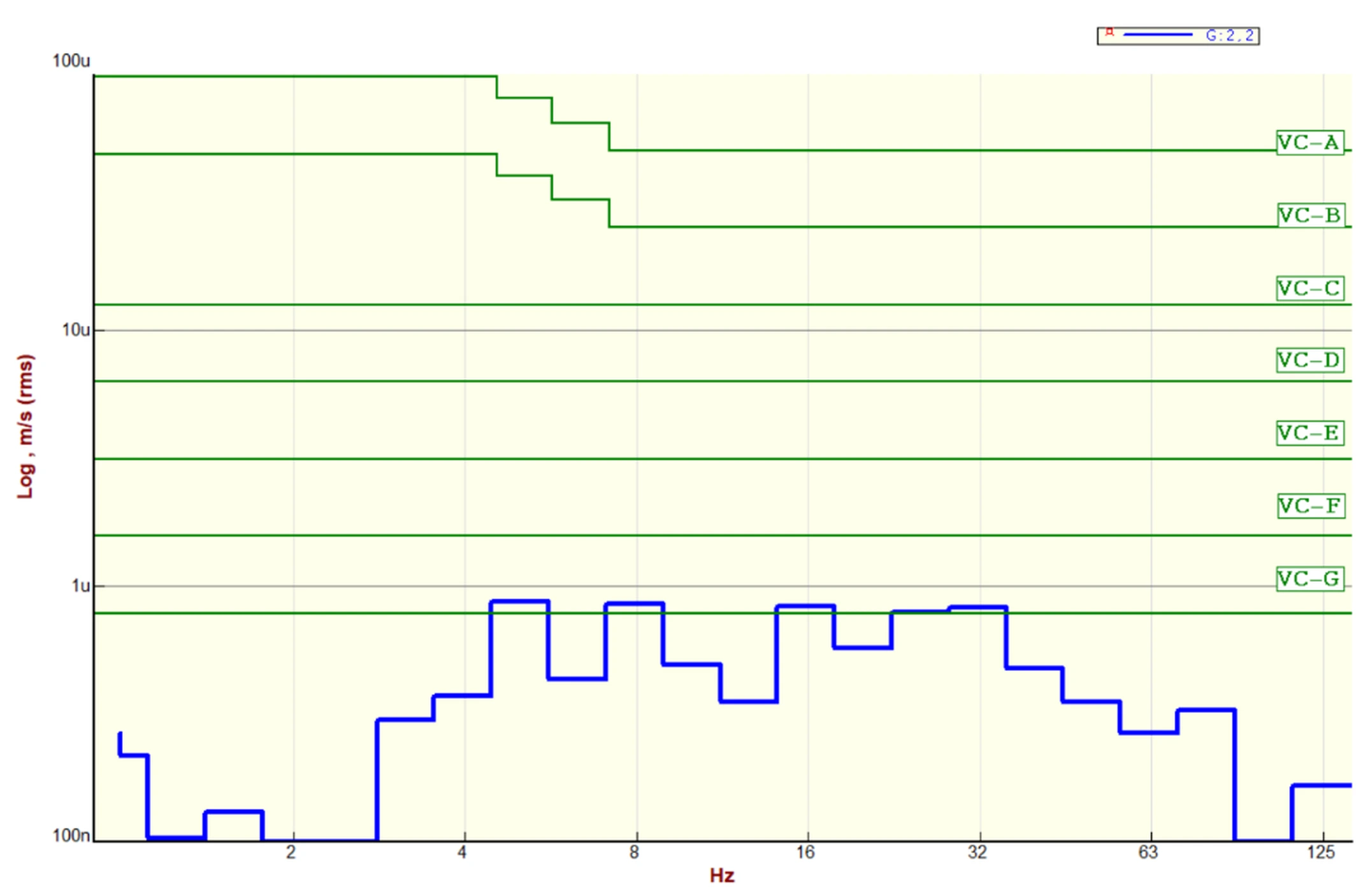

X-axis (Left to Right) Active VC Curve

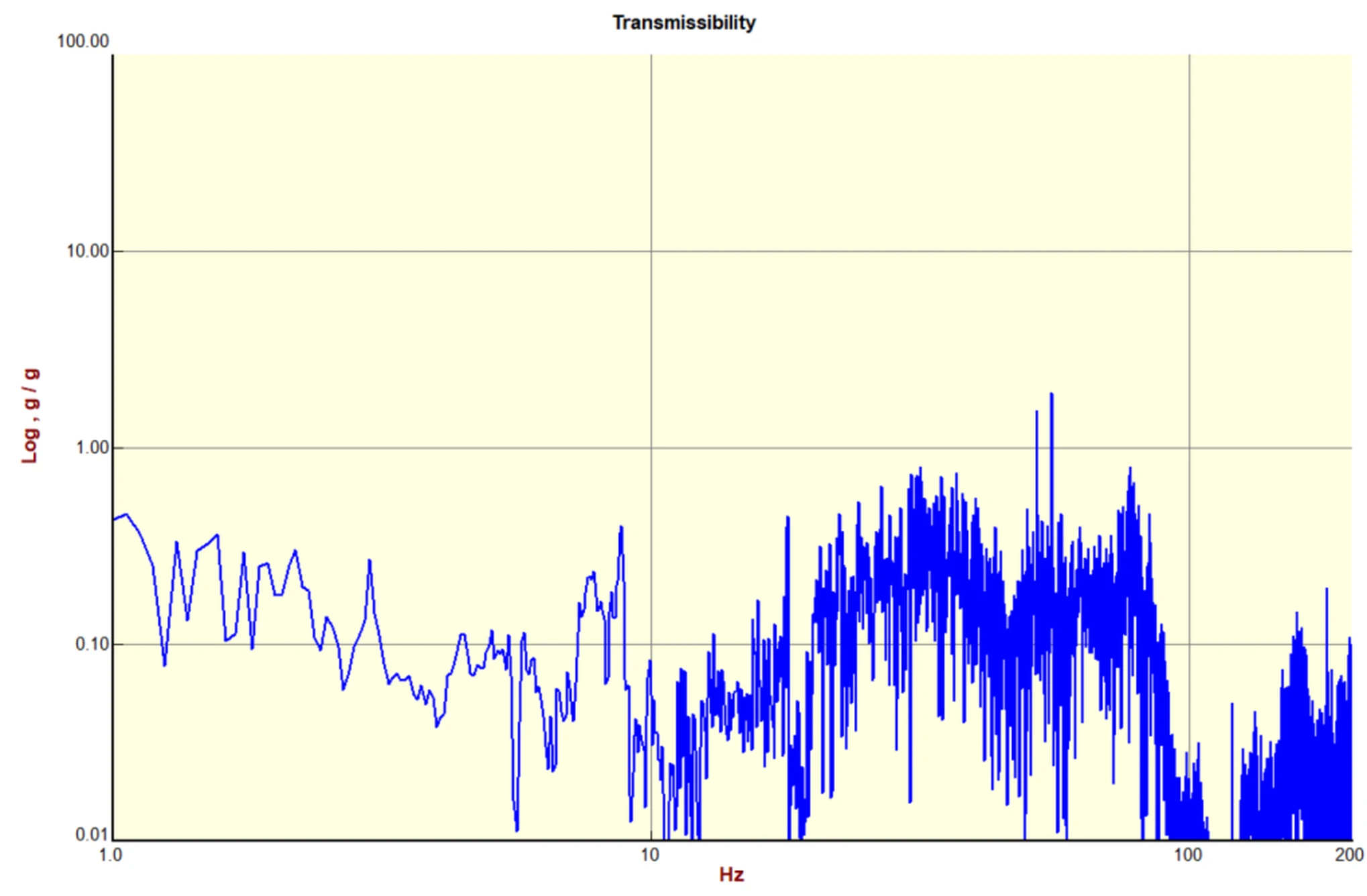

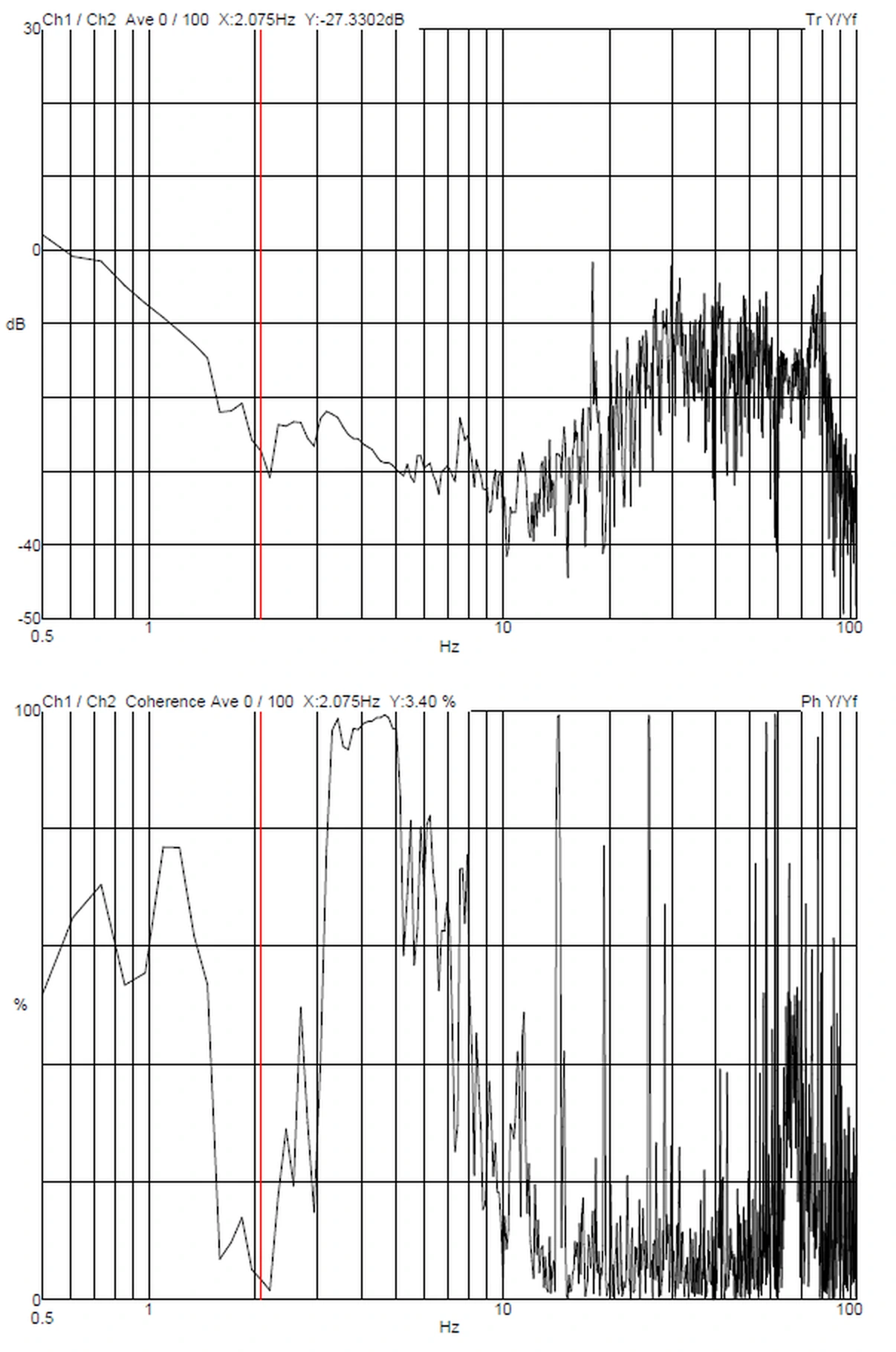

Y-axis (Front to Back) Transmissibility

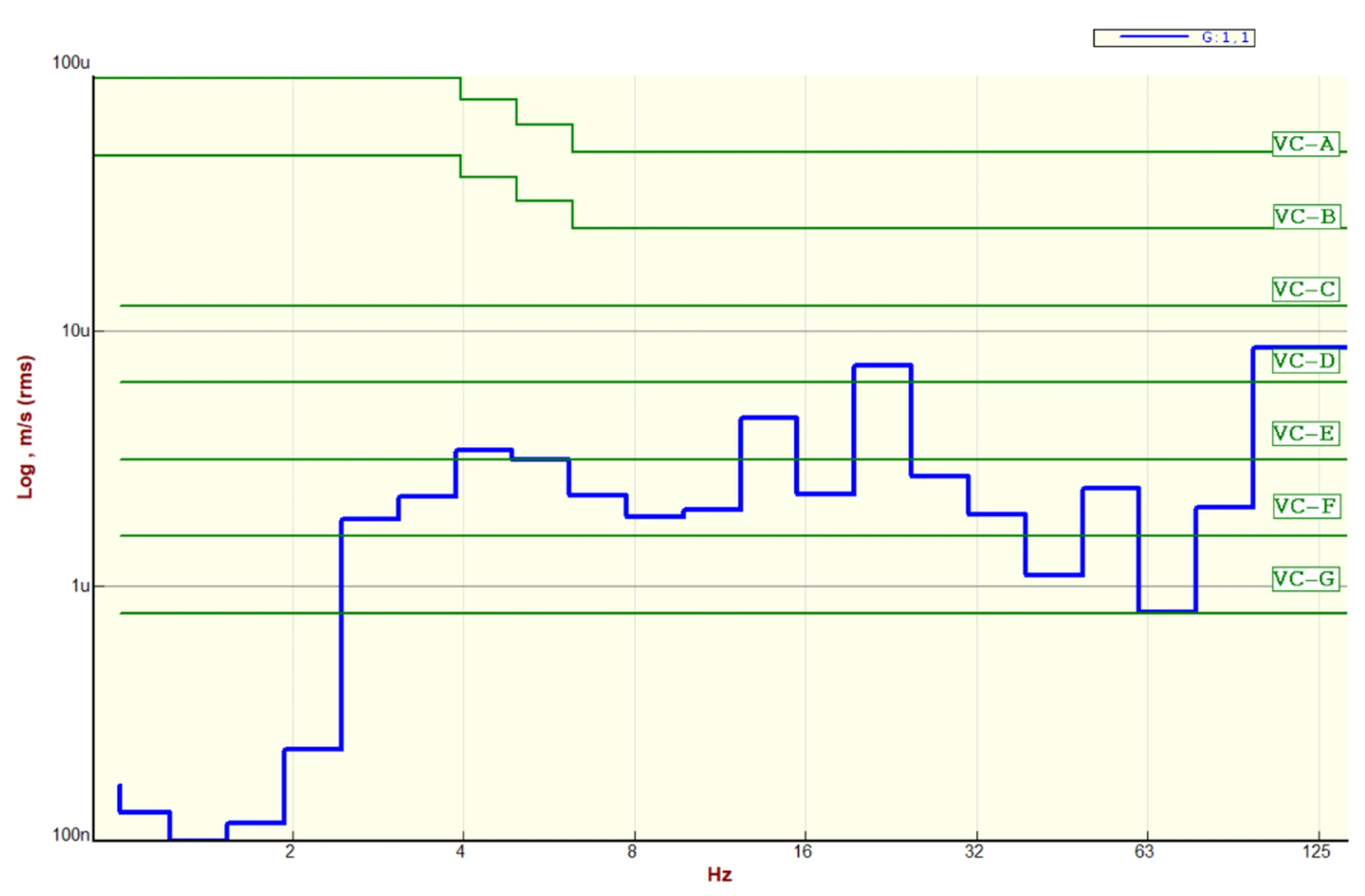

Y-axis (Front to Back) Floor VC Curve

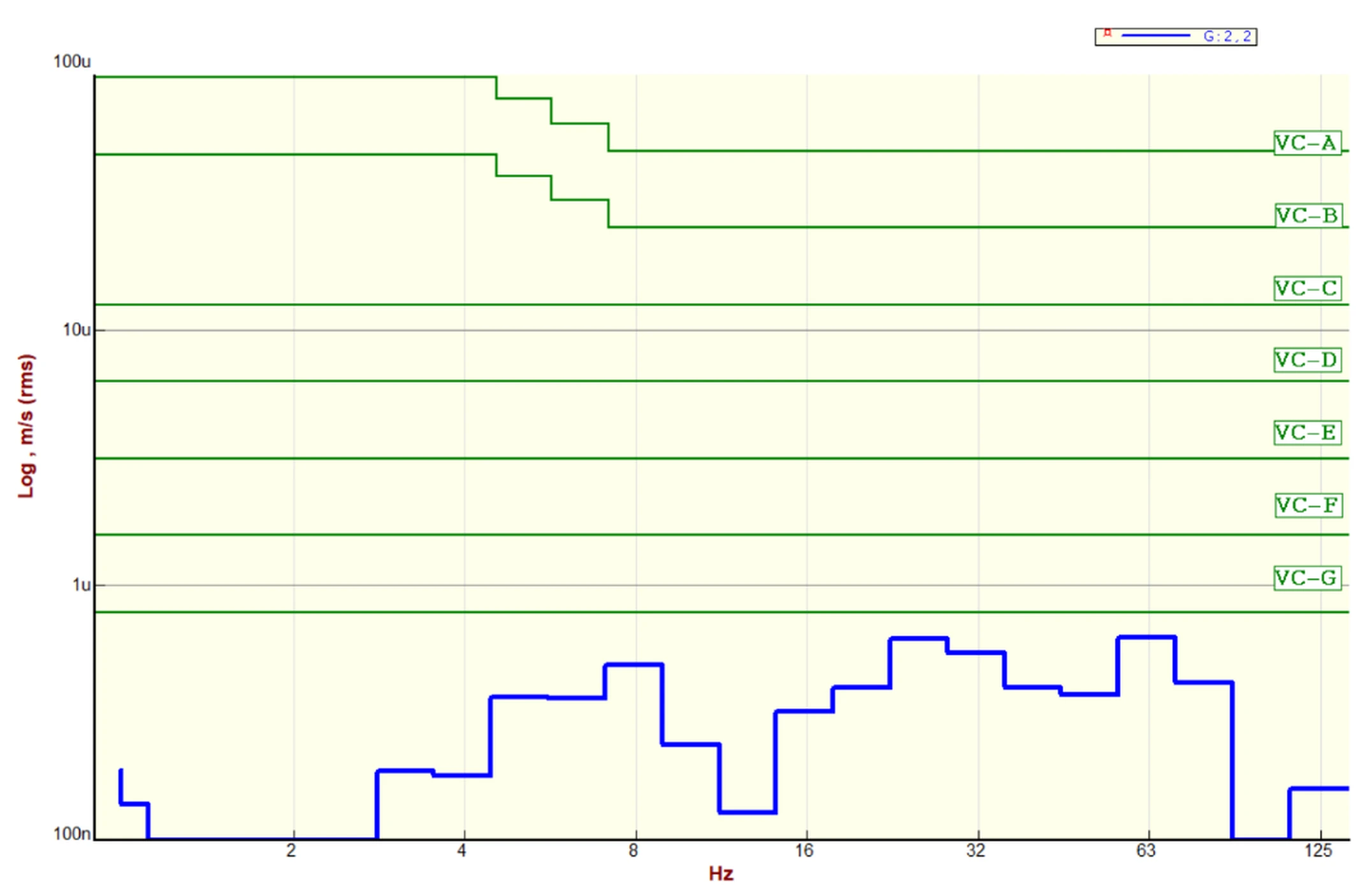

Y-axis (Front to Back) Active VC Curve

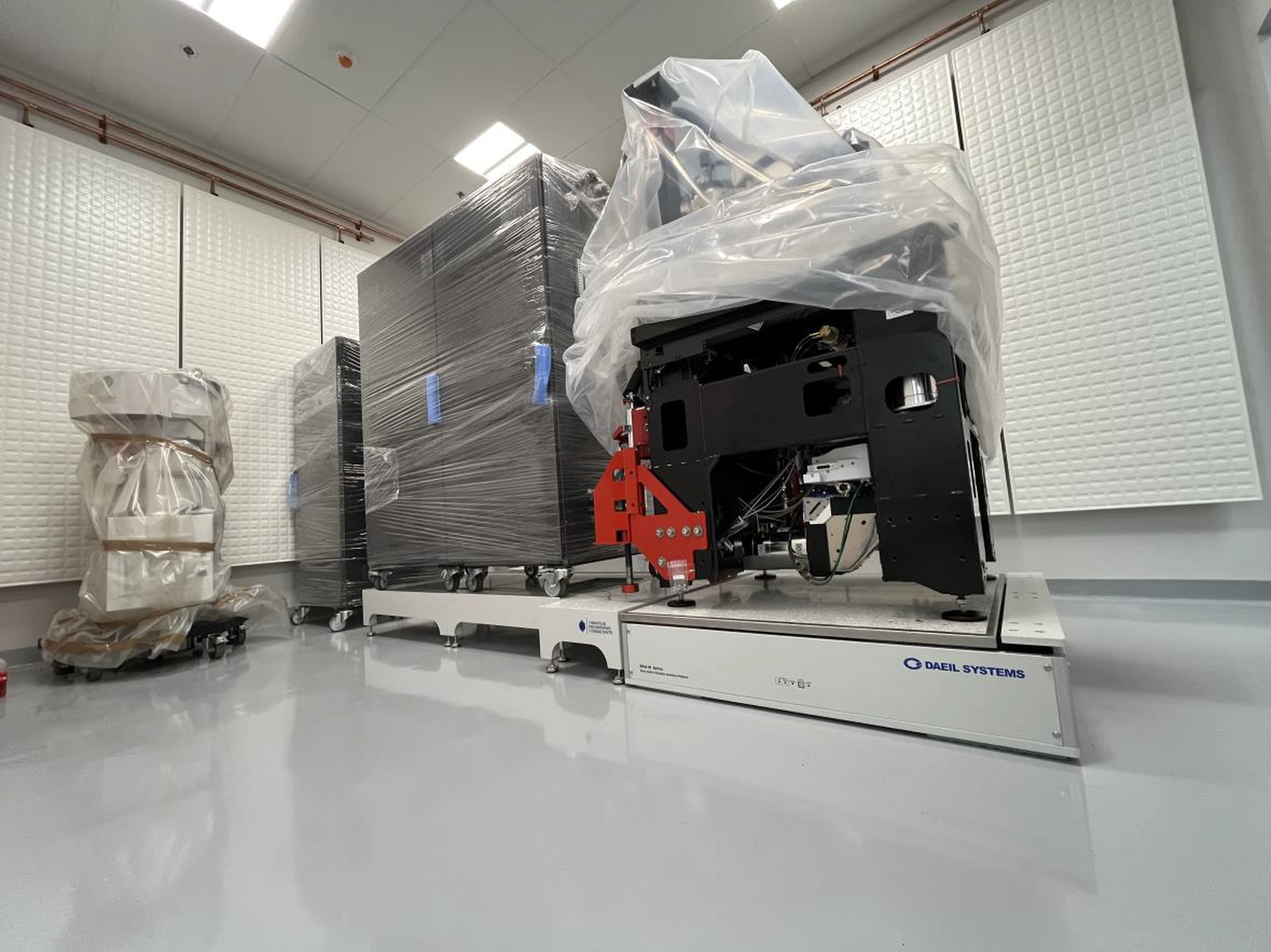

8.3 Installed equipment photo (1)

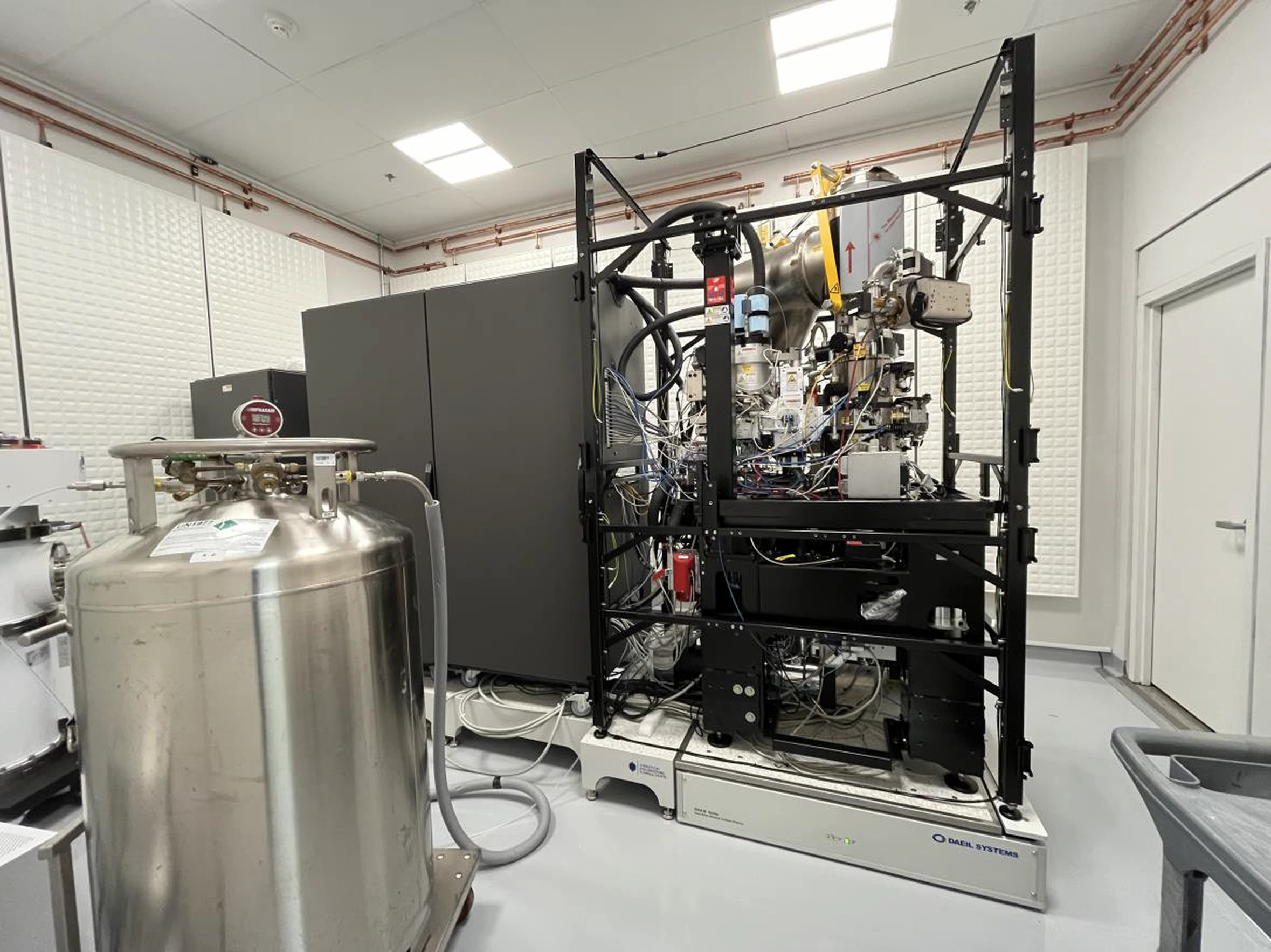

8.3 Installed equipment photo (2)
Reference
Generic Vibration Criteria
Notes:
- As measured in one-third octave bands over 8-80 Hz (VC-A/B) or 1-80 Hz (VC-C through VC-G).
- Detail size refers to width in microelectronics fabrication or particle size in medical research.
