Installation Report
DVIA-M Series
03-10-2023

Yale School of Medicine Zeiss Versa 610 DVIA-MB3000 VEC (230110R4) Installation Report — 2023.03.10

DVIA-M Series
Installation Report
Yale School of Medicine
Zeiss
Versa 610
VEC
DVIA-MB3000
230110R4

Contents

Prepared for

Yale School of Medicine

Prepared by

Engineer: Youngha Lee

Tuning date: 23.03.10

Report written date: 23.03.14

Date of business trip : 17.12.27~17.12.29

Overview

The DVIA-MB3000 active vibration isolation platform is appropriately installed and functioning as intended.

System Information

Model: DVIA-MB3000 -1370x2180

Serial Number: 230110R4

Engineer

Youngha Lee from DAEIL SYSTEMS

Tuning Date

May 10, 2023

Location

-Child Study Center

-350 George St, New Haven, CT 06511, United States

Equipment

Zeiss Versa 610

Data and Image

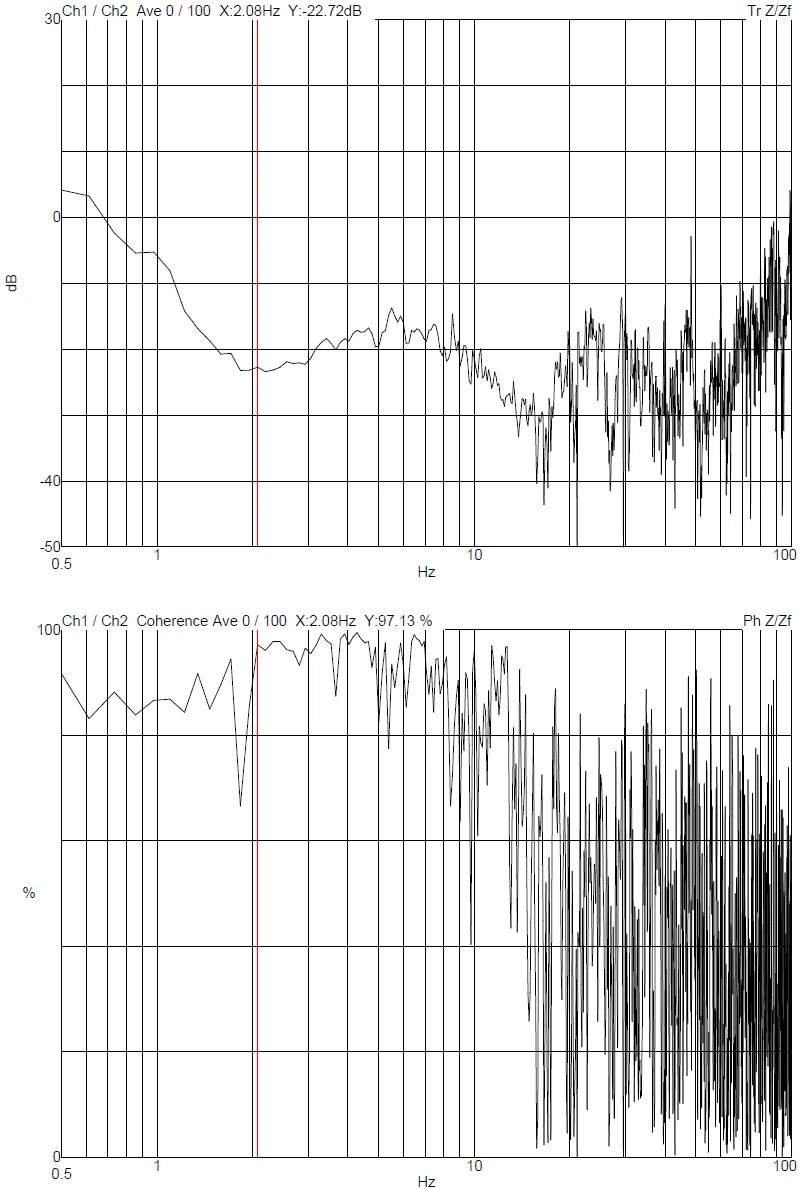

7.1 UI Program Transmissibility

Z axis

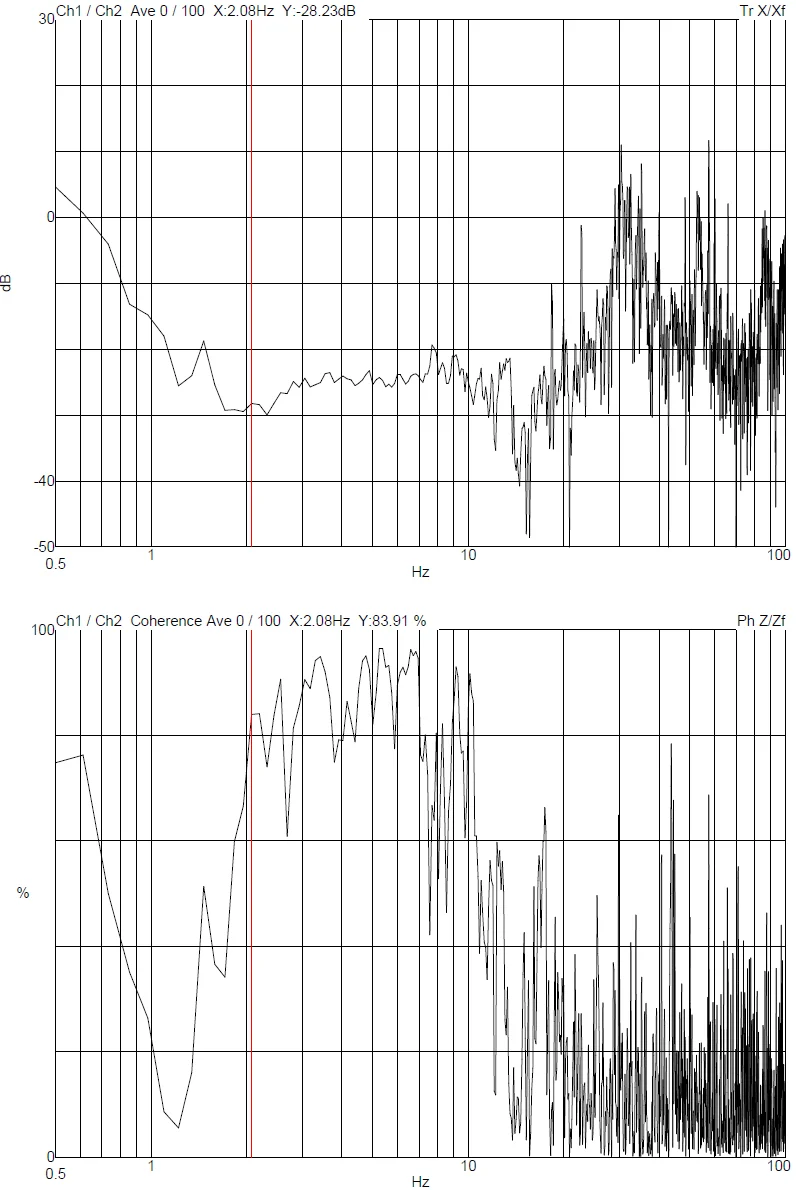

X Axis

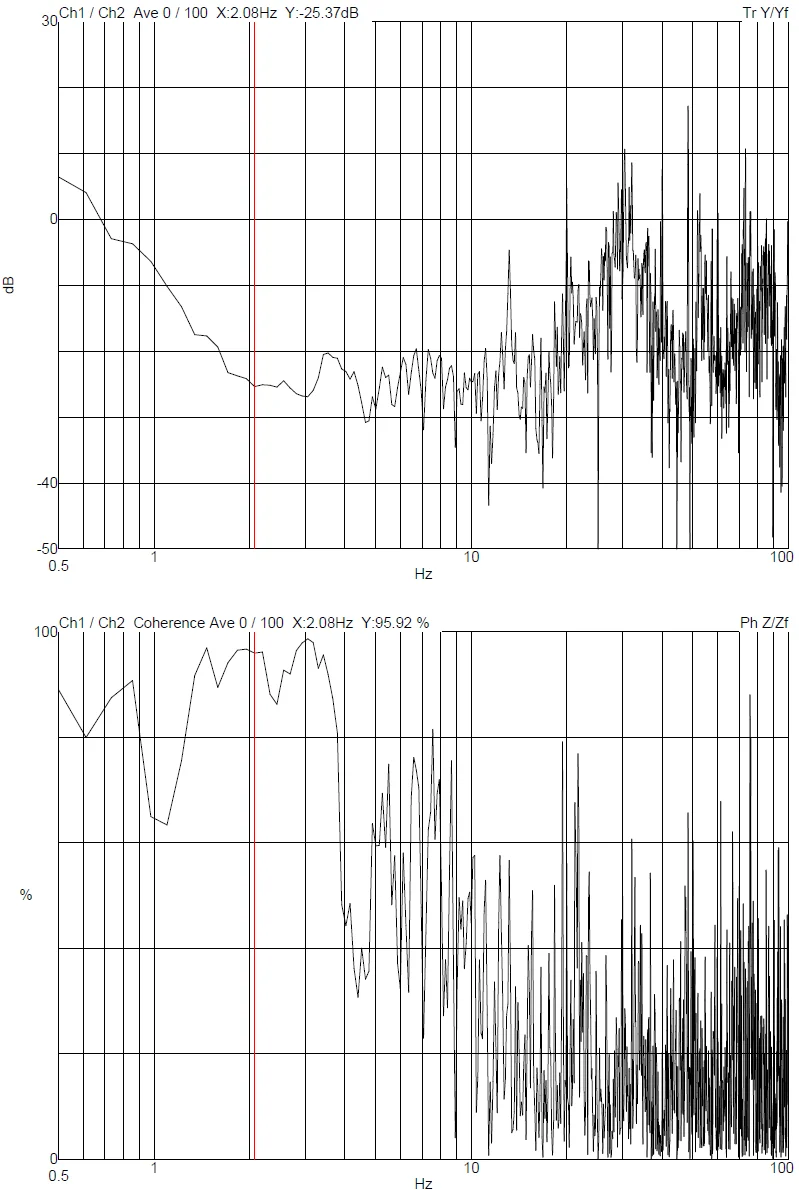

Y Axis

VEC Measurement

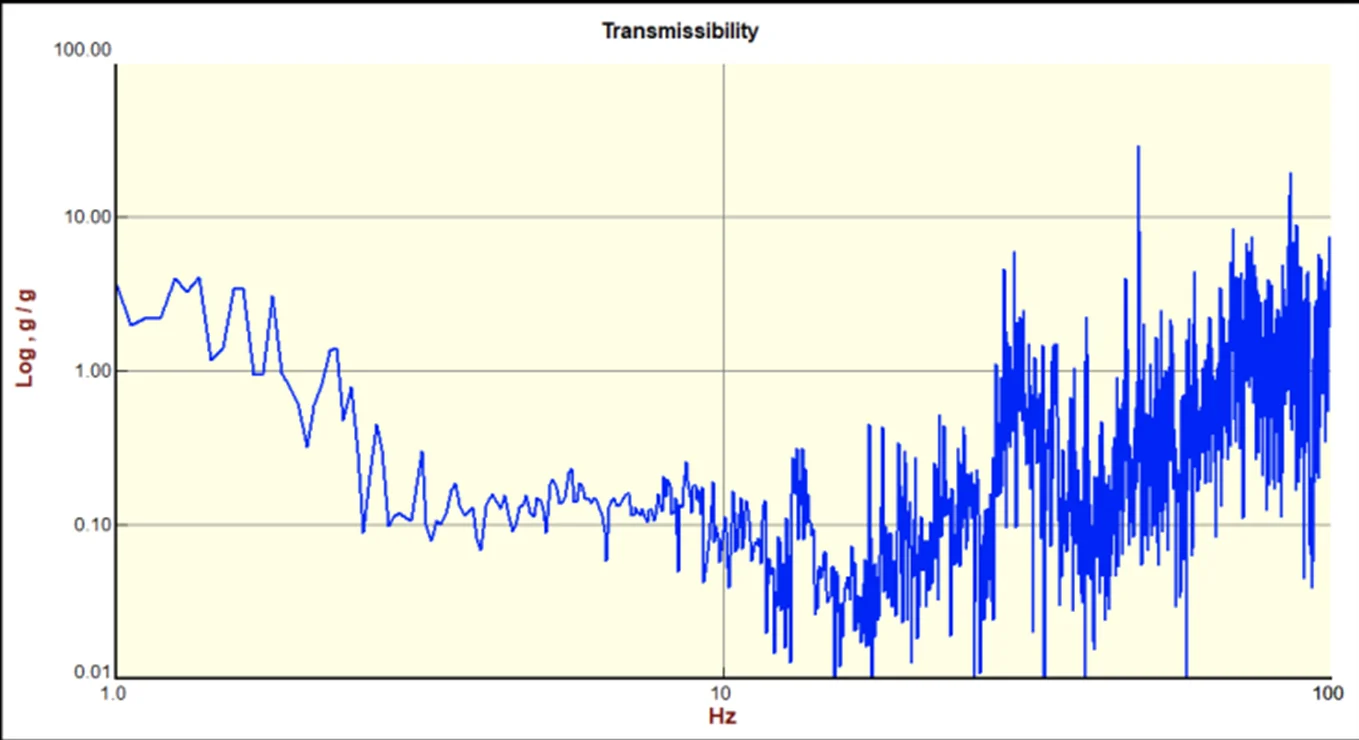

Z-axis (Vertical) Transmissibility

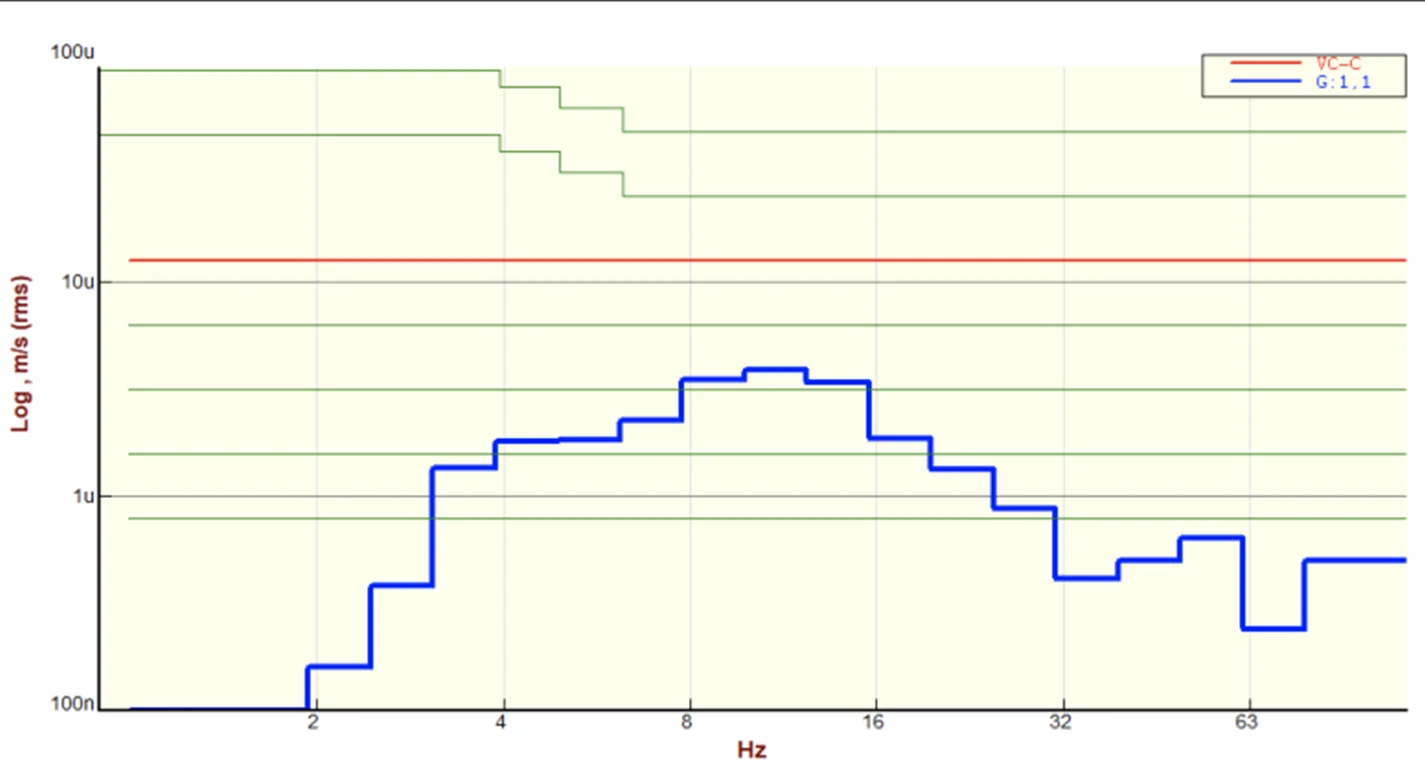

Z-axis (Vertical) Floor VC Curve

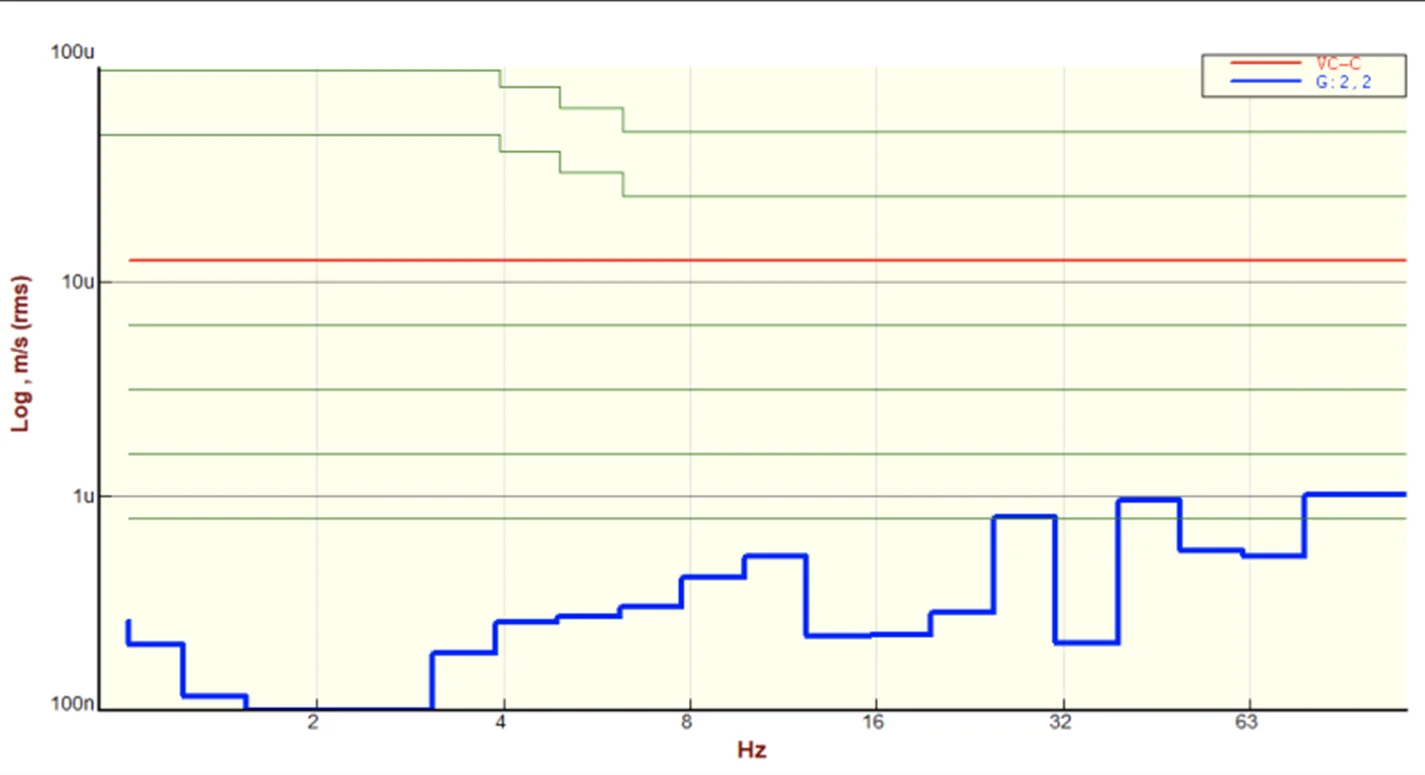

Z-axis (Vertical) Active VC Curve

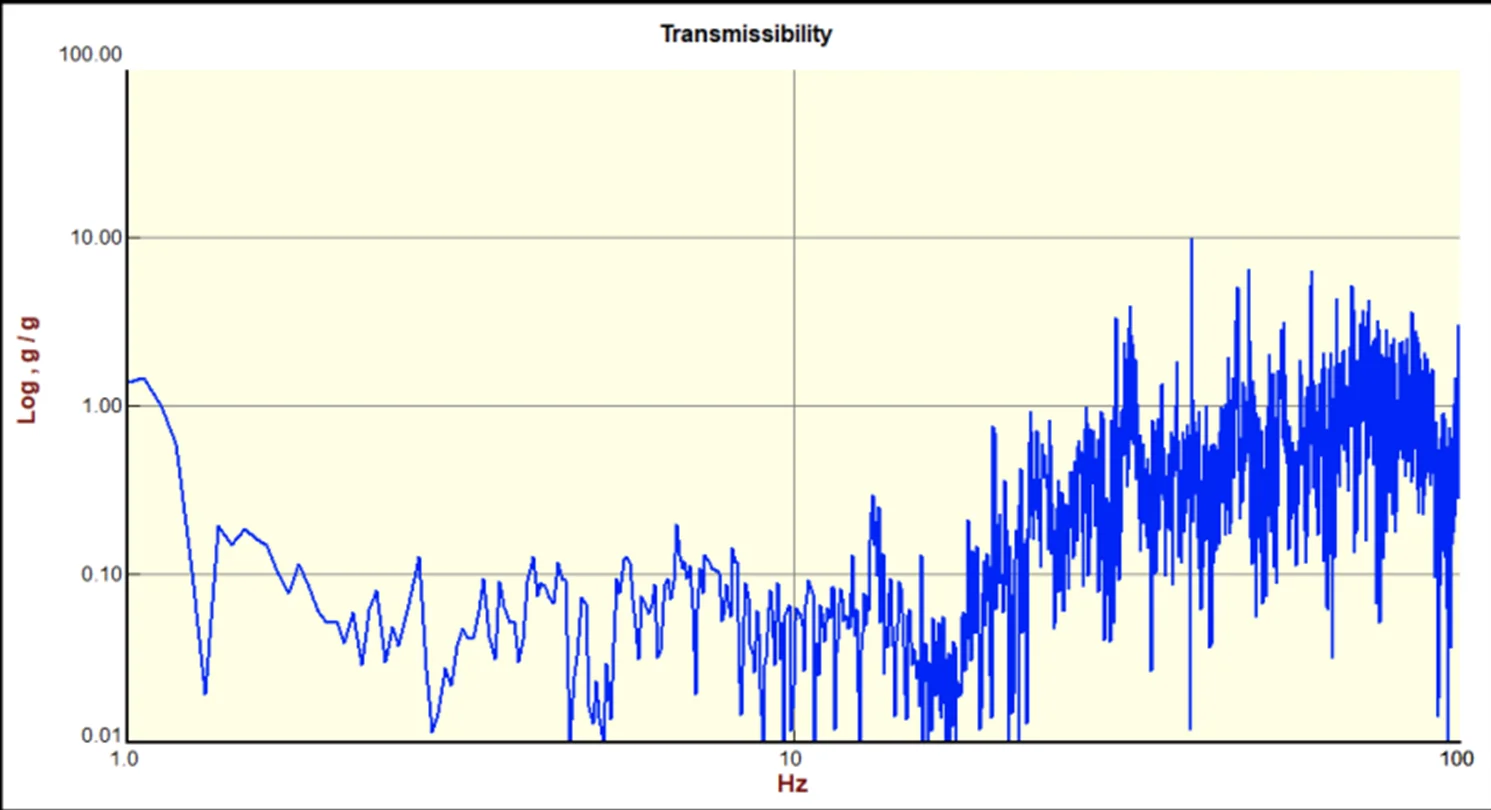

X-axis (Left to Right) Transmissibility

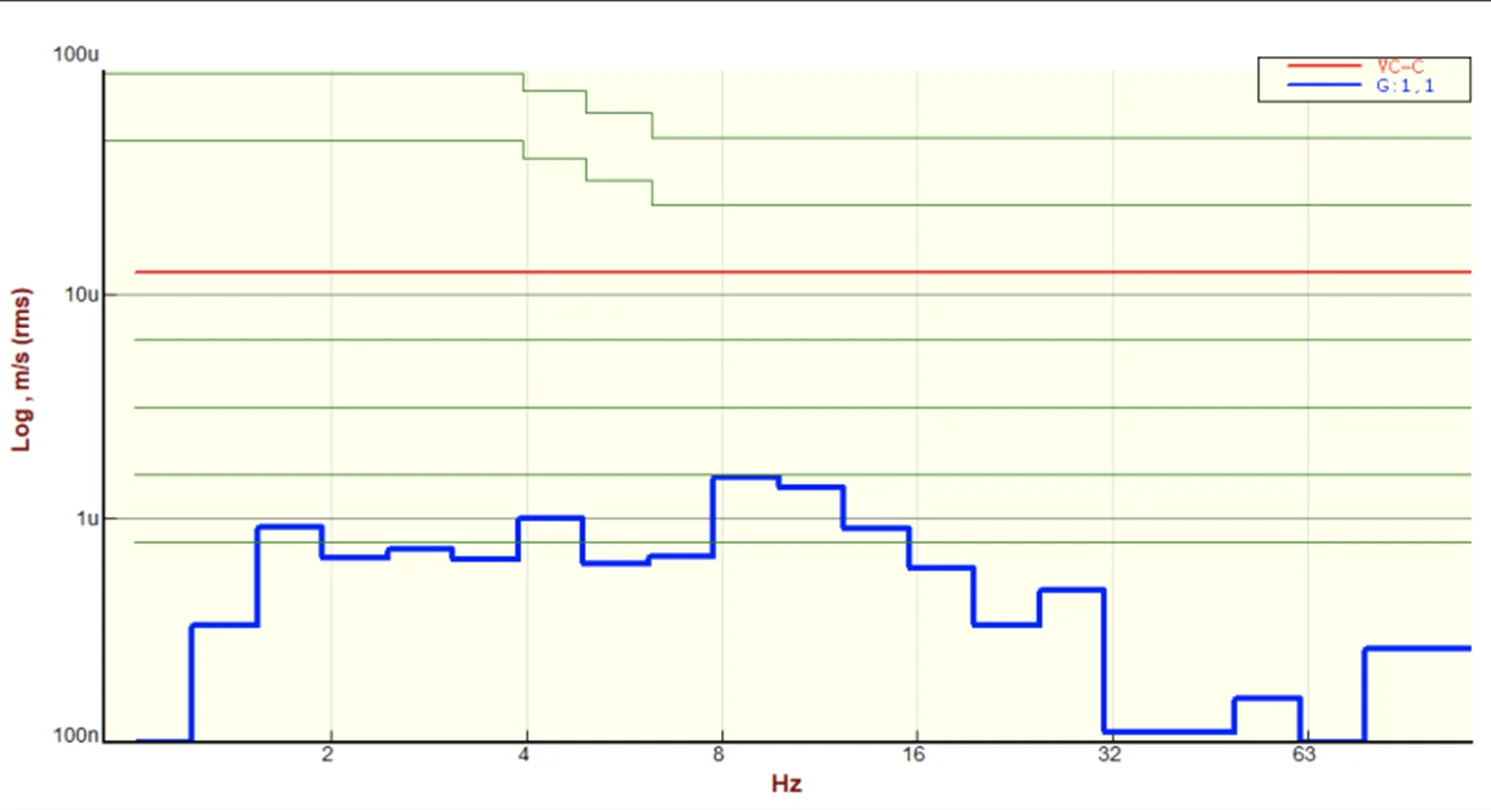

X-axis (Left to Right) Floor VC Curve

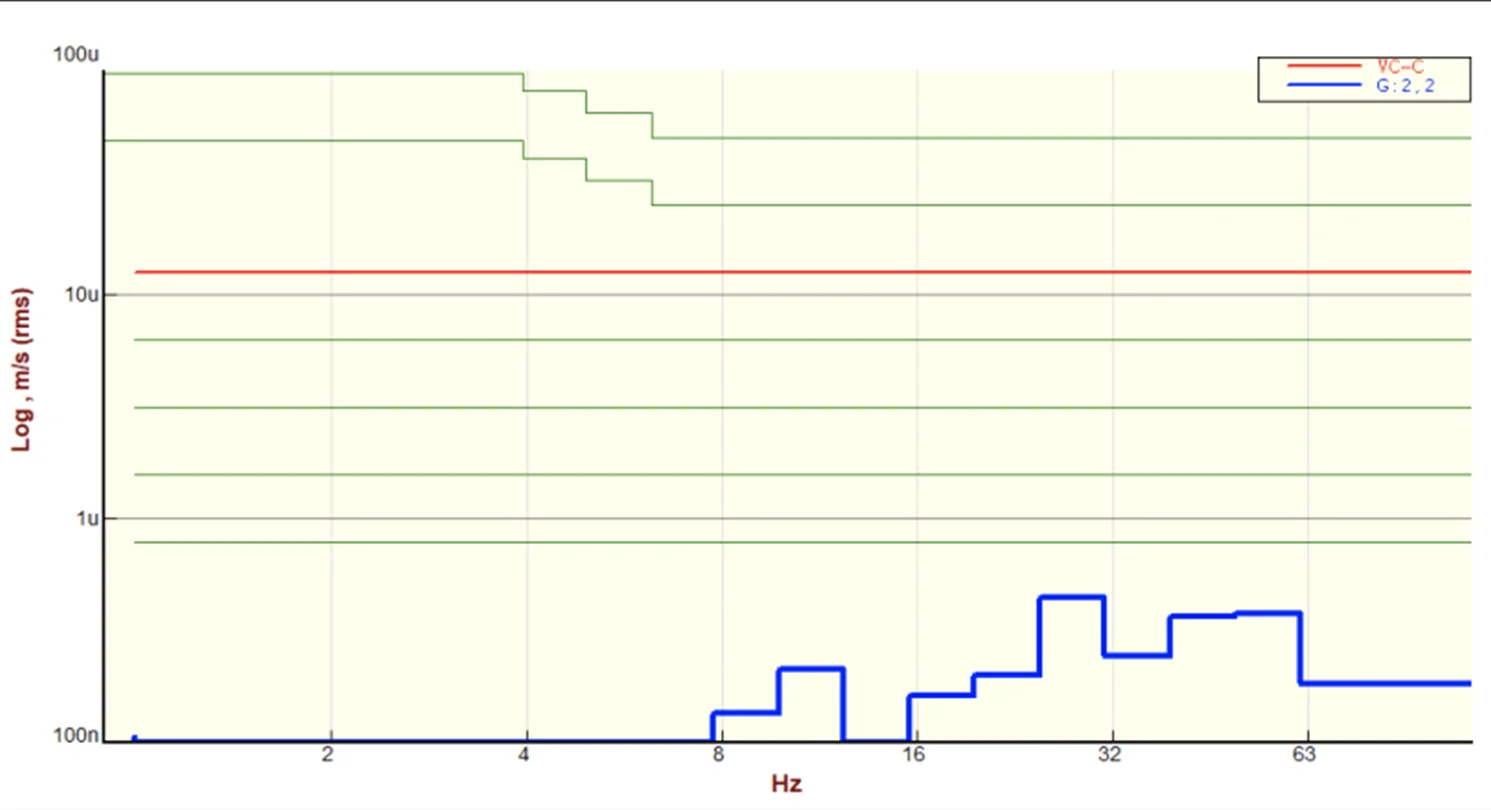

X-axis (Left to Right) Active VC Curve

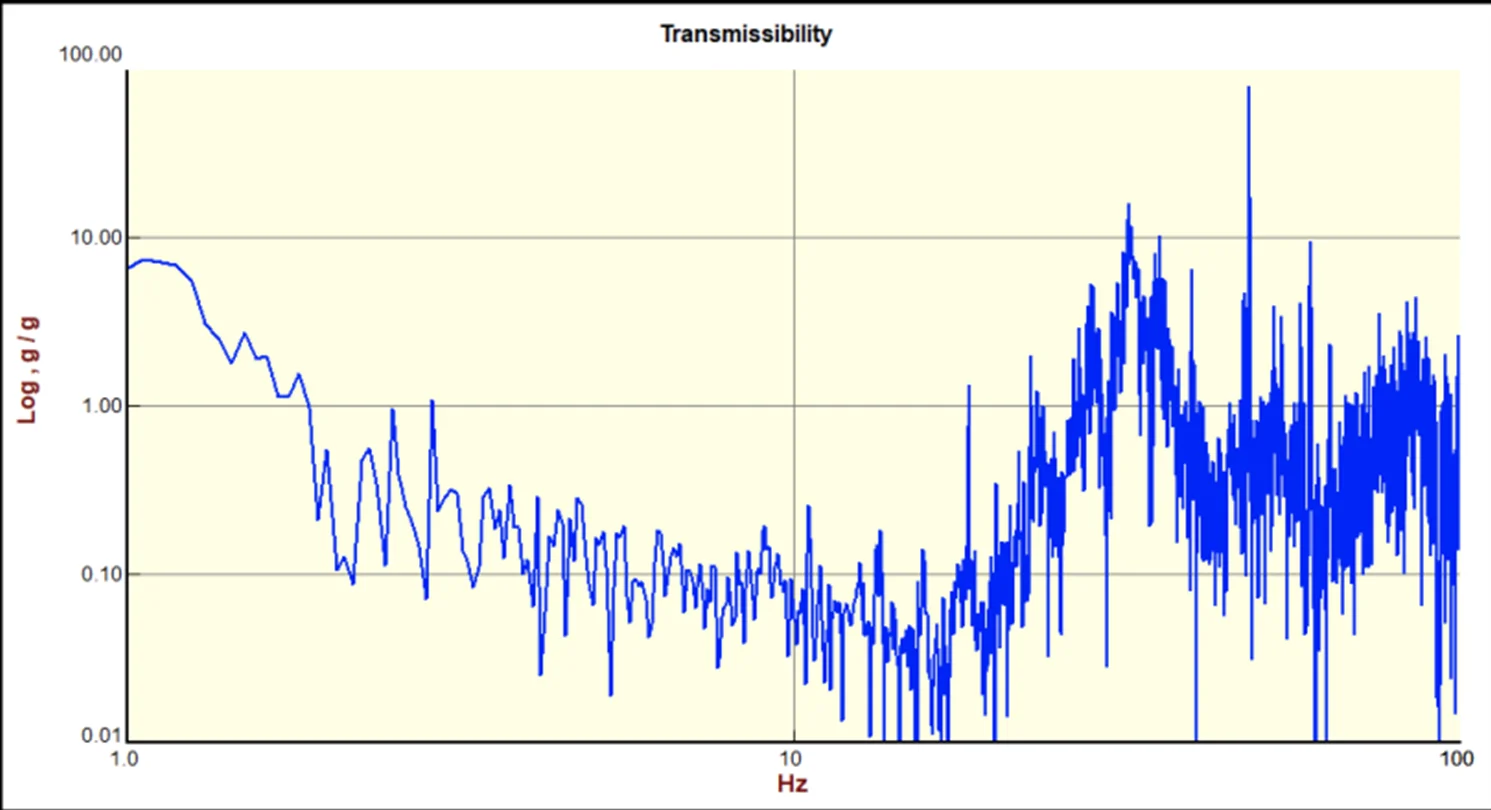

Y-axis (Front to Back) Transmissibility

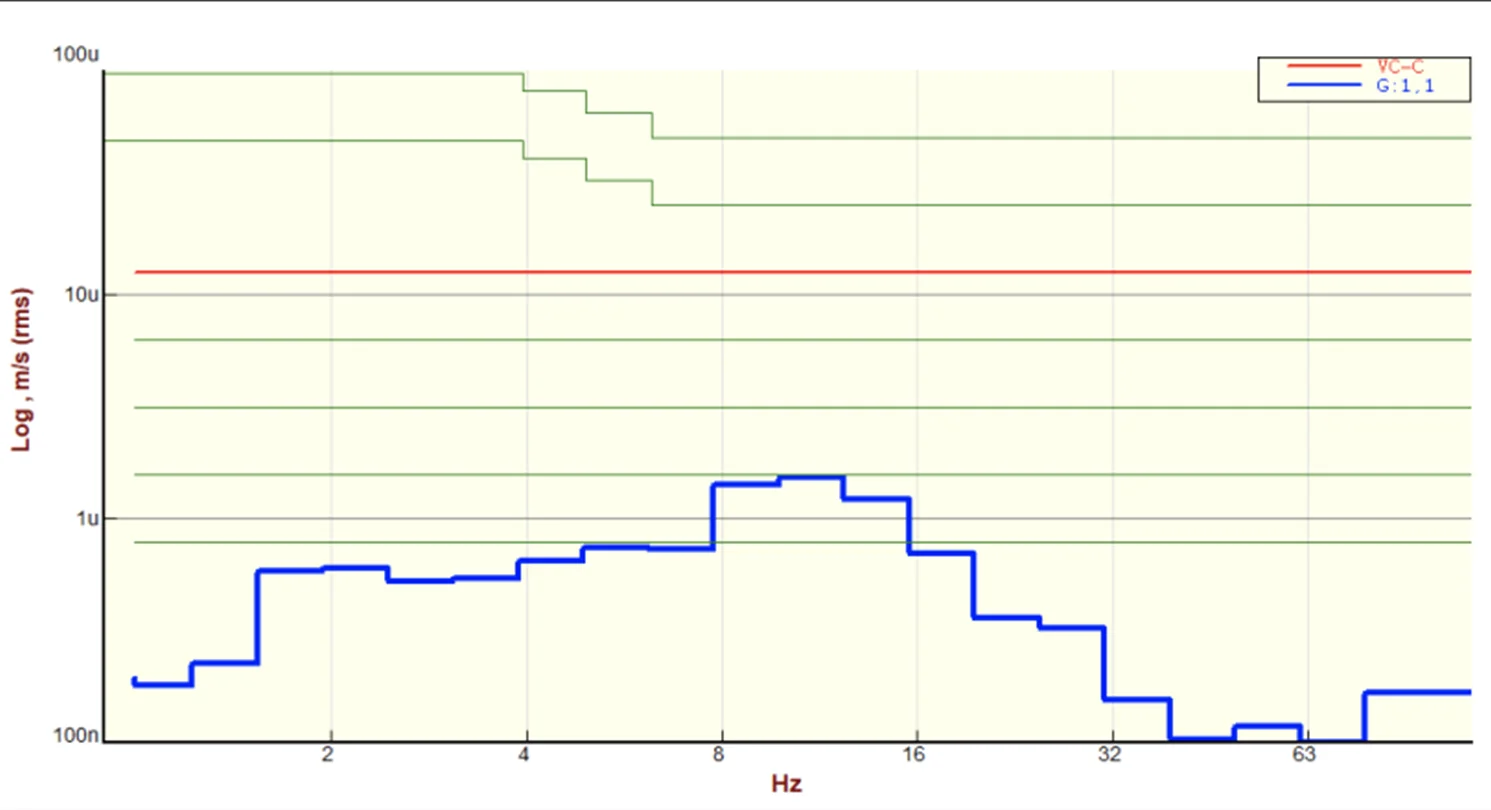

Y-axis (Front to Back) Floor VC Curve

Y-axis (Front to Back) Active VC Curve

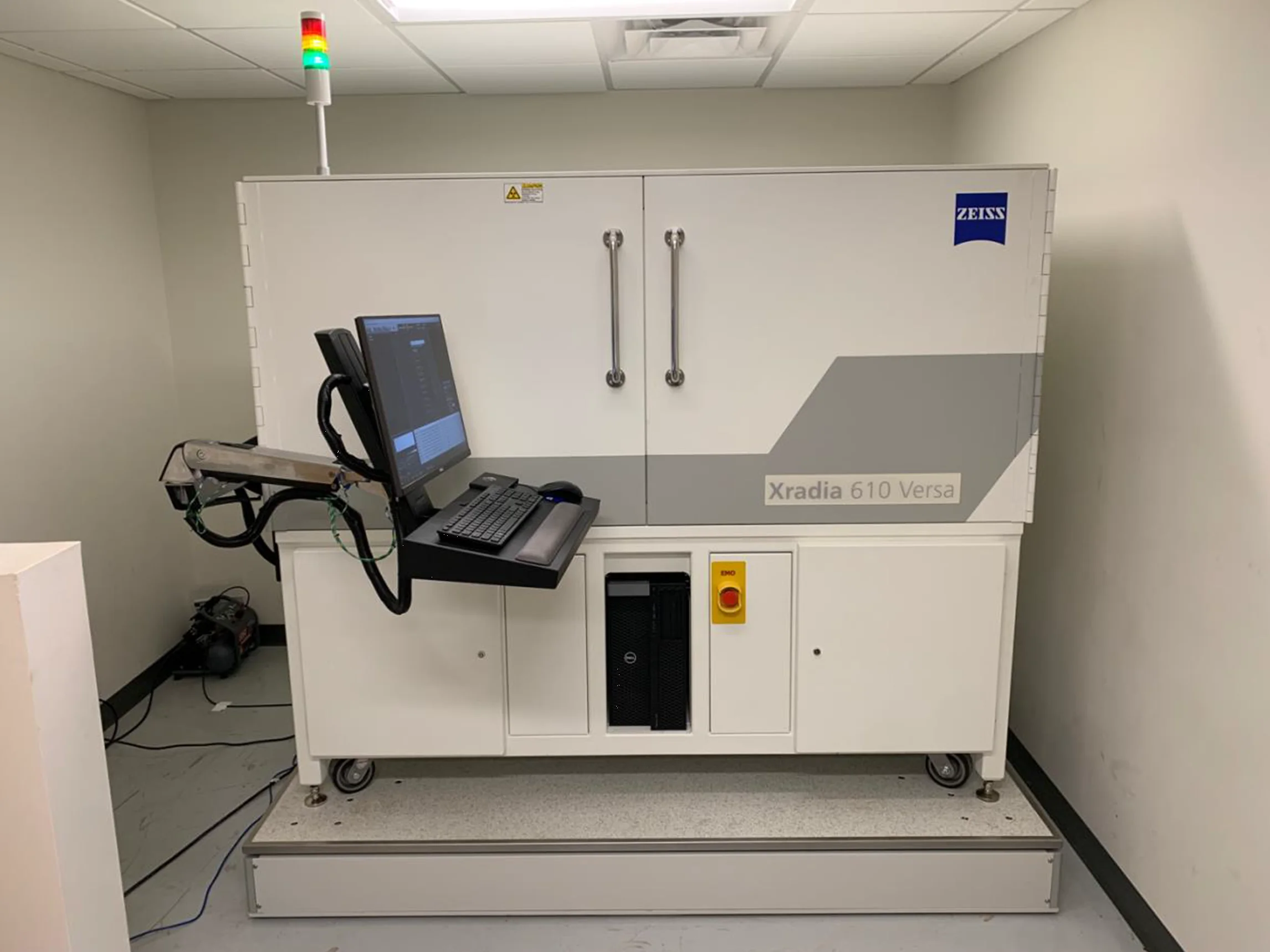

Equipment Picture

Reference

Generic Vibration Criteria

Criterion CurveDescriptionAmplitude
μm/s (µin/s)		Detail Size
μm
Workshop (ISO)Distinctly perceptible vibration. Appropriate to workshops and non-sensitive areas.800 (32,000)N/A
Office (ISO)Perceptible vibration. Appropriate to offices and non-sensitive areas.400 (16,000)N/A
Residential Area (ISO)Barely perceptible vibration. Appropriate to sleep areas in most instances.200 (8,000)75
Operating Theatre (ISO)Vibration not perceptible. Suitable for surgical suites, microscopes to 100x.100 (4,000)25
VC-AAdequate for optical microscopes to 400x, microbalances, optical balances.50 (2,000)8
VC-BAppropriate for inspection and lithography equipment to 3μm line widths.25 (1,000)3
VC-CAppropriate for optical microscopes to 1000x, lithography equipment to 1μm.12.5 (500)1 - 3
VC-DSuitable for demanding equipment including electron microscopes (SEMs/TEMs).6.25 (250)0.1 - 0.3
VC-EFor the most demanding systems including E-Beam lithography at nanometer scales.3.12 (125)< 0.1
VC-FFor extremely quiet research spaces. Not recommended as design criterion.1.56 (62.5)N/A
VC-GFor extremely quiet research spaces. Not recommended as design criterion.0.78 (31.25)N/A

Notes:

- As measured in one-third octave bands over 8-80 Hz (VC-A/B) or 1-80 Hz (VC-C through VC-G).

- Detail size refers to width in microelectronics fabrication or particle size in medical research.

Share this Case Study

Case Study Information

Category
Installation Report
SeriesDVIA-M Series
Date03-10-2023
Tags
DVIA-M Series
Installation Report
Yale School of Medicine
Zeiss
Versa 610
VEC
DVIA-MB3000
230110R4

Related Case Studies

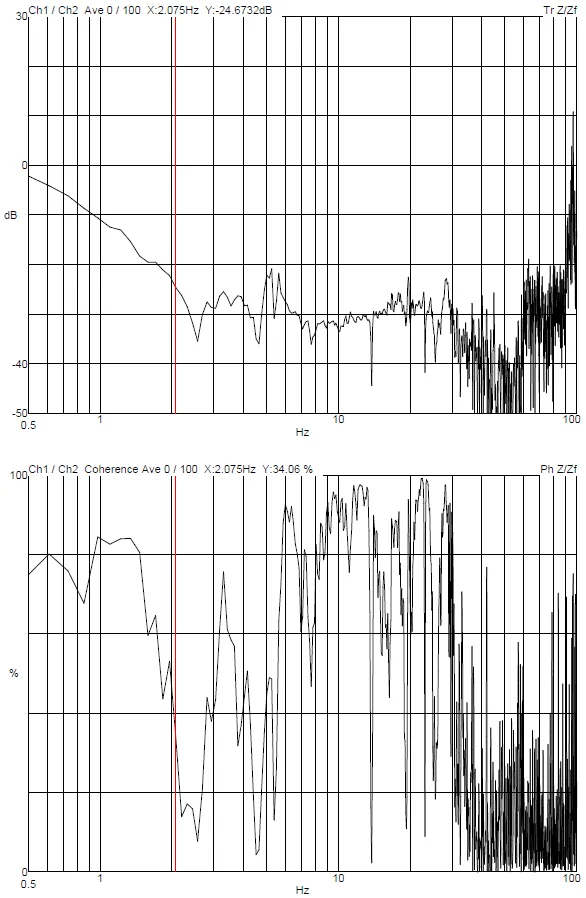

Ohio State University Nanotech West Lab Raith EPBG 5150 DVIA-MB3000 VEC (221130R3) Installation Report — 2023.11.30
DVIA-M Series

Ohio State University Nanotech West Lab Raith EPBG 5150 DVIA-MB3000 VEC (221130R3) Installation Report — 2023.11.30

11-30-2023Read more
University of North Dakota Thermo Fisher Talos F200X DVIA-MB3000 VEC (221104R3) Installation Report — 2023.08.25
DVIA-M Series

University of North Dakota Thermo Fisher Talos F200X DVIA-MB3000 VEC (221104R3) Installation Report — 2023.08.25

08-25-2023Read more

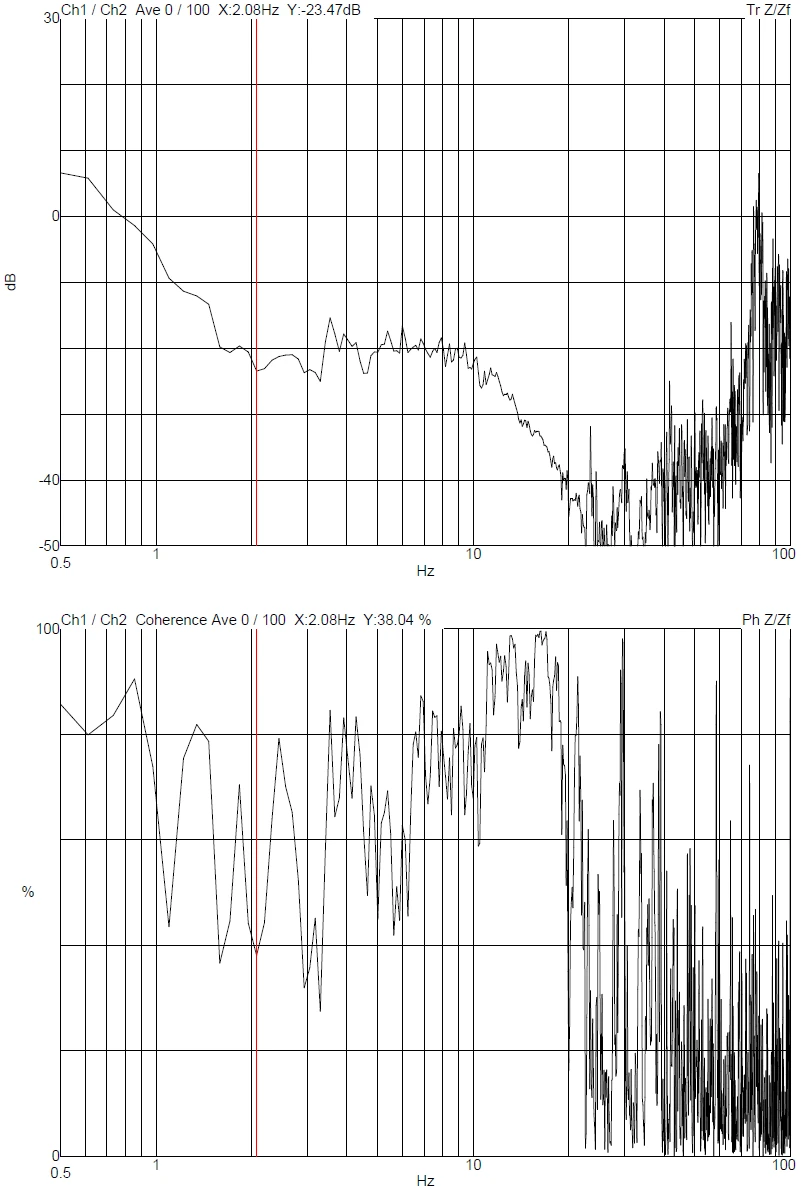

Bauman Moscow State Technical University Zeiss Orion DVIA-MB3000 (220825R6-4) Installation Report
