Installation Report
DVIA-M Series
11-28-2023
Hitachi FE-SEM SU8600 DVIA-M1000 Internal Program Performance Report — Toyota, Shanghai (2023)
DVIA-M Series
Installation Report
DVIA-M1000
Toyota
Shanghai
Hitachi
FE-SEM
SU8600
Contents
(M1000_ 221202R6 Set up)
| Target equipment | HITACHI FE-SEM SU8600 |
|---|---|
| Place of installation | Shanghai |
| Remark | Good Performance |
| END USER | Toyota |
Operator: Lee, Youngha
Date of setup: 23.11.13
Date of reporting: 23.11.28
Date of business trip : 17.12.27~17.12.29
Overview
The DVIA-M1000 active vibration isolation platform is appropriately installed and functioning as intended.
Measurement date: 2023.11.13 (Monday)
Operator: DAEIL SYSTEMS Youngha Lee
Place of measurement: Shanghai
Equipment Model: HITACHI FE-SEM SU8600
5. M1000 internal program performance measurement result

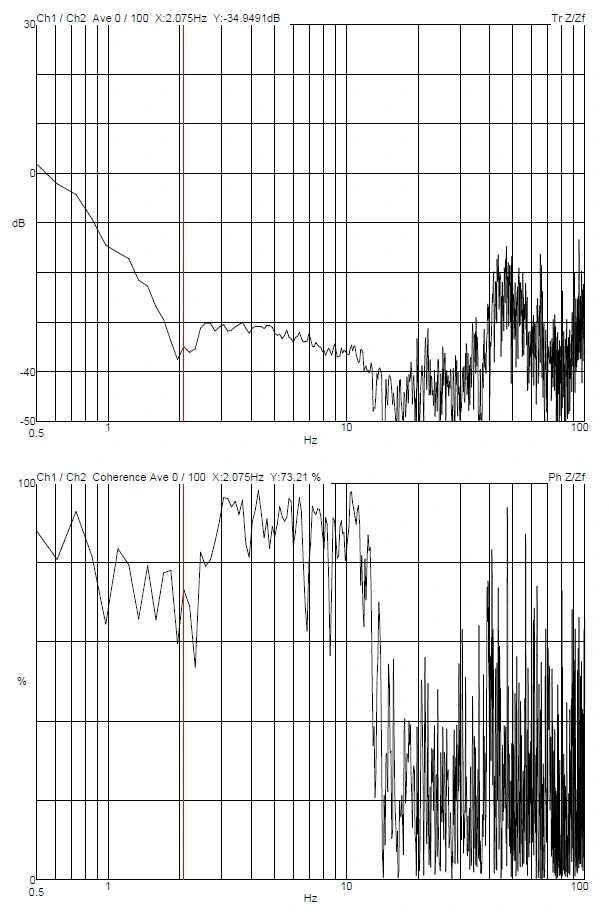

Z axis

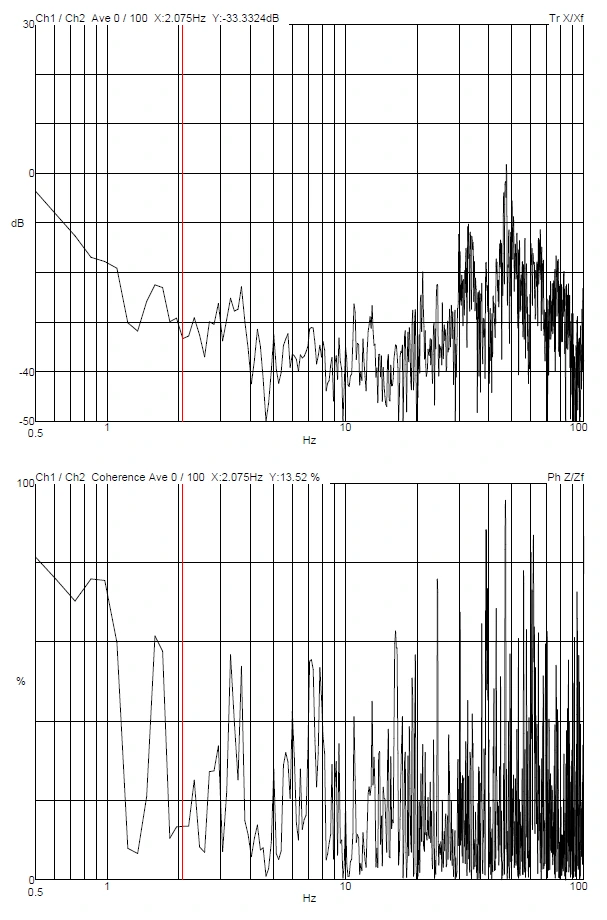

X axis

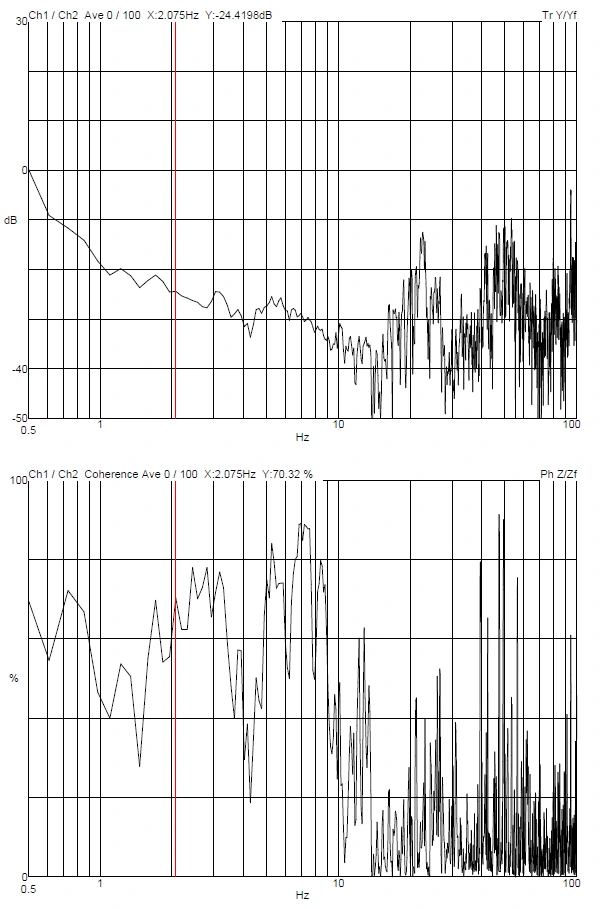

Y axis
