Installation Report
DVIA-P Series
02-08-2023
Vital Optics Technology Raith Voyager EBL DVIA-P2200 Installation Report
DVIA-P Series
Installation Report
Vital Optics Technology
Raith
Voyager EBL
221118R4
Contents
Overview
The DVIA-P2200 active vibration isolation platform is appropriately installed and functioning as intended.
Measurement date: 2023.02.08 (Wedday)
Operator: DAEIL SYSTEMS, Hosang Yu
Place of measurement: ANHUI
Equipment Model: Raith Voyager EBL

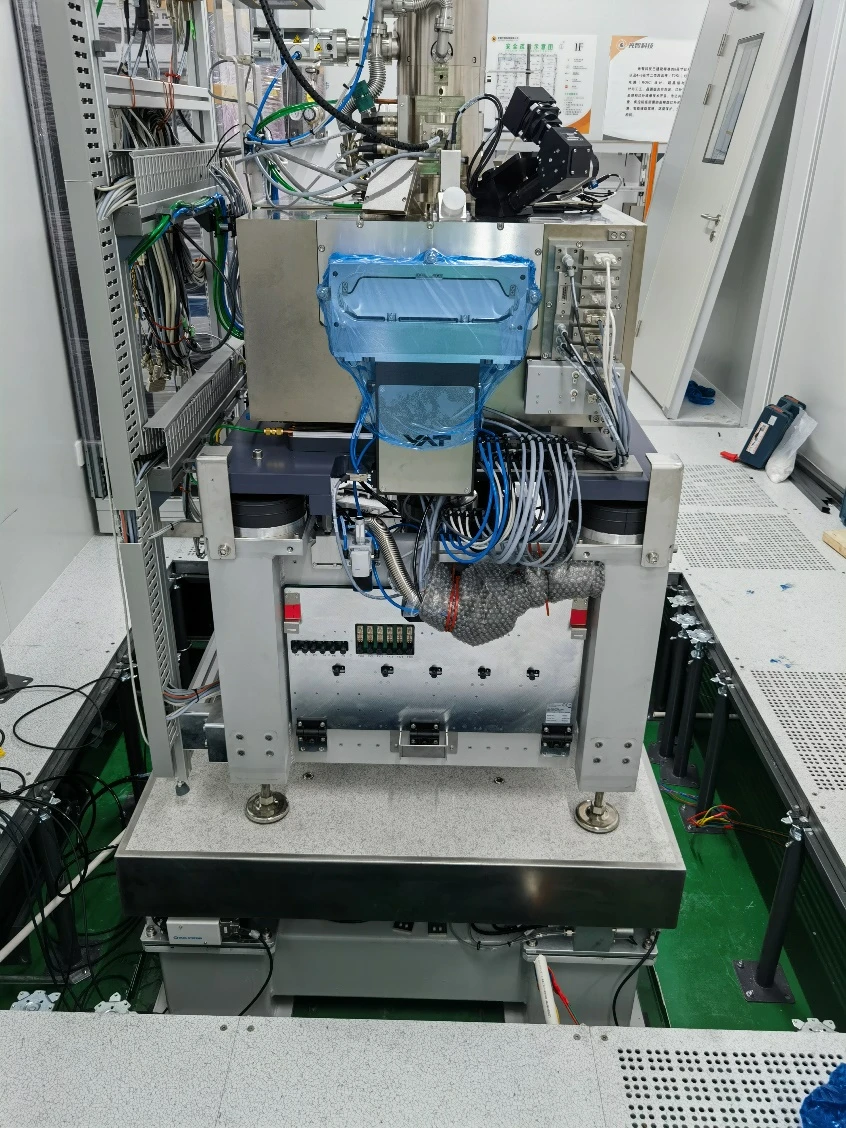

Equipment Set-up
End User
Vital Optics Technology
Target Equipment
Raith Voyager EBL
Place of Installation
ANHUI
Remark
Good Performance
Operator
Yu, Ho sang
Date of Setup
23.02.08
Date of Reporting
23.02.09
Date of Business Trip
17.12.27~17.12.29
Measurement Date
2023.02.08 (Wedday)
Summary of Measurement Results
| Test Condition | VC-Class | Z | X | Y |
|---|---|---|---|---|
| Floor | B | C | C | |
| Above Active | E | E | E |
Good omnidirectional performance.
MB1000 Internal Program Performance Measurement Result

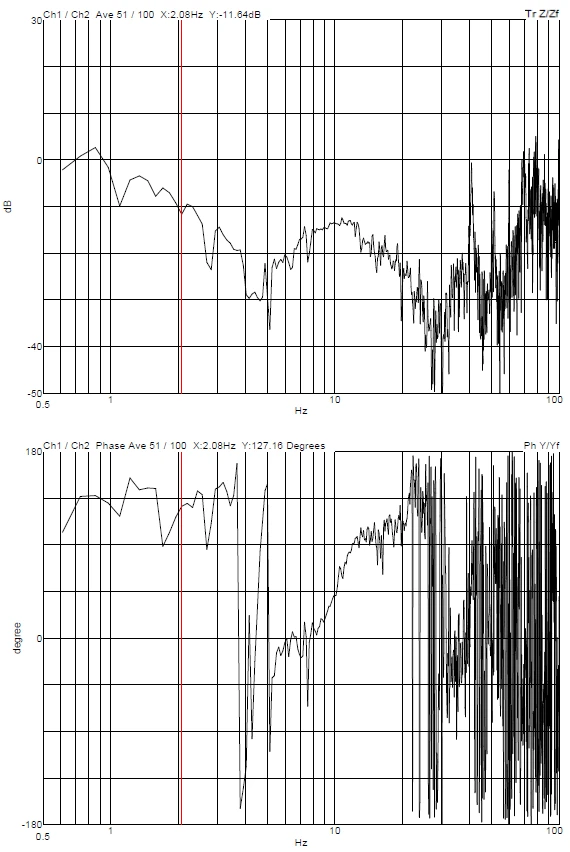

Z axis

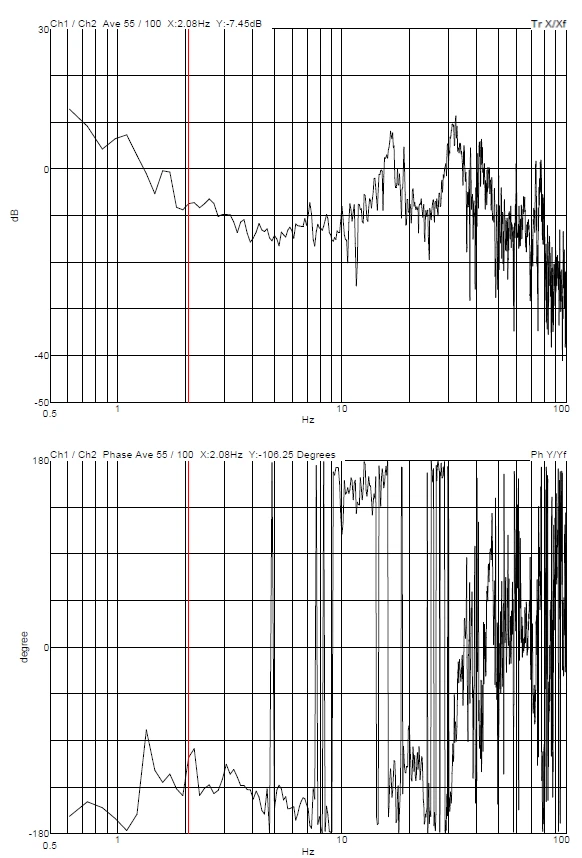

X axis

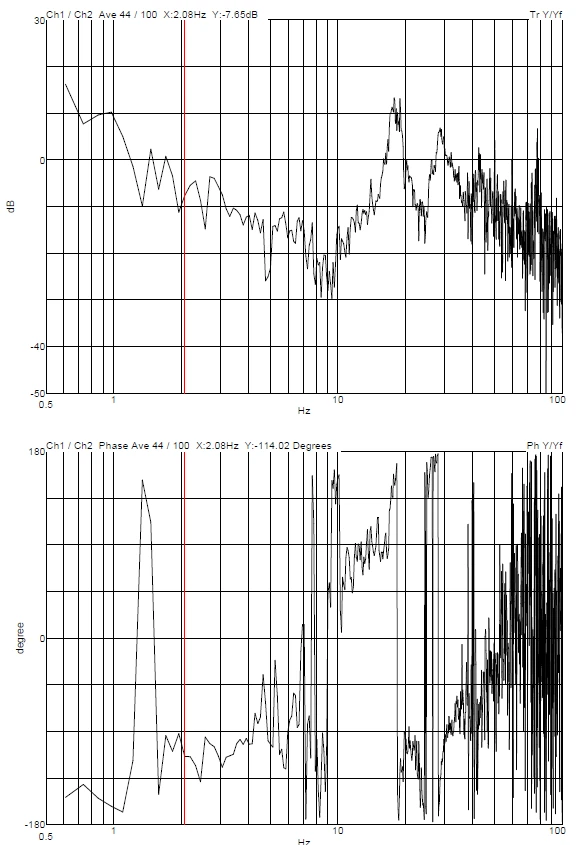

Y axis
Octave Band Result

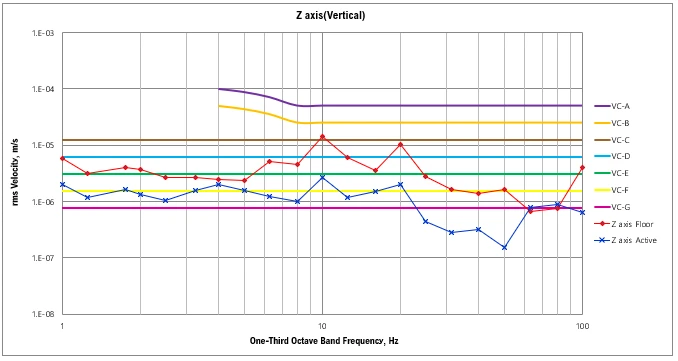

Z axis

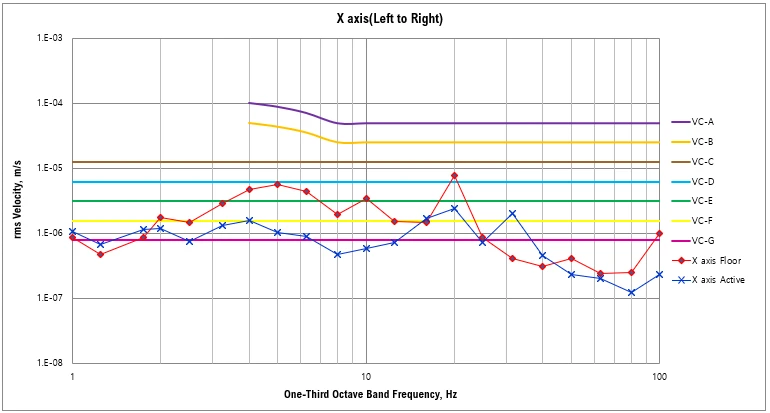

X axis

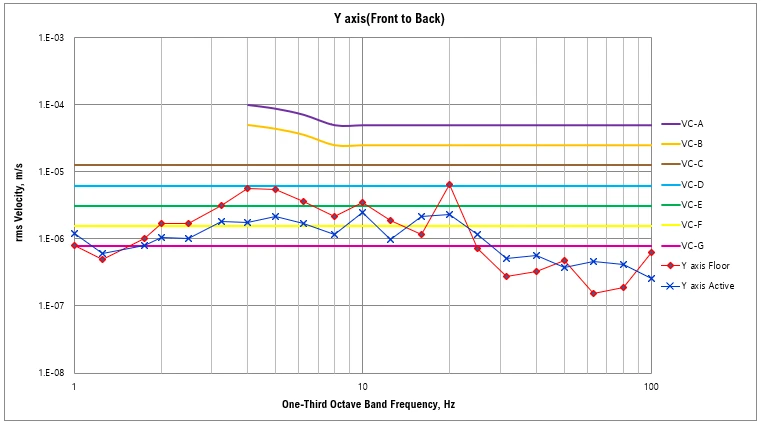

Y axis
