Installation Report
DVIA-M Series
06-24-2022
Zeiss EVO18 DVIA-M1000 (211208R4) Installation Report — Lingyuan Steel, Wuhan
DVIA-M Series
Installation Report
Lingyuan Steel
Wuhan
Zeiss
EVO18
DVIA-M1000
211208R4
Contents
Customer and setup title
Lingyuan Iron and Steel Group Co., Ltd
（凌源钢铁）
(M1000_ 211208R4 Set up)
Target equipment and site
| Target equipment | Zeiss EVO18 |
|---|---|
| Place of installation | Wuhan, China |
| Remark | Good Performance |
| END USER | Lingyuan Iron and Steel Group Co., Ltd（凌源钢铁） |
Operator and dates
Operator: Lee, Young Ha
Date of setup: 22.06.24
Date of reporting: 22.06.24
Date of business trip : 17.12.27~17.12.29
Overview
The DVIA-M1000 active vibration isolation platform is appropriately installed and functioning as intended.
Measurement date: 2022.06.24 (Friday),
Operator: DAEIL SYSTEMS, Youngha Lee
Place of measurement: Wuhan, China
Equipment Model: Zeiss EVO18
Measurement conditions and results
Summary of measurement results
Test Condition
VC-Class
| Z | X | Y | |
|---|---|---|---|
| Floor | B | B | B |
| Above Active | D | E | D |
Good omnidirectional performance.
MB1000 internal program performance measurement result

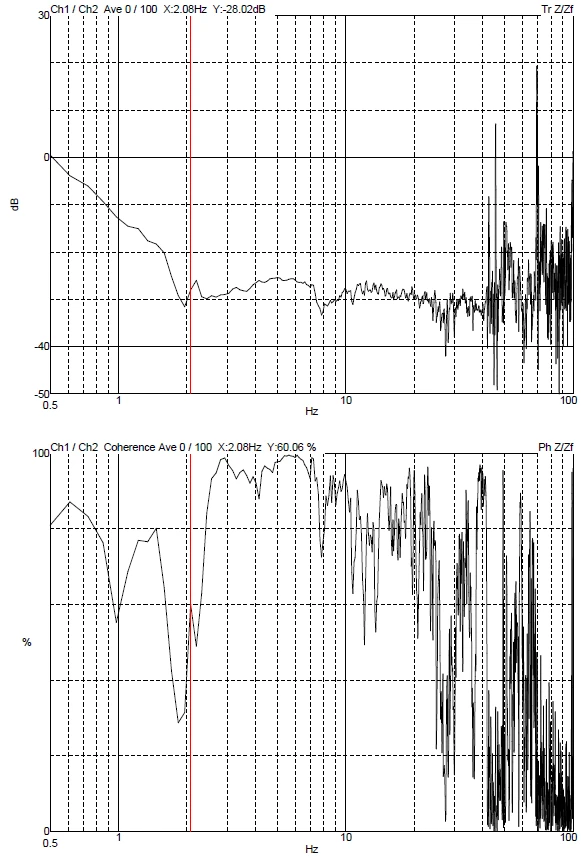

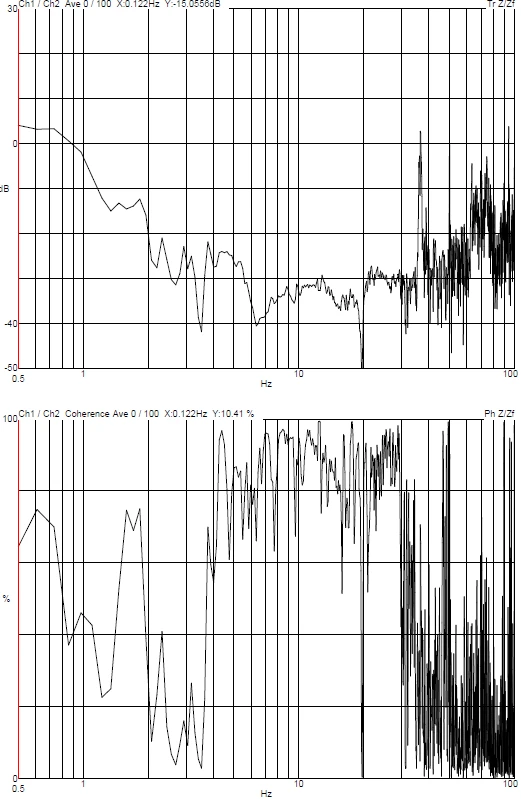

MB1000 internal program — Z axis

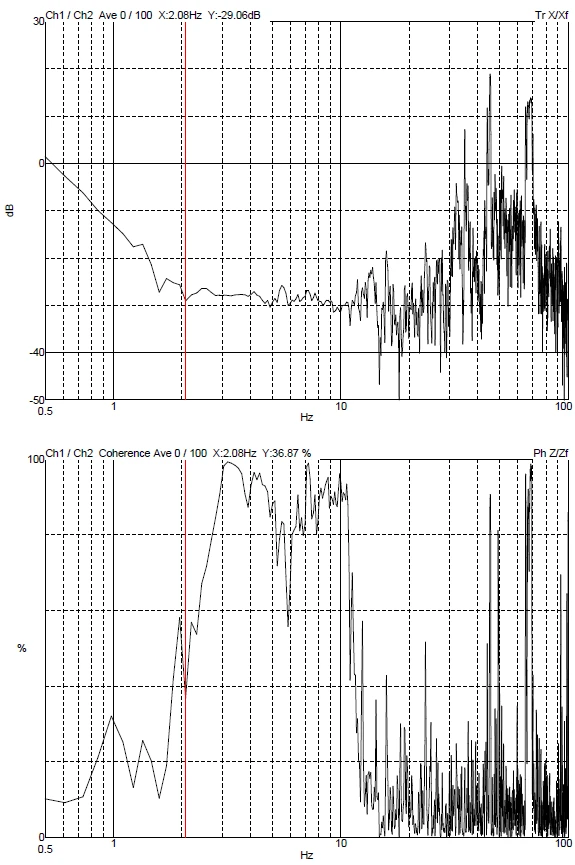

MB1000 internal program — X axis

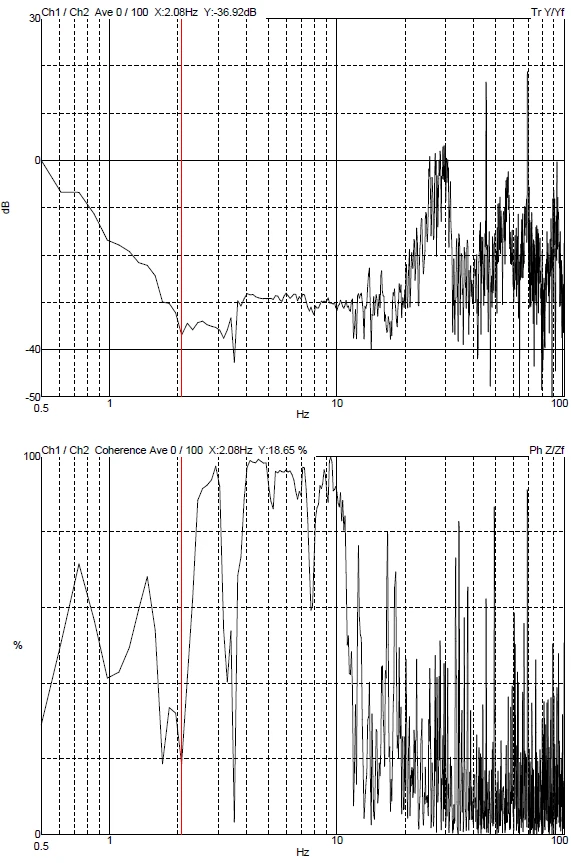

MB1000 internal program — Y axis
Octave Band Result

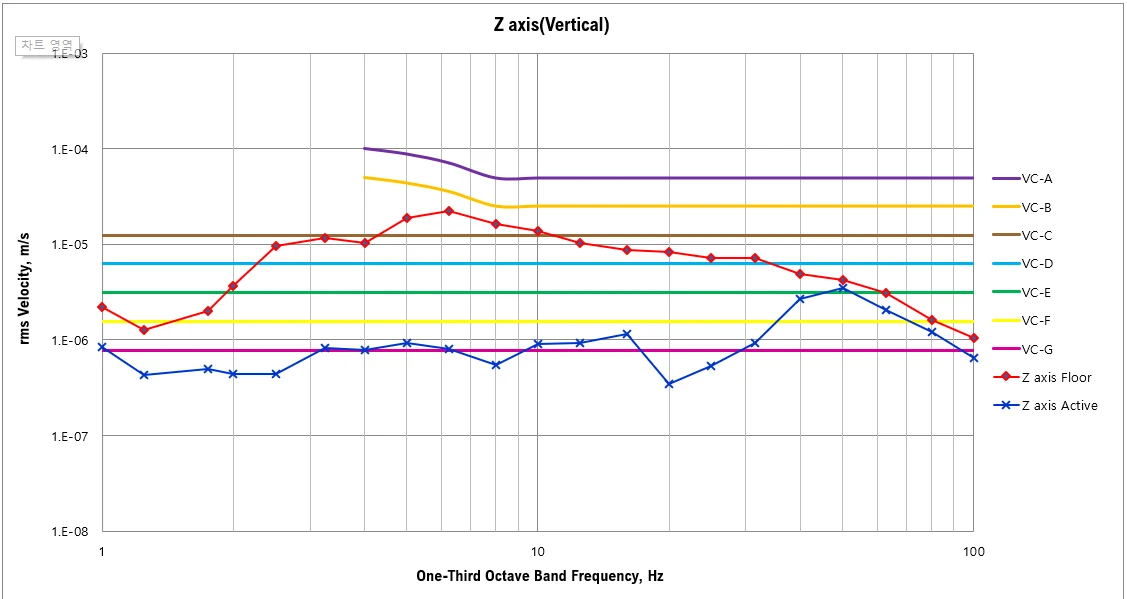

Octave Band Result — Z axis

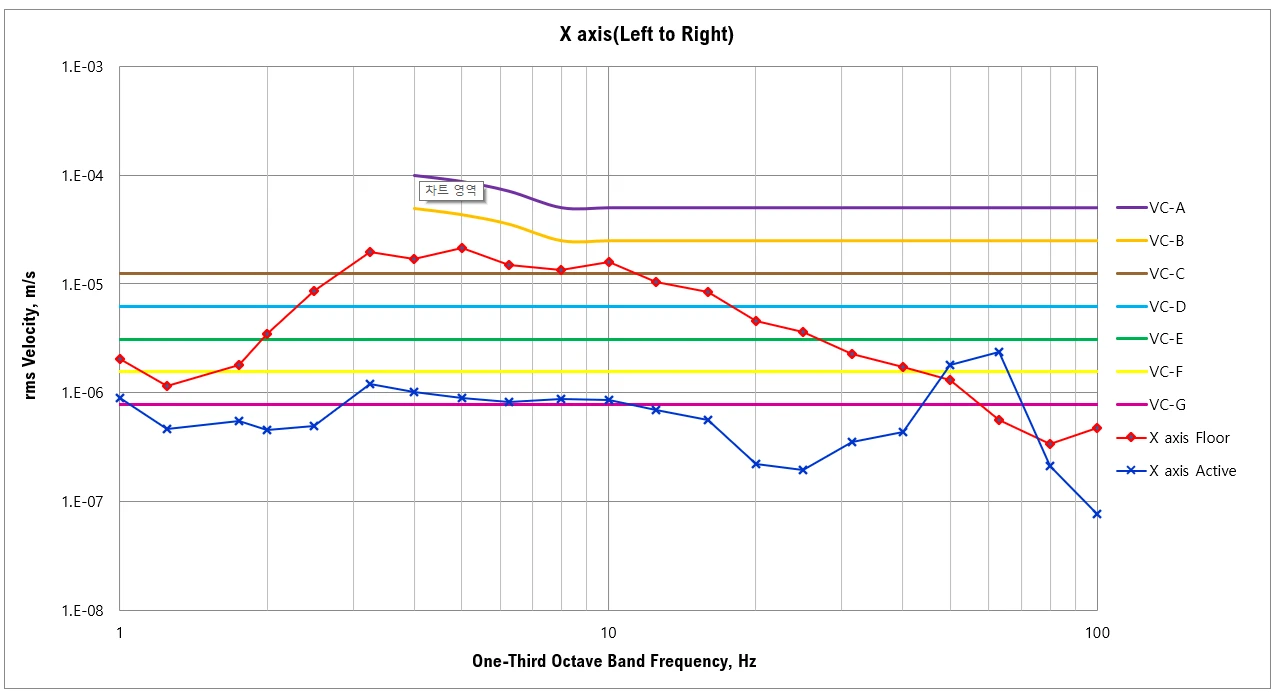

Octave Band Result — X axis

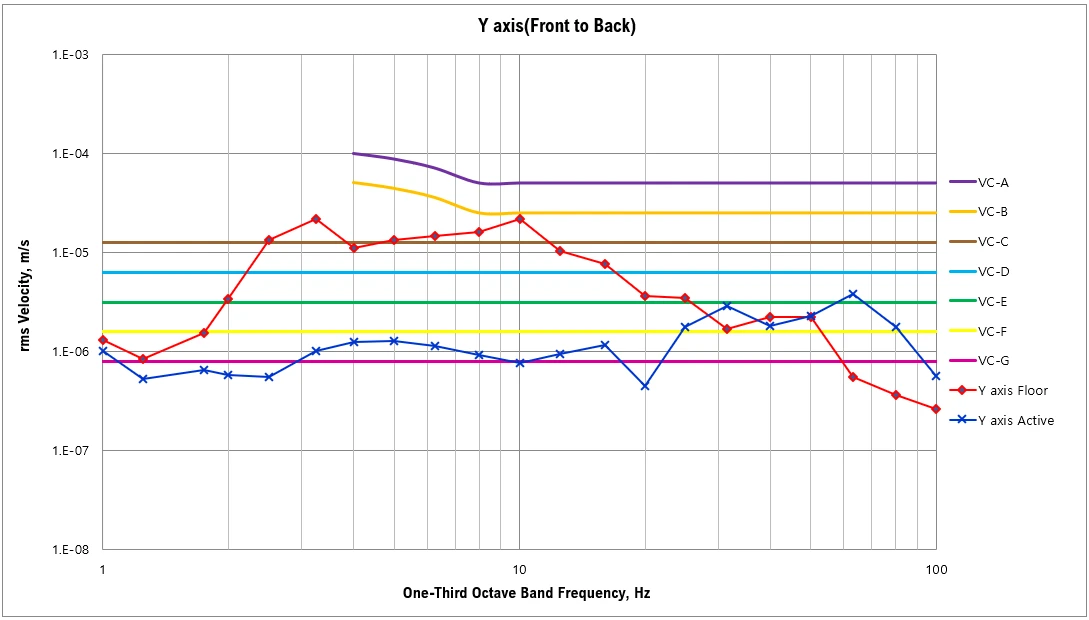

Octave Band Result — Y axis
