Installation Report
DVIA-M Series
10-25-2022
Shanghai Jiao Tong University DVIA-M1000 (211020R6-1) Internal Program Performance — 2022.10.25
DVIA-M Series
Installation Report
DVIA-M1000
211020R6-1
Shanghai Jiao Tong University
Shanghai
Contents
(M1000_ 211020R6-1 Set up)
| Target equipment | TBD |
|---|---|
| Place of installation | Shanghai |
| Remark | Good Performance |
| END USER | SHANGHAI JIAO TONG UNIVERSITY |
| Operator: Lee, Young Ha | Date of business trip : 17.12.27~17.12.29 |
| Date of setup: 22.10.25 | |
| Date of reporting: 22.10.27 |
Overview

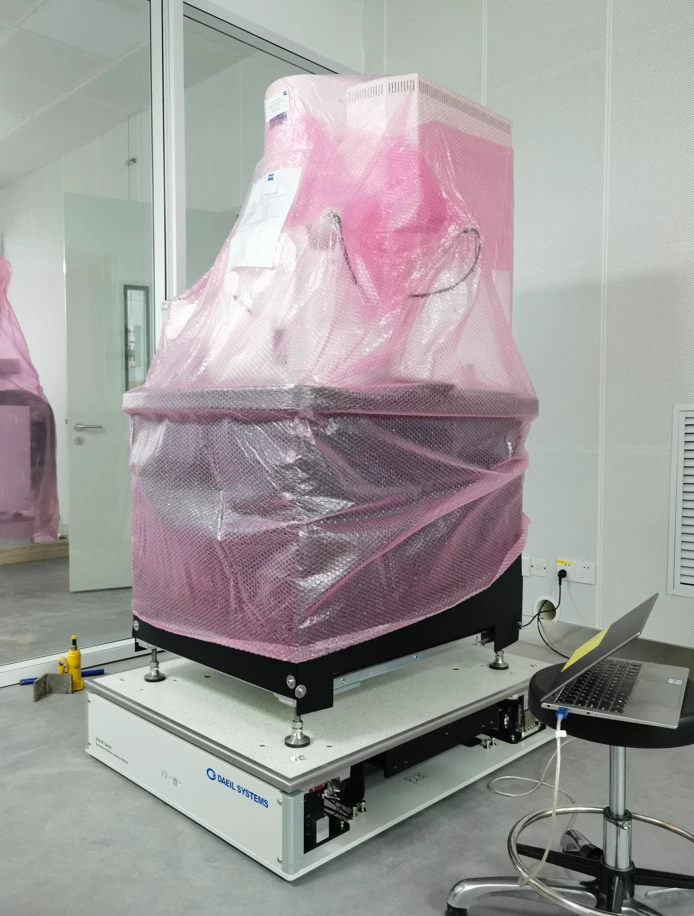

The DVIA-M1000 active vibration isolation platform is appropriately installed and functioning as intended.
Measurement date
2022.10.25 (Tuesday),
Operator
Operator: DAEIL SYSTEMS, Youngha Lee
Place of measurement
Shanghai
Equipment Model
TBD
M1000 internal program performance measurement result

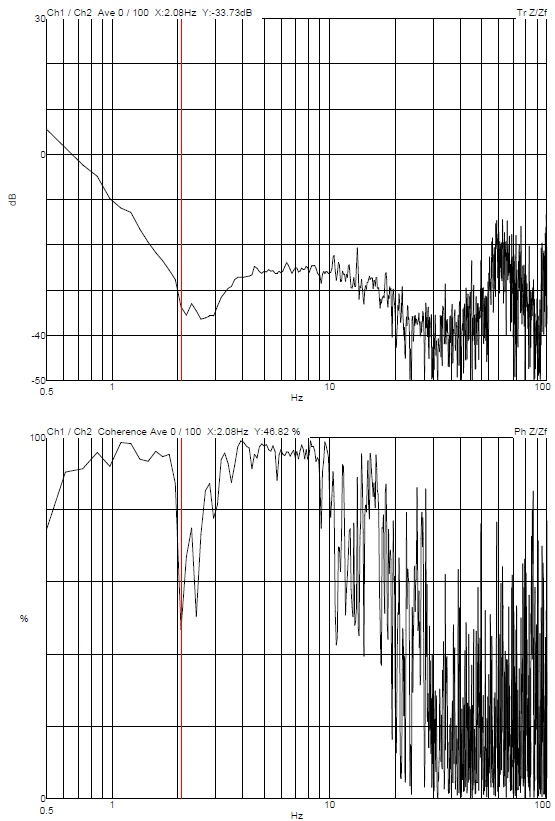

Z axis

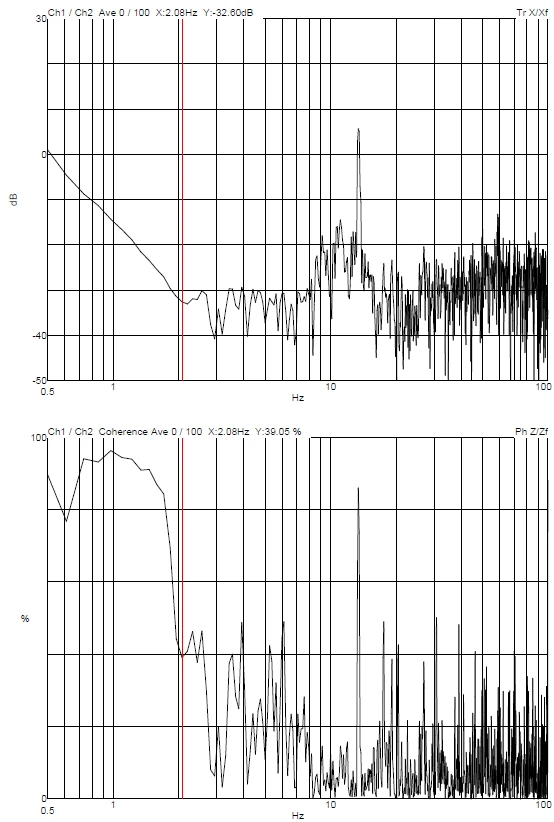

X axis

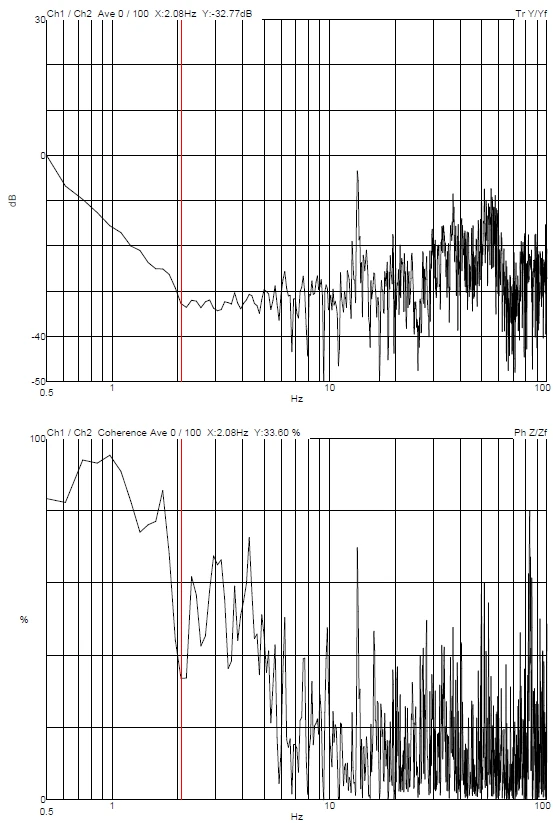

Y axis
Share this Case Study
Case Study Information
Category
Installation Report
SeriesDVIA-M Series
Date10-25-2022
Tags
DVIA-M Series
Installation Report
DVIA-M1000
211020R6-1
Shanghai Jiao Tong University
Shanghai
Related Case Studies
DVIA-M Series

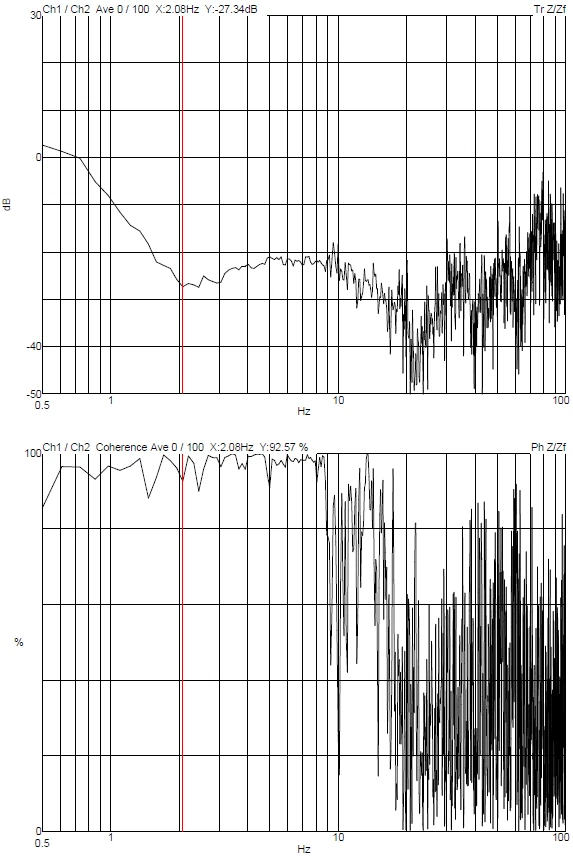

Shanghai Jiao Tong University DVIA-M1000 (211020R6-2) Internal Program Performance — Shanghai — 2022.10.27
