YIMO Thermofisher Apreo DVIA-MB1000 (211020R5) Installation Report — 2021.12.23
DVIA-M Series
Installation Report
YIMO
DVIA-MB1000
211020R5
Thermofisher
Apreo
MB1000
Contents
MB1000 P269 211020R5
Site checklist
| Target equipment | Thermofisher Apreo |
|---|---|
| Place of installation | N/A |
| Remark | Good Performance |
| END USER | N/A |
Operator and dates
Operator: Choi, HyoungMun
Date of setup: 21.12.22
Date of reporting: 21.12.23
Date of business trip : 17.12.27~17.12.29
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date: 21.12.22 (WED)
Operator: Daeil System, Research engineer Choi, HyoungMun
Place of measurement: N/A
Equipment Model: Thermofisher Apreo
Summary of measurement results
Test Condition: Transmissibility
| 2 Hz | 5 Hz | 10 Hz | |
|---|---|---|---|
| Z | -28 dB | -24 dB | -23 dB |
| X | -40 dB | -30 dB | -32 dB |
| Y | -26 dB | -35 dB | -35 dB |
Good omnidirectional performance.
MB1000 internal program performance measurement result

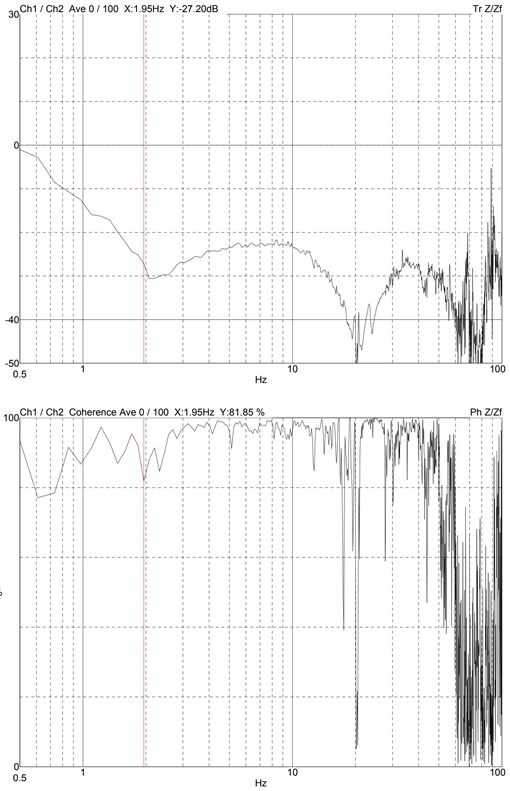

Z axis

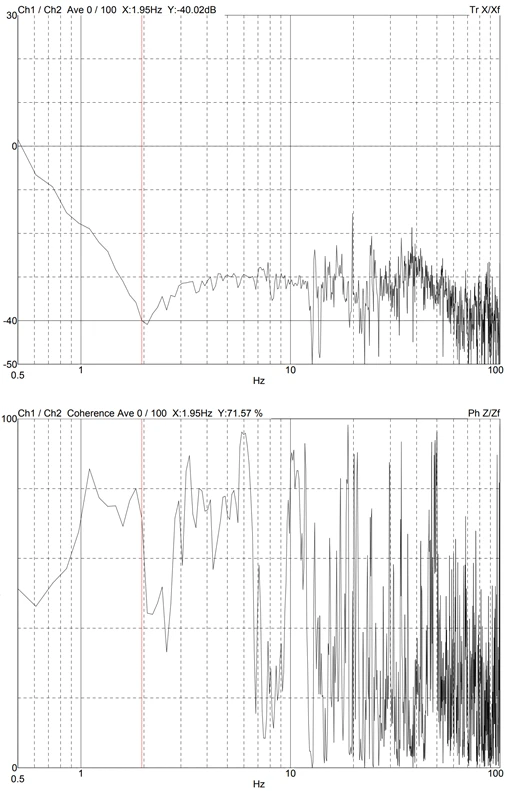

X axis

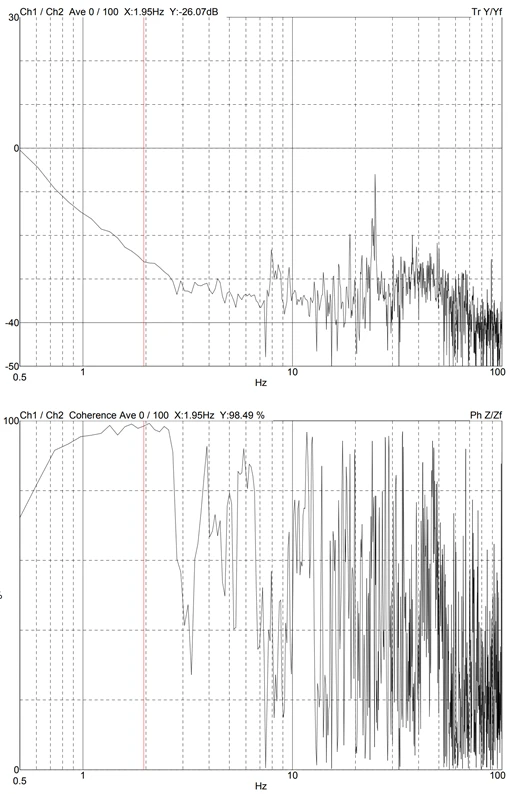

Y axis
