Installation Report
DVIA-M Series
07-21-2022
Chinese Academy of Sciences — Institute of Physics Thermofisher Helios G5 Beijing DVIA-M1000 (210928R3) Installation Report
DVIA-M Series
Installation Report
Chinese Academy of Sciences
Institute of Physics
Thermofisher
Helios G5
BEIJING
DVIA-M1000
210928R3
Contents
Institute of physics, Chinese Academy of Sciences（中科院物理所）
Institute of physics, Chinese Academy of Sciences（中科院物理所）

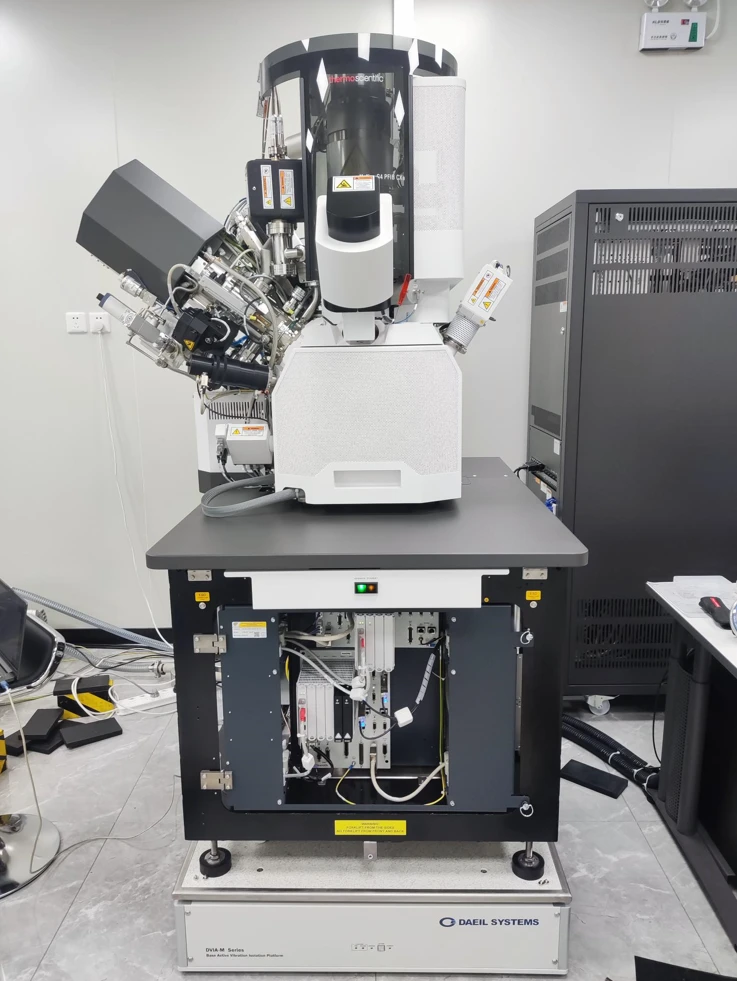

(M1000_ 210928R3 Set up)
Site checklist
| Target equipment | Thermofisher Helios G5 |
|---|---|
| Place of installation | BEIJING |
| Remark | Good Performance |
| END USER | Institute of physics, Chinese Academy of Sciences（中科院物理所） |
Operator and dates
| Operator: Lee, Young ha Date of setup: 22.07.21 Date of reporting: 22.07.21 | Date of business trip : 17.12.27~17.12.29 |
|---|
Overview
The DVIA-M1000 active vibration isolation platform is appropriately installed and functioning as intended.
Platform serial: M1000_ 210928R3 (DVIA-M1000).
Measurement conditions and results
Summary of measurement results
| Test Condition | VC-Class Z | VC-Class X | VC-Class Y |
|---|---|---|---|
| Floor | B | B | B |
| Above Active | D | E | D |
Good omnidirectional performance.
MB1000 internal program performance measurement result
MB1000 internal program — Z axis
N/A
MB1000 internal program — X axis
N/A
MB1000 internal program — Y axis
N/A
Octave Band Result
Octave band result — Z axis
N/A
Octave band result — X axis
N/A
Octave band result — Y axis
N/A
Share this Case Study
Case Study Information
Category
Installation Report
SeriesDVIA-M Series
Date07-21-2022
Tags
DVIA-M Series
Installation Report
Chinese Academy of Sciences
Institute of Physics
Thermofisher
Helios G5
BEIJING
DVIA-M1000
210928R3
Related Case Studies
DVIA-M Series

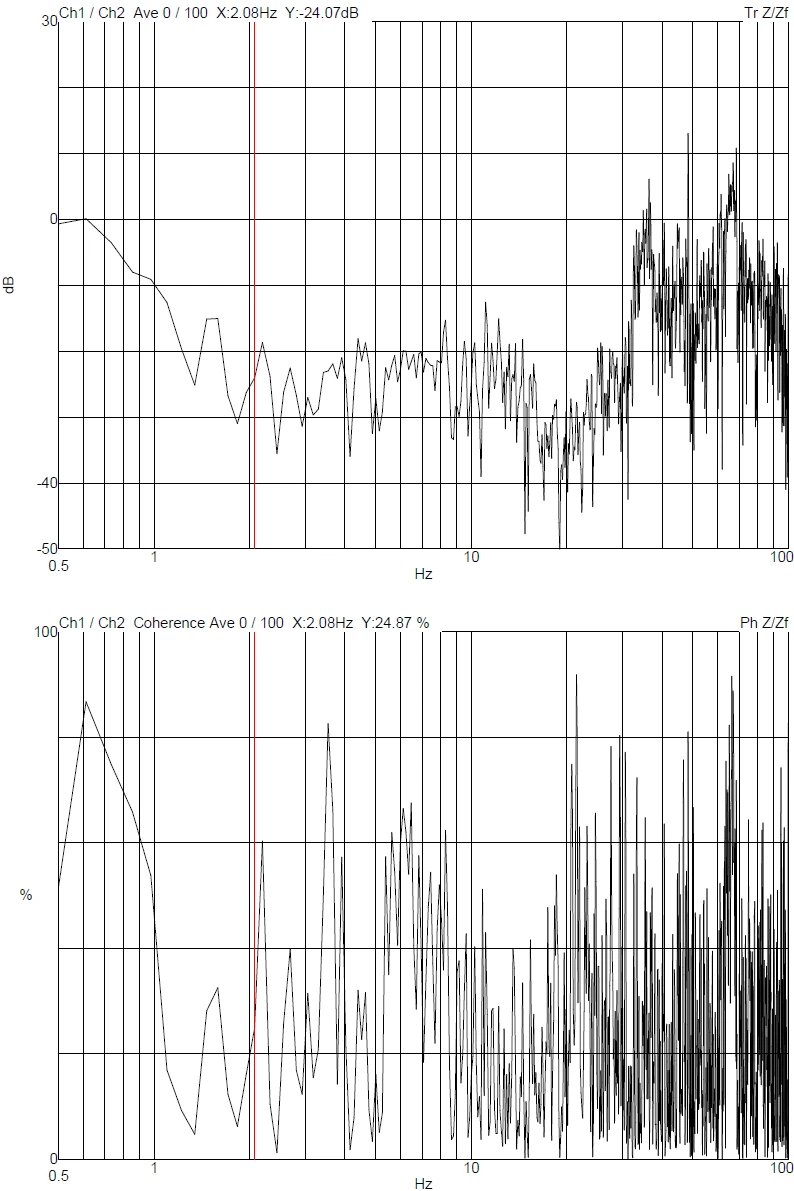

Helios G5 DVIA-M1000 (211115R2) Installation Report — Peking University, Beijing
07-24-2023Read more
DVIA-M Series

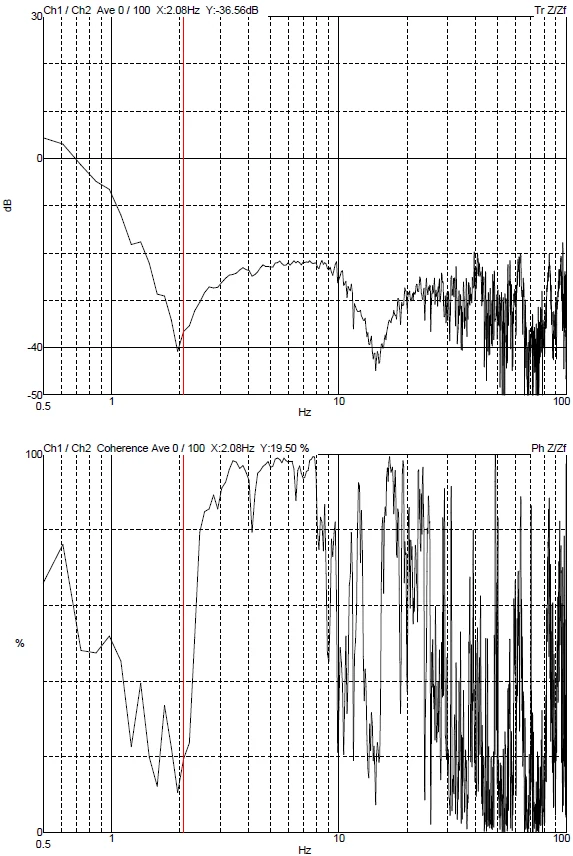

Chinese Academy of Sciences — Institute of Metal Research Thermofisher Helios G5 UX DVIA-M1000 (220408R3) Installation Report
