Installation Report
DVIA-T Series
03-30-2023
CIQTEK DVIA-T86 (210818R3-2) Installation Report
DVIA-T Series
Installation Report
DVIA-T86
210818R3-2
CIQTEK
Heifei
Experimental platform
Contents
Prepared for
CIQTEK
Prepared by
Engineer: Youngha Lee
Tuning date: 23.03.21
Report written date: 23.03.30
Date of business trip : 17.12.27~17.12.29
Overview
The DVIA-T86 active vibration isolation platform is appropriately installed and functioning as intended.
System Information
Model: DVIA-T86
Serial Number: 210818R3-2
Engineer
Youngha Lee, from DAEIL SYSTEMS
Tuning Date
May 21, 2023
Location
Heifei, China
Equipment
Experimental platform
Vibration summary
| Z-axis (1-10 Hz) | Z-axis (12.5-80 Hz) | X-axis (1-10 Hz) | X-axis (12.5-80 Hz) | Y-axis (1-10 Hz) | Y-axis (12.5-80 Hz) | |
|---|---|---|---|---|---|---|
| Floor | E | D | D | D | D | D |
| Active | F | G | F | G | F | G |
Data and Image

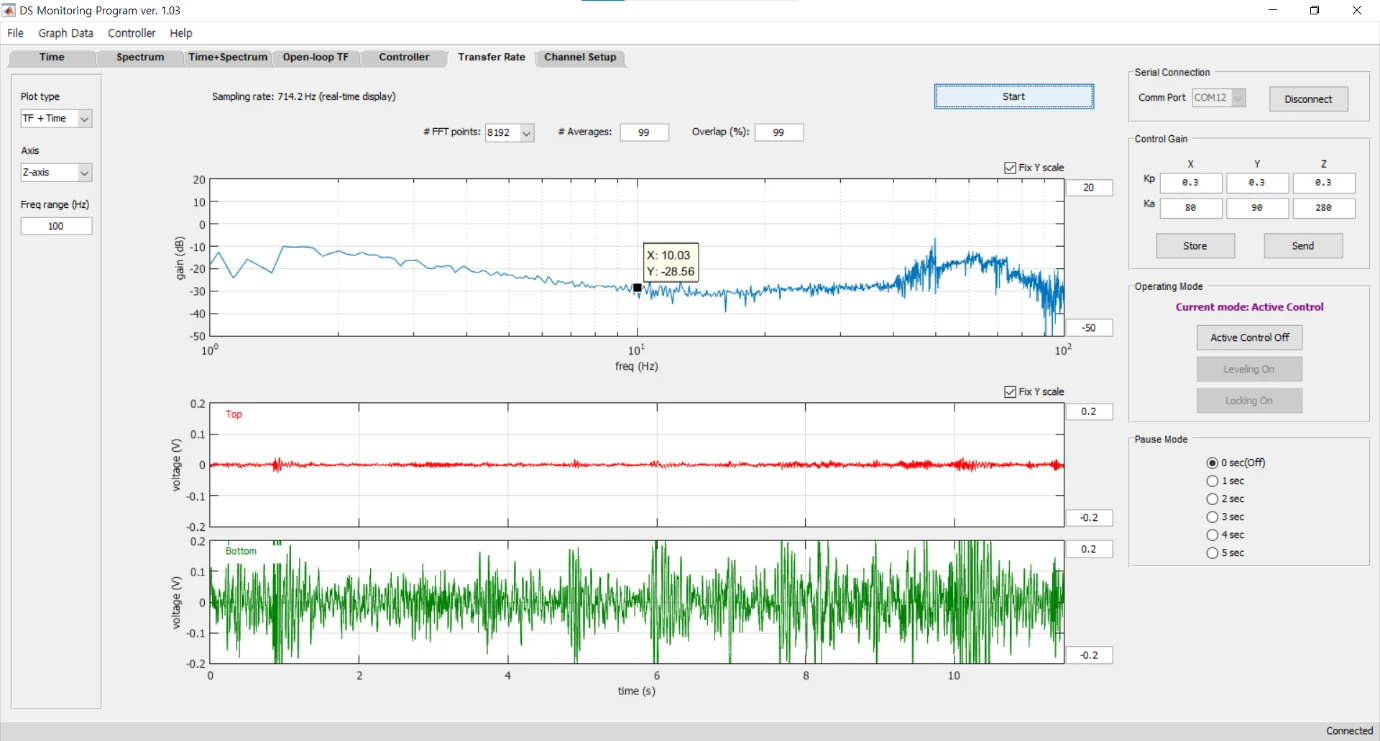

Z-axis (Vertical) Transmissibility

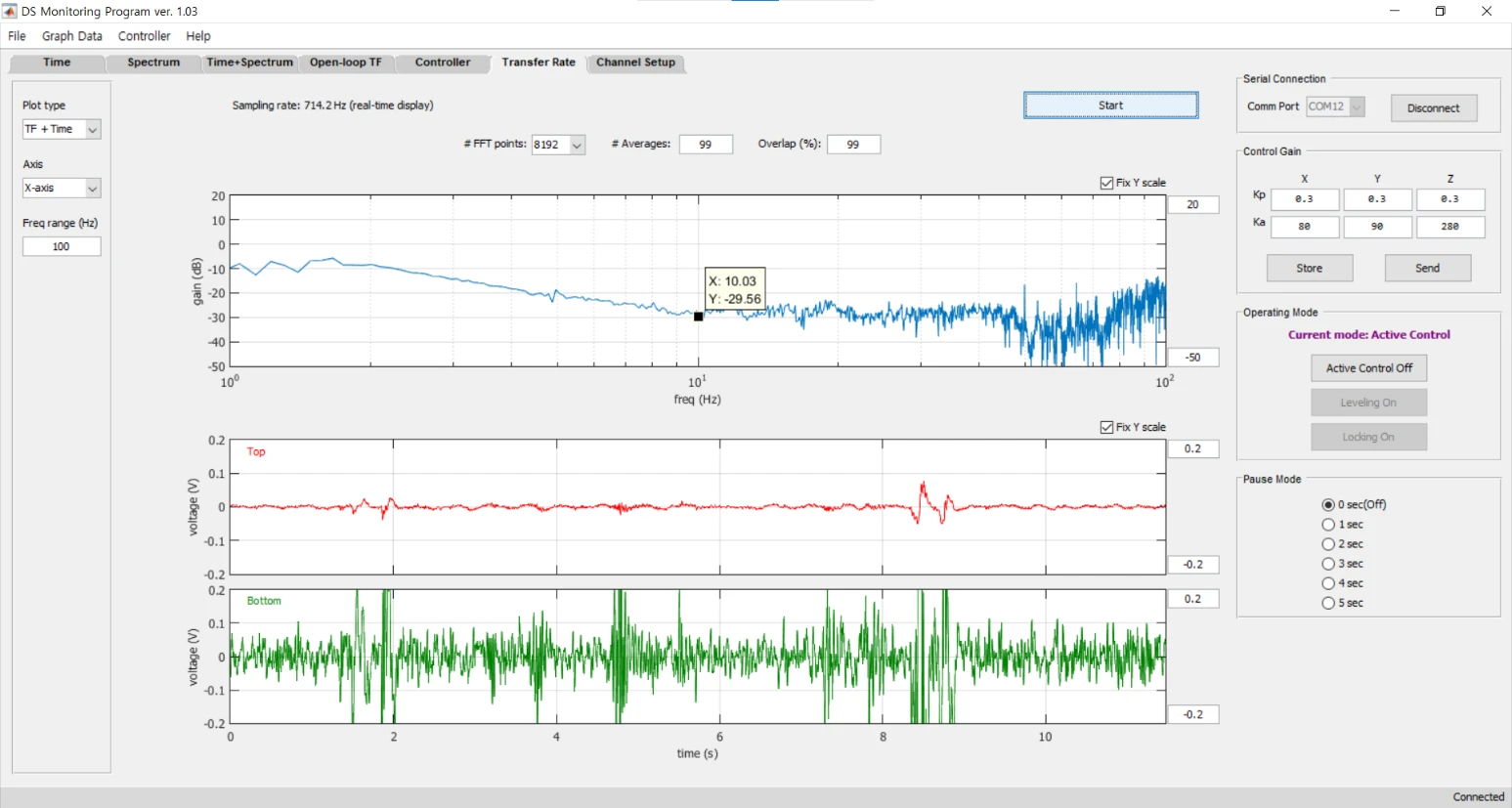

X-axis (Left to Right) Transmissibility

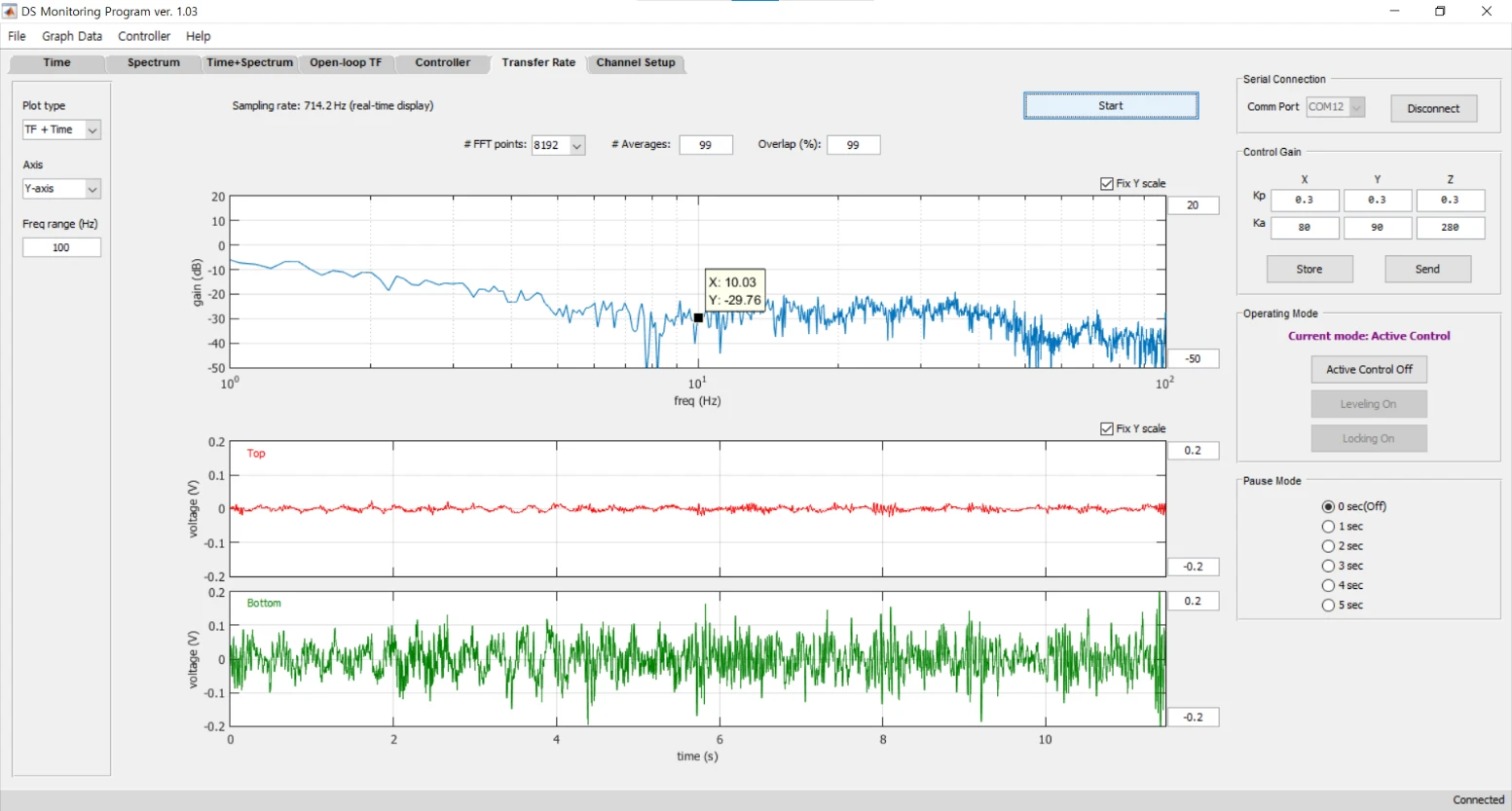

Y-axis (Front to Back) Transmissibility

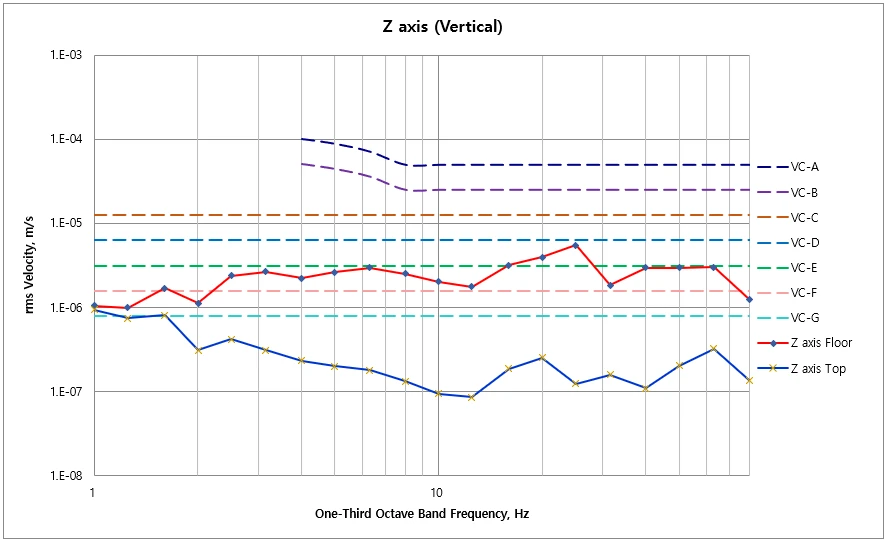

Z-axis (Vertical) VC-Curve

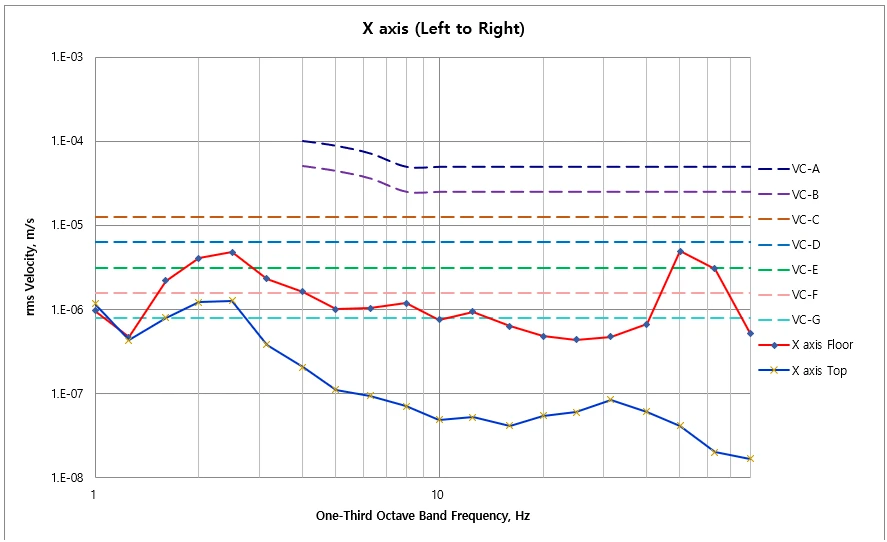

X-axis (Left to Right) VC-Curve

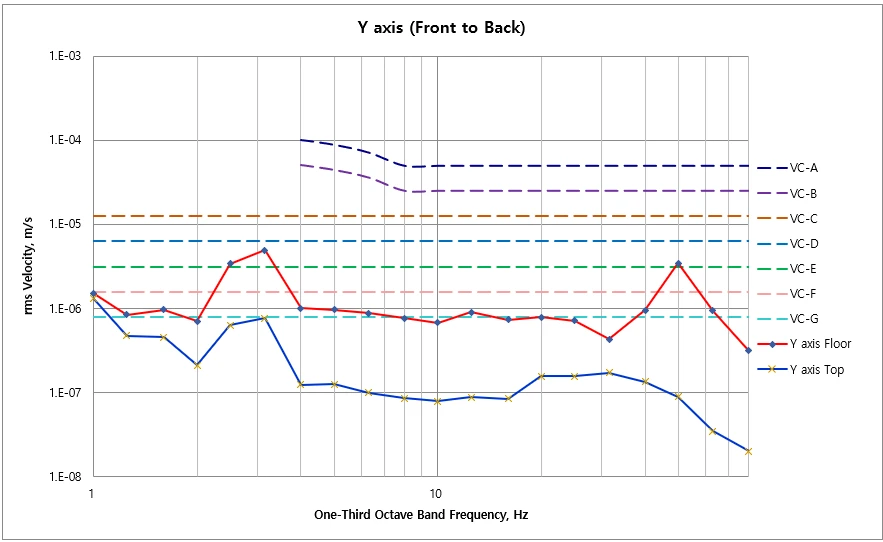

Y-axis (Front to Back) VC-Curve
