Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date: 21.11.04 (THU),
Operator: Daeil System, Research engineer Choi, HyoungMun
Place of measurement : BOE
Equipment Model: ZEISS CROSSBEAN350
Measurement conditions and results
Summary of measurement results
| Test Condition | Transmissibility | ||
|---|---|---|---|
| 2 Hz | 5 Hz | 10 Hz | |
| Z | -22 dB | -40 dB | -32 dB |
| X | -27 dB | -37 dB | -39 dB |
| Y | -30 dB | -30 dB | -32 dB |
Good omnidirectional performance.
MB1000 internal program performance measurement result

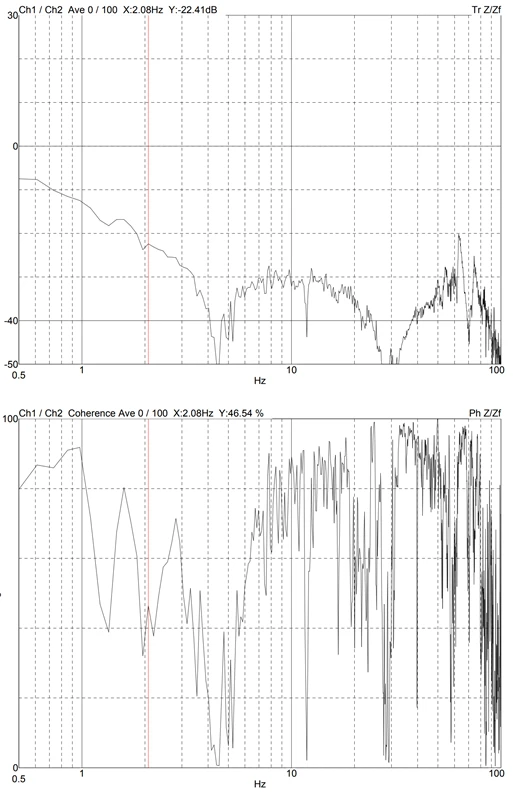

Z axis

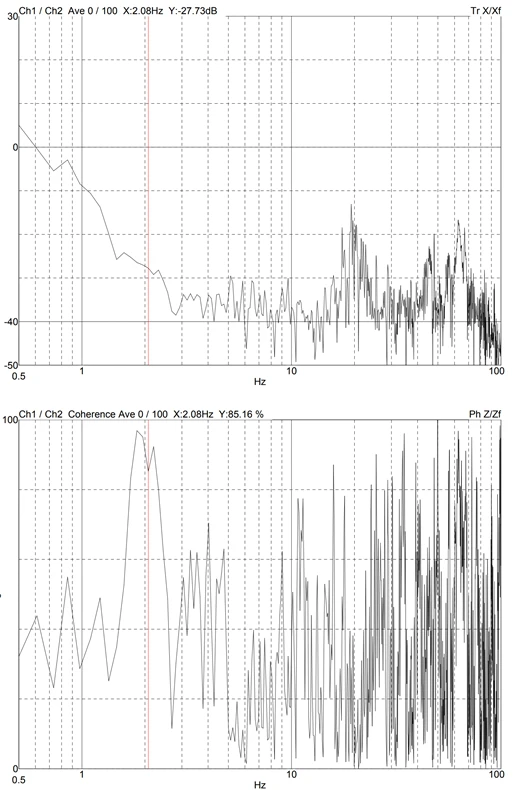

X axis

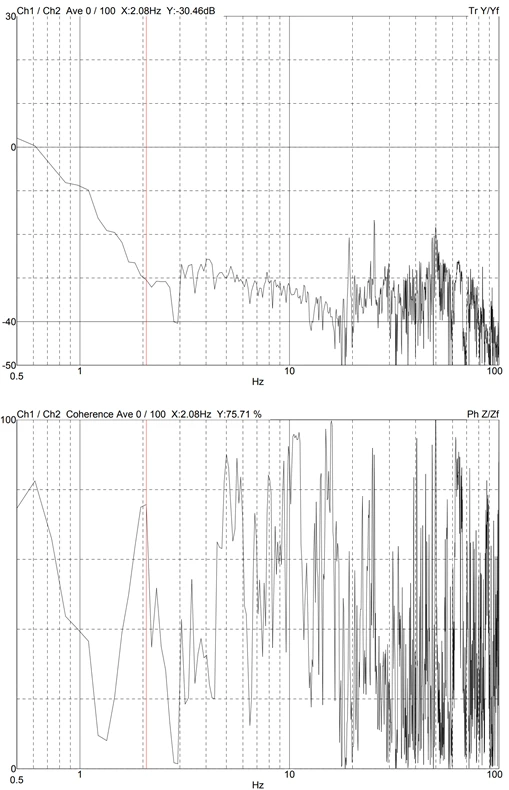

Y axis
