Installation Report
DVIA-M Series
08-24-2021
YIMO Thermo Fisher Scientific APREO 2S DVIA-MB1000 (210701R6-1 P241) Installation Report — 2021.08.24
DVIA-M Series
Installation Report
YIMO
DVIA-MB1000
210701R6-1
P241
Thermo Fisher Scientific
APREO 2S
Contents
MB1000 P241(210701r6-1)
Target equipment
THERMO APREO 2S
Place of installation
N/A
Remark
Good Performance
End user
N/A
Operator
Kim, Doohyun
Date of setup
21.08.24
Date of reporting
21.08.24
Date of business trip
17.12.27~17.12.29
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date: 21.08.24 (TUE)
Operator: Daeil System, Research engineer Kim, Doohyun
Place of measurement: N/A
Equipment Model: THERMO APREO 2S
Vibration Isolation System Information
Model: DVIA-MB1000 (P241)
Serial Number: 210701r6-1
Measurement conditions and results
Summary of measurement results
Transmissibility
| 2 Hz | 5 Hz | 10 Hz | |
|---|---|---|---|
| Z | -21 dB | -30 dB | -32 dB |
| X | -32 dB | -35 dB | -31 dB |
| Y | -29 dB | -40 dB | -25 dB |
Good omnidirectional performance.
MB1000 internal program performance measurement result

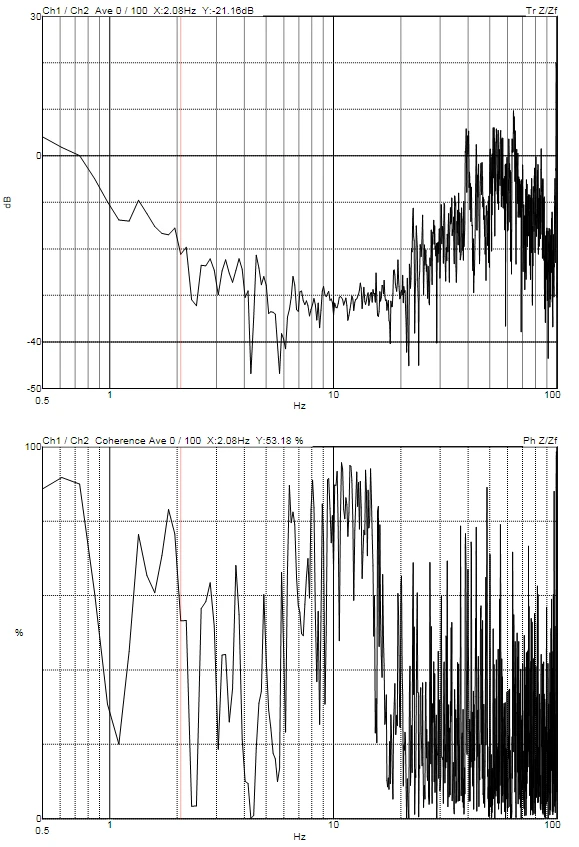

Z axis

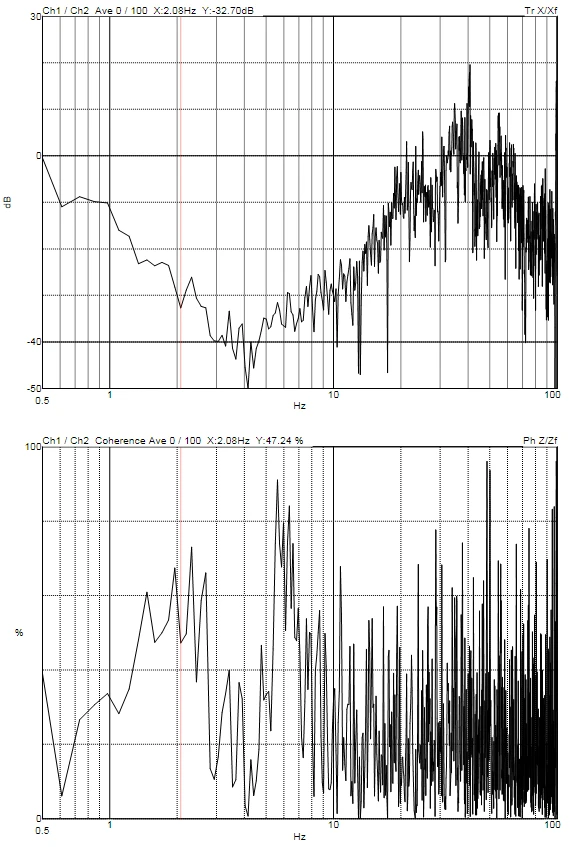

X axis

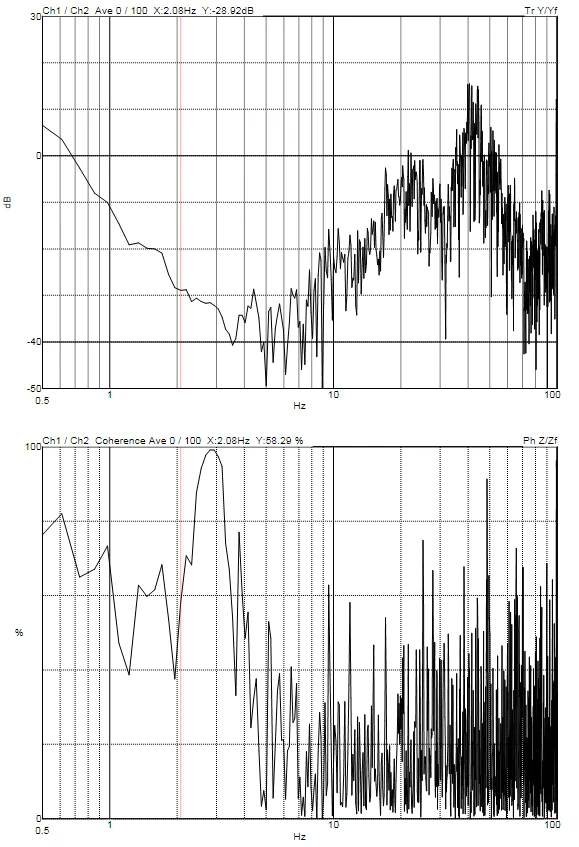

Y axis
