Installation Report

DVIA-M Series

11-08-2021

ZOLIX DVIA-M1000 MB1000 (210610R1) Installation Report — 2021.11.08

DVIA-M Series

Installation Report

ZOLIX

MB1000

DVIA-M1000

210610R1

MB1000 P254 210610R1

Target equipment and site

Target equipment	N/A
Place of installation	N/A
Remark	Good Performance
END USER	N/A

Reporting schedule

Operator: Choi, HyoungMun

Date of setup : 21.11.05

Date of reporting : 21.11.08

Date of business trip : 17.12.27~17.12.29

Overview

After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.

Measurement date: 21.11.05 (THU)

Operator: Daeil System, Research engineer Choi, HyoungMun

Place of measurement : N/A

Equipment Model: N/A

Measurement conditions and results

Summary of measurement results

Test Condition

Transmissibility

	2 Hz	5 Hz	10 Hz
Z	-28 dB	-25 dB	-23 dB
X	-21 dB	-32 dB	-24 dB
Y	-21 dB	-23 dB	-25 dB

Good omnidirectional performance.

MB1000 internal program performance measurement result

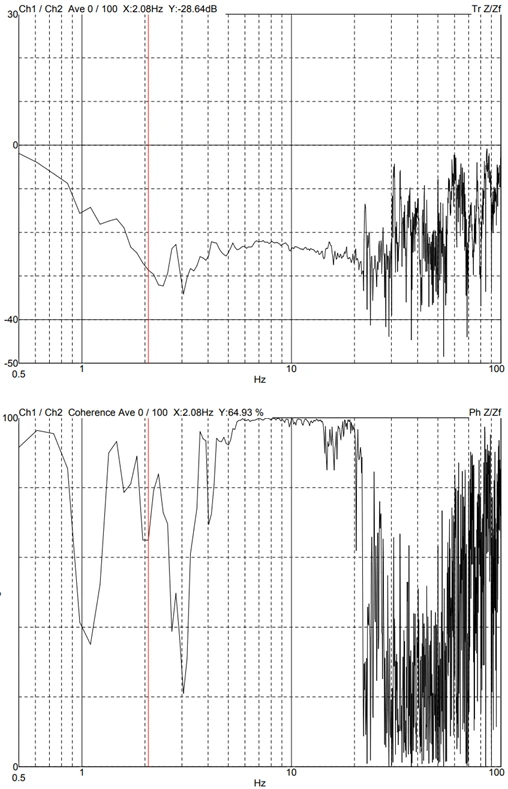

Z axis

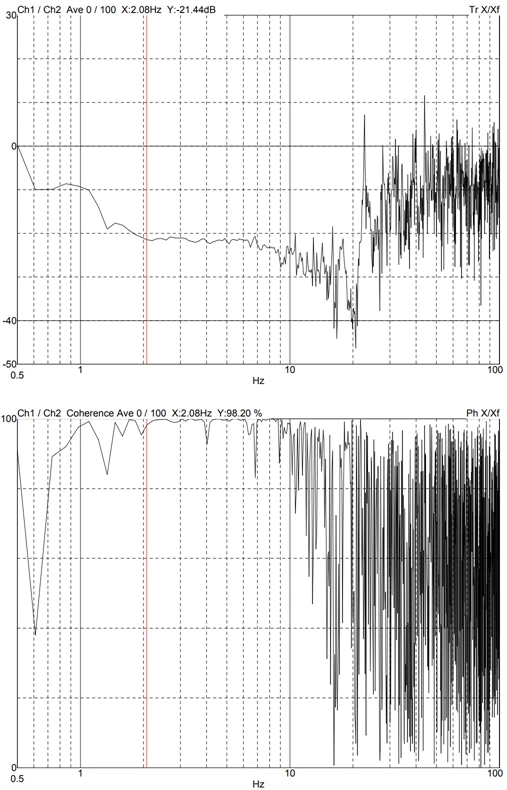

X axis

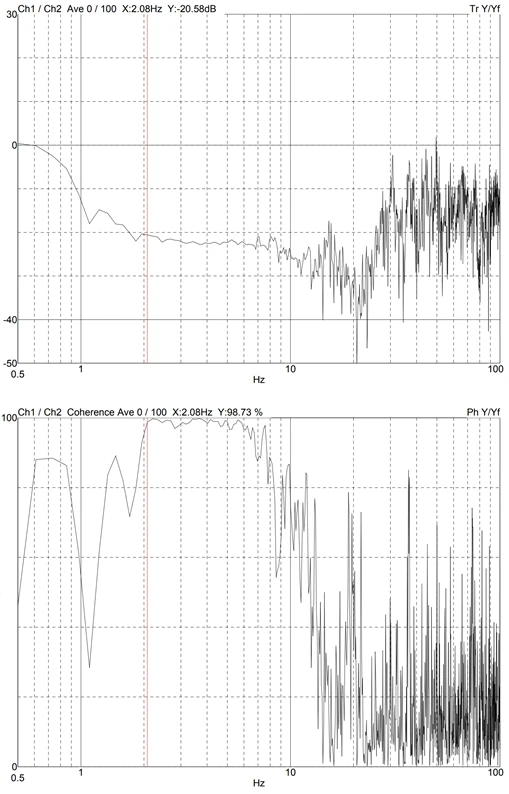

Y axis
