Installation Report
DVIA-M Series
10-28-2021
ZEISS Crossbeam 550 DVIA-MB1000 P228 (210510R5) Internal Program Performance — YIMO — 2021.10.28
DVIA-M Series
Installation Report
YIMO
ZEISS
Crossbeam 550
DVIA-MB1000
P228
210510R5
Hefei
Internal Program
Contents
MB1000 P228(210510r5)
| Target equipment | Zeiss Crossbeam550 |
|---|---|
| Place of installation | hefei |
| Remark | Good Performance |
| END USER | Tier-1 Semiconductor |
| Operator: Kim, Doohyun Date of setup : 21.10.28 Date of reporting : 21.10.28 | Date of business trip : 17.12.27~17.12.29 |
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date
21.10.28 (THU)
Operator
Daeil System, Research engineer Kim, Doohyun
Place of measurement
hefei
End User
Tier-1 Semiconductor
Equipment Model
Zeiss Crossbeam550
Measurement conditions and results
Summary of measurement results
Transmissibility
| 2 Hz | 5 Hz | 10 Hz | |
|---|---|---|---|
| Z | -26 dB | -32 dB | -33 dB |
| X | -34 dB | -35 dB | -35 dB |
| Y | -28 dB | -33 dB | -32 dB |
Good omnidirectional performance.
MB1000 internal program performance measurement result

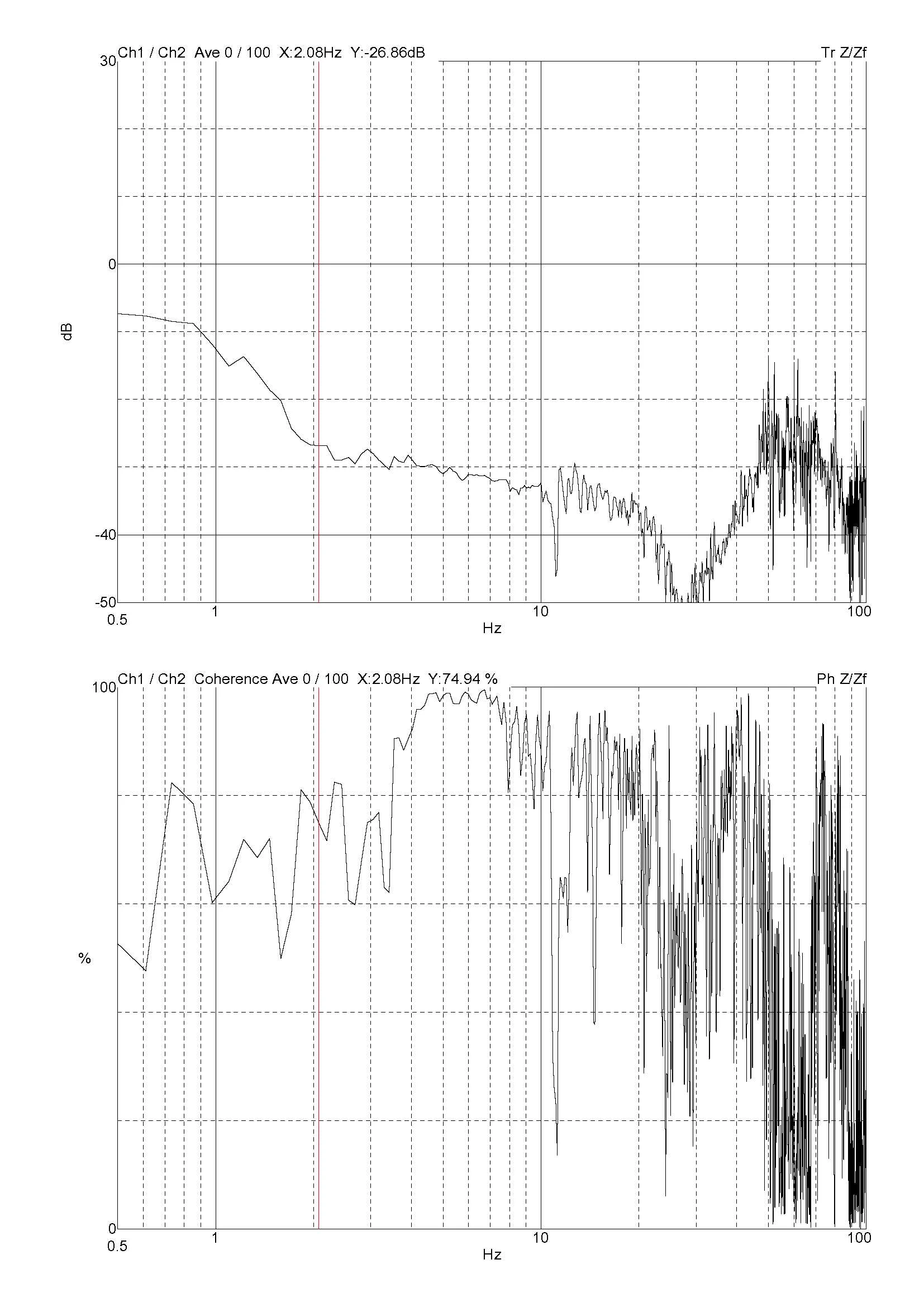

Z axis

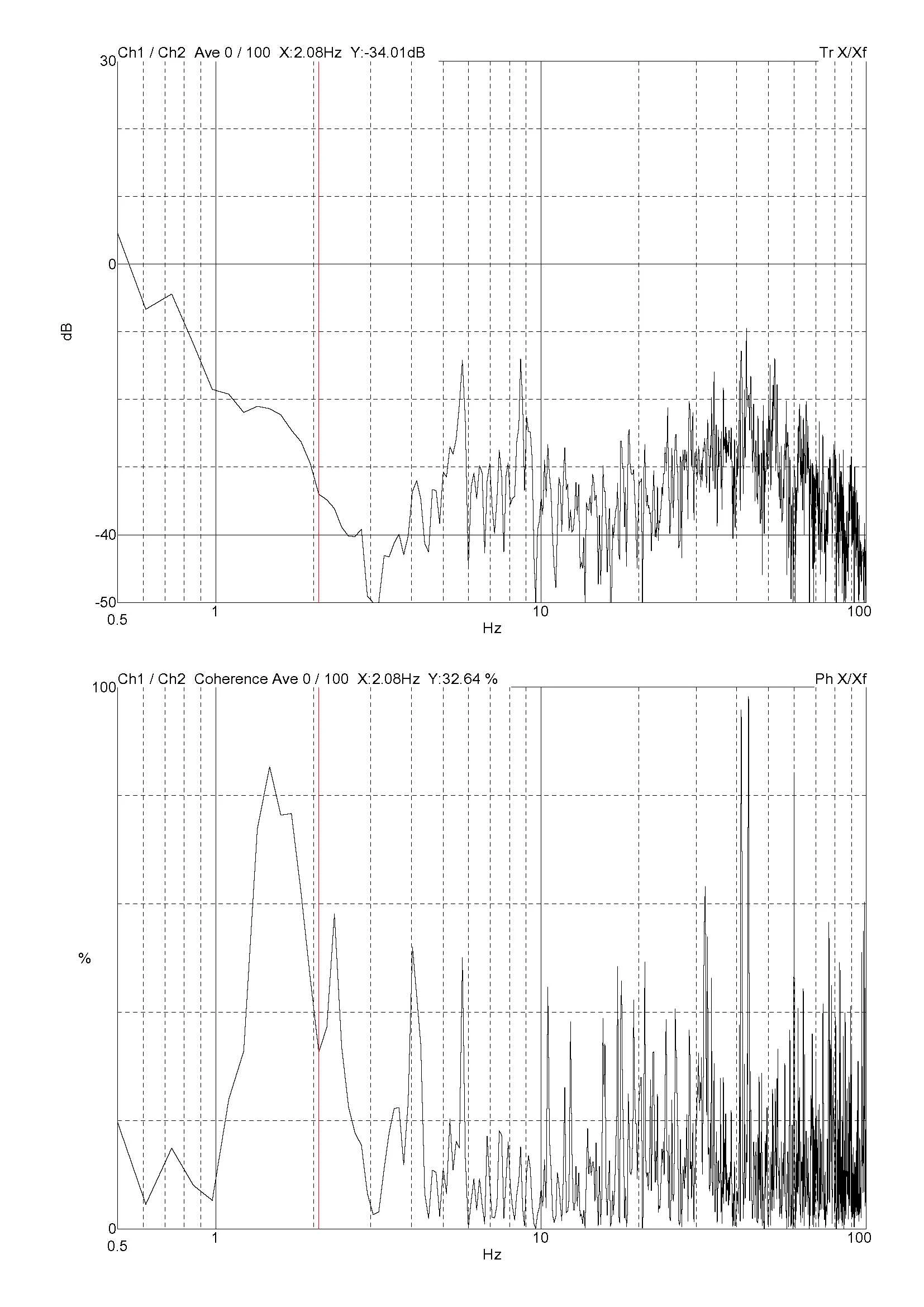

X axis

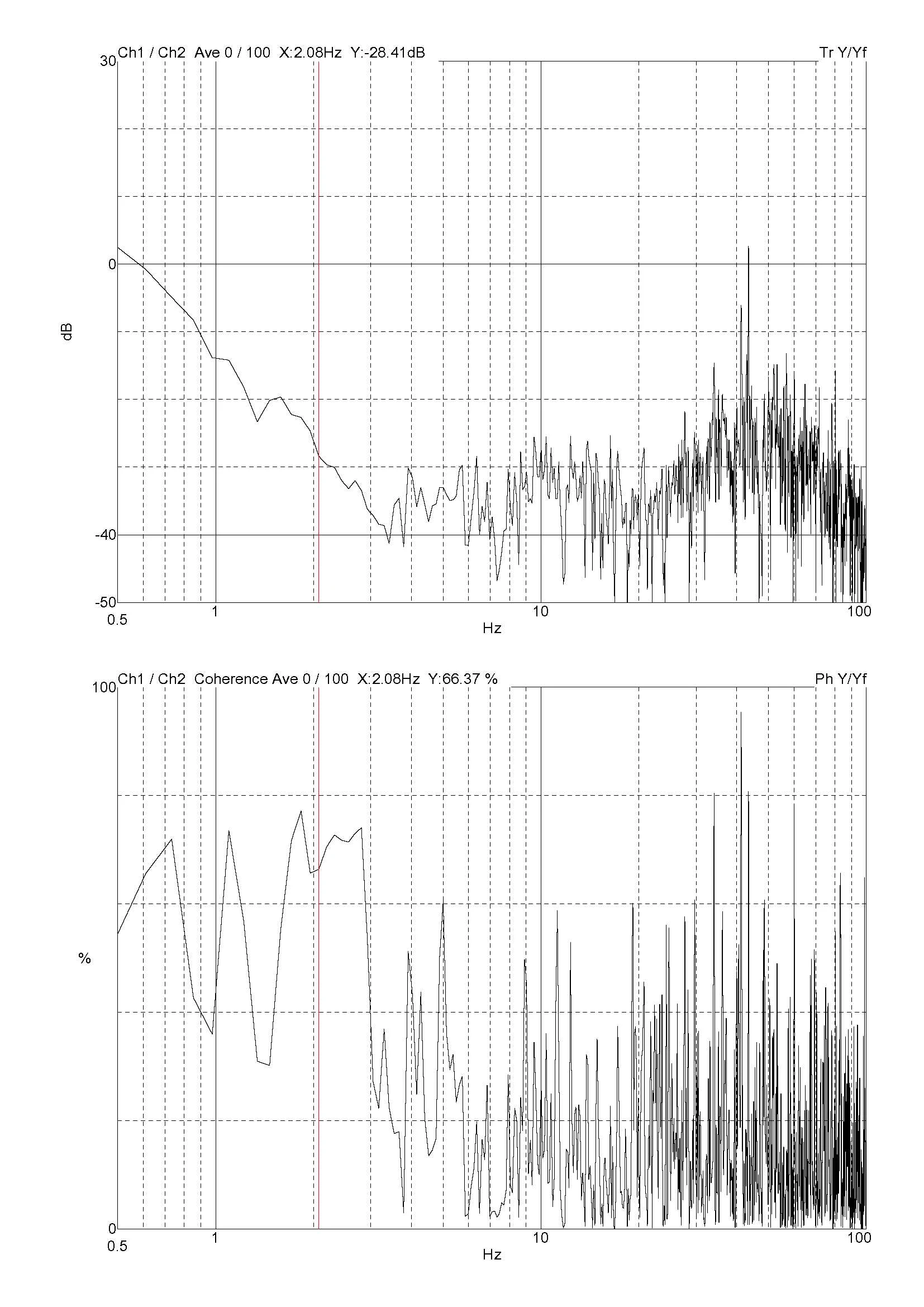

Y axis
