Installation Report
DVIA-M Series
11-23-2021
Xi'an Jingke ZEISS GeminiSEM 300 DVIA-MB1000 (210326R6) Installation Report — 2021.11.23
DVIA-M Series
Installation Report
YIMO
Xi'an
DVIA-MB1000
MB1000
ZEISS
GeminiSEM 300
210326R6
Contents
MB1000 P213(210326R6)
Target equipment and site
| Target equipment | Zeiss GeminiSEM 300 |
|---|---|
| Place of installation | xi'an |
| Remark | Good Performance |
| END USER | 西安精科 |
Reporting schedule
Operator: Kim, Doohyun
Date of setup : 21.11.22
Date of reporting : 21.11.23
Date of business trip : 17.12.27~17.12.29
Overview

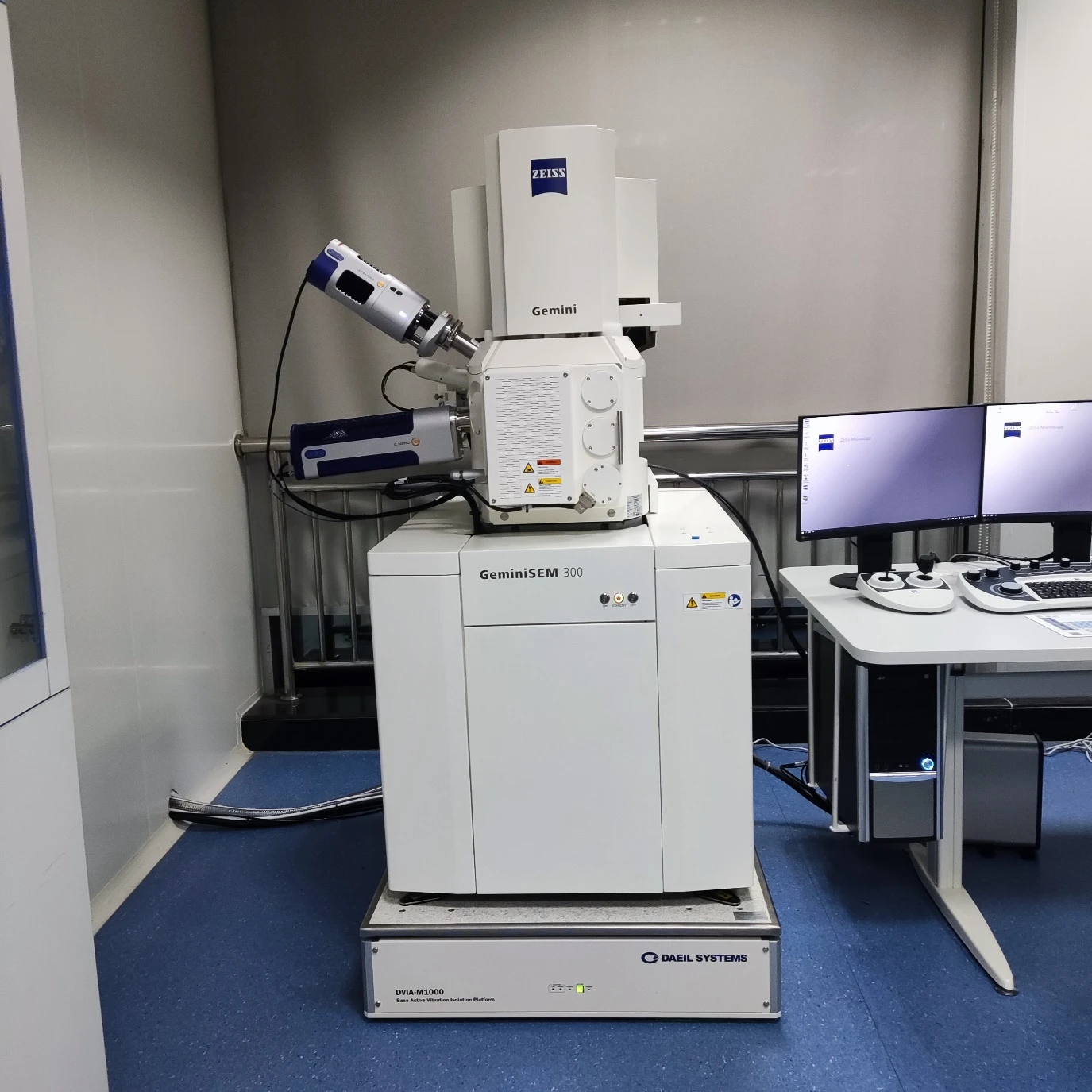

After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date: 21.11.22 (MON)
Operator: Daeil System, Research engineer Kim, Doohyun
Place of measurement : xi'an, 西安精科
Equipment Model: Hitachi Zeiss GeminiSEM 300
Measurement conditions and results
Summary of measurement results
Test Condition
Transmissibility
| 2 Hz | 5 Hz | 10 Hz | |
|---|---|---|---|
| Z | -24 dB | -35 dB | -35 dB |
| X | -33 dB | -25 dB | -35 dB |
| Y | -37 dB | -30 dB | -35 dB |
Good omnidirectional performance.
MB1000 internal program performance measurement result

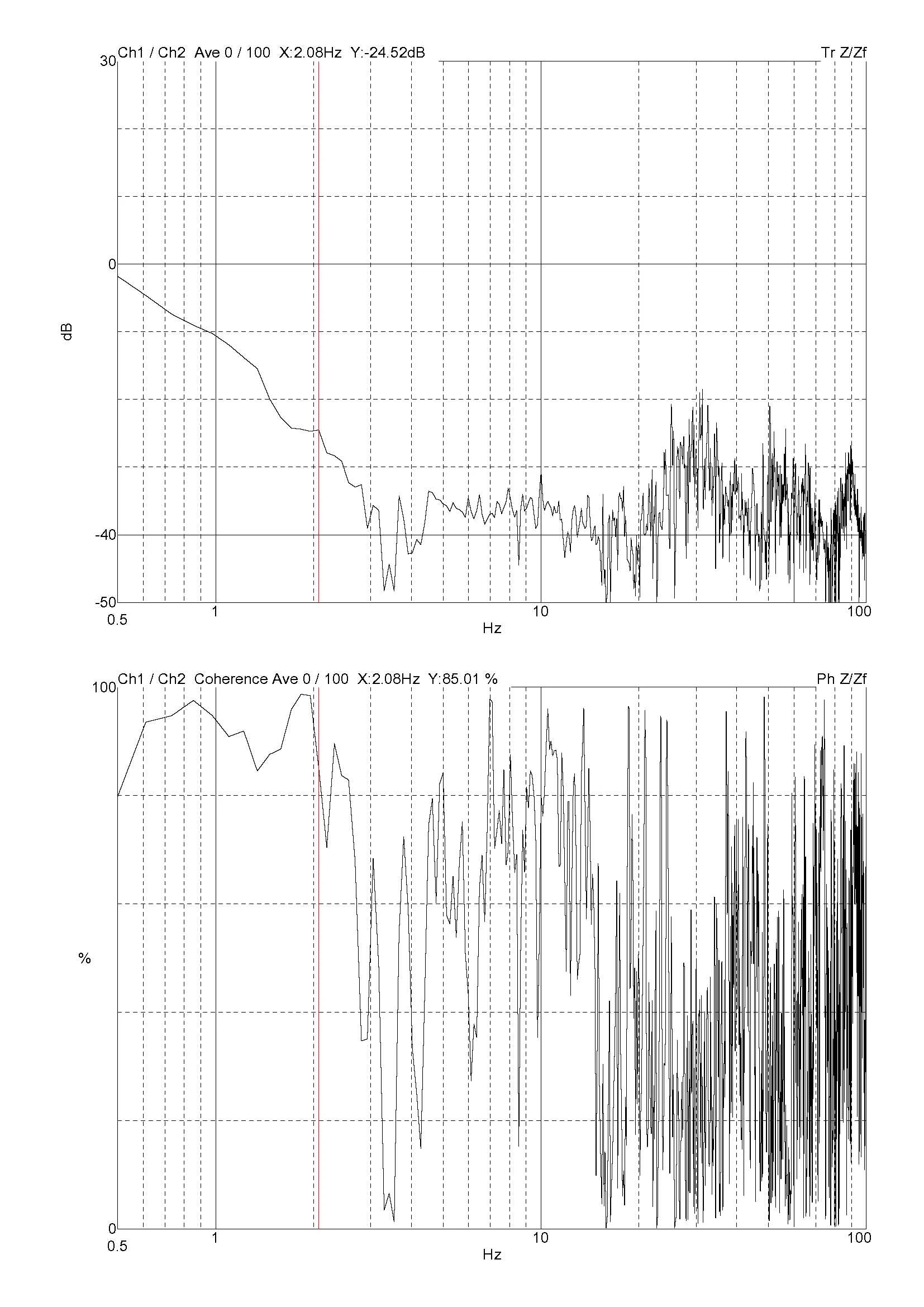

Z axis

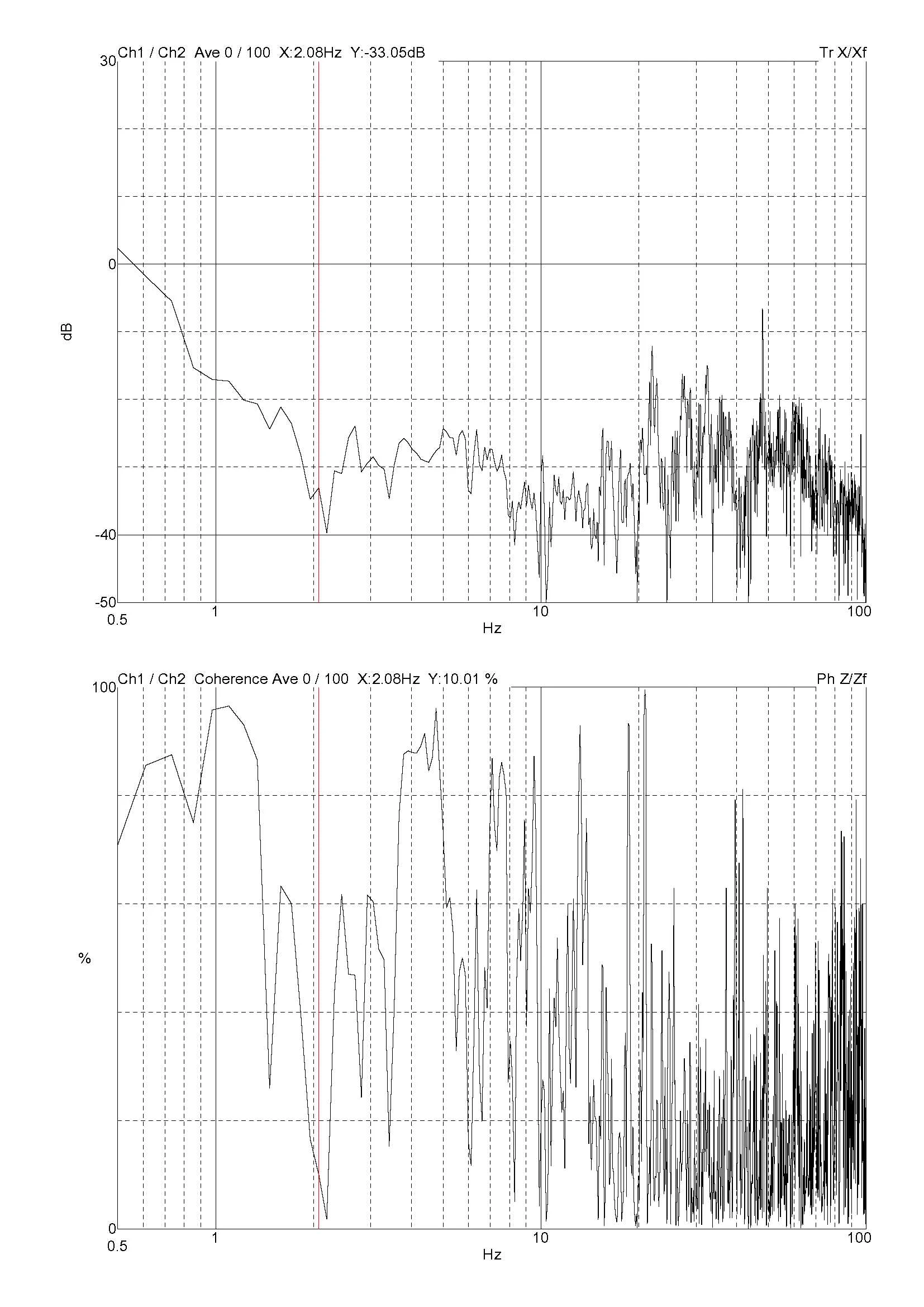

X axis

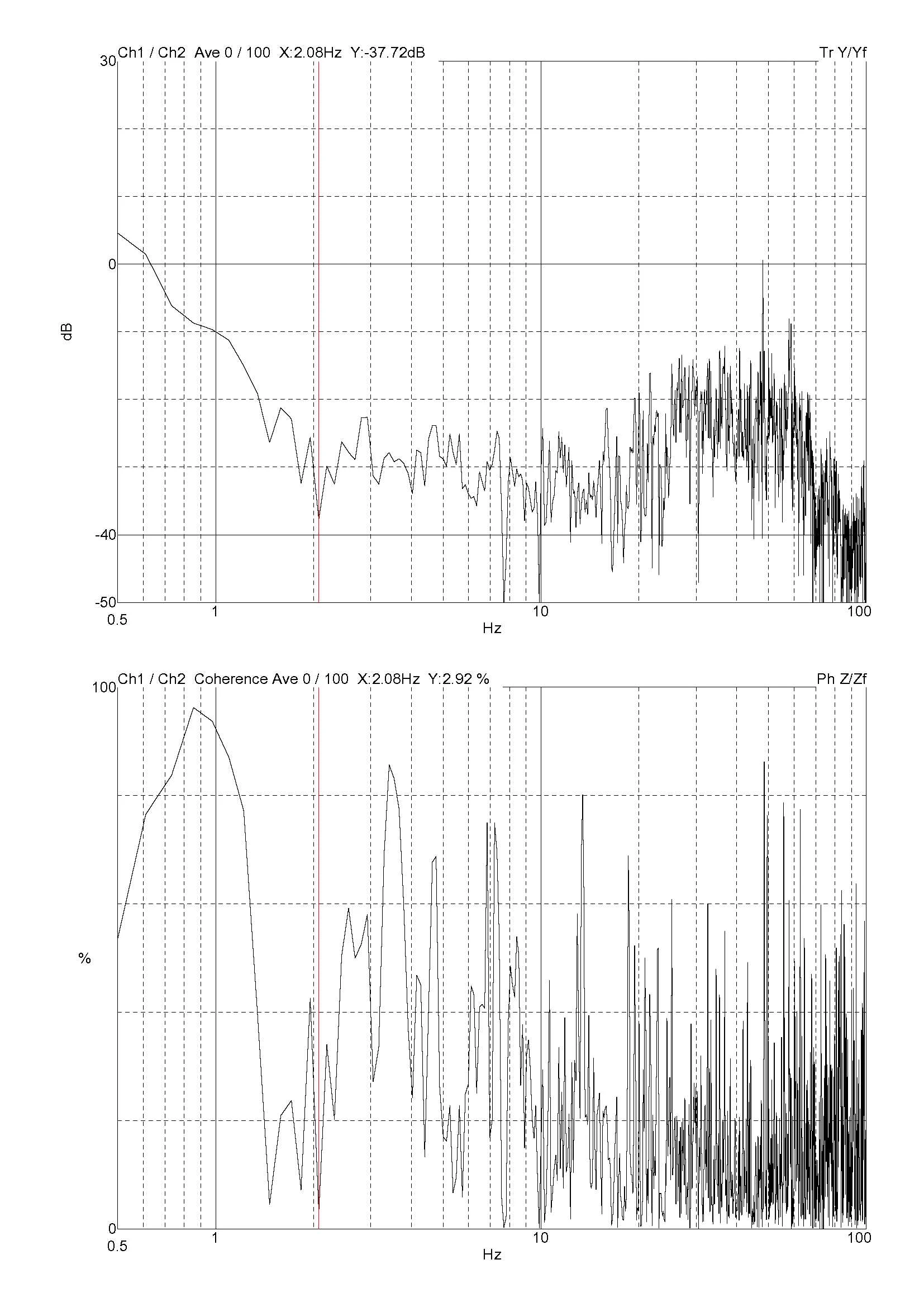

Y axis
