Installation Report
DVIA-M Series
01-22-2021
YIMO Zeiss Crossbeam 550 DVIA-MB1000 (MB1000_P182 / 200720R5-2) Internal Program Performance — 2021.01.22
DVIA-M Series
Installation Report
YIMO
ZEISS Crossbeam 550
DVIA-MB1000
MB1000_P182
200720R5-2
Contents
MB1000 P182 YIMO 200720R5-2
| Target equipment | ZEISS-Crossbeam550 |
|---|---|
| Place of installation | N/A |
| Remark | Good Performance |
| END USER | N/A |
| Operator: Choi, HyoungMun | Date of business trip : 17.12.27~17.12.29 |
| Date of setup : 21.01.21 | |
| Date of reporting : 21.01.22 |
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date: 21.01.21 (THU)
Operator: Daeil System, Research engineer Choi, HyoungMun
Place of measurement : N/A
Equipment Model: ZEISS-Crossbeam550
Measurement conditions and results
Summary of measurement results
| Axis | Transmissibility (2 Hz) | Transmissibility (5 Hz) | Transmissibility (10 Hz) |
|---|---|---|---|
| Z | -21 dB | -28 dB | -33 dB |
| X | -24 dB | -33 dB | -33 dB |
| Y | -24 dB | -33 dB | -33 dB |
Good omnidirectional performance.
MB1000 internal program performance measurement result

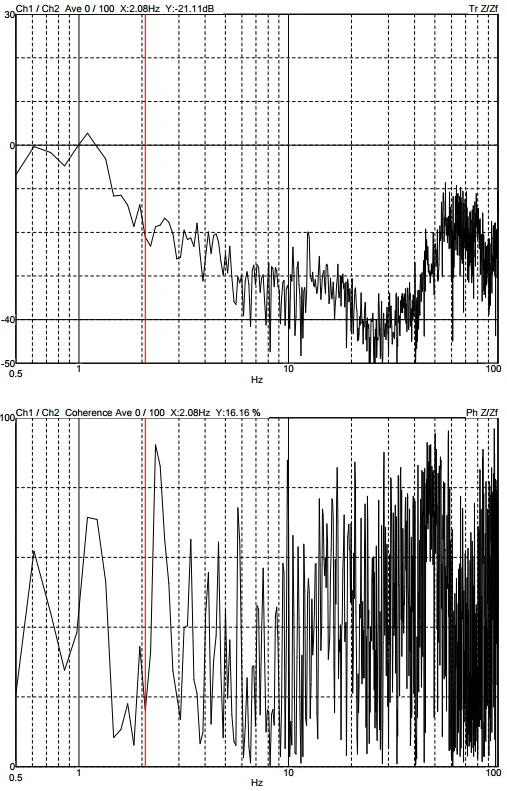

Z axis

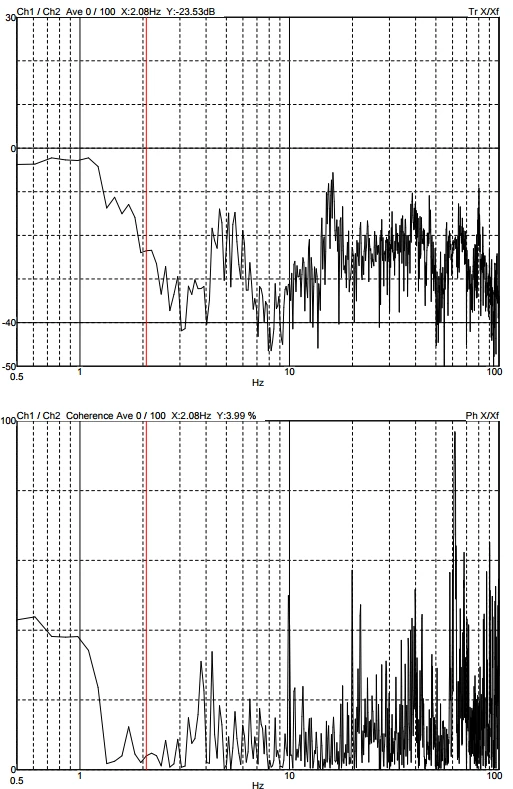

X axis

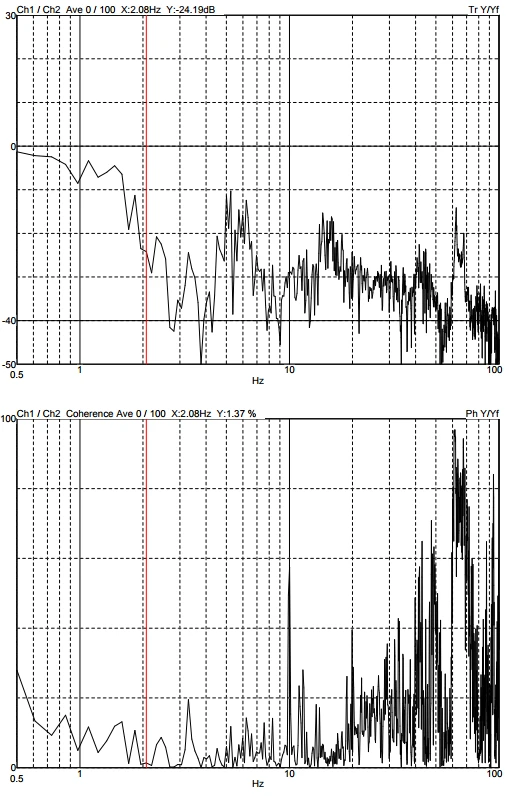

Y axis
