Installation Report
DVIA-M Series
03-02-2021
Tsinghua University Thermo Fisher Scientific Aquilos DVIA-MB1000 (201229R2 · P203) Remote tuning worksheet — Internal program plots — 2021.03.02
DVIA-M Series
Installation Report
DVIA-MB1000
201229R2
Thermo Fisher Scientific
Aquilos
Tsinghua University
Beijing
YIMO
Contents
(MB1000_201229R2(P203) Set up)
| Target equipment | Thermofisher Aquilos |
|---|---|
| Place of installation | Tsinghua University |
| Remark | Good Performance |
| END USER | Tsinghua University |
| Operator: Doohyun Kim | Date of business trip : 17.12.27~17.12.29 |
| Date of setup : 21.03.02 | Date of reporting : 21.03.02 |
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date: 21.03.02 (TUE)
Operator: Daeil System, Research engineer Doohyun Kim
Place of measurement : Tsinghua University
Equipment Model: Thermofisher Aquilos
Measurement conditions and results
Summary of measurement results
Test Condition
Transmissibility
| 2 Hz | 5 Hz | 10 Hz | |
|---|---|---|---|
| Z | -24 dB | -31 dB | -33 dB |
| X | -35 dB | -27 dB | -20 dB |
| Y | -24 dB | -26 dB | -22 dB |
Good omnidirectional performance.
MB1000 internal program performance measurement result

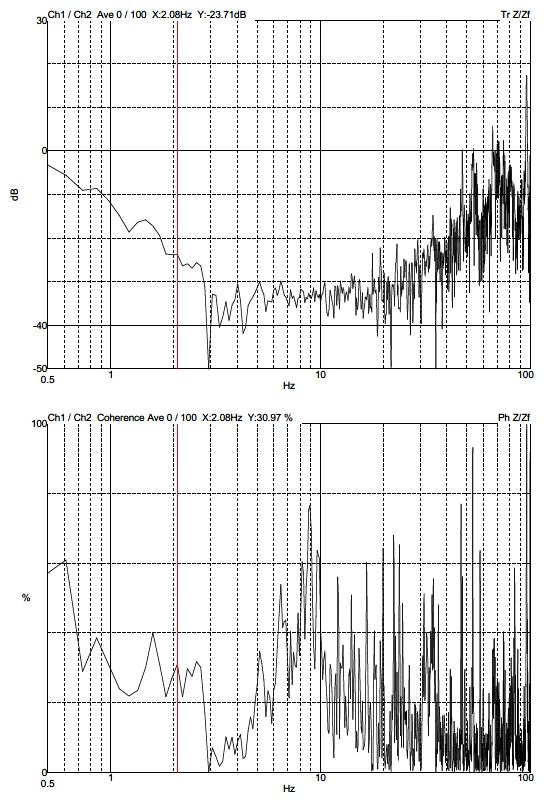

Z axis

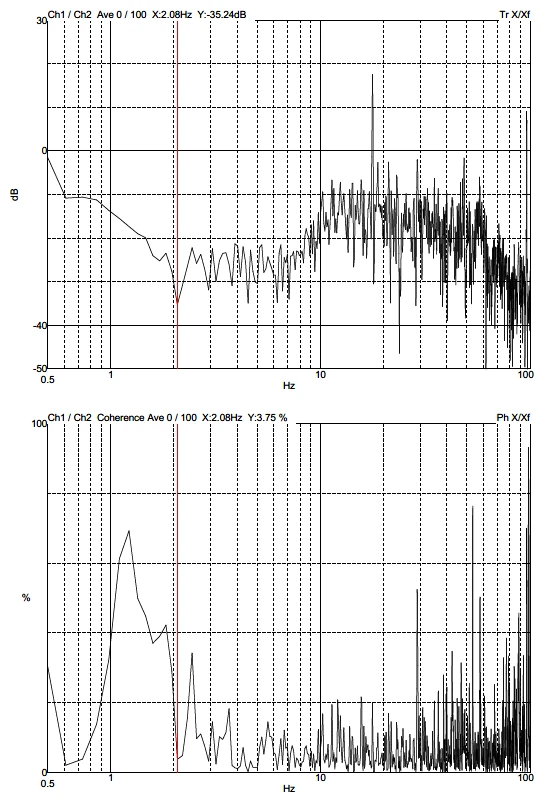

X axis

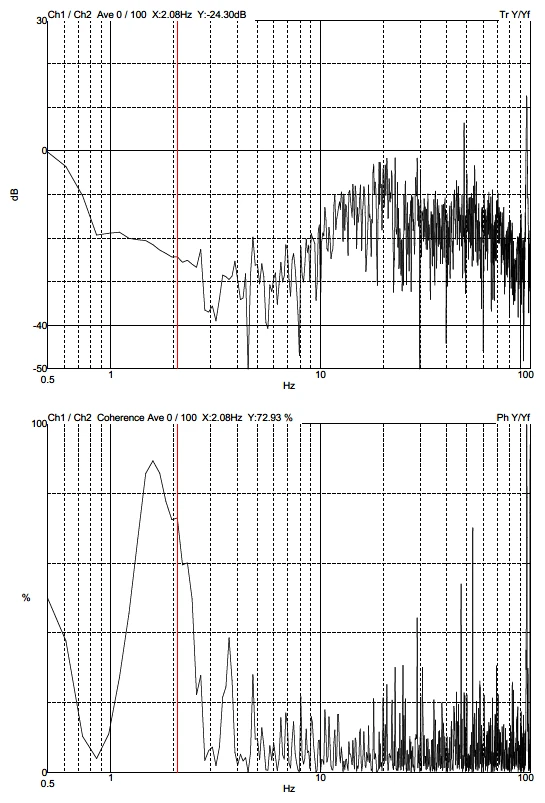

Y axis
