POSTECH Scienta Omicron PEEM DVIA-U700 (P18) Replacement Installation Report — Pohang

DVIA-U Series

Installation Report

POSTECH

Pohang

Scienta Omicron

PEEM

DVIA-U700

P18

RIST

POSTECH U700 P18

포항공대_U700_ P18

Site checklist

Target equipment	Scienta Omicron-IEF/TOF PEEM
Place of installation	Rist 본부 1층
Remark	Good Performance
END USER	포항공대 물리학과

Operator and dates

Operator: Choi, Hyoung Mun Date of setup : 20.12.18 Date of reporting : 20.12.23	Date of business trip : 17.12.27~17.12.29

Overview

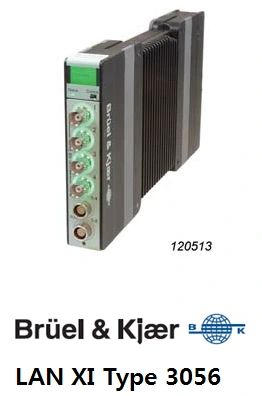

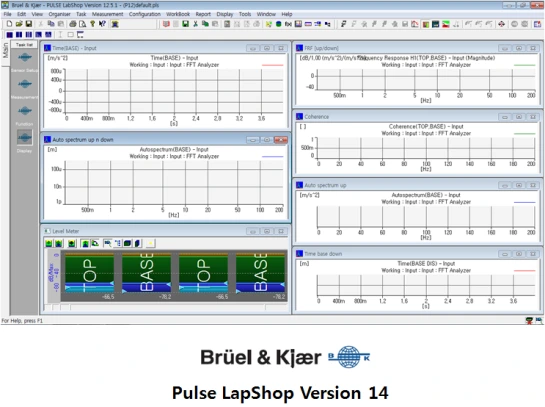

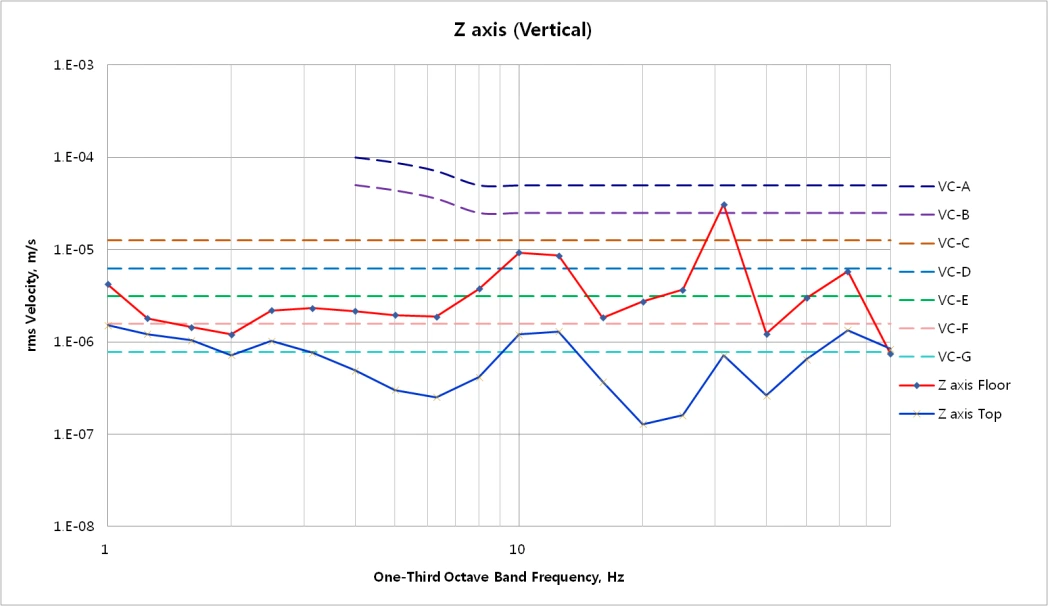

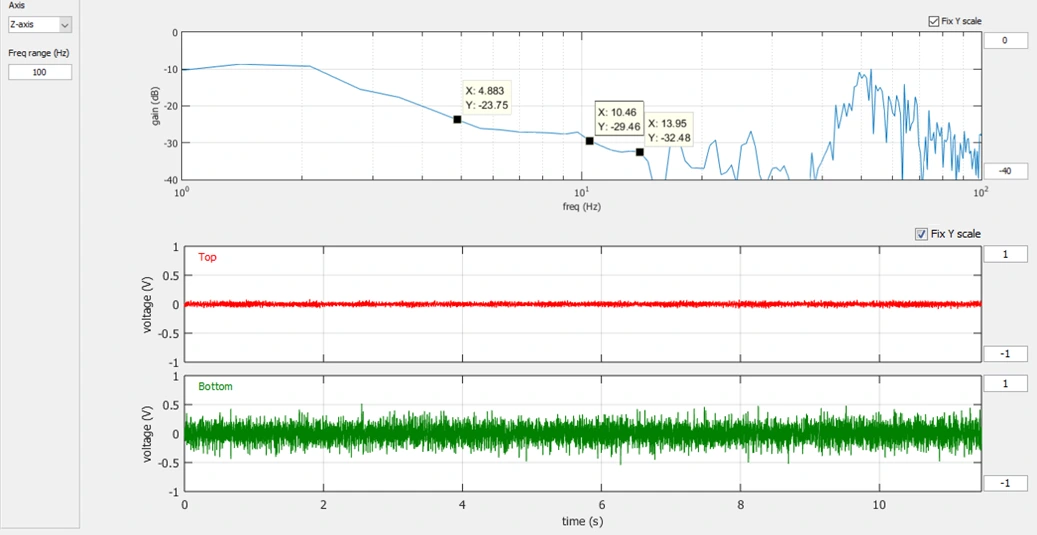

Overview After Active mounting, measure the vibration environment to check that there is no problem in using the equipment. Measurement date: 2020.12.18 (Fri), Operator: Daeil System, Manager Choi, Hyoung Mun Place of measurement : Rist 본부 1층 Equipment Model: Scienta Omicron-IEF/TOF PEEM Measurement conditions and results - DAQ System : B&K PULSE 14 & LAN-XI Type 3056 - Accelerometer : PCB PIEZOTRONICS 393B05 - Frequency Range : 0.7 ~ 200Hz
