Installation Report
DVIA-M Series
04-21-2021
Novartis Thermo Fisher Scientific Glacios DVIA-MB3000 (201012R5) Installation Report — 2021.04.21
DVIA-M Series
Installation Report
Novartis
Thermo Fisher Scientific
Glacios
DVIA-MB3000
201012R5
VEC
Contents

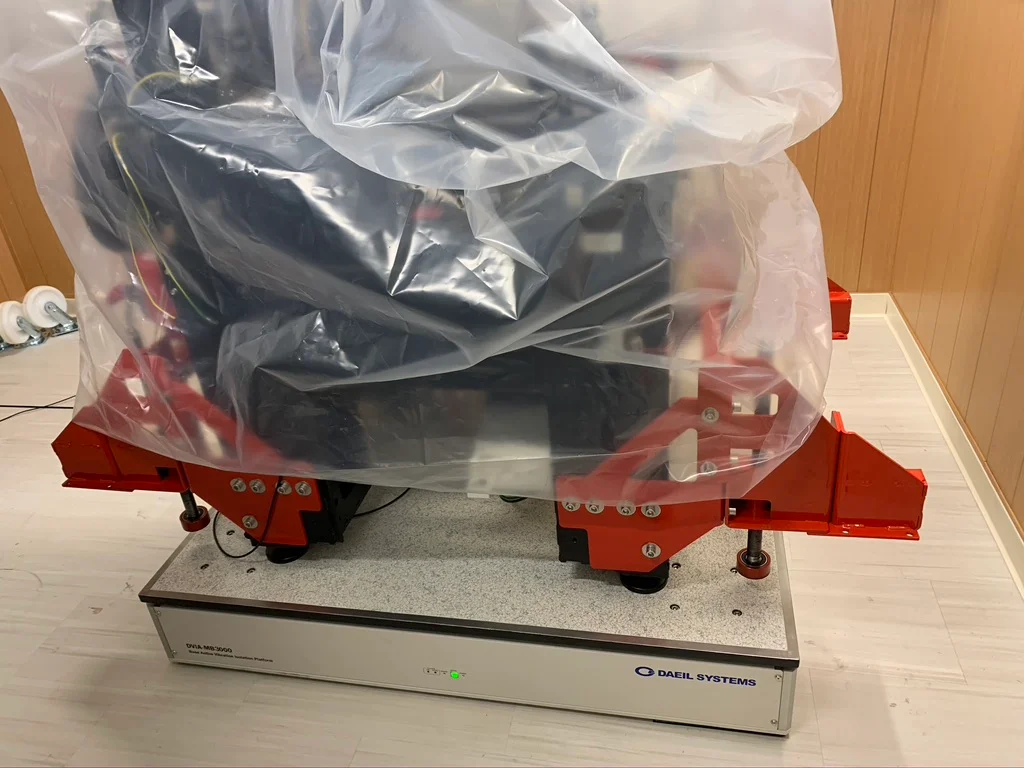

Equipment photograph
Target equipment
TFS Glacios
Place of installation
Novartis, MA
Remark
Good Performance
END USER
Novartis
Operator:
Doohyun Kim
Date of setup :
21.04.21
Date of reporting :
21.04.22
Date of business trip :
17.12.27~17.12.29
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date:
21.04.21 (Wed)
Operator:
Daeil System, Research engineer Doohyun Kim
Place of measurement :
Novartis, MA
Equipment Model:
TFS Glacios
Measurement conditions and results
Summary of measurement results
| Test Condition | 2 Hz | 5 Hz | 10 Hz |
|---|---|---|---|
| Transmissibility — Z | -16 dB | -23 dB | -30 dB |
| Transmissibility — X | -23 dB | -15 dB | -25 dB |
| Transmissibility — Y | -30 dB | -25 dB | -26 dB |
| Test Condition | Floor | Top Plate | |
| VC Class — Z | D | F | |
| VC Class — X | G | G | |
| VC Class — Y | G | G |
Good omnidirectional performance.
MB1000 internal program performance measurement result

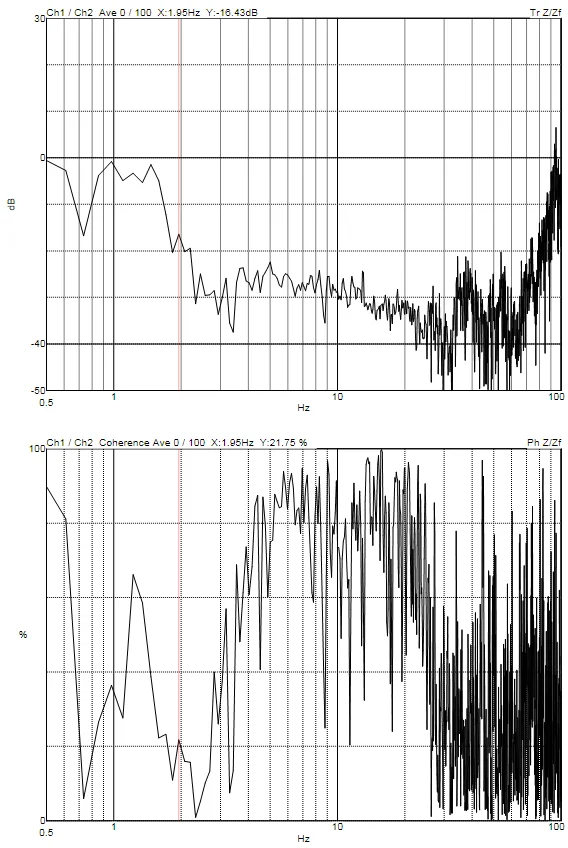

Z axis

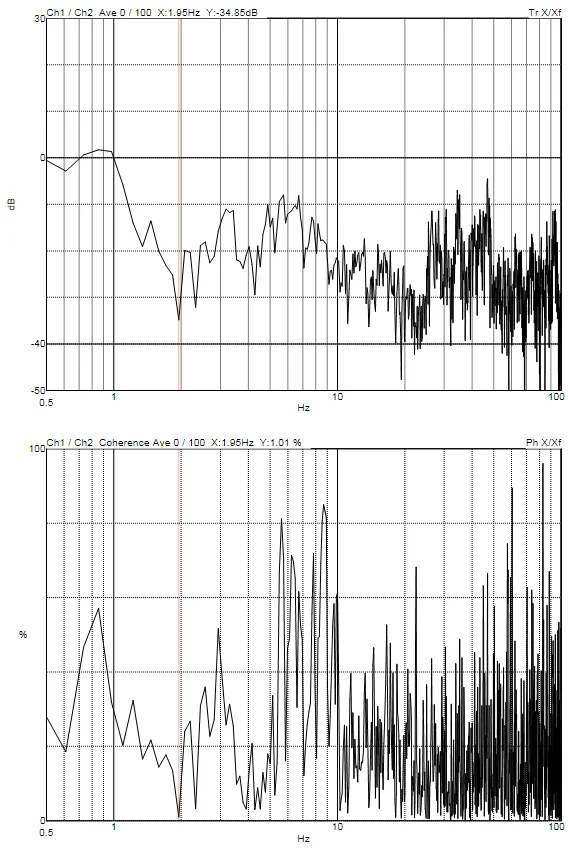

X axis

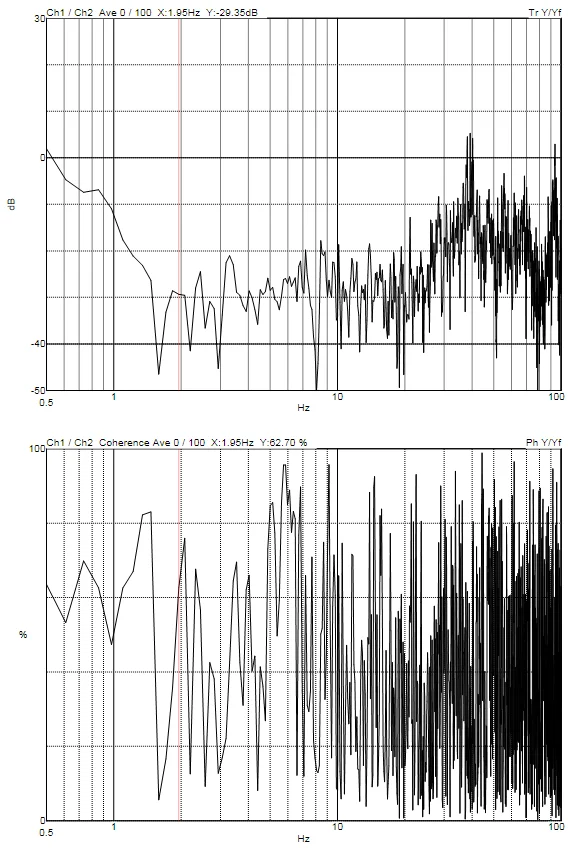

Y axis
VEC Measurement Data

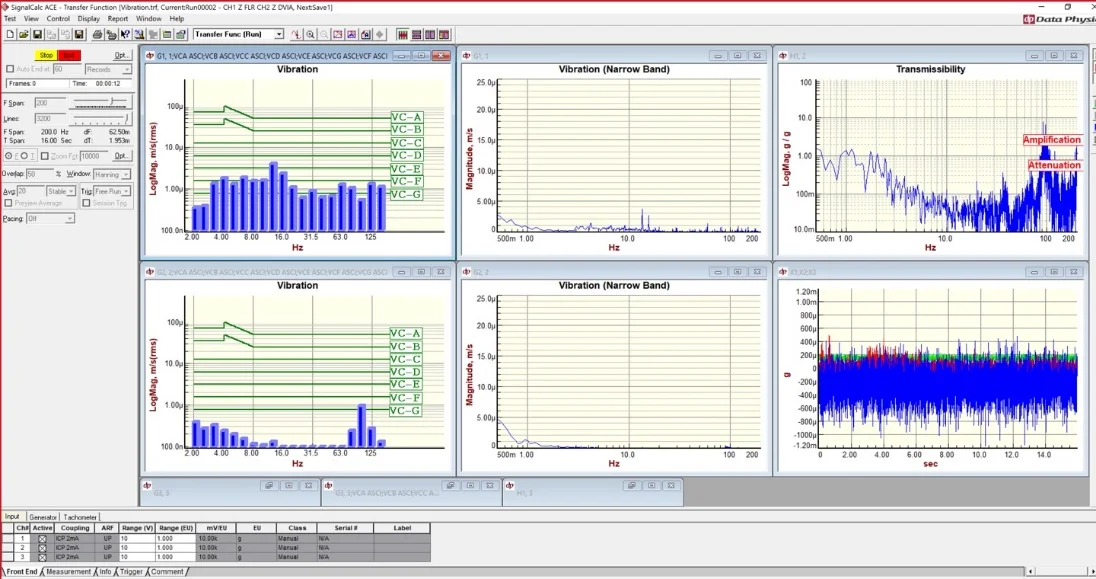

Z Axis

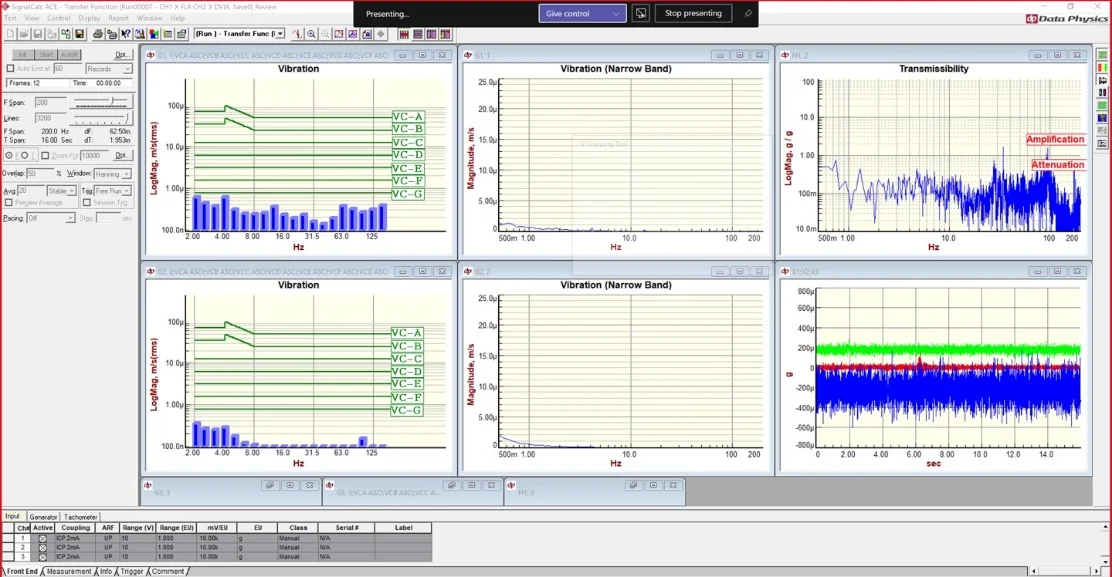

X Axis

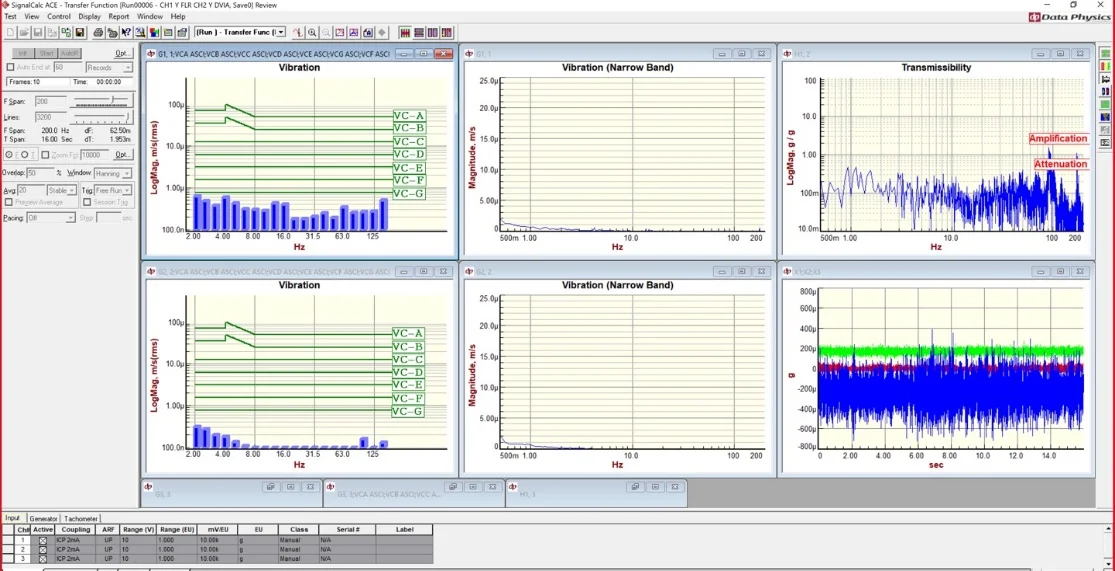

Y Axis
Share this Case Study
Case Study Information
Category
Installation Report
SeriesDVIA-M Series
Date04-21-2021
Tags
DVIA-M Series
Installation Report
Novartis
Thermo Fisher Scientific
Glacios
DVIA-MB3000
201012R5
VEC
Related Case Studies
DVIA-M Series
Seoul National University Thermo Fisher Scientific Glacios DVIA-MB1000 (210121R5) Installation Report
03-31-2026Read more
DVIA-M Series
Changping P3 Laboratory Thermo Fisher Scientific Cryo-TEM Krios G4 DVIA-MB3000 (250708R5-1) Installation Report — November 5, 2025
11-05-2025Read more
DVIA-M Series

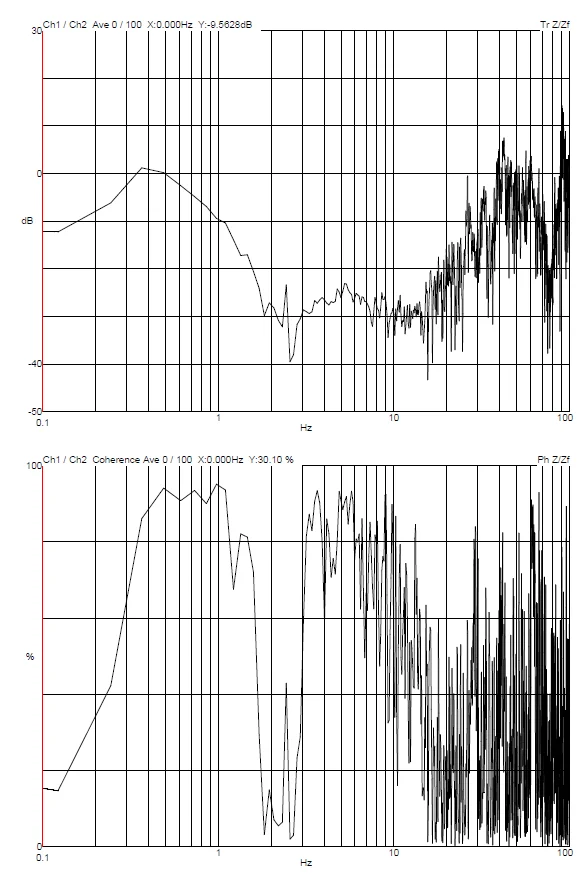

Hainan University Thermo Fisher Spectra Ultra DVIA-MB3000 (231004R3-3) Installation Report
