Installation Report
DVIA-M Series
05-12-2021
YIMO ThermoFisher Talos DVIA-MB3000 (200810R1) Installation Worksheet — 2021.05.12
DVIA-M Series
Installation Report
YIMO
Thermo Fisher
Talos
DVIA-MB3000
200810R1
Contents
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date: 21.05.11 (Tue)
Operator: Daeil System, Research engineer Munho Noh
Place of measurement :

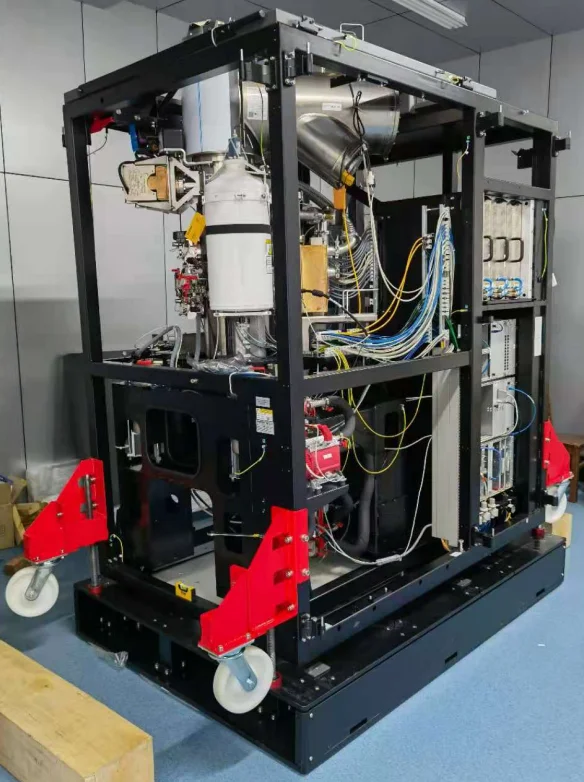

Equipment Model: ThermoFisher-Talos
Vibration Isolation System Information
Model: DVIA-MB3000 (P11)
Serial Number: 200810R1
Engineer
Munho Noh
Date of setup
21.05.11
Date of reporting
21.05.12
Date of business trip
17.12.27~17.12.29
End user
N/A
Place of installation
N/A
Remark
Good Performance
Target equipment
ThermoFisher-Talos
Measurement conditions and results
Summary of measurement results
Transmissibility
| 2 Hz | 5 Hz | 10 Hz | |
|---|---|---|---|
| Z | -23 dB | -28 dB | -24 dB |
| X | -22 dB | -34 dB | -29 dB |
| Y | -22 dB | -30 dB | -27 dB |
Good omnidirectional performance.
MB1000 internal program performance measurement result

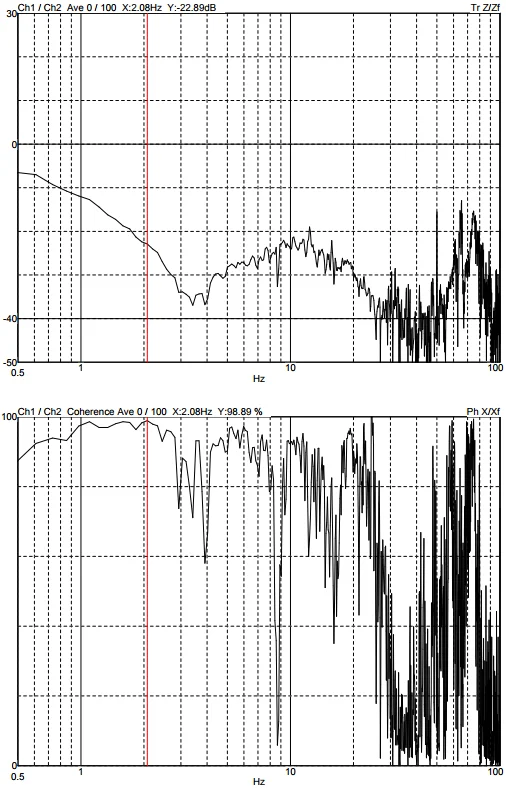

Z axis

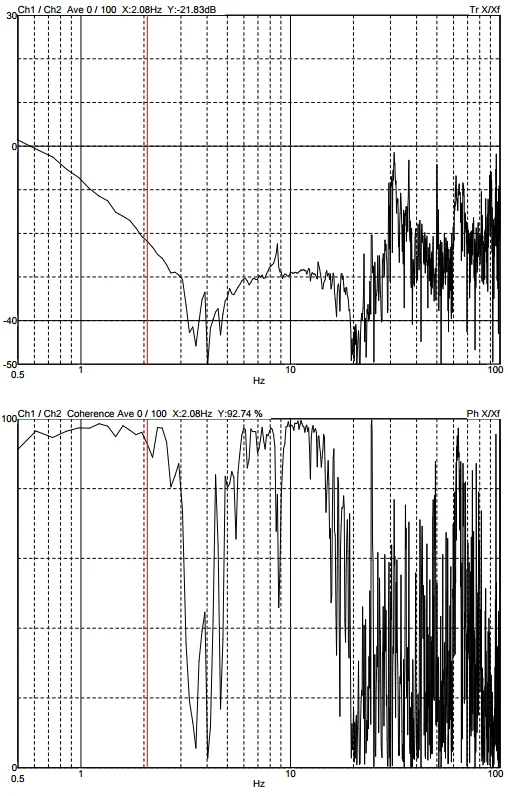

X axis

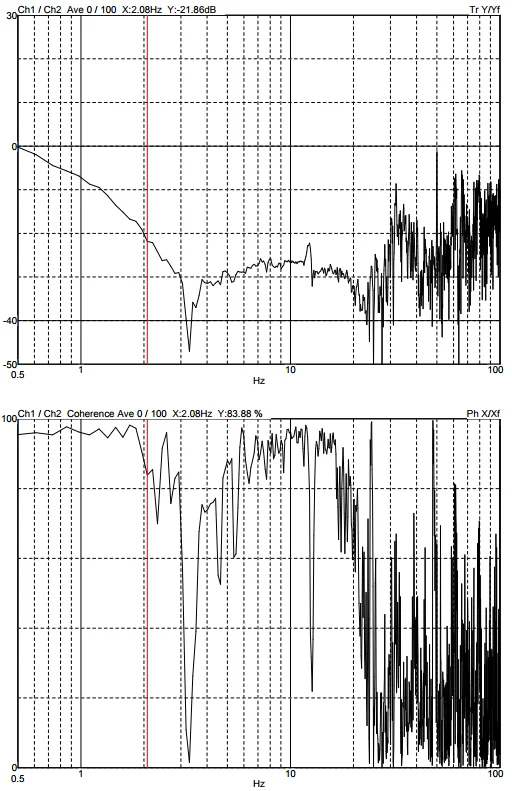

Y axis
