Installation Report
DVIA-M Series
08-07-2020
Helios NanoLab G3Uc DVIA-MB1000 (P142 / 190916R4) Internal program performance — 2020.08.07
DVIA-M Series
Installation Report
DVIA-MB1000
Thermo Fisher Scientific
Helios NanoLab
G3Uc
internal program performance
P142
190916R4
Contents
MB1000 P142 190916R4
| Target equipment | Helios NanoLab G3Uc |
|---|---|
| Place of installation | N/A |
| Remark | Good Performance |
| END USER | N/A |
| Operator: Choi, HyoungMun | Date of business trip : 17.12.27~17.12.29 |
| Date of setup : 20.08.06 | |
| Date of reporting : 20.08.07 |
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date: 20.08.06 (Tue),
Operator: Daeil System, Manager HyoungMun, Choi
Place of measurement : N/A
Equipment Model: Helios NanoLab G3Uc
Measurement conditions and results
Summary of measurement results
Test Condition
VC-Class
Z
X
Y
Floor
Above Active
Good omnidirectional performance.
MB1000 internal program performance measurement result

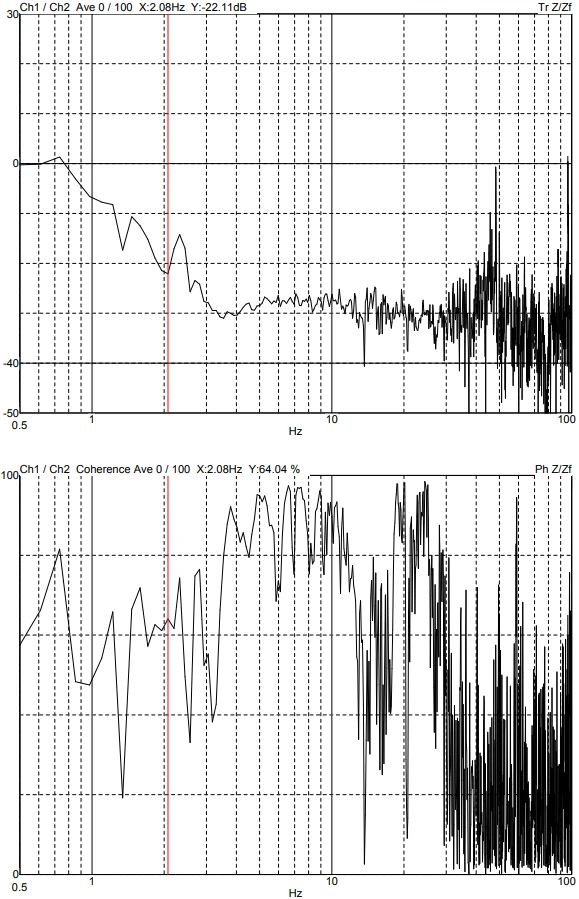

Z axis

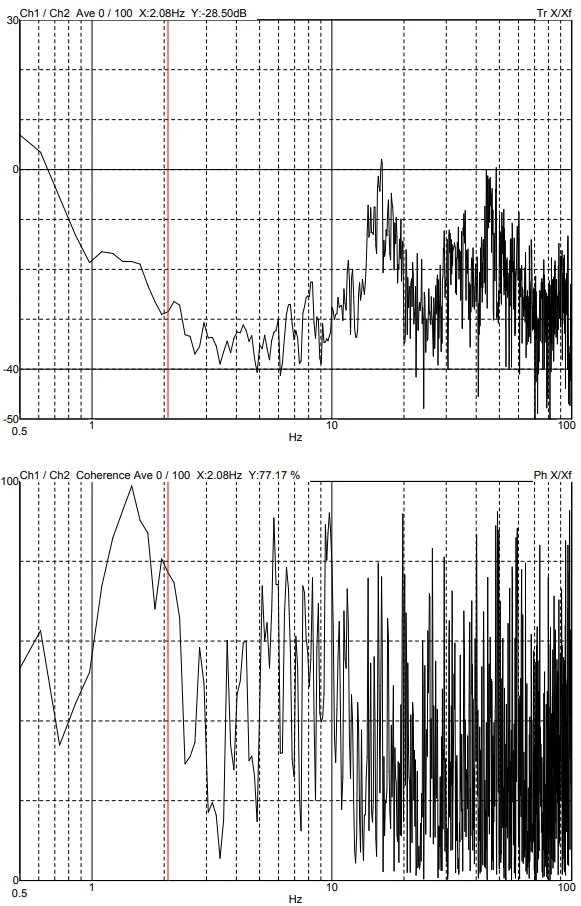

X axis

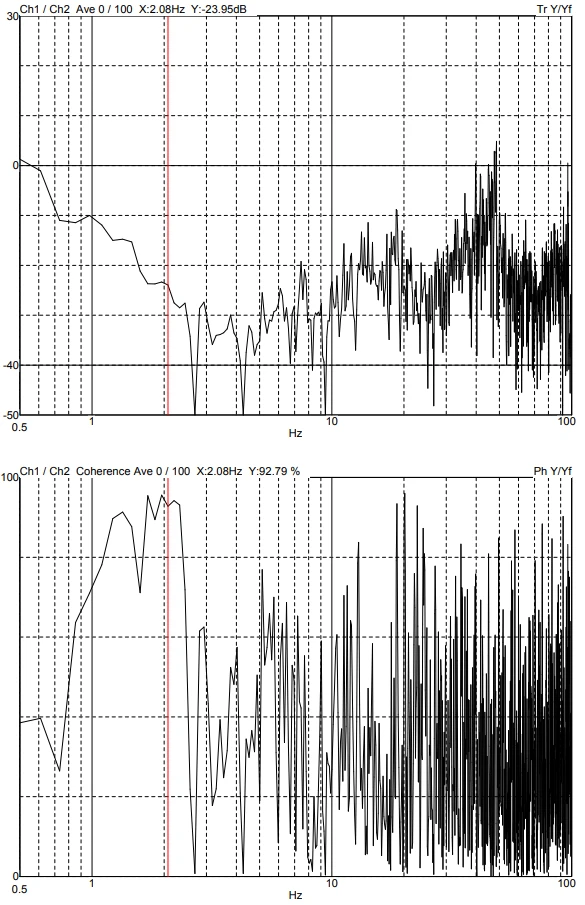

Y axis
