Installation Report
DVIA-M Series
07-23-2020
MB1000 P144 (190801R7) worksheet — setup and reporting 2020-07-23
DVIA-M Series
Installation Report
DVIA-MB1000
MB1000
P144
190801R7
Contents
(MB1000 P144 190801R7)
| Target equipment | N/A |
|---|---|
| Place of installation | N/A |
| Remark | Good Performance |
| END USER | N/A |
| Operator: Choi, HyoungMun | Date of business trip : 17.12.27~17.12.29 |
| Date of setup : 20.07.23 | |
| Date of reporting : 20.07.23 |
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date: 20.07.23 (THU),
Operator: Daeil System, Manager HyoungMun, Choi
Place of measurement : N/A
Equipment Model: N/A
Measurement conditions and results
Summary of measurement results
| Test condition | Z | X | Y |
|---|---|---|---|
| Floor | |||
| Above Active |
Good omnidirectional performance.
MB1000 internal program performance measurement result

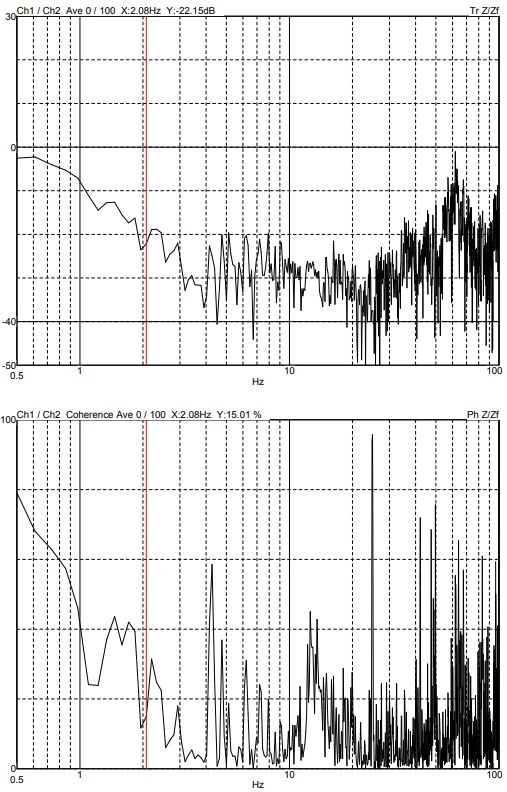

Z axis

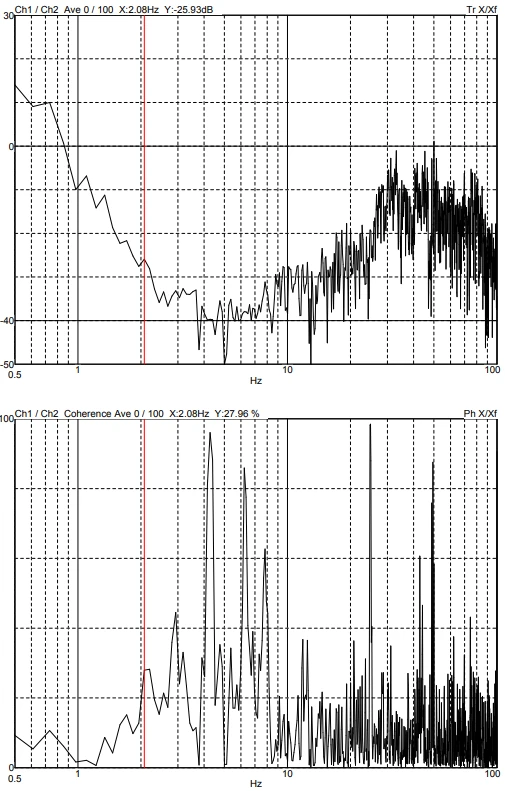

X axis

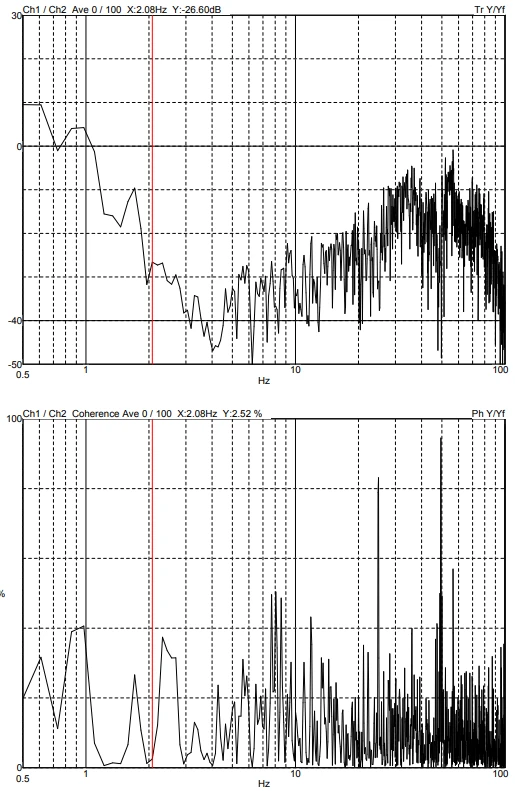

Y axis
