Installation Report
DVIA-M Series
05-18-2021
Apple THERMO FISCHER Quanta DVIA-MB1000 remote VEC (200722R4) Installation Report — 2021.05.18
DVIA-M Series
Installation Report
VEC
DVIA-MB1000
Apple
THERMO FISCHER
Quanta
Cupertino
200722R4
P195
remote
Contents

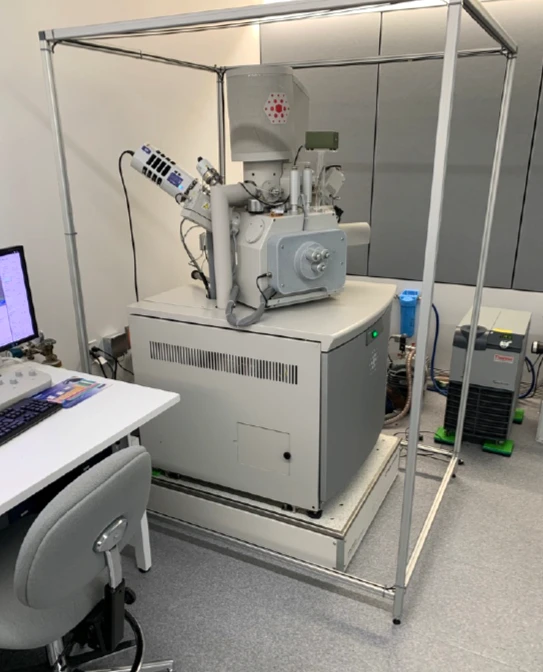

Equipment Picture
Target equipment
THERMO FISCHER Quanta
Place of installation
Cupertino, CA
Remark
Good Performance
END USER
APPLE
Operator
Operator: Doohyun Kim
Date of setup : 21.05.14
Date of reporting : 21.05.18
Date of business trip : 17.12.27~17.12.29
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date: 21.05.14 (FRI)
Operator: Daeil System, Research engineer Doohyun Kim
Place of measurement : Cupertino, CA
Equipment Model: THERMO FISCHER Quanta
Measurement conditions and results
Summary of measurement results
| Test Condition | Transmissibility | 2 Hz | 5 Hz | 10 Hz |
|---|---|---|---|---|
| Transmissibility | Z | -15 dB | -25 dB | -32 dB |
| X | -21 dB | -21 dB | -30 dB | |
| Y | -40 dB | -30 dB | -35 dB | |
| Test Condition | VC Class | Floor | Top Plate | |
| VC Class | Z | B | F | |
| X | D | G | ||
| Y | D | G |
Good omnidirectional performance.
MB1000 internal program performance measurement result

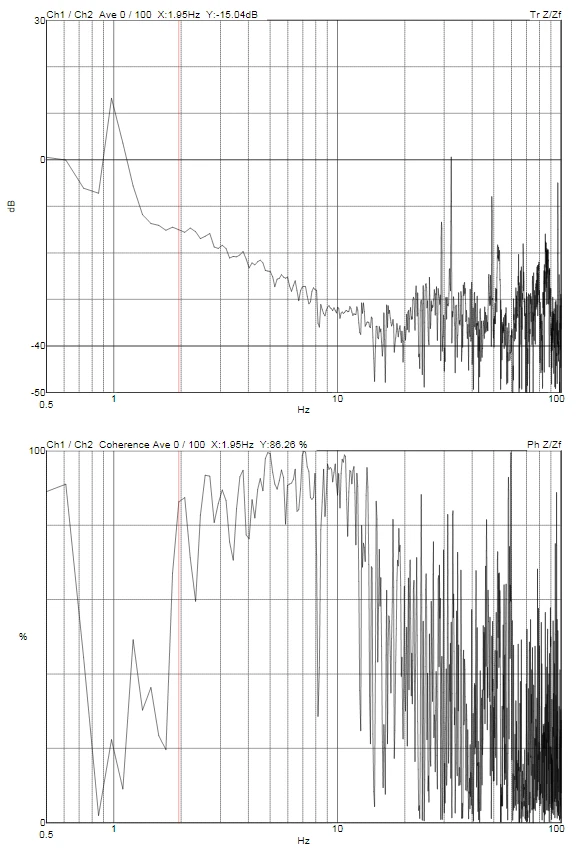

MB1000 internal program — Z axis

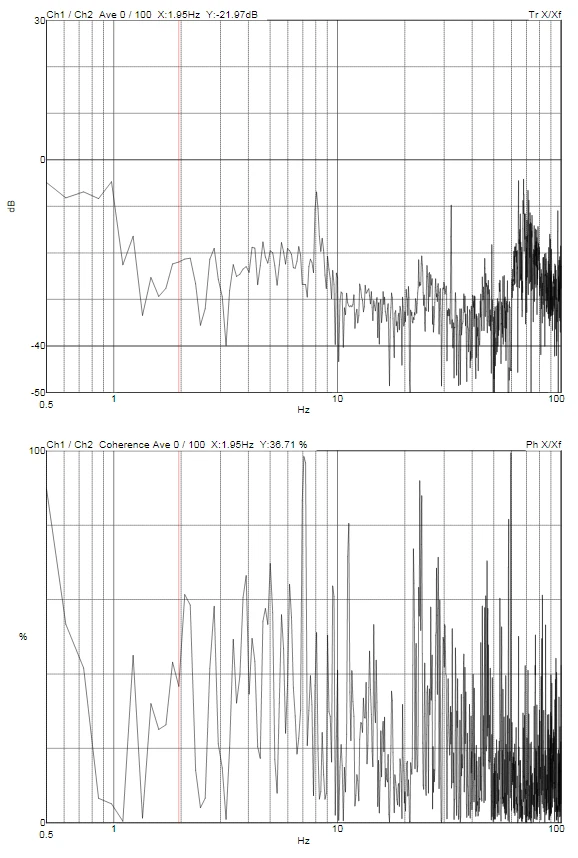

MB1000 internal program — X axis

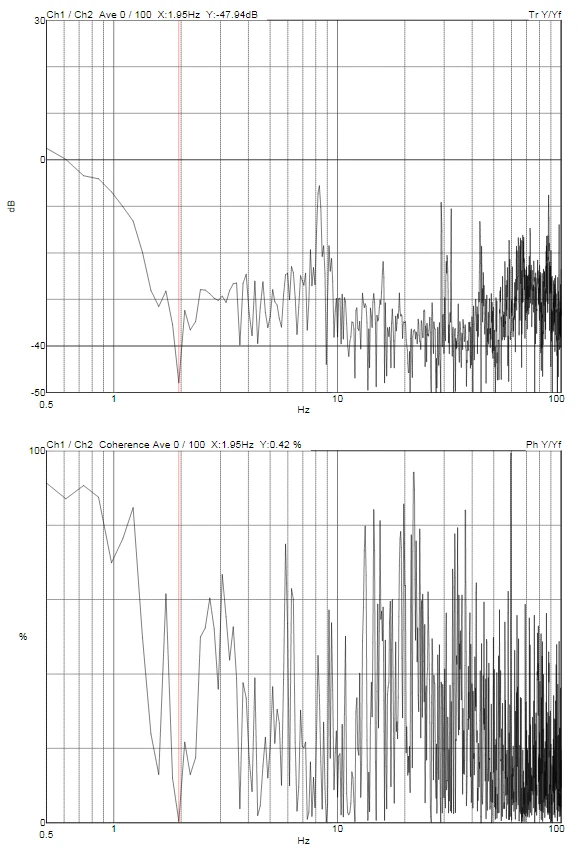

MB1000 internal program — Y axis
VEC Measurement Data

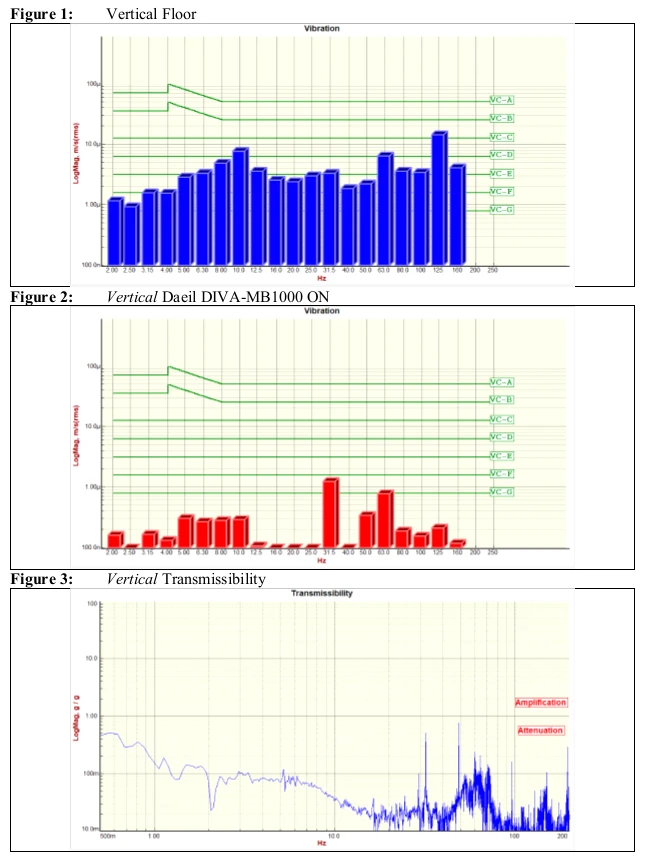

VEC Measurement Data — Z Axis

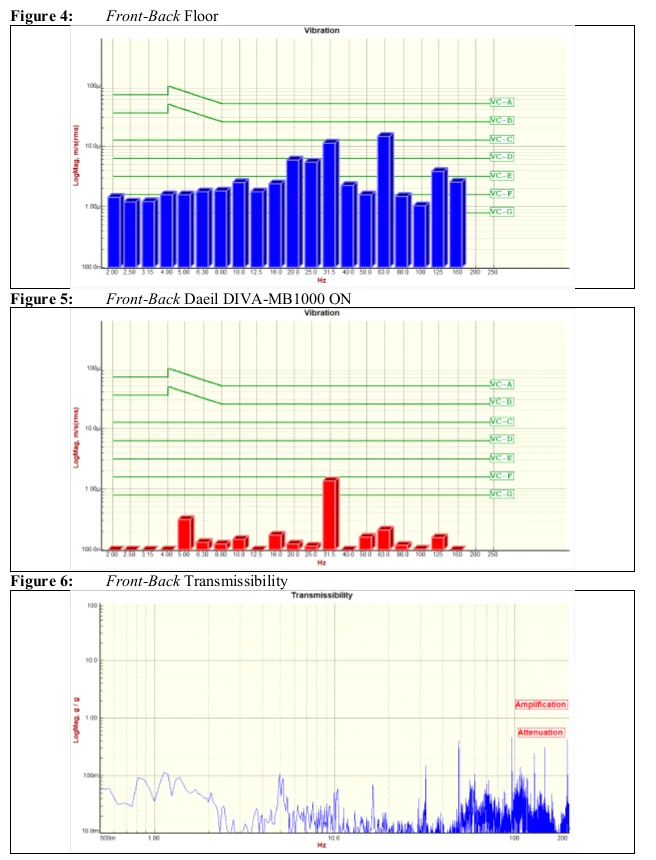

VEC Measurement Data — X Axis

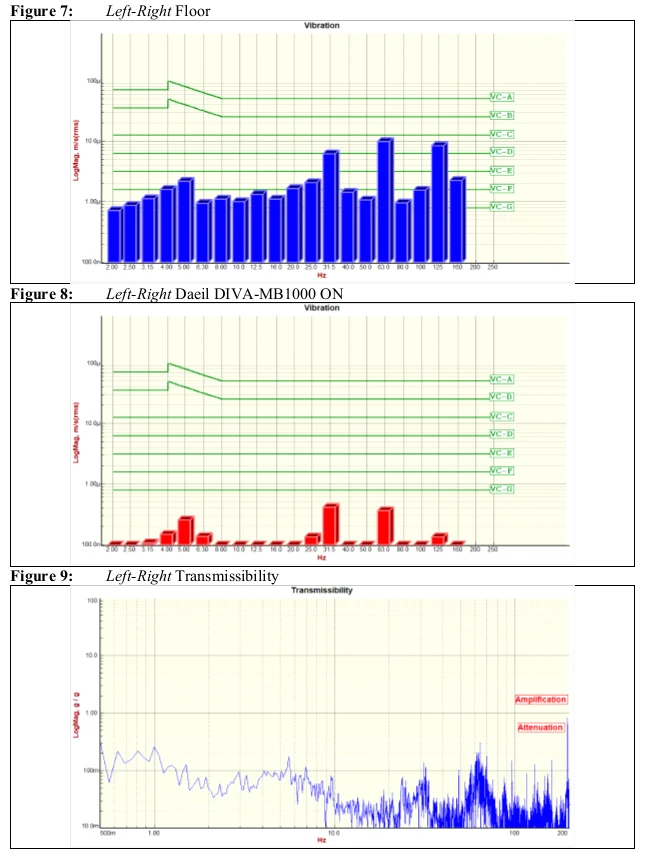

VEC Measurement Data — Y Axis
