Installation Report
DVIA-M Series
09-10-2020
Shandong Lanxiang Zeiss Evo 18 DVIA-MB1000 (200522R7 · P163) Remote measurement — Internal program plots — 2020.09.10
DVIA-M Series
Installation Report
DVIA-MB1000
200522R7
Zeiss
Evo 18
Shandong
YIMO
Contents
(MB1000_200522R7(P163) Set up)
| Target equipment | Zeiss Evo 18 |
|---|---|
| Place of installation | SHANDONG |
| Remark | Good Performance |
| END USER | 山东蓝翔 |
| Operator: Munho Noh | Date of business trip : 17.12.27~17.12.29 |
| Date of setup : 20.09.10 | Date of reporting : 20.09.10 |
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date: 20.09.10 (THU)
Operator: Daeil System, Research engineer Munho Noh
Place of measurement : Shangdong
Equipment Model: Zeiss EVO 18
Measurement conditions and results
Summary of measurement results
Test Condition
Transmissibility
| 2 Hz | 5 Hz | 10 Hz | |
|---|---|---|---|
| Z | -24.07 dB | -32.92 dB | -27.44 dB |
| X | -23.46 dB | -21.65 dB | -24.03 dB |
| Y | -21.48 dB | -23.73 dB | -43.64 dB |
Good omnidirectional performance.
MB1000 internal program performance measurement result

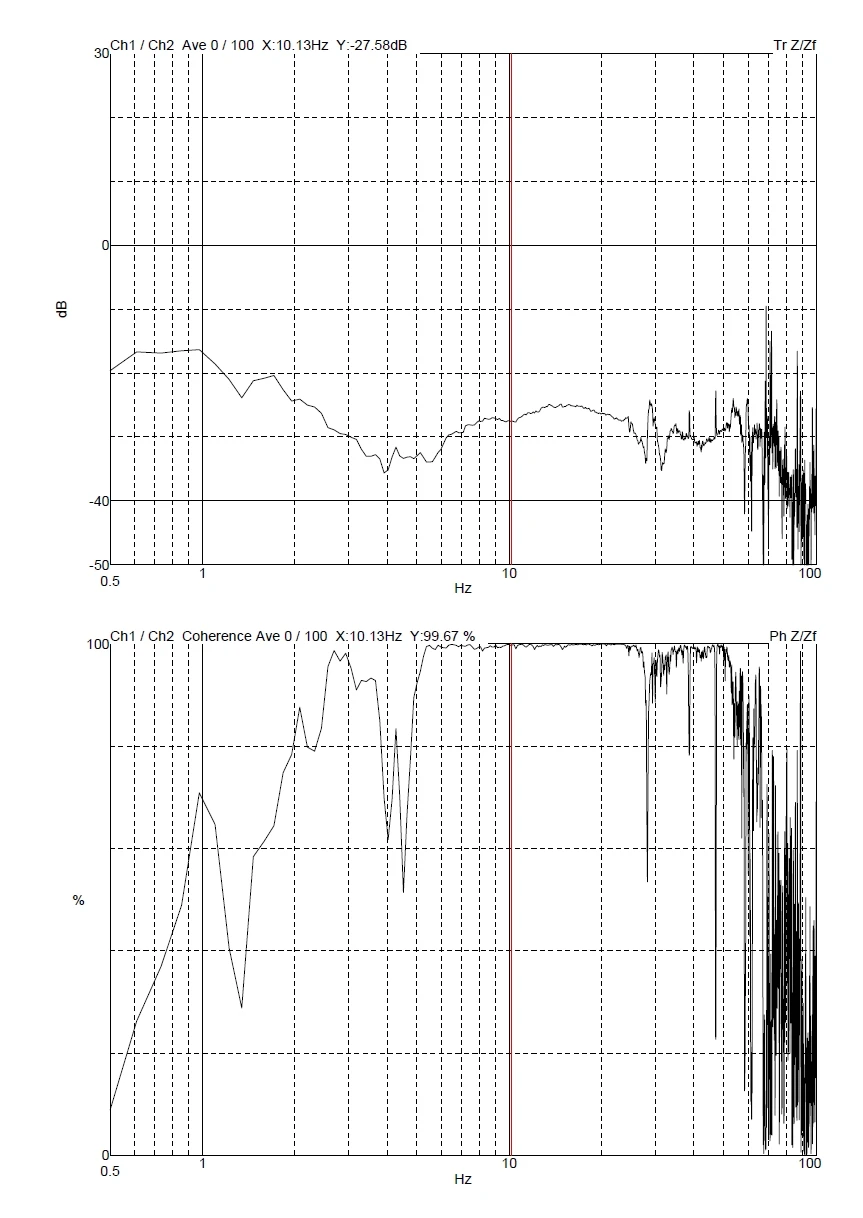

Z axis

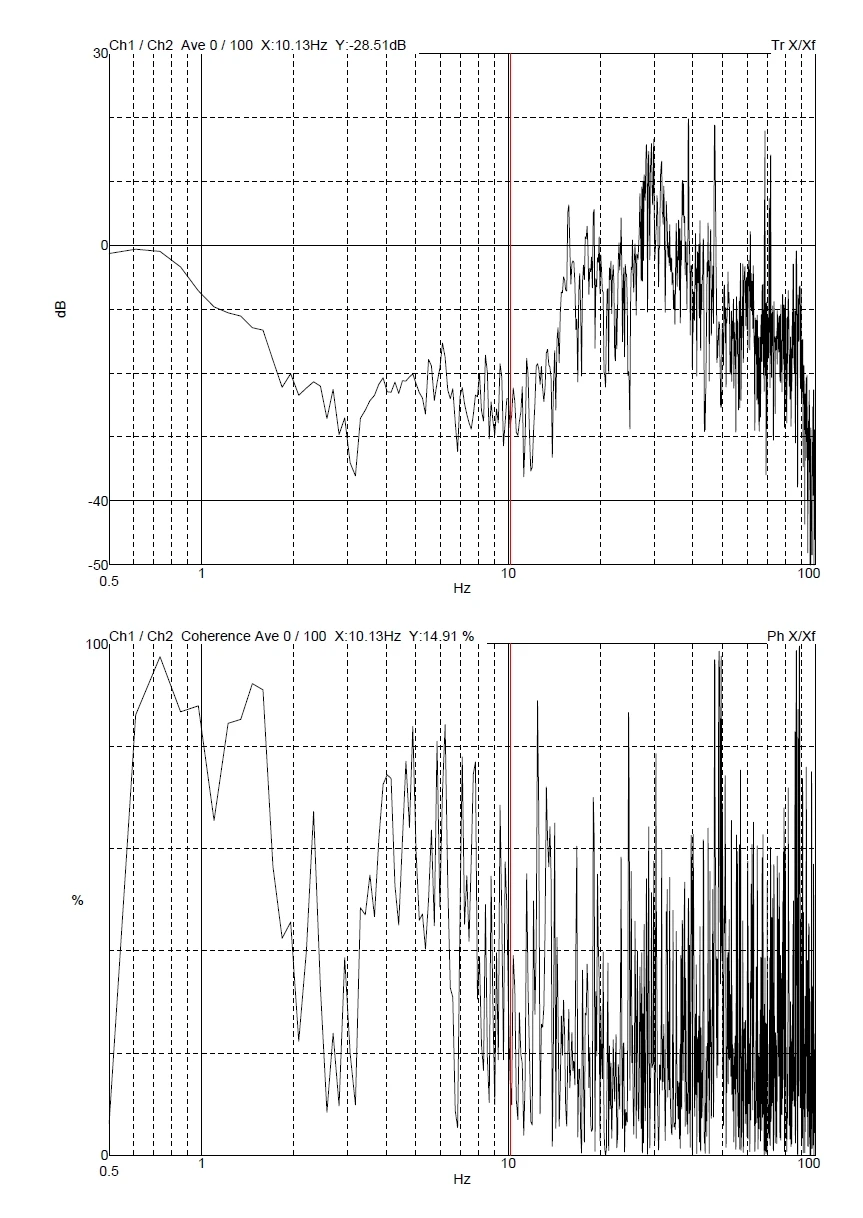

X axis

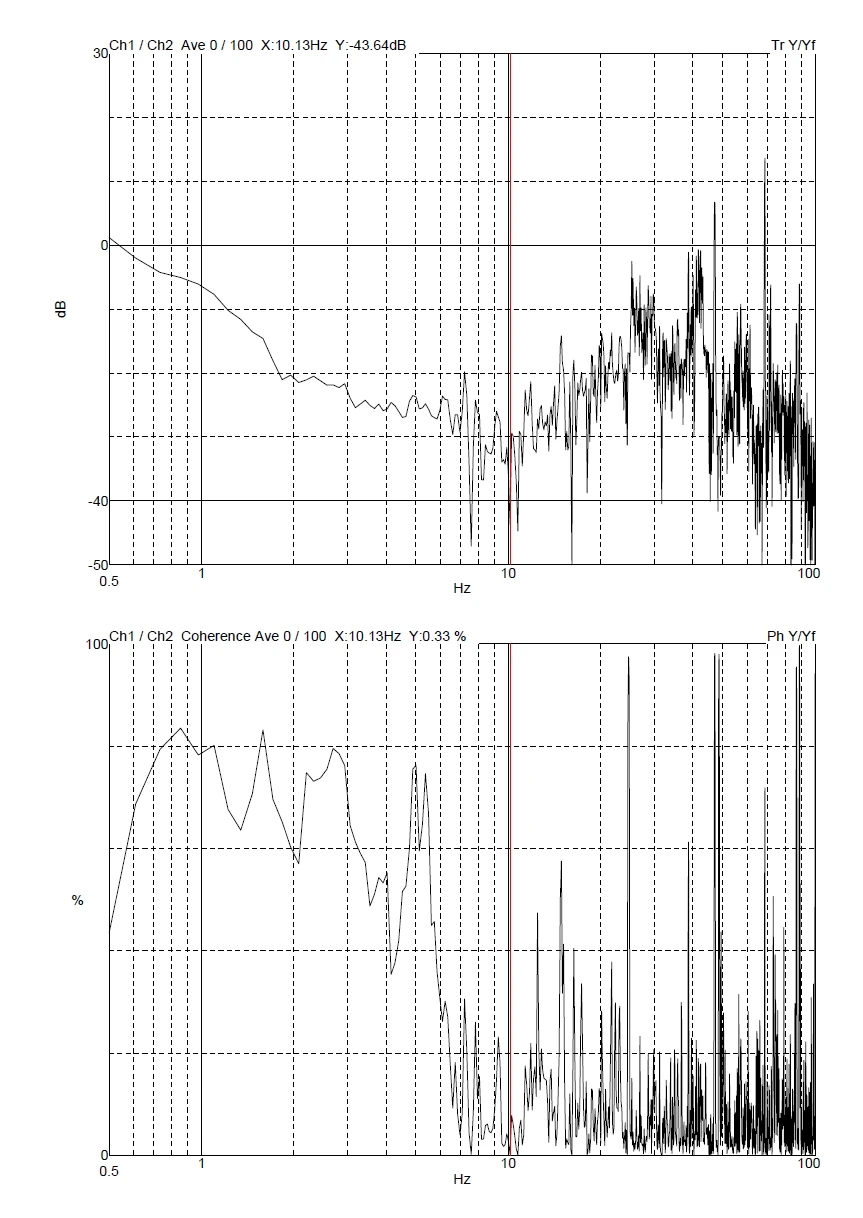

Y axis
