Installation Report
DVIA-M Series
04-23-2020
Modulesai In-House Equipment DVIA-MB1000 (P130) MB1000 Internal Program Performance — 2020.04.23
DVIA-M Series
Installation Report
Modulesai
DVIA-MB1000
P130
MB1000
Contents
(MB1000_P130 데모)
| Target equipment | 자체 개발장비 |
|---|---|
| Place of installation | 5층, 모듈싸이 연구소 |
| Remark | Good Performance |
| END USER | 모듈싸이 |
| Operator: Choi, Hyoung Mun | Date of business trip : 17.12.27~17.12.29 |
| Date of setup : 20.04.22 | Date of reporting : 20.04.23 |
Overview
Overview After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date: 2020.04.22 (Wed),
Operator: Daeil System, Manager Choi, Hyoung Mun
Place of measurement : 5층, 모듈싸이 연구소
Equipment Model: 자채 개발장비
Measurement conditions and results
Summary of measurement results
Test Condition
VC-Class
| Z | X | Y | |
|---|---|---|---|
| Floor | B | D | E |
| Above Active | G | G | G |
Good omnidirectional performance.
MB1000 internal program performance measurement result

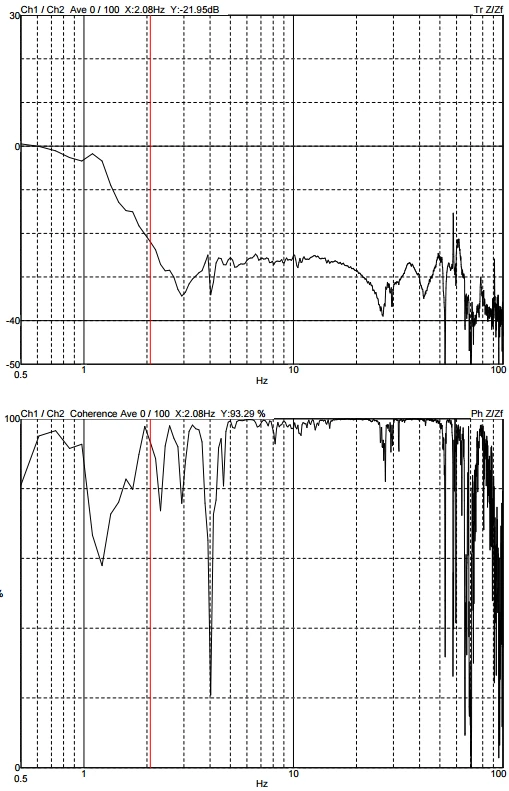

Z axis

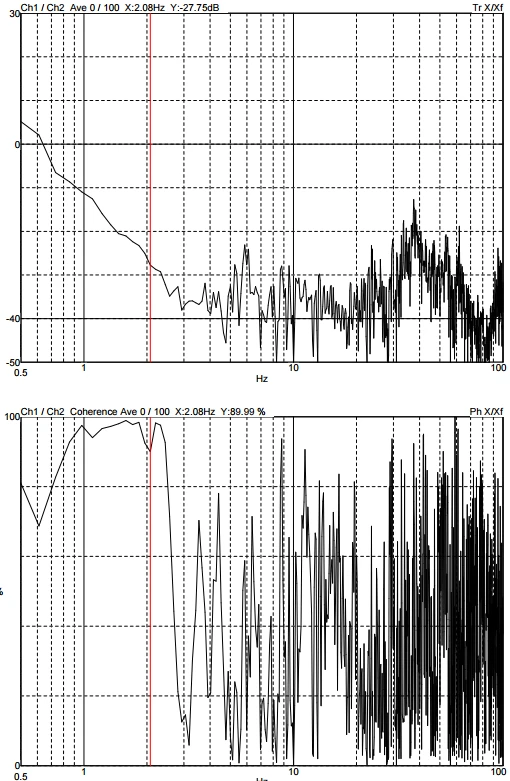

X axis

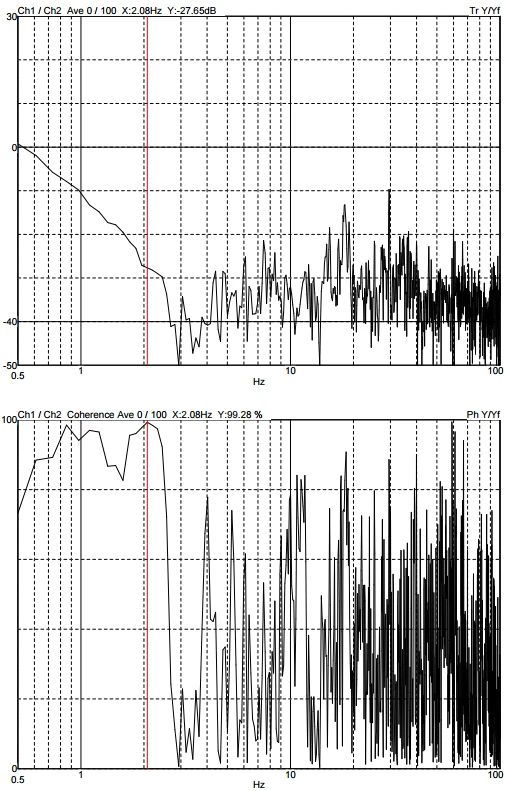

Y axis

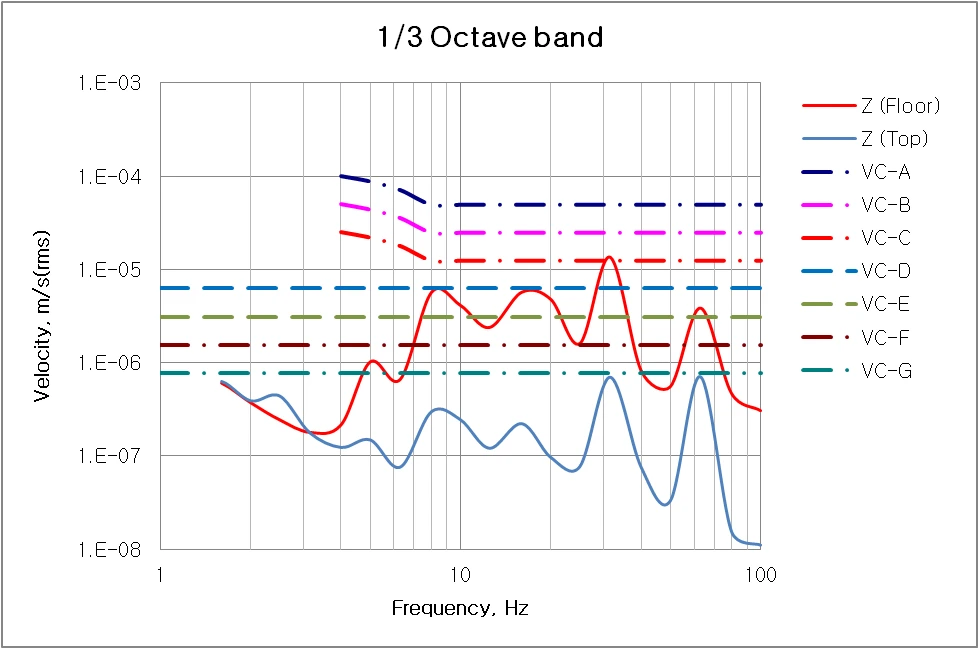

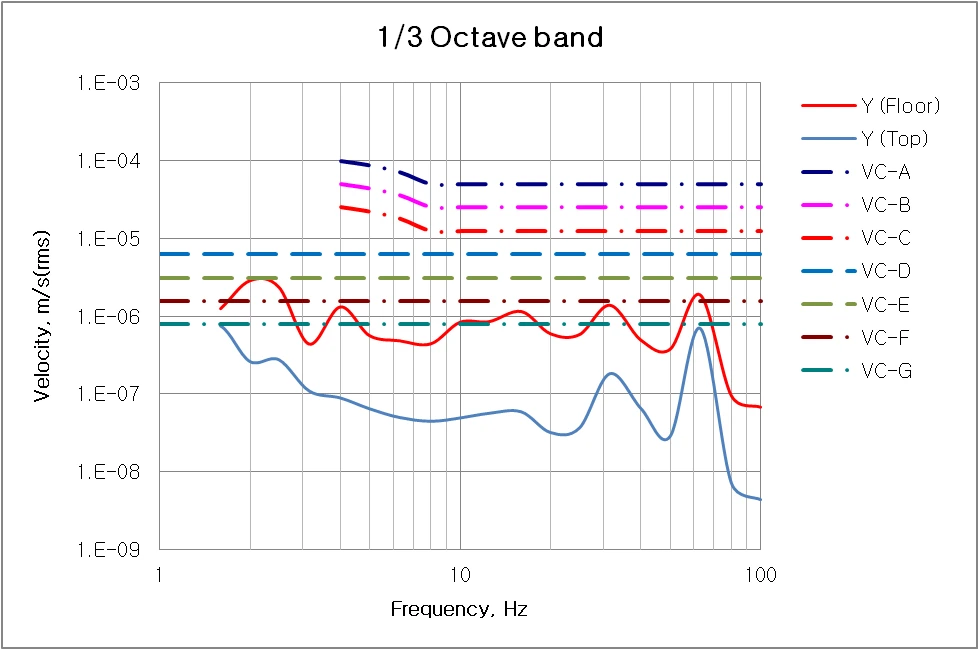

Octave Band Result (BASE: Floor, TOP: Above Active)
Z axis
X axis
Y axis

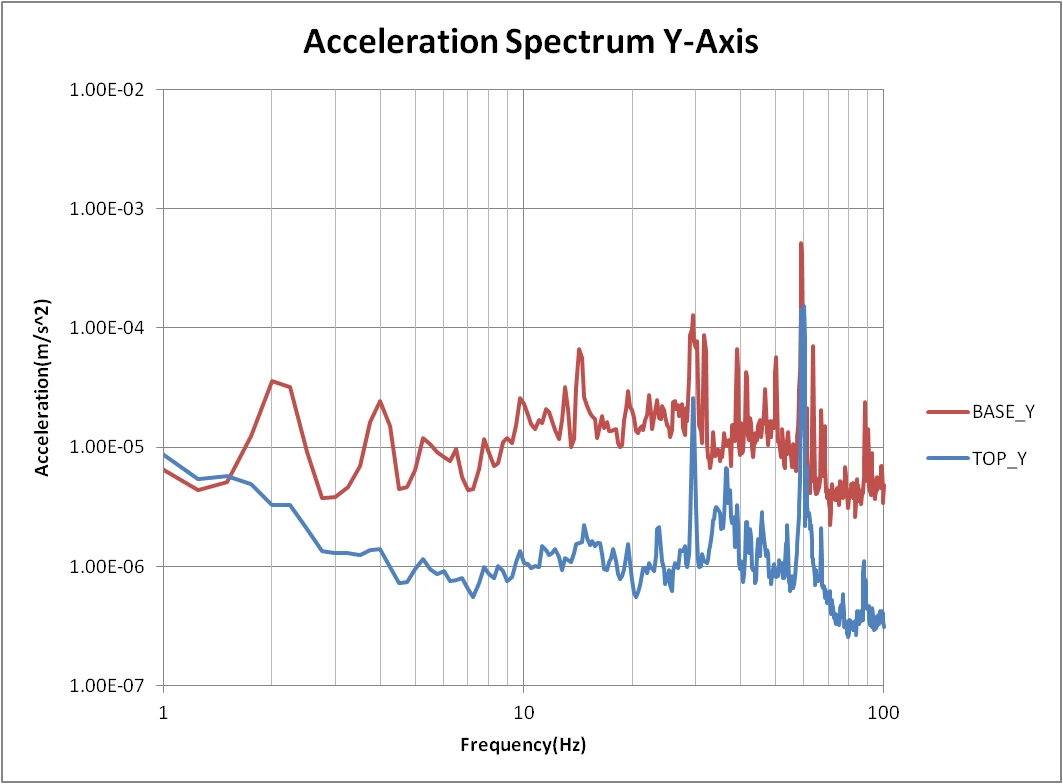

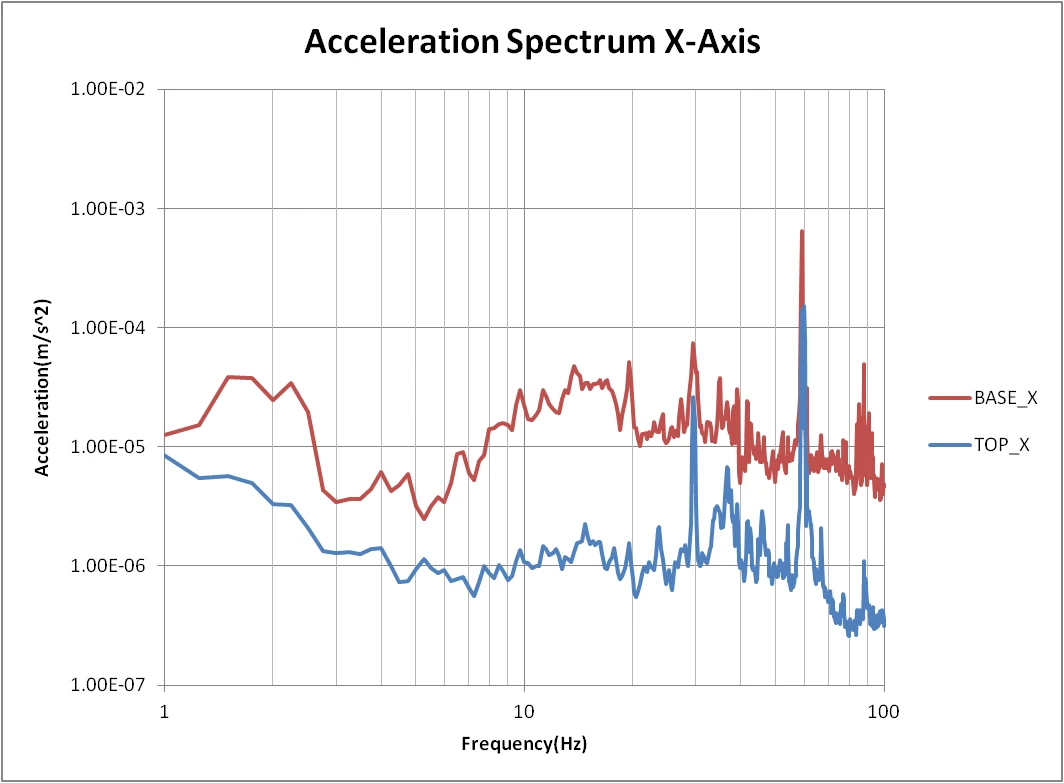

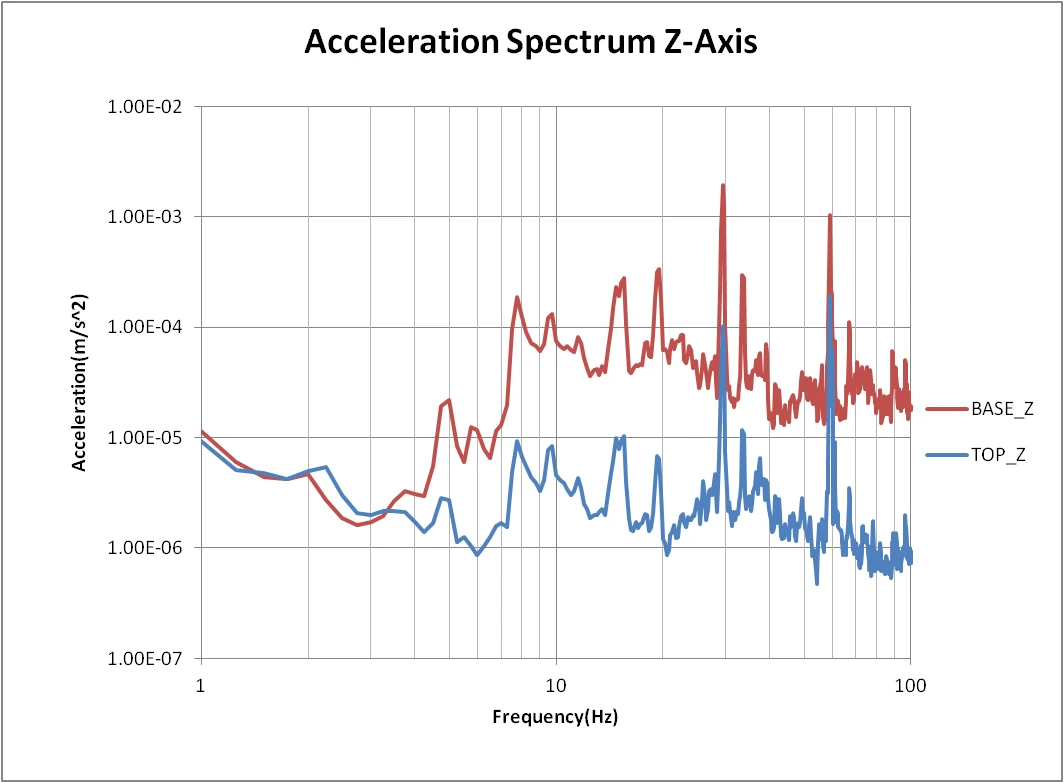

Auto Spectrum(BASE: Floor, TOP: Above Active)
Z axis
X axis
Y axis
