Installation Report
DVIA-M Series
05-14-2018
East China University of Science and Technology ZEISS Gemini500 DVIA-MB1000 (MB1000 P63) Internal program worksheet — 2018.05.14
DVIA-M Series
Installation Report
East China University of Science and Technology
ZEISS
Gemini500
DVIA-MB1000
MB1000
P63
Contents
(MB1000_P63 Set up)

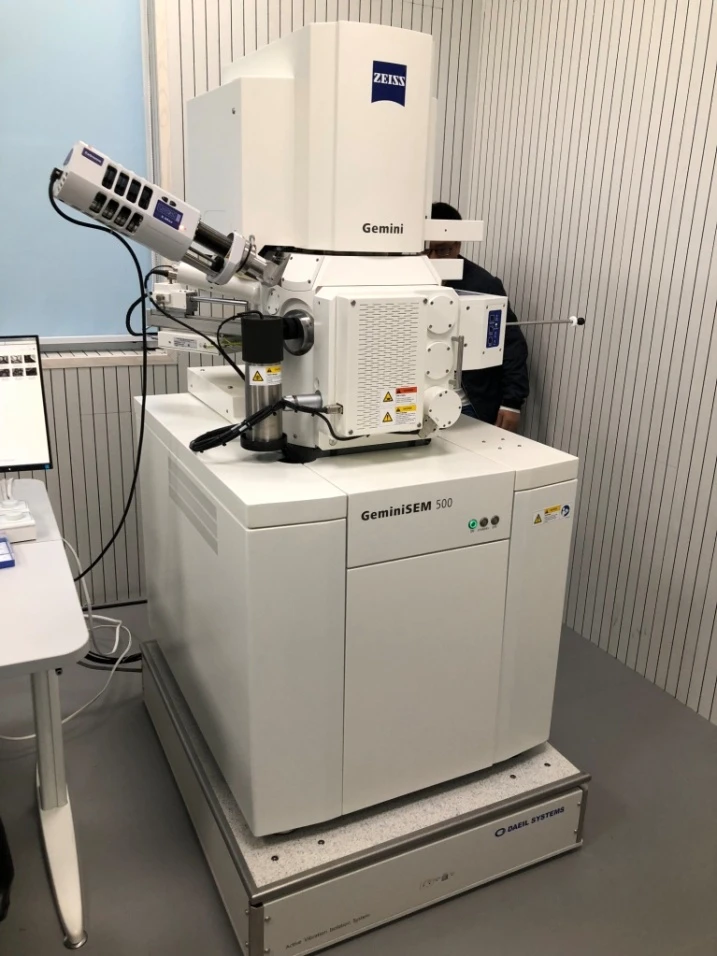

Installation photograph
| Target equipment | ZEISS-Gemini500 |
|---|---|
| Place of installation | East China University of Science and Technology |
| Remarks | Good performance |
| END USER | East China University of Science and Technology |
| Operator: Choi, Sung Won | Date of setup : 18.05.09 |
| Date of reporting : 18.05.14 |
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date
Measurement date: 2018.05.09 (Wednesday),
Operator
Operator: Daeil System, Manager Sung Won Choi
Place of measurement
Place of measurement : 1th Floor, East China Univercity of Science and Technology
Equipment Model
Equipment Model: ZEISS-Gemini500
Measurement conditions and results
Summary of measurement results
| Test Condition | VC-Class Z | VC-Class X | VC-Class Y |
|---|---|---|---|
| Floor | D | E | E |
| Above Active | G | G | G |
Good omnidirectional performance and attached VC-Class graph.
MB1000 internal program performance measurement result

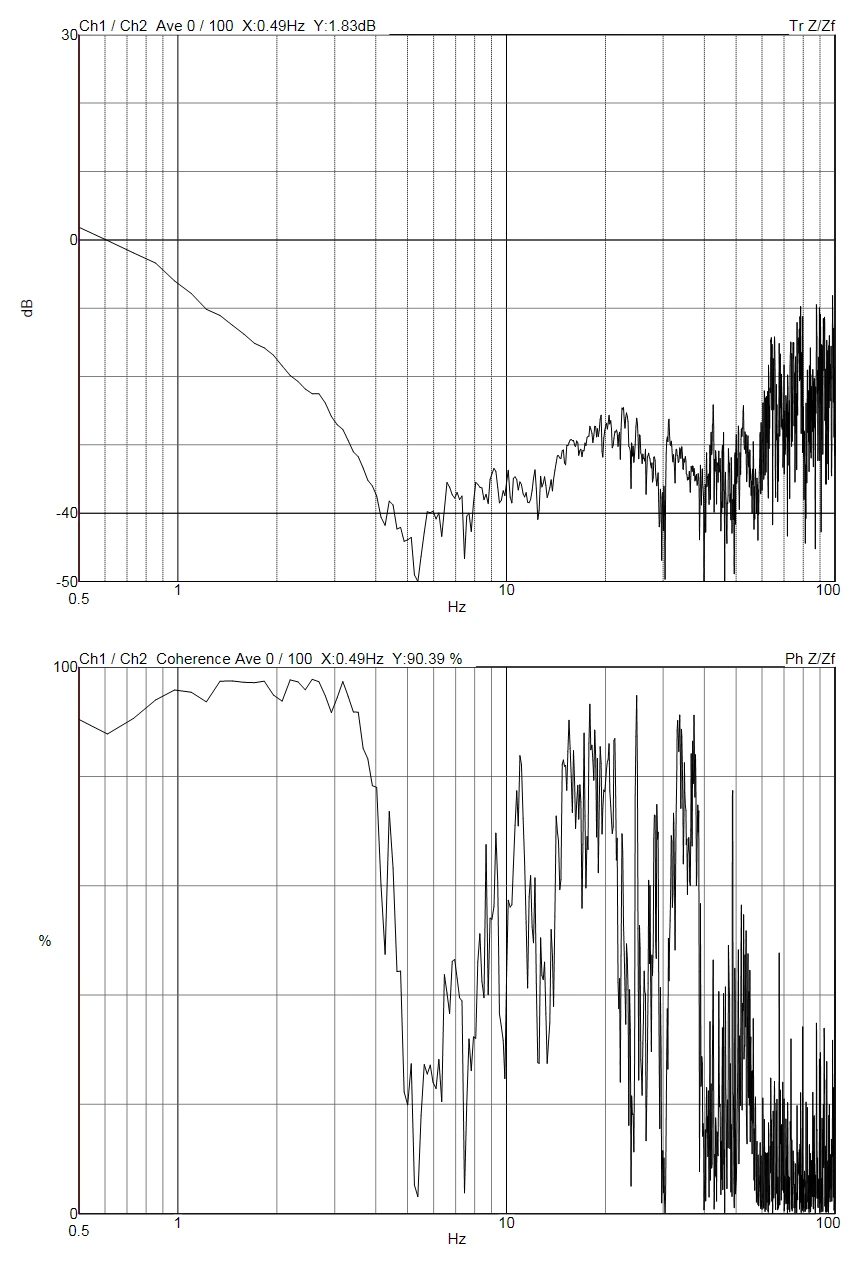

Z axis - internal program

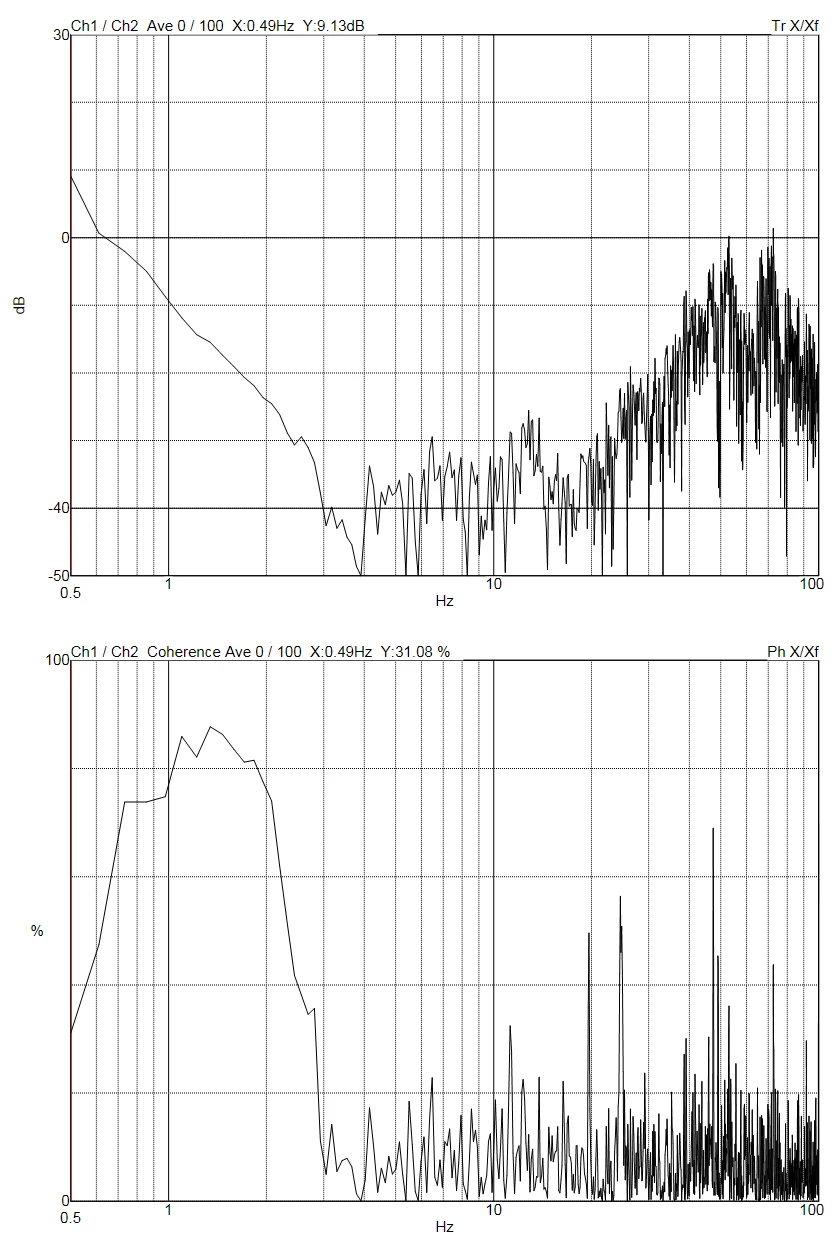

X axis - internal program

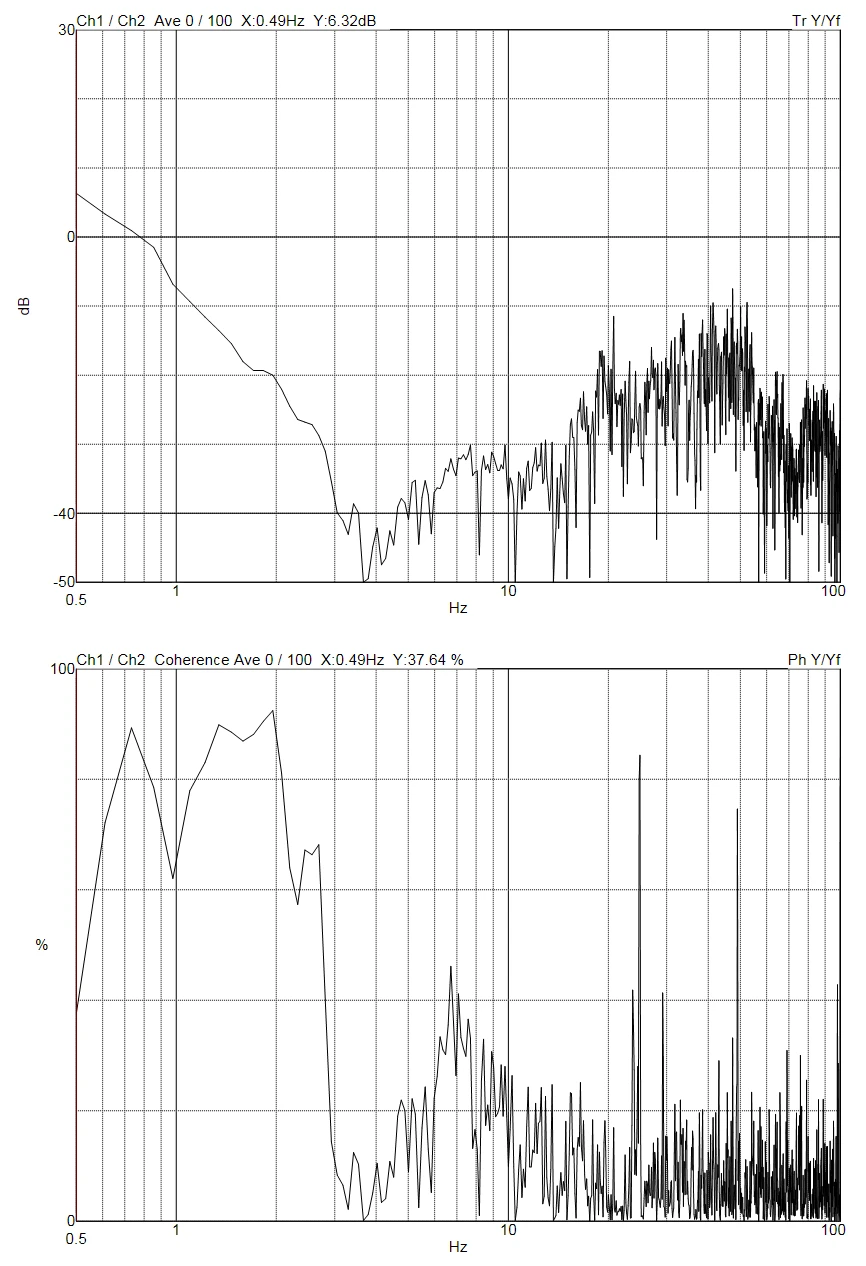

Y axis - internal program
Octave Band Result (BASE: Floor, TOP: Above Active)

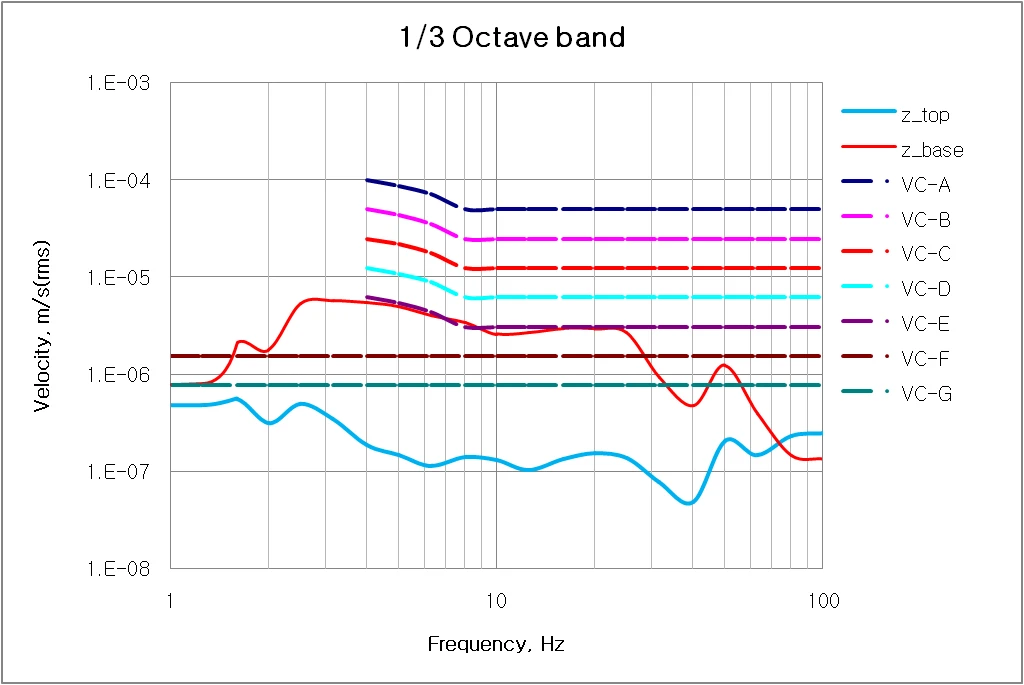

Z axis - octave band result

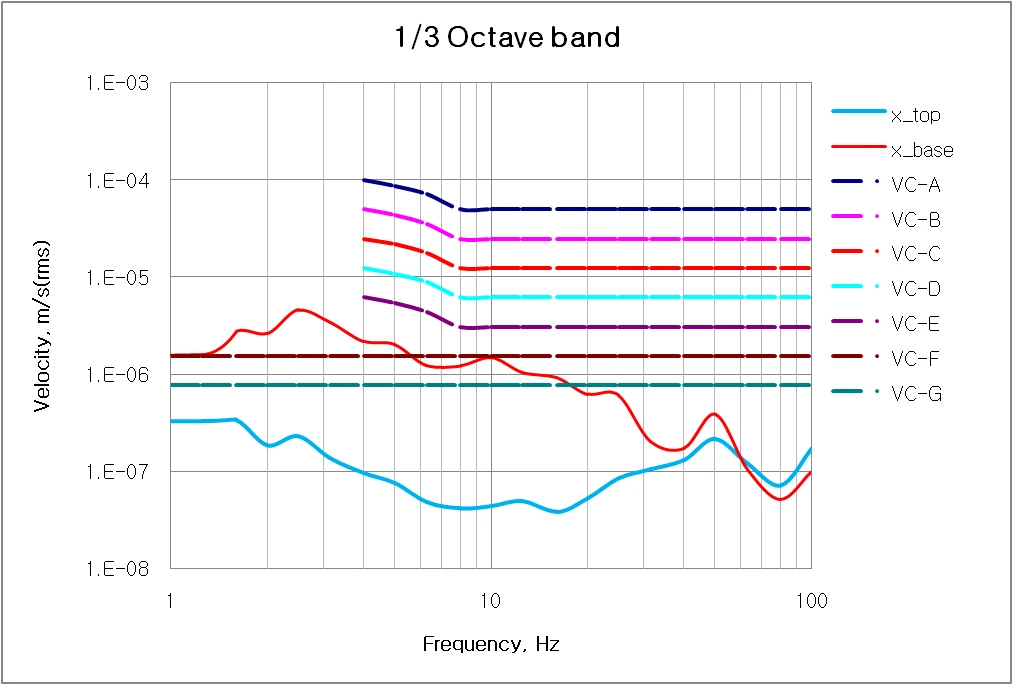

X axis - octave band result

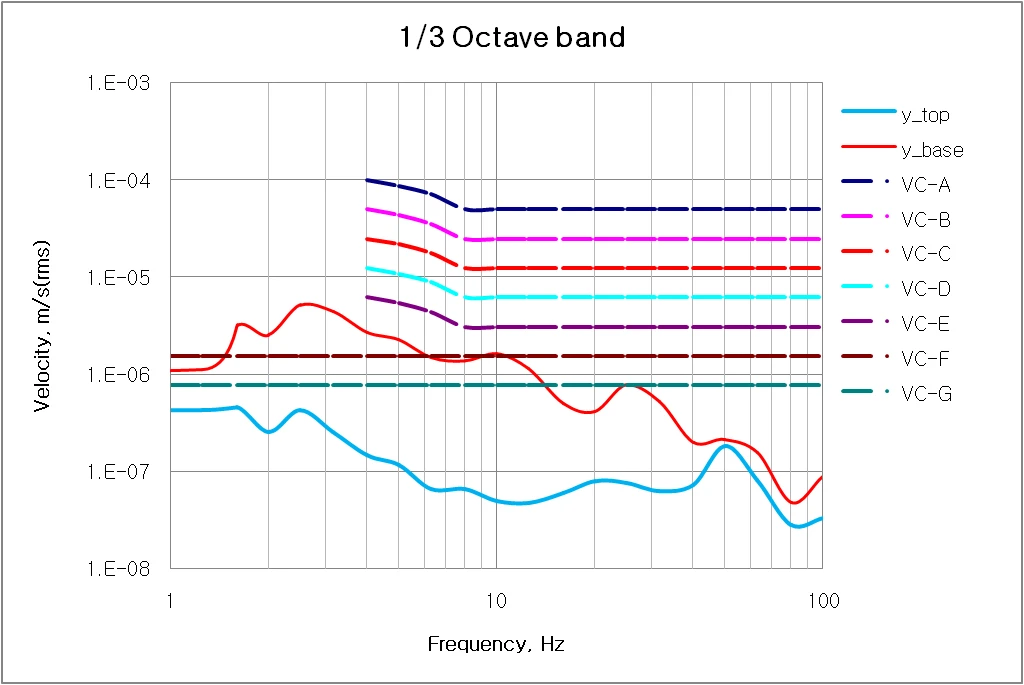

Y axis - octave band result
