Installation Report
DVIA-M Series
03-08-2018
FATRI-UTC ZEISS-Gemimi DVIA-MB1000 (P55) Installation Report — 2018.03.08
DVIA-M Series
Installation Report
DVIA-MB1000
MB1000
P55
FATRI-UTC
ZEISS
Quanzhou
Contents
FATRI-UTC In Quanzhou
(MB1000_P55 Set up)

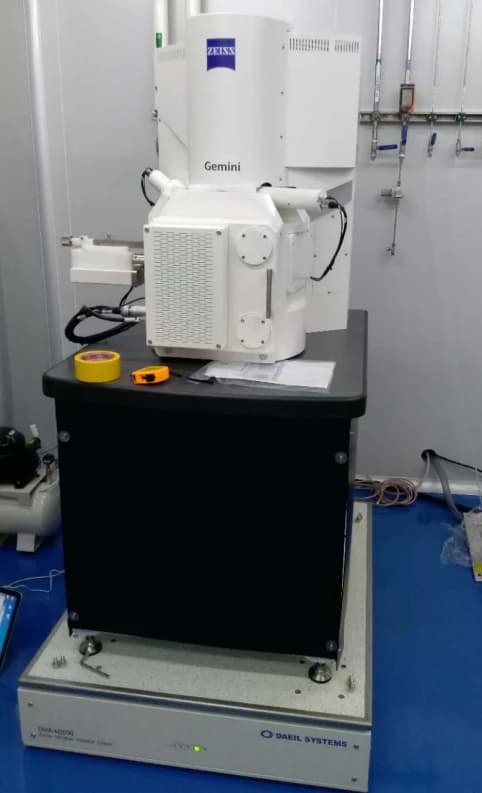

Target equipment photo
| Target equipment | ZEISS-Gemimi |
|---|---|
| Place of installation | 1st Floor, FATRI-UTC, Quanzhou |
| Uniqueness | Good performance |
| END USER | FATRI-UTC |
| Business traveler: Choi, HyoungMun | Date of business trip : 18.03.05~18.03.07 |
| Date Created : 18.03.08 |
Overview
After Active mounting, measure the vibration environment to check that there is no problem in using the equipment.
Measurement date
Measurement date: 2018.03.06 (Tuesday), Rater: Daeil System, Manager Choi , Hyoung Moon
Place of measurement
Place of measurement : 1st Floor, FATRI-UTC, Quanzhou (Analytical Clean Room)
Equipment Model
Equipment Model: ZEISS-Gemimi
Measurement conditions and results
N/A
Summary of measurement results
| Test Condition | VC-Class Z | VC-Class X | VC-Class Y |
|---|---|---|---|
| Floor | F | F | F |
| Above Active | G | G | G |
Good omnidirectional performance and attached VC-Class graph.
MB1000 internal program performance measurement result

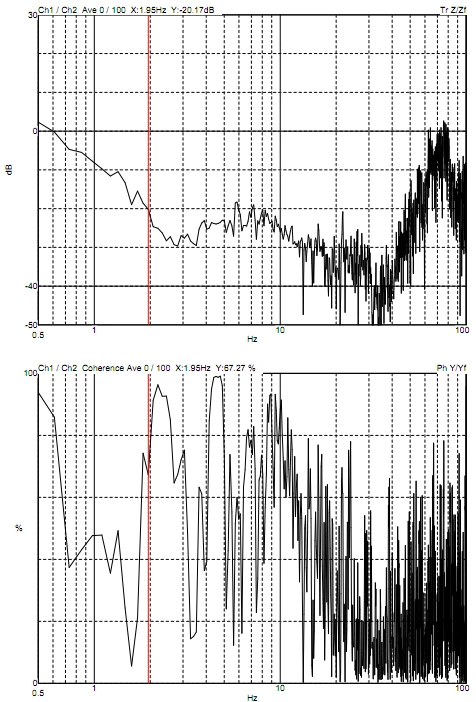

Z axis - internal program

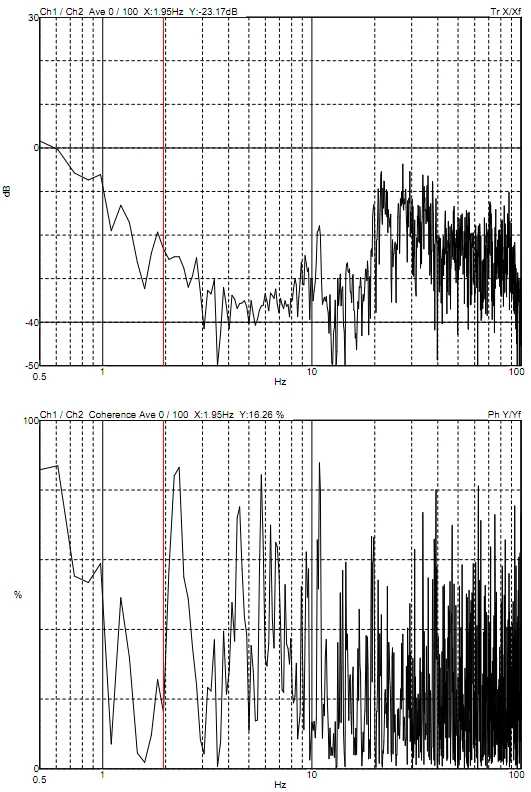

X axis - internal program

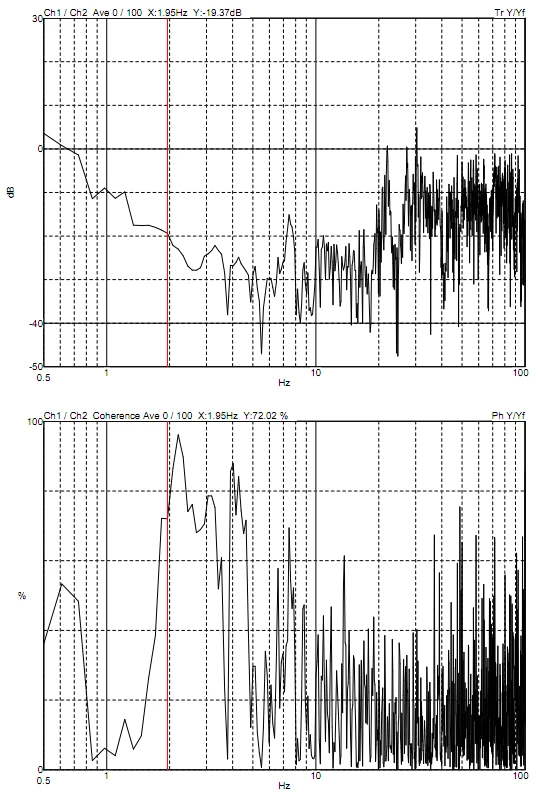

Y axis - internal program
Octave Band Result (BASE: Floor, TOP: Above Active)

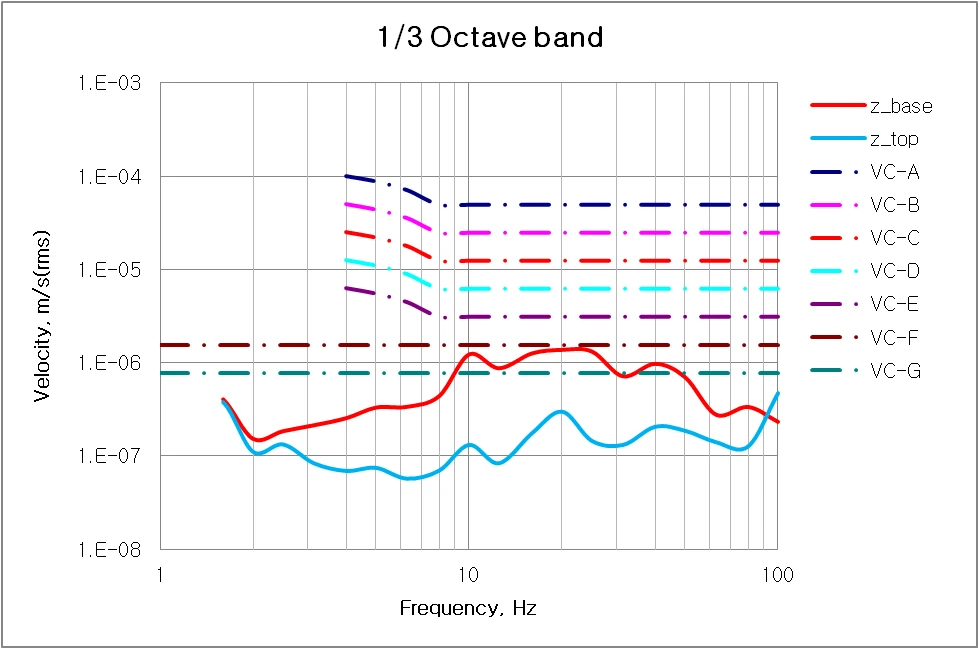

Z axis - octave band result

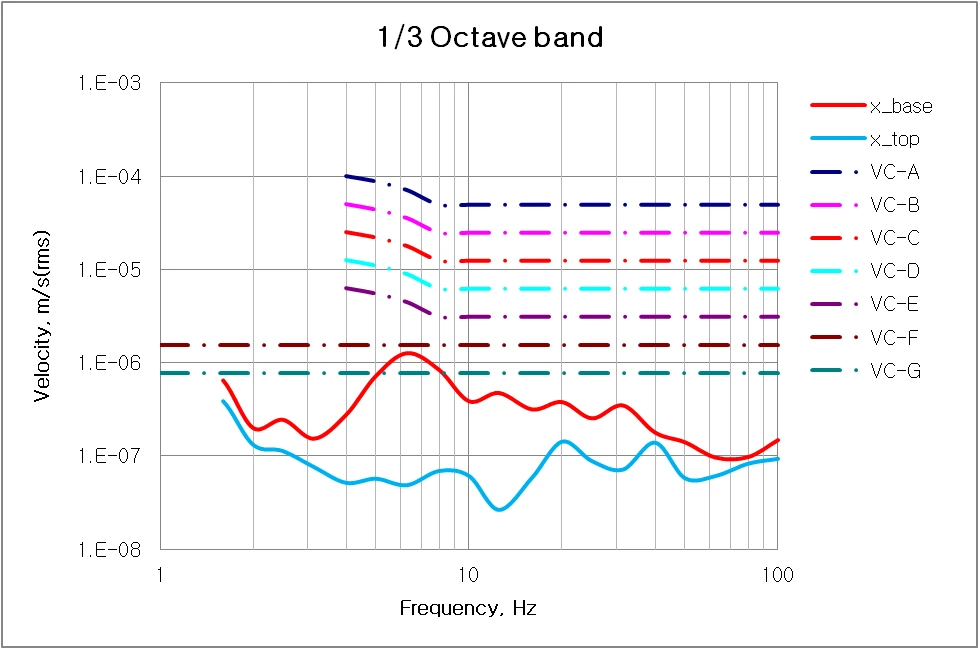

X axis - octave band result

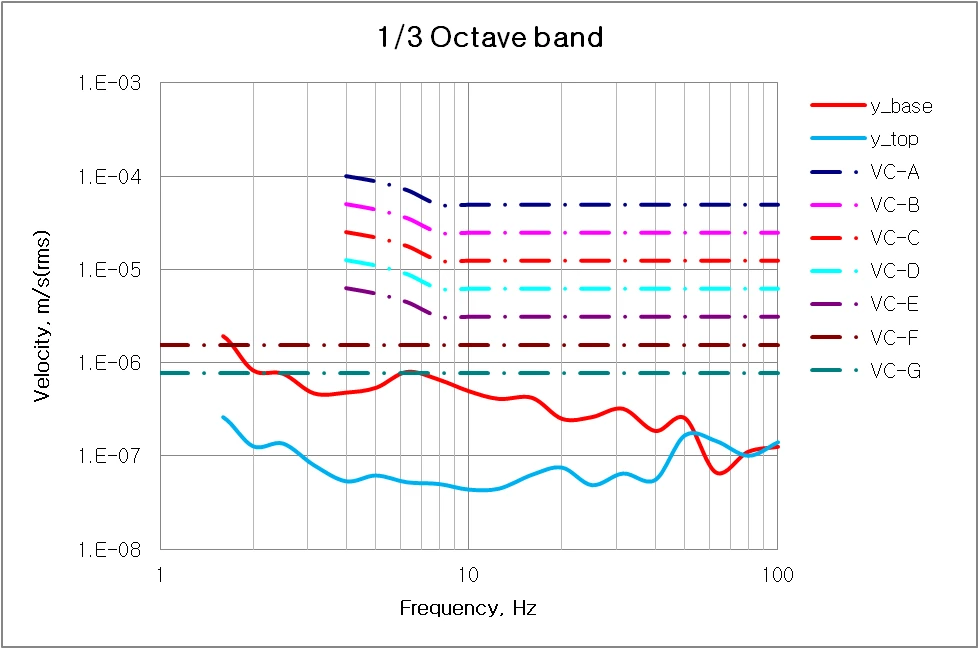

Y axis - octave band result
